Torque Specifications

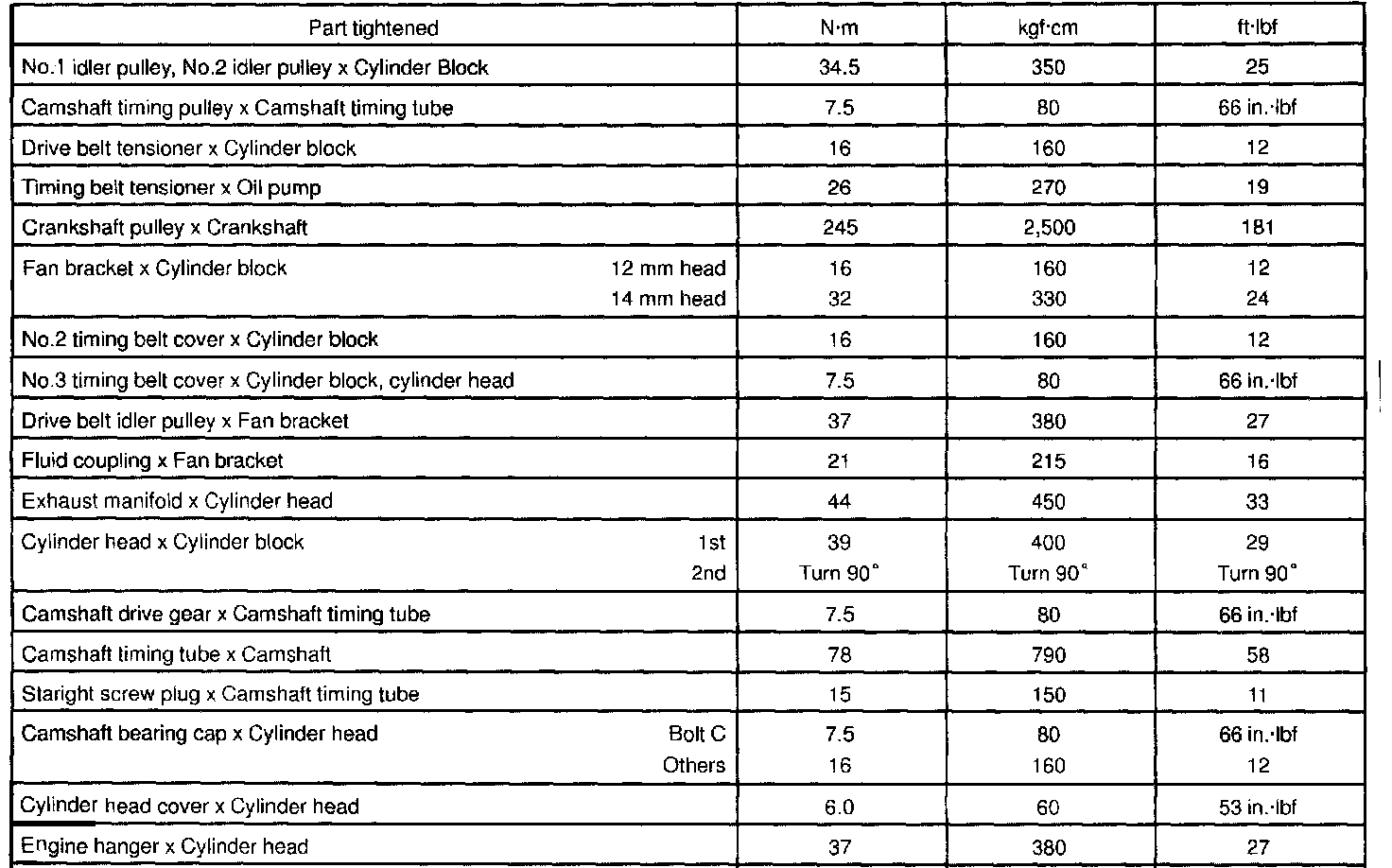

4.0L Engine Mechanical Torque:

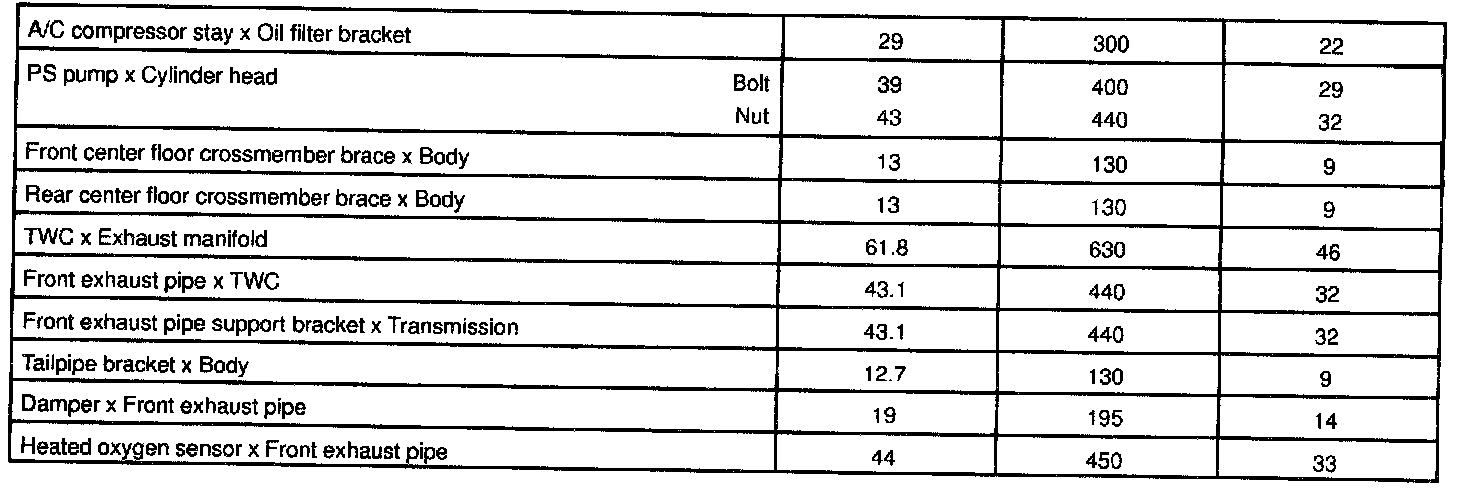

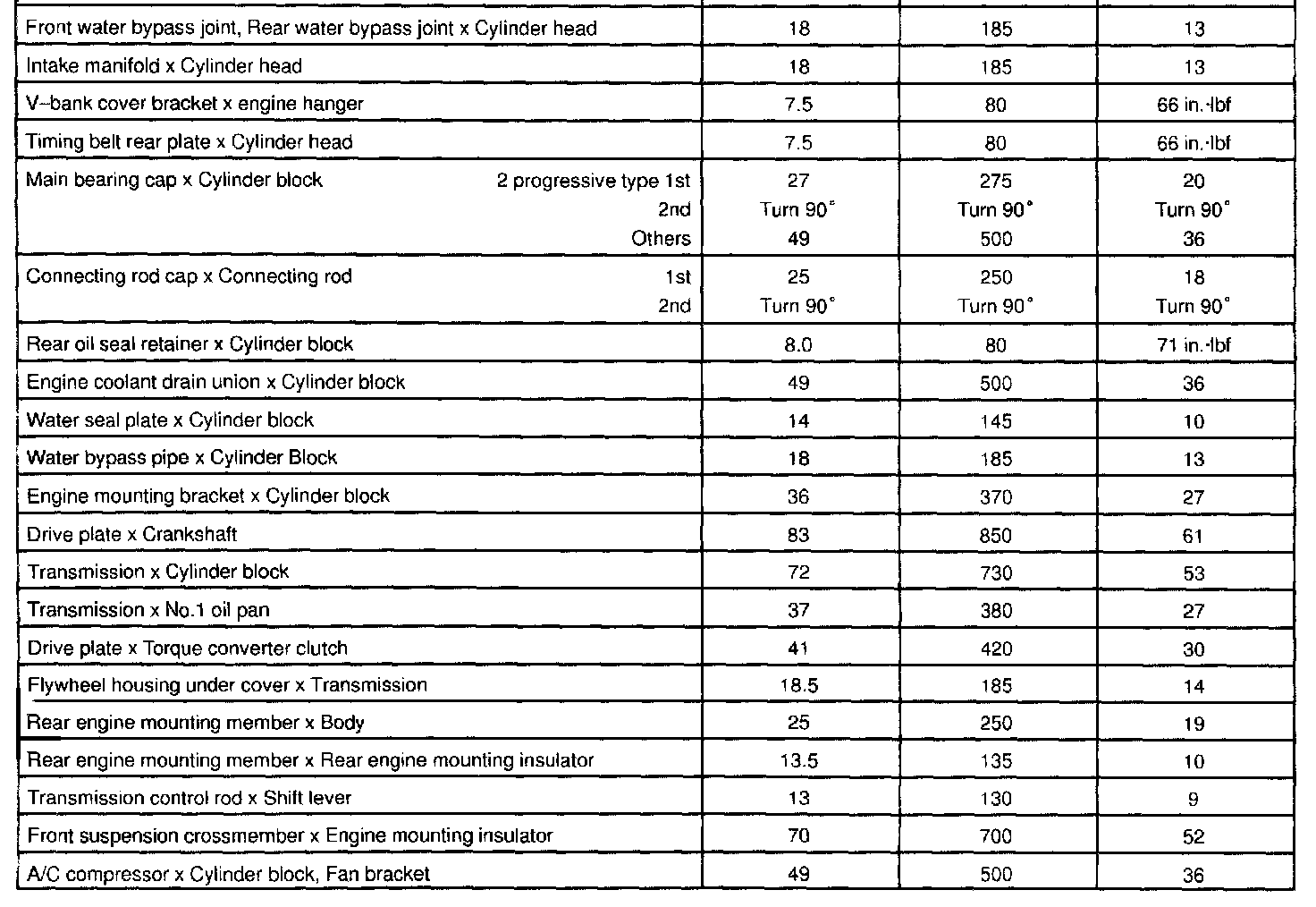

4.0L Engine Torque Cont.:





4.0L Engine Torque Cont.:

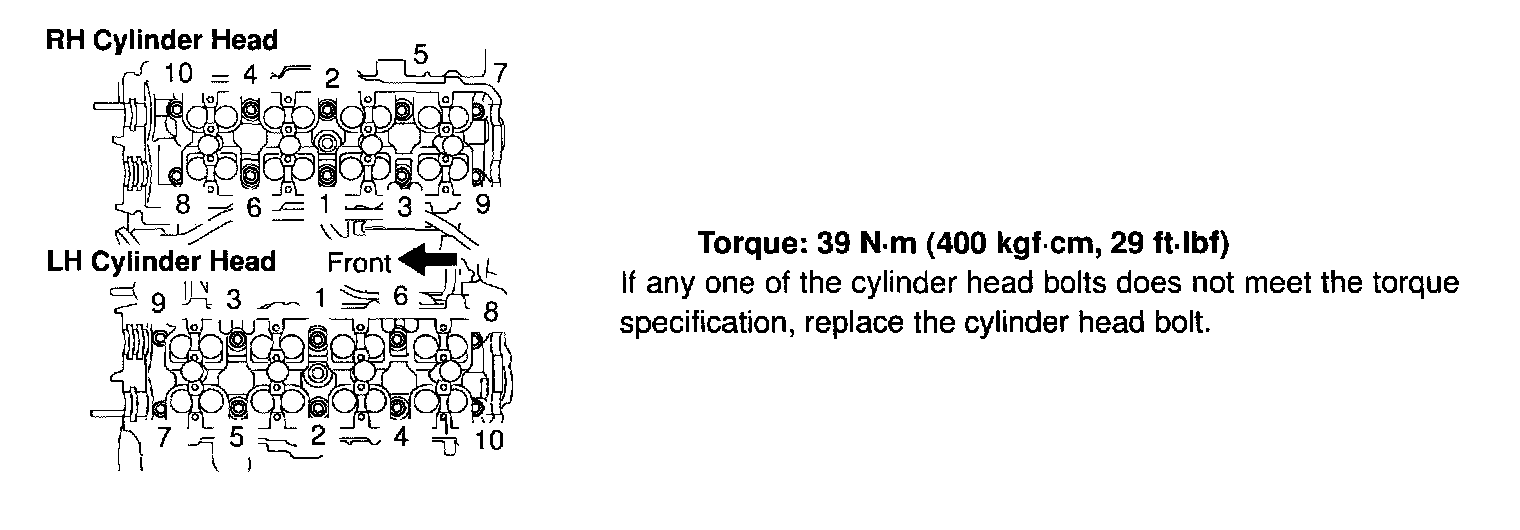

4.0L Cylinder Head Torque & Sequence:

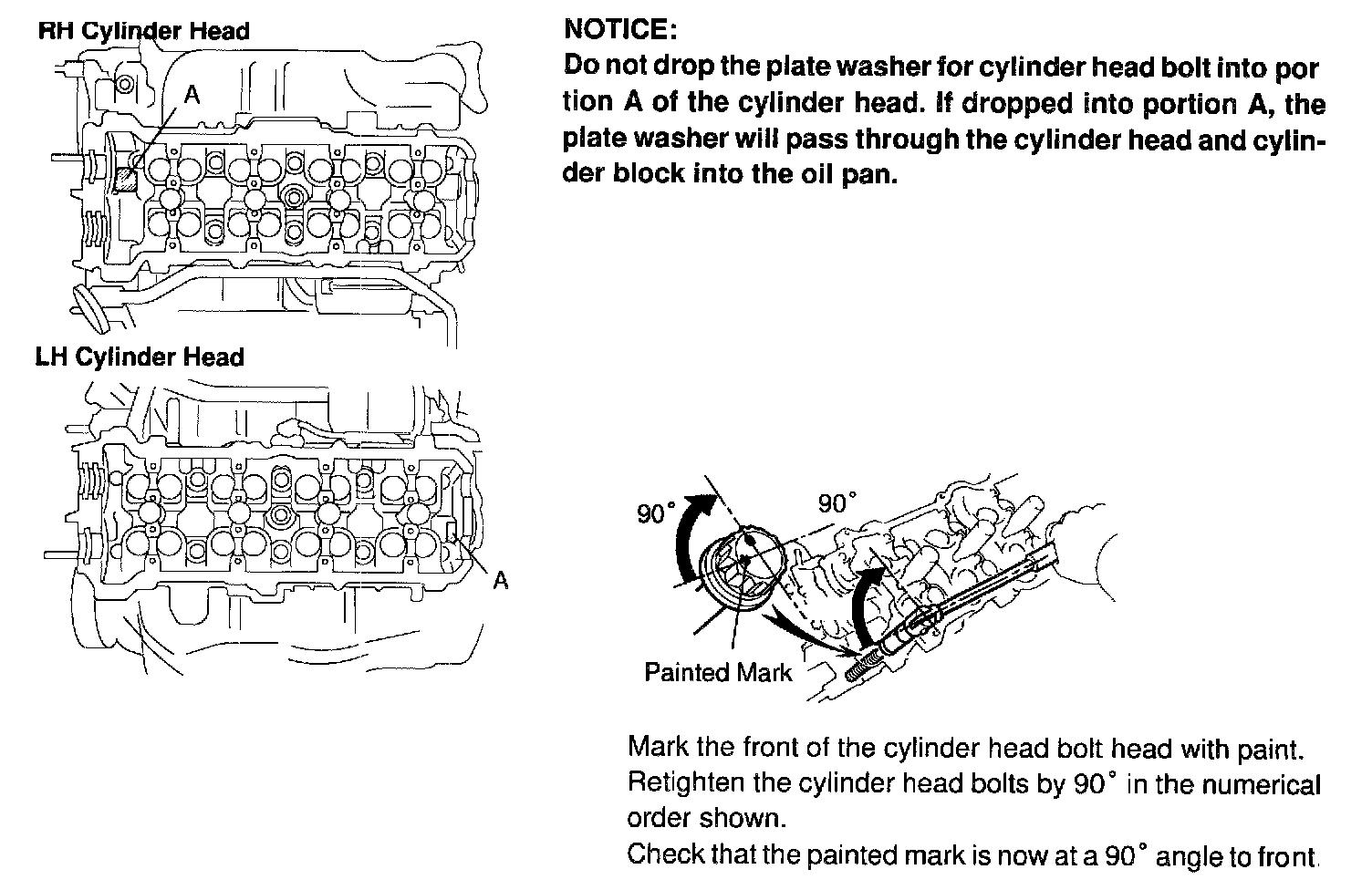

4.0L Cylinder Head Torue & Sequence Cont.:
