A/T Models

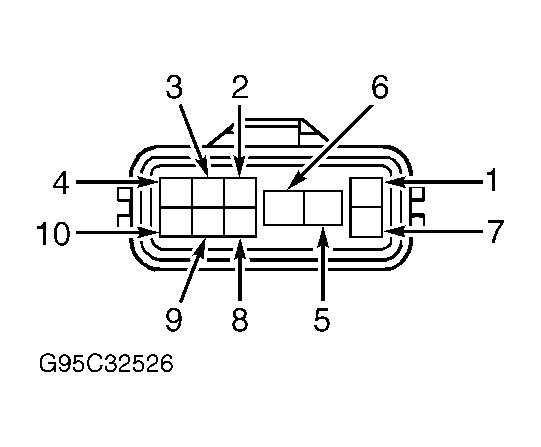

- Disconnect electrical connector at Park/Neutral Position (PNP) switch. PNP switch is mounted on side of transmission. Note terminal identification. See Fig 1.
- Using ohmmeter, check for continuity between specified terminals with shift lever in proper positions. See PARK/NEUTRAL POSITION SWITCH SPECIFICATIONS table. If proper continuity cannot obtained, adjust or replace PNP switch as necessary.
PARK/NEUTRAL POSITION SWITCH SPECIFICATIONS
| Application & Shift Lever Position | Continuity Between Terminals No. |
|---|---|
| Park | 4 & 7; 5 & 6 |
| Reverse | 4 & 8 |
| Neutral | 4 & 10; 5 & 6 |
| Drive | 4 & 9 |
| 2 | 2 & 4 |
| Low | 3 & 4 |
