Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|

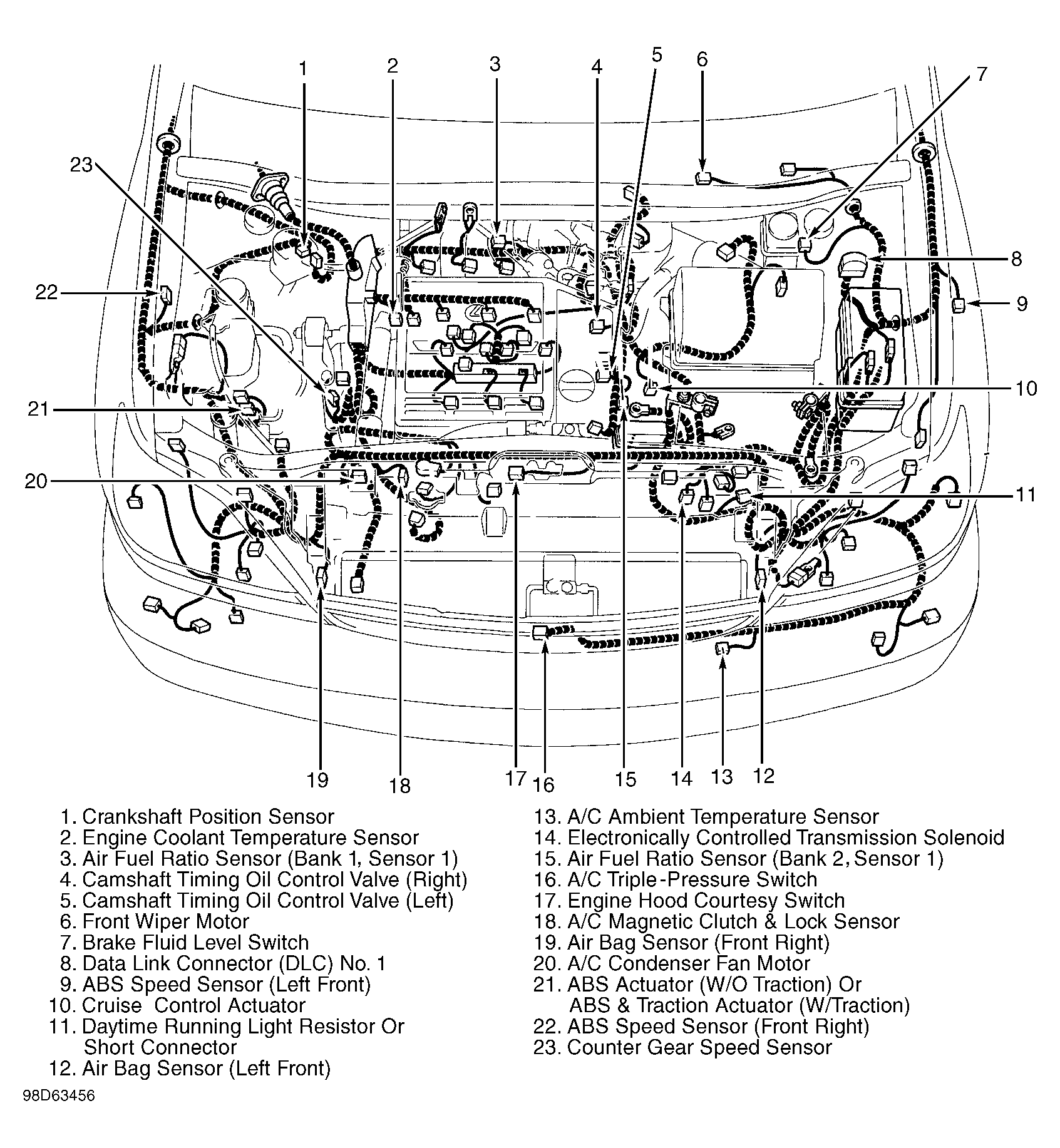

| Data Link Connector (DLC) No. 1 | In left rear corner of engine compartment. See Figure. |
| Daytime Running Light Resistor | On left front of engine compartment. See Figure. |
| Diode (Rear Interior Light) | In rear center of roof. |
| Ignition Coil & Ignitor | On top of each respective cylinder. |
| Junction Connector No. 1 | In engine compartment, on right front fender. See Figure. |
| Junction Connector No. 2 | In left front of engine compartment, behind headlight. See Figure. |
| Junction Connector No. 11, 12 & 15 | In left side of luggage compartment. |
| Junction Connectors No. 13 & 14 | In left side of liftgate. |
| Junction Connectors No. 16 & 17 | Under driver's seat. |
| Junction Connector No. 18 | Under passenger's seat. |
| Noise Filter (DEF) | In center of liftgate. |
| Noise Filter (Ignition System) | In left rear of engine compartment, near air cleaner housing. See Figure. |
| Pretensioner (Left/Right) | In base of respective "B" pillar. |
| Short Connector | On left front of engine compartment. See Figure. |
| Stereo Component Amplifier | Under rear seat. See Figure. |
| Telephone Transceiver & Speaker Relay | On left side of luggage compartment. See Figure. |
| Theft Deterrent Horn | In right rear corner of engine compartment. See Figure. |
| Transponder Key Amplifier | Behind left side of dash. See Figure. |
