Light Control Switch Circuit

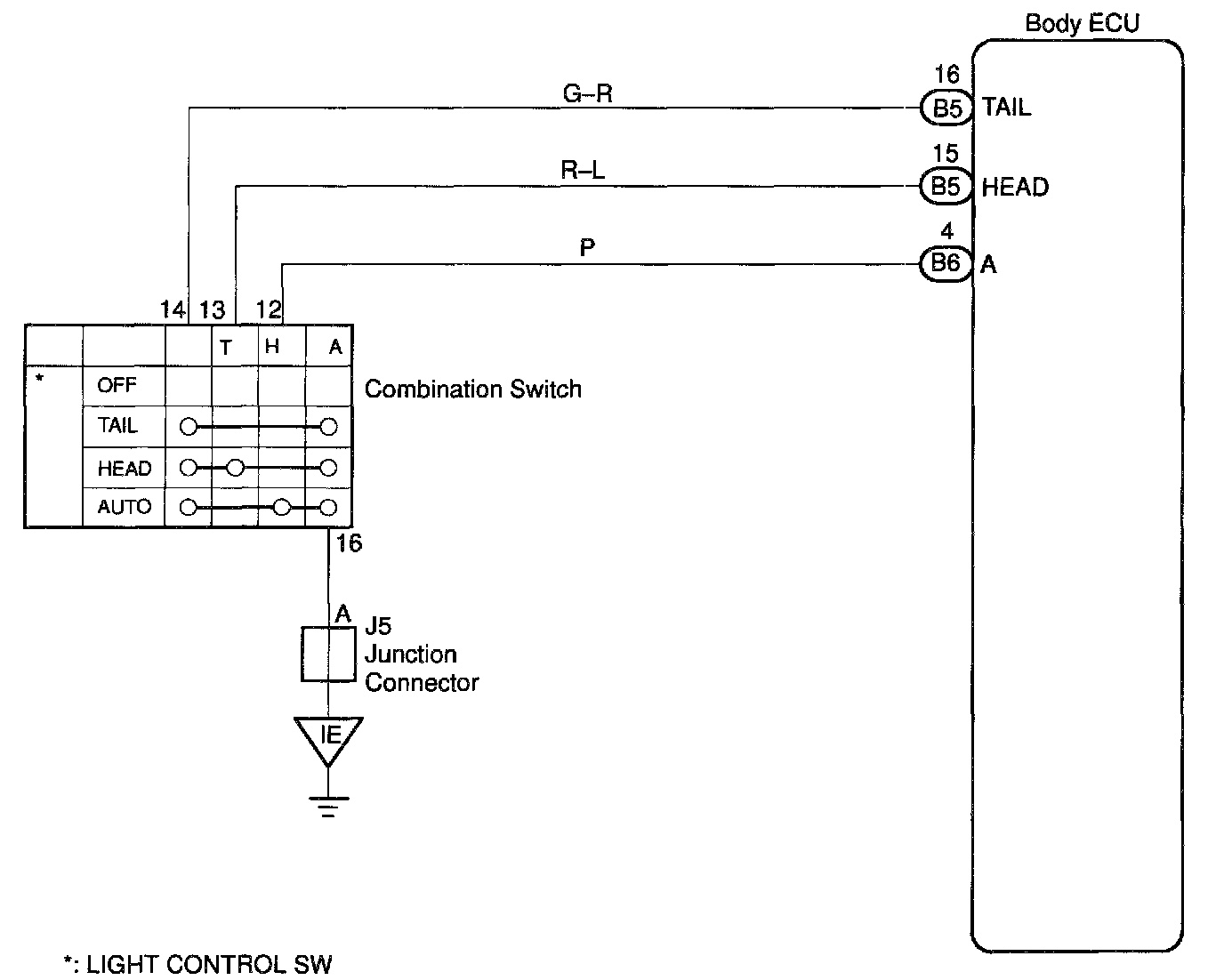

WIRING DIAGRAM

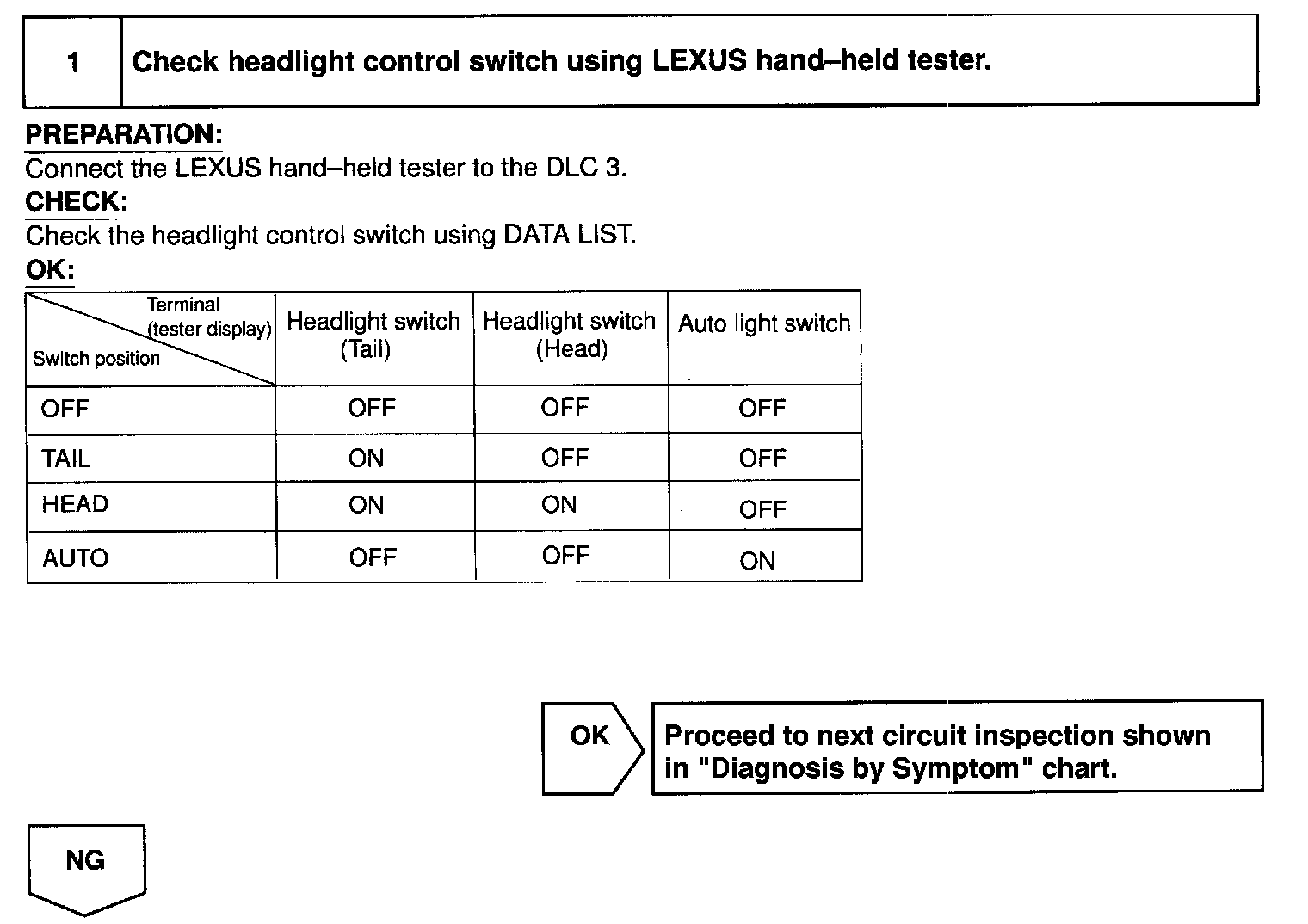

Step 1:

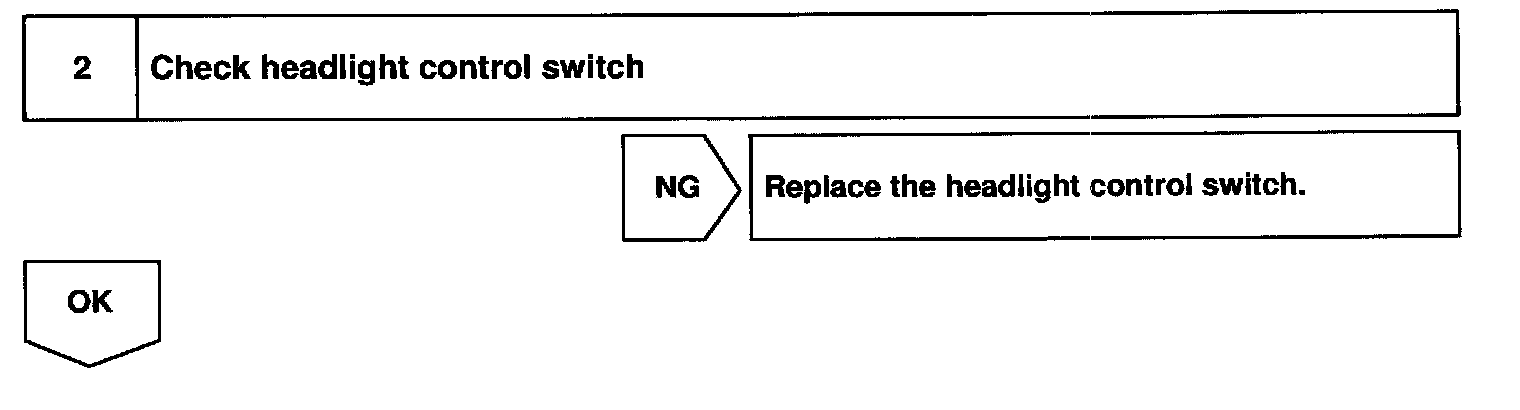

Step 2:

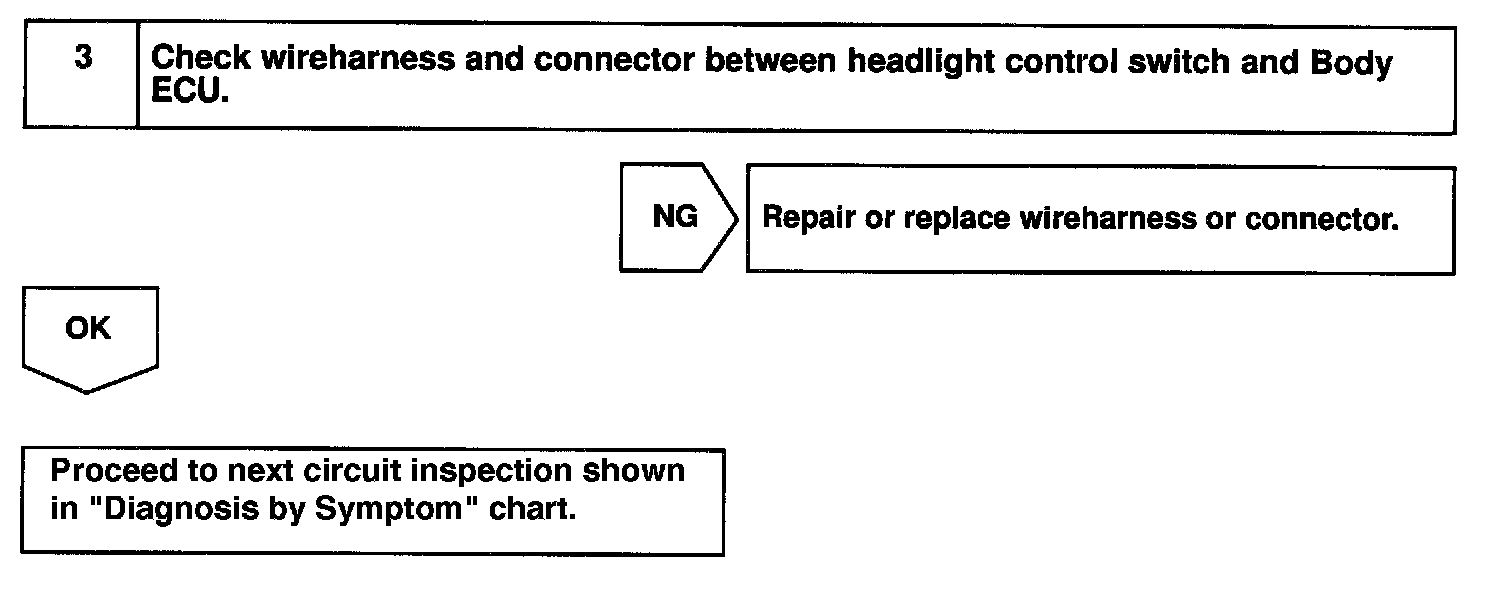

Step 3:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester start the inspection from step 1 and in case of not using the LEXUS hand-held tester start from step 2.
