Air Flow Meter/Sensor: Service and Repair

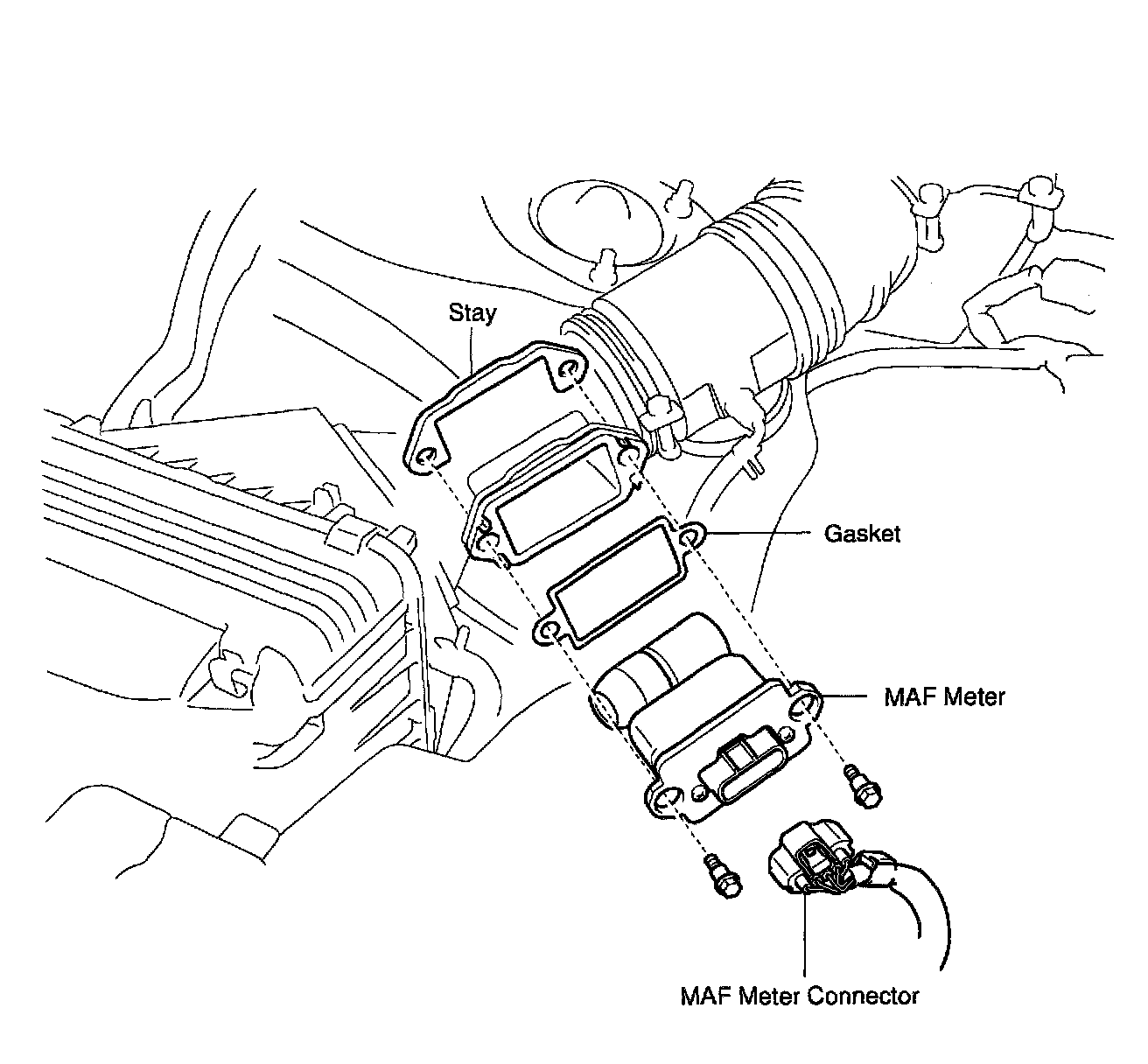

COMPONENTS

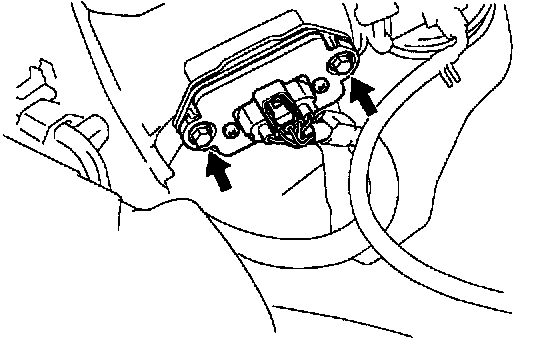

REMOVE MAF METER





a. Disconnect the MAF meter connector.
b. Remove the 2 bolts, MAF meter, gasket and stay.

REINSTALL MAF METER
a. Install the gasket to the MAF meter.
b. Install the MAF meter with the 2 bolts and stay.

Torque: 10.7 N.m (109 kgf.cm 8 ft.lbf)

c. Connect the MAF meter connector.
