Transmission Position Sensor/Switch: Testing and Inspection

CIRCUIT DESCRIPTION

The park/neutral position switch detects whether the shift position is in P position or in another position, and sends a signal to the ECU.

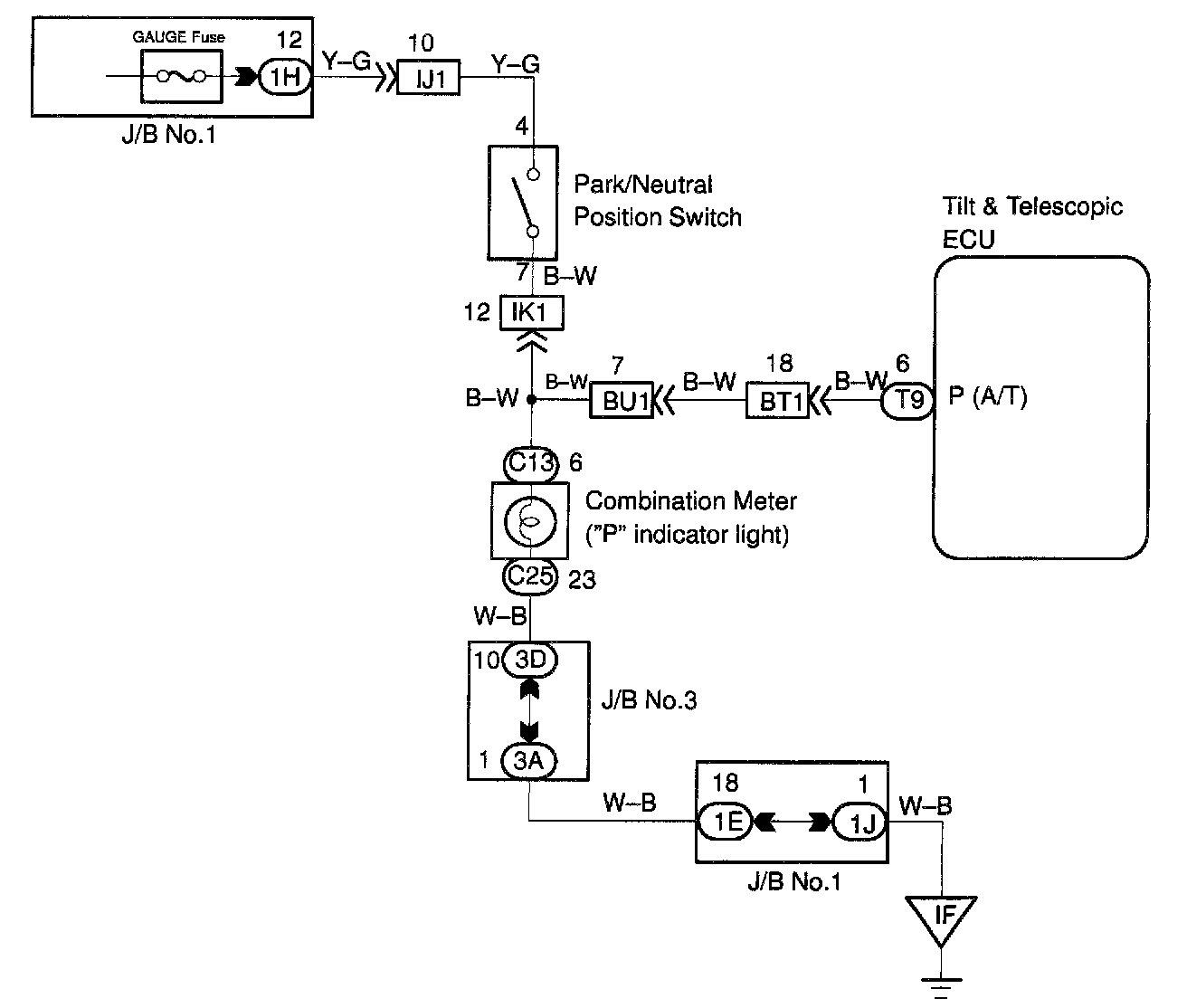

WIRING DIAGRAM

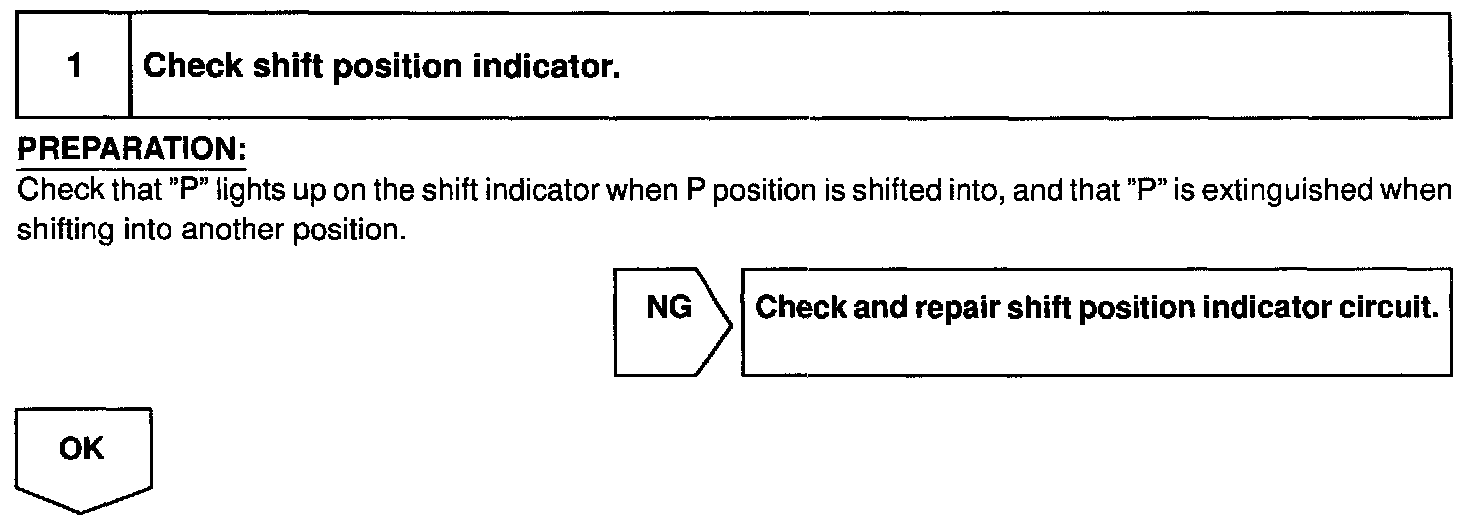

Step 1:

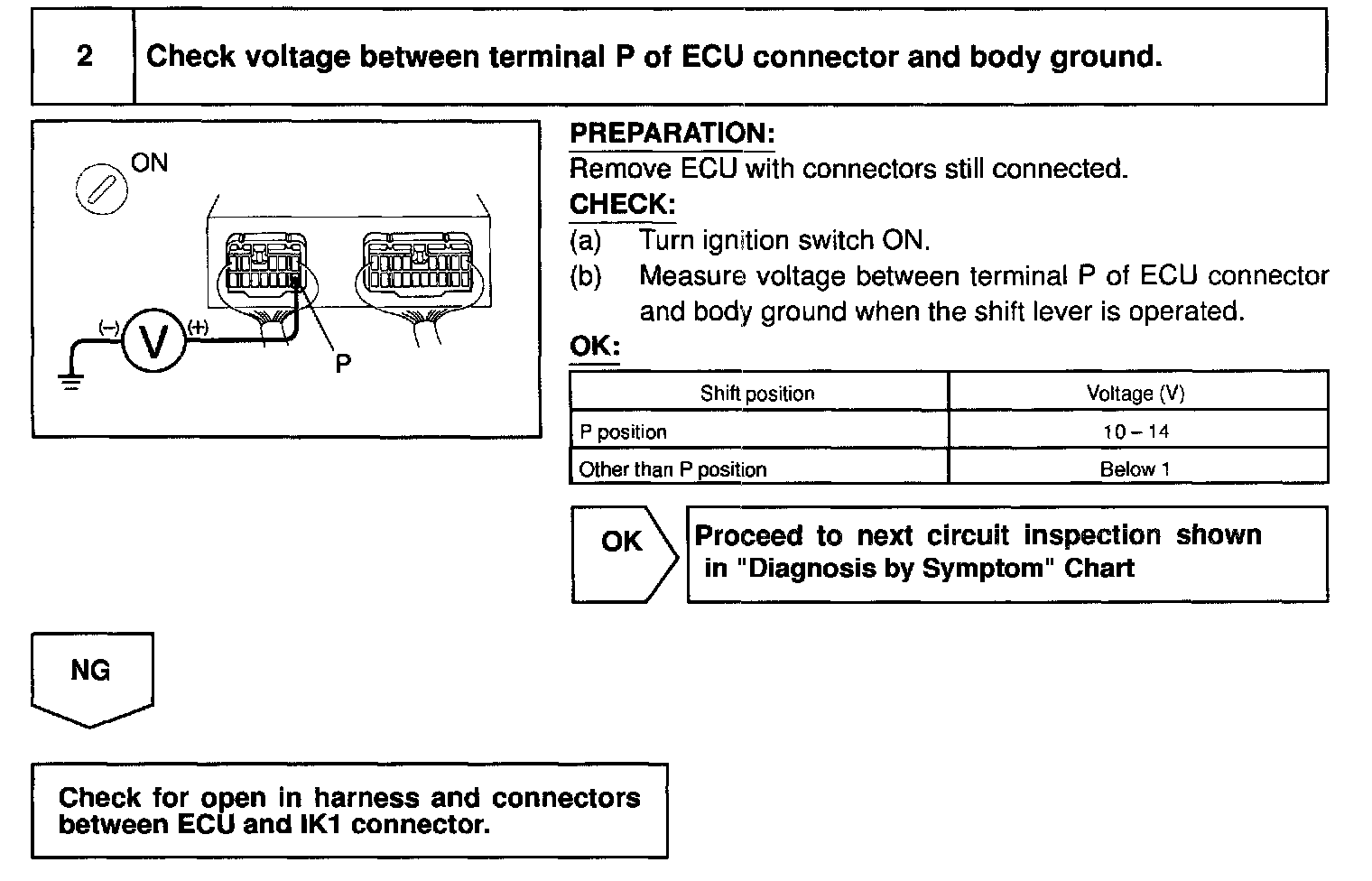

Step 2:

INSPECTION PROCEDURE
