Back-Up Power Source Circuit

CIRCUIT DESCRIPTION

This is the back-up power source for the A/C control assembly. Power is supplied even when the ignition switch is off and is used for DTC memory, etc.

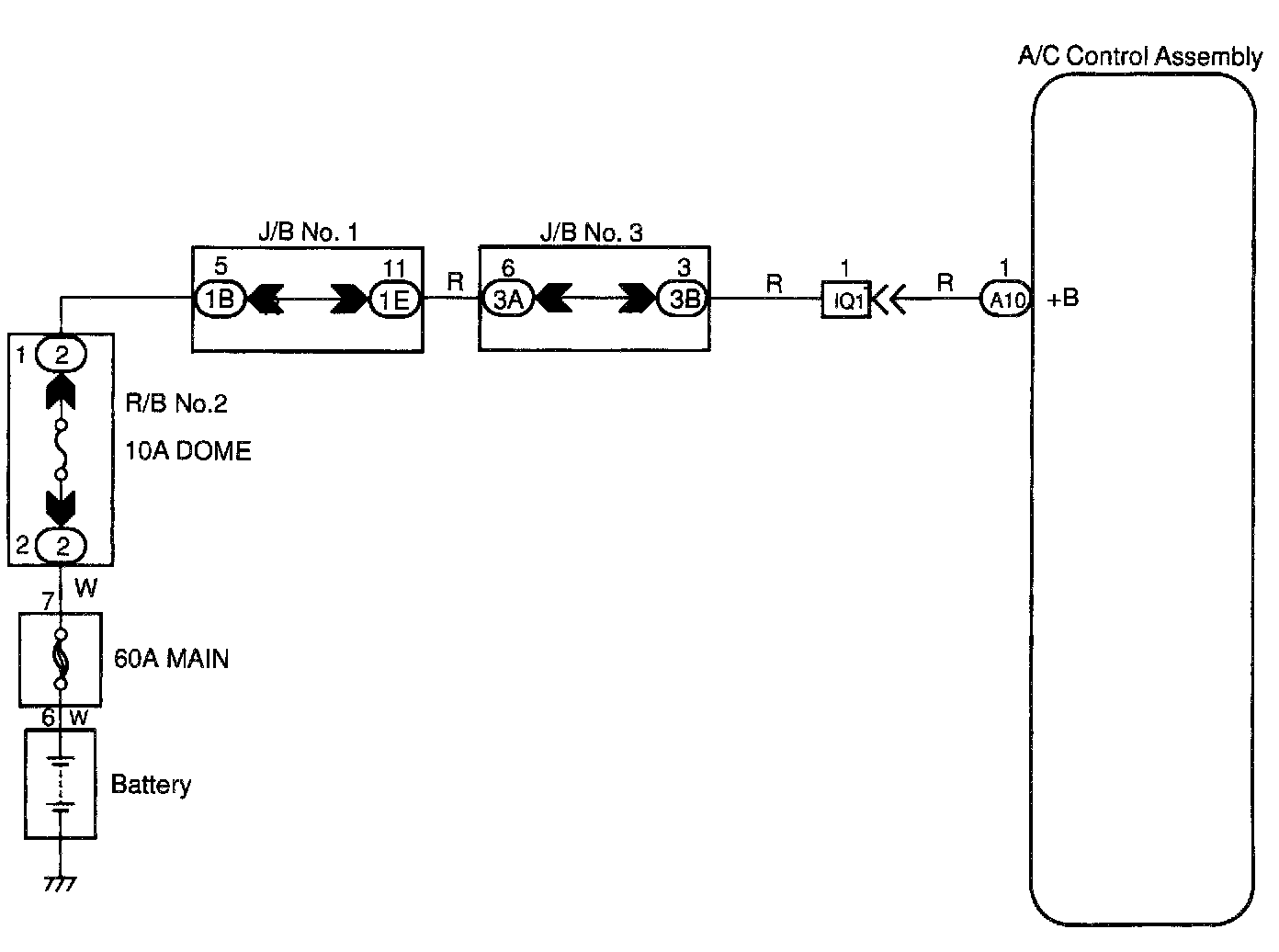

WIRING DIAGRAM

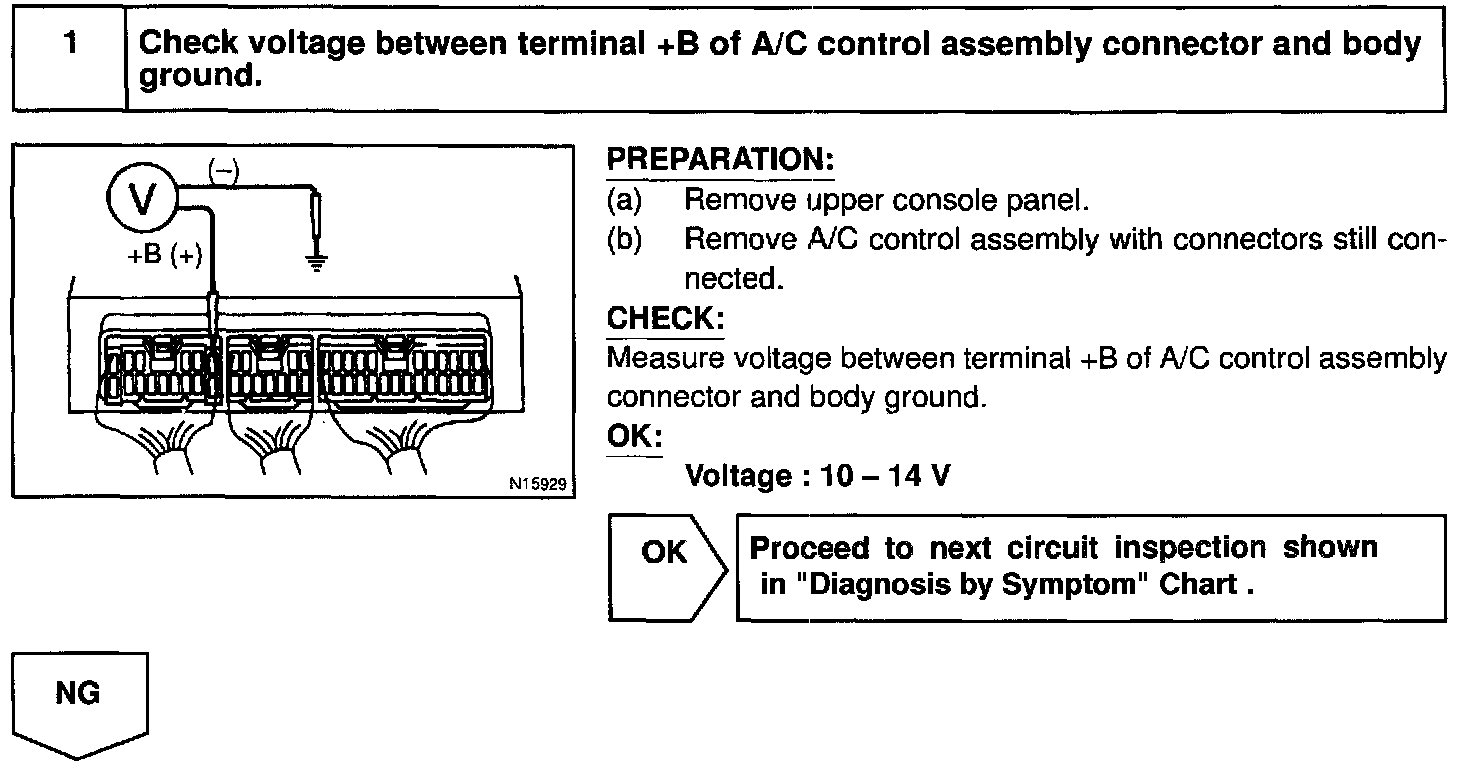

Step 1:

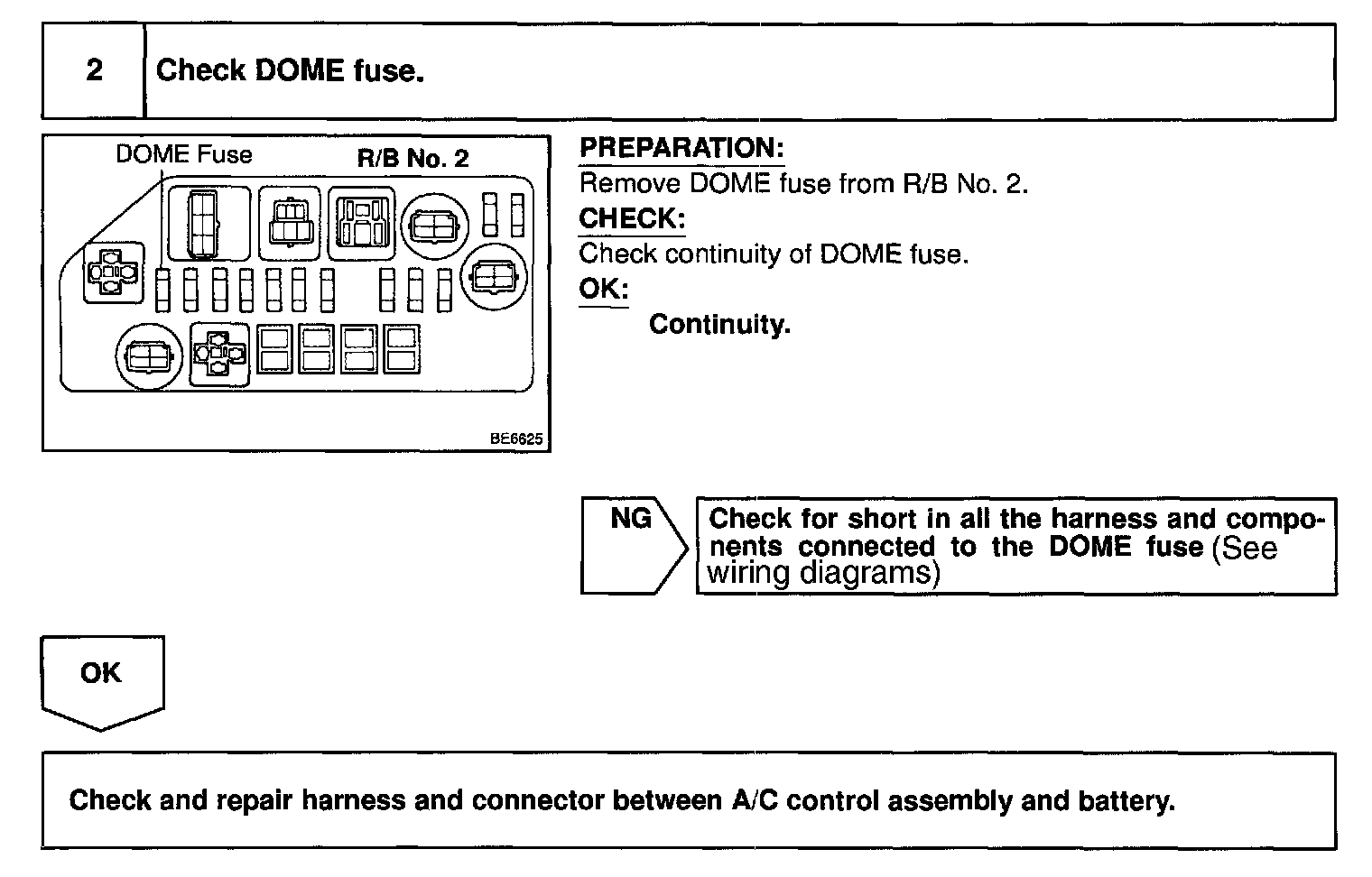

Step 2:




INSPECTION PROCEDURE
