IG Power Source Circuit

CIRCUIT DESCRIPTION

This is the power source for the A/C control assembly (contains the A/C control assembly) and servomotor, etc.

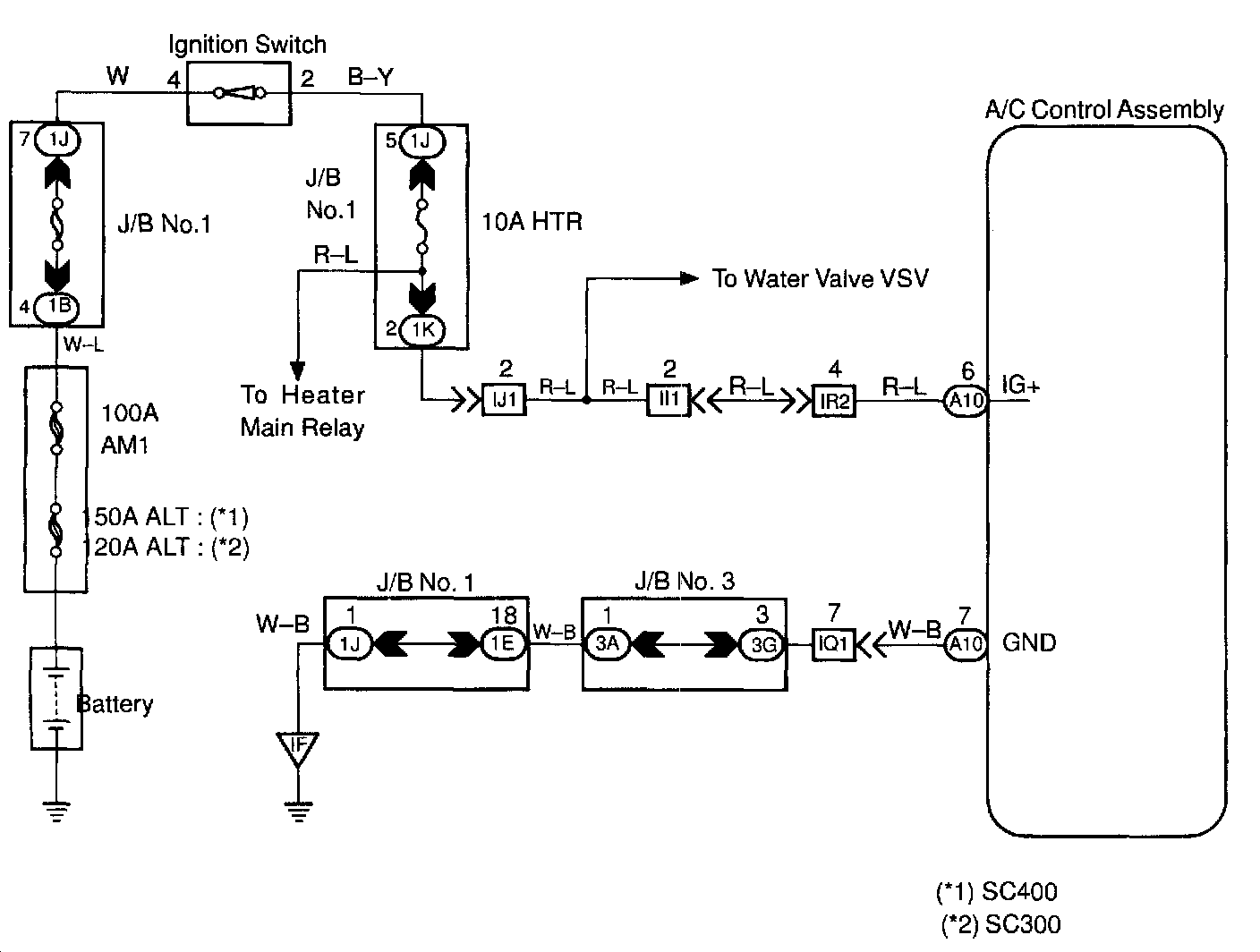

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

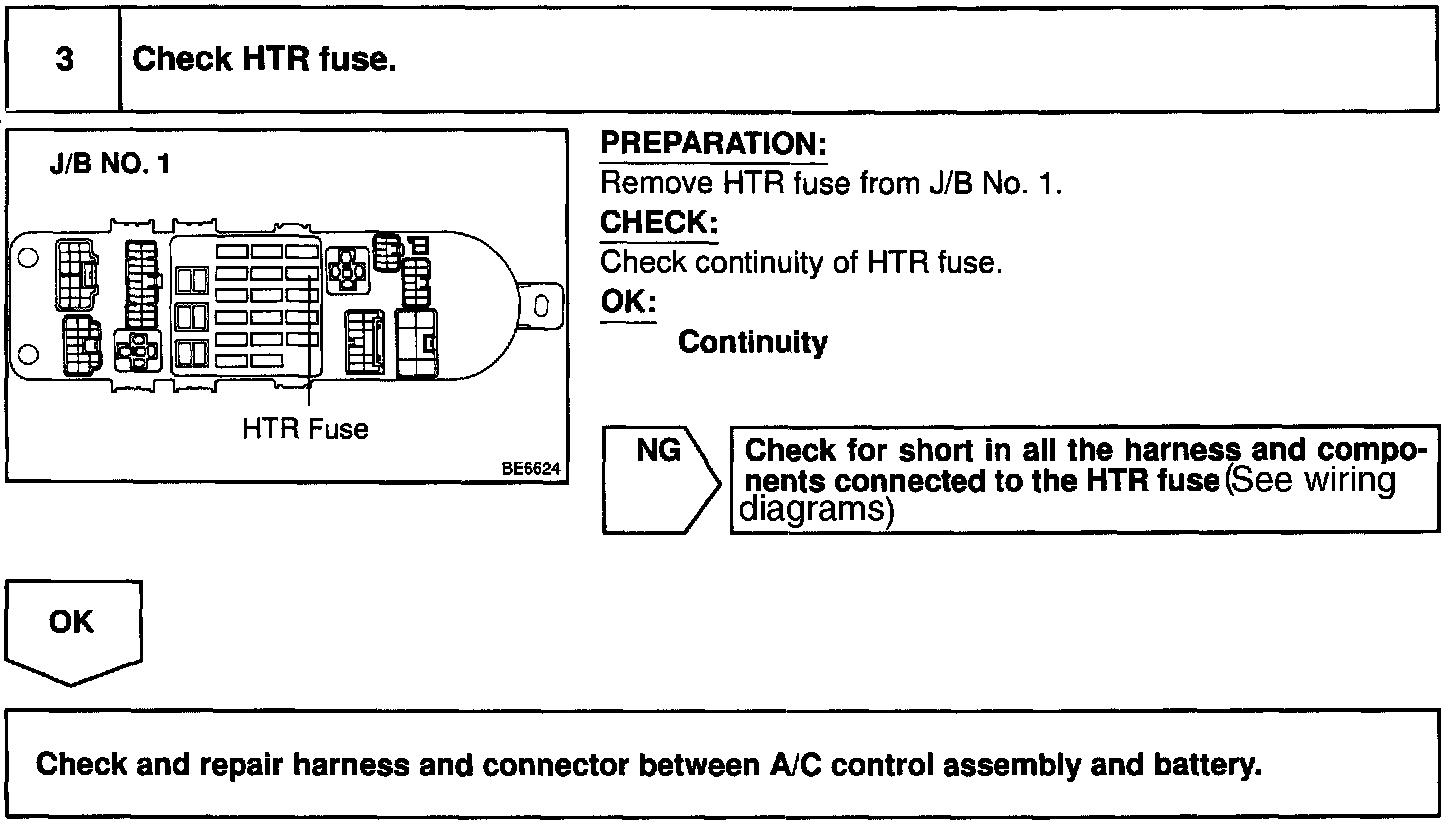

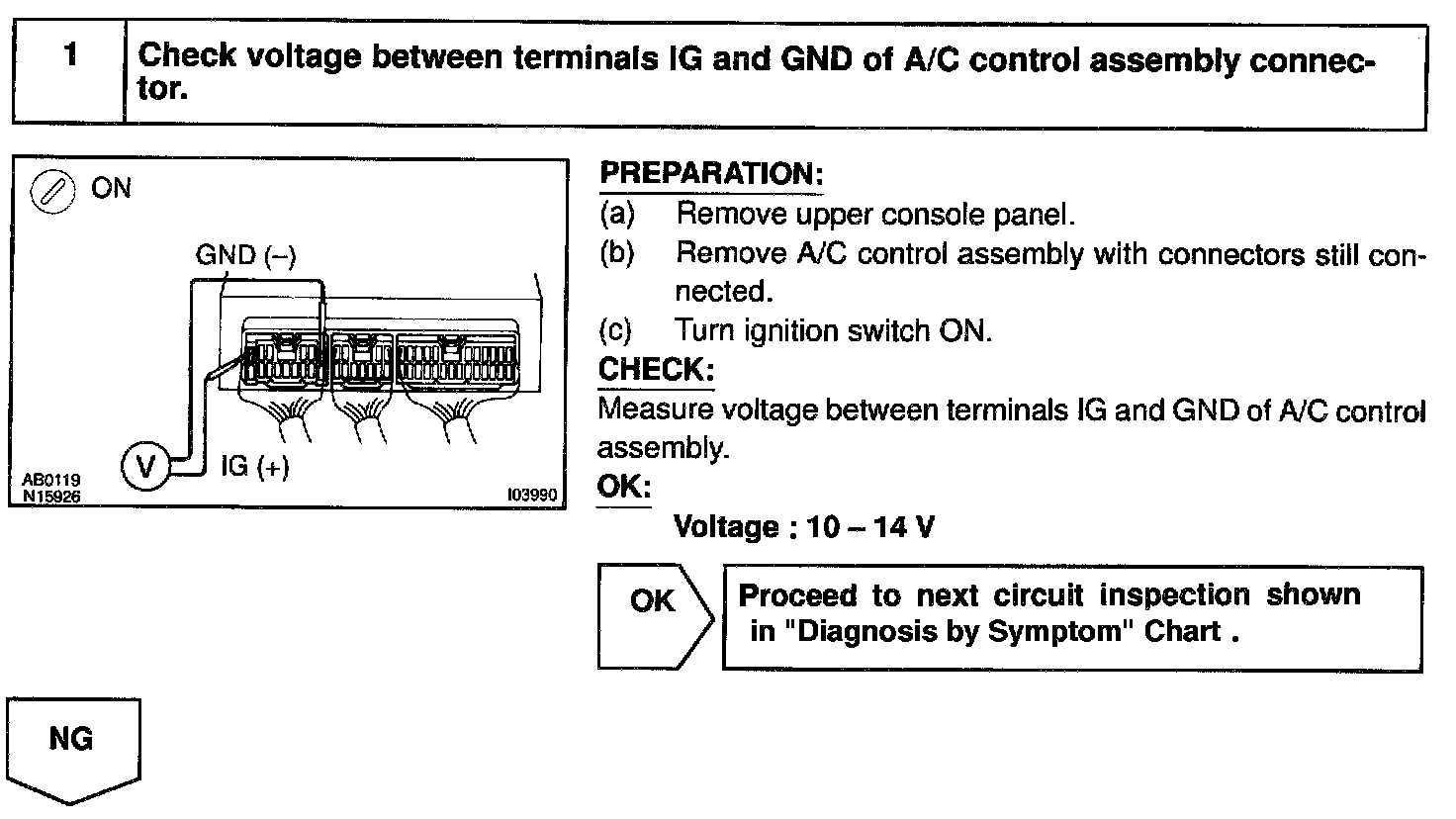

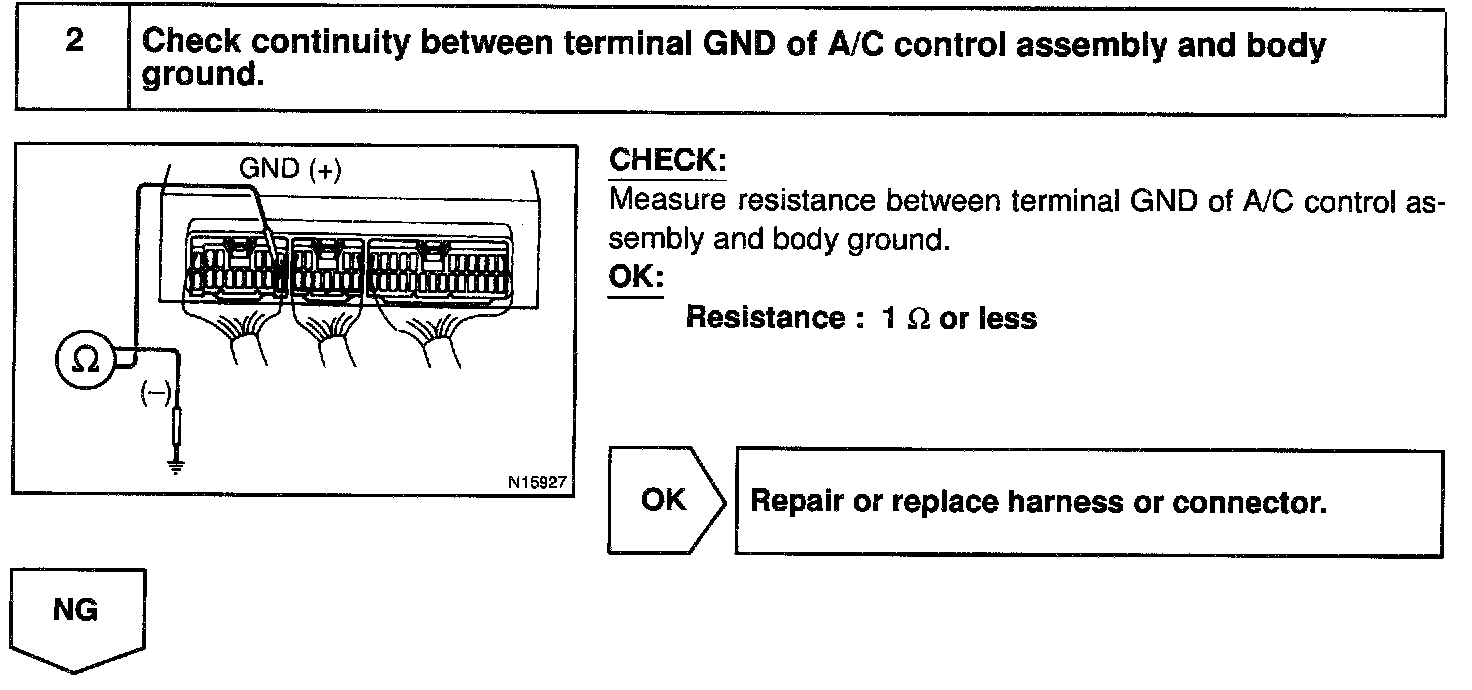

INSPECTION PROCEDURE
