Data Link Connector: Testing and Inspection

DLC 3 INSPECTION

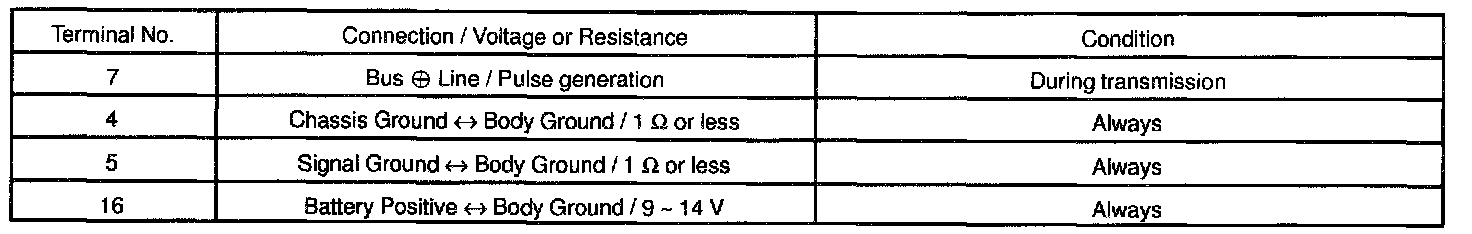

Check the DLC 3

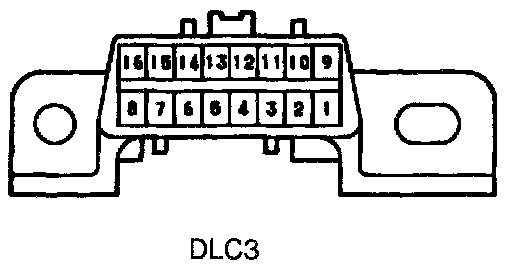

The vehicle's ECM uses the ISO 9141-2 communication protocol. The terminal arrangement of DLC 3 complies with SAE J1962 and matches the ISO 9141-2 format.

HINT: If your display shows "UNABLE TO CONNECT TO VEHICLE" when you have connected the cable of the OBD II scan tool or TOYOTA hand-held tester to DLC3, turned the ignition switch ON and operated the scan tool, there is a problem on the vehicle side or tool side.

- If communication is normal when the tool is connected to another vehicle, inspect DLC3 on the original vehicle.
- If communication is still not possible when the tool is connected to another vehicle, the problem is probably in the tool itself.
