Memory Positioning Switch: Testing and Inspection

CIRCUIT DESCRIPTION
Seat memory switch send memory and return signals to the seat position control ECU.

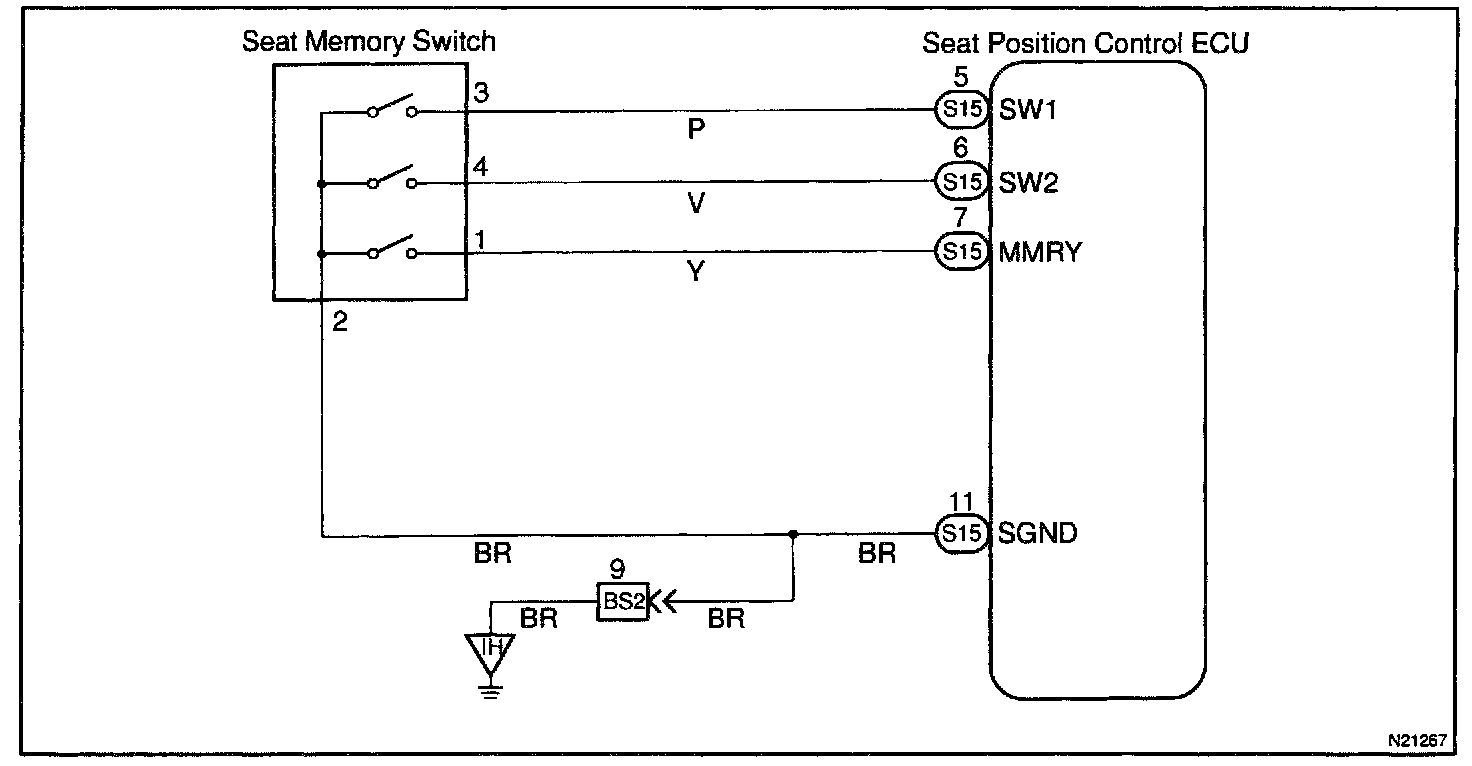

Wiring Diagram:

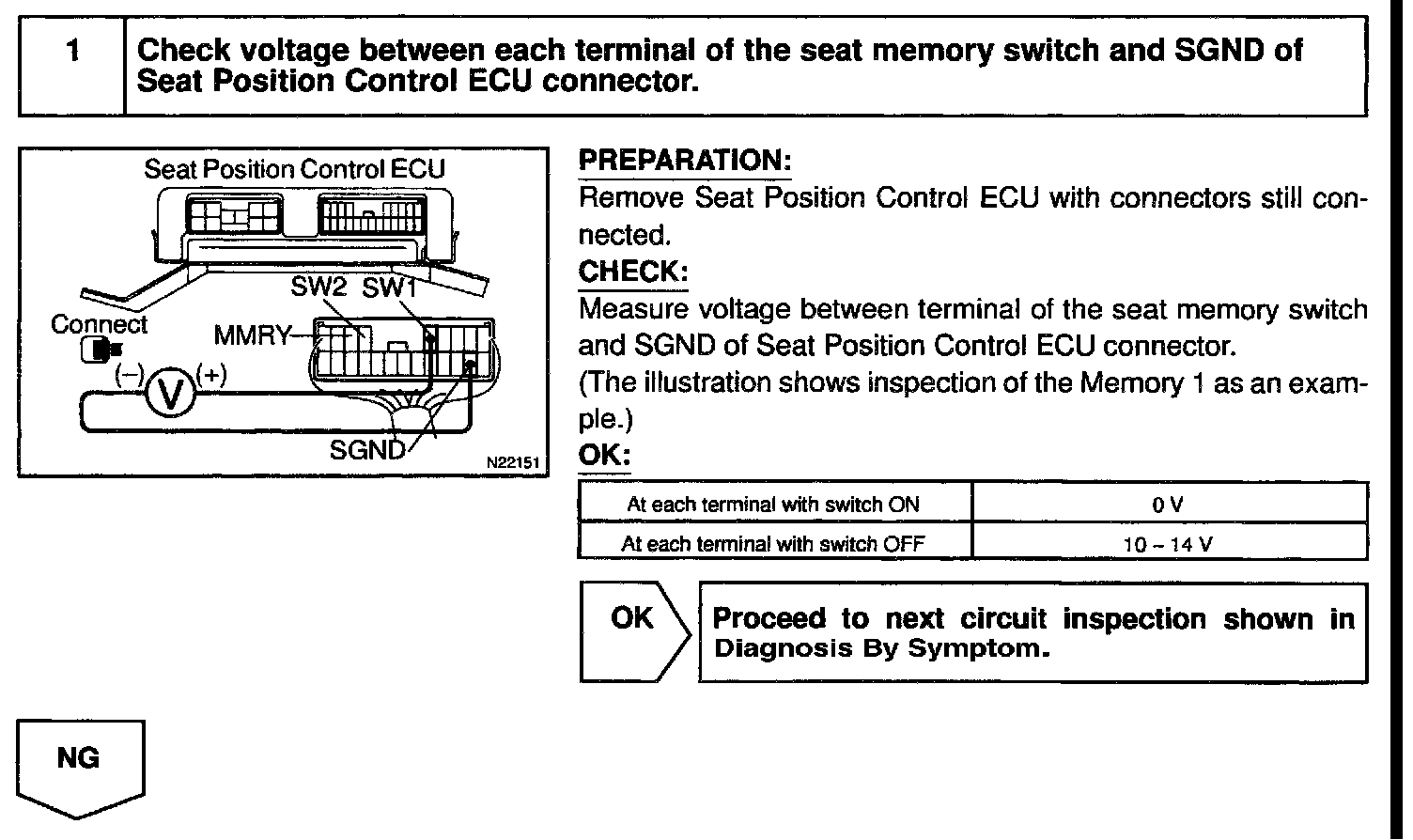

Step 1:

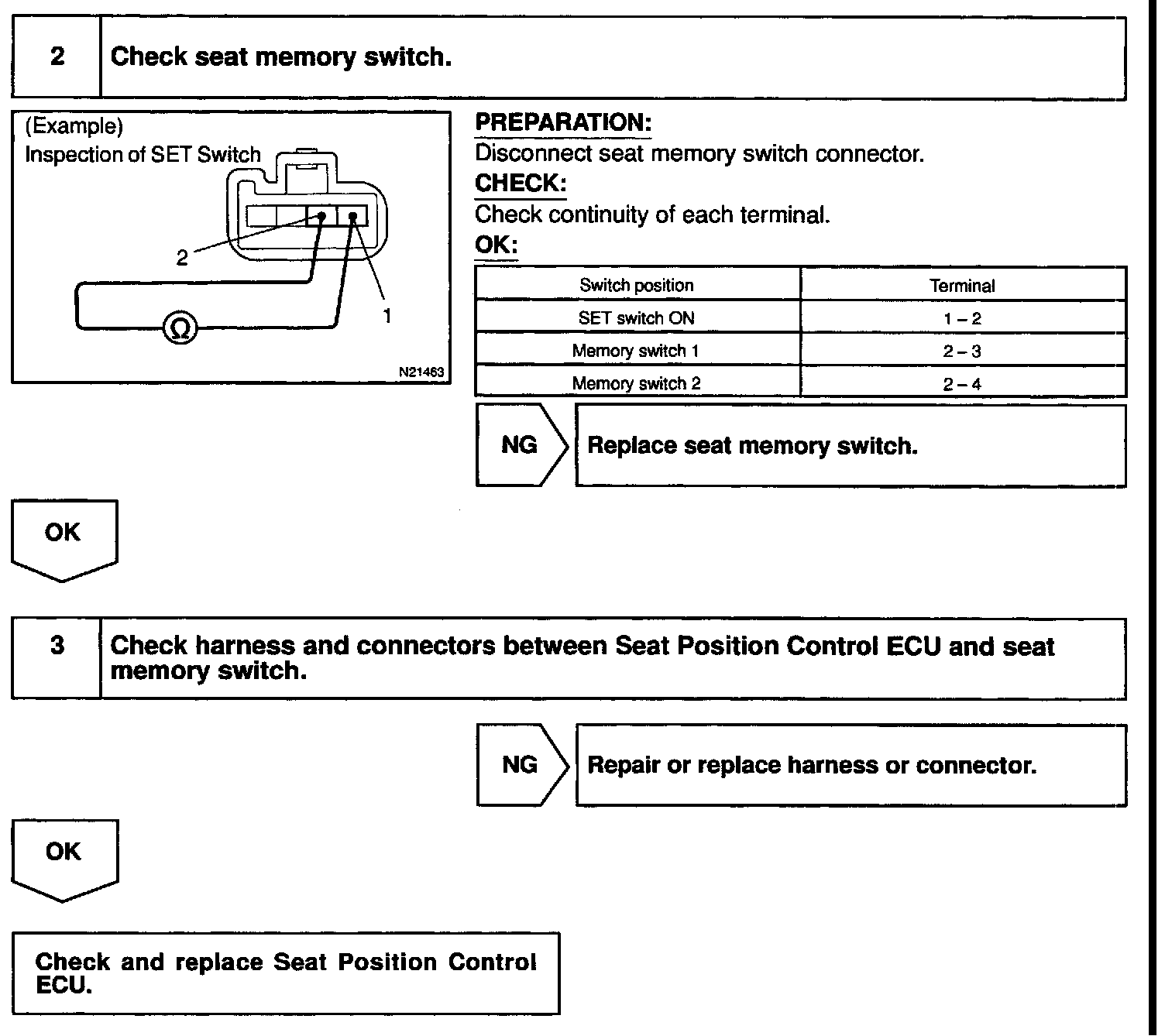

Steps 2 - 3:

INSPECTION PROCEDURE
