Power Seat Control Module: Testing and Inspection

CIRCUIT DESCRIPTION
This circuit provides power for ECU operation and is also the power source for the sensor.

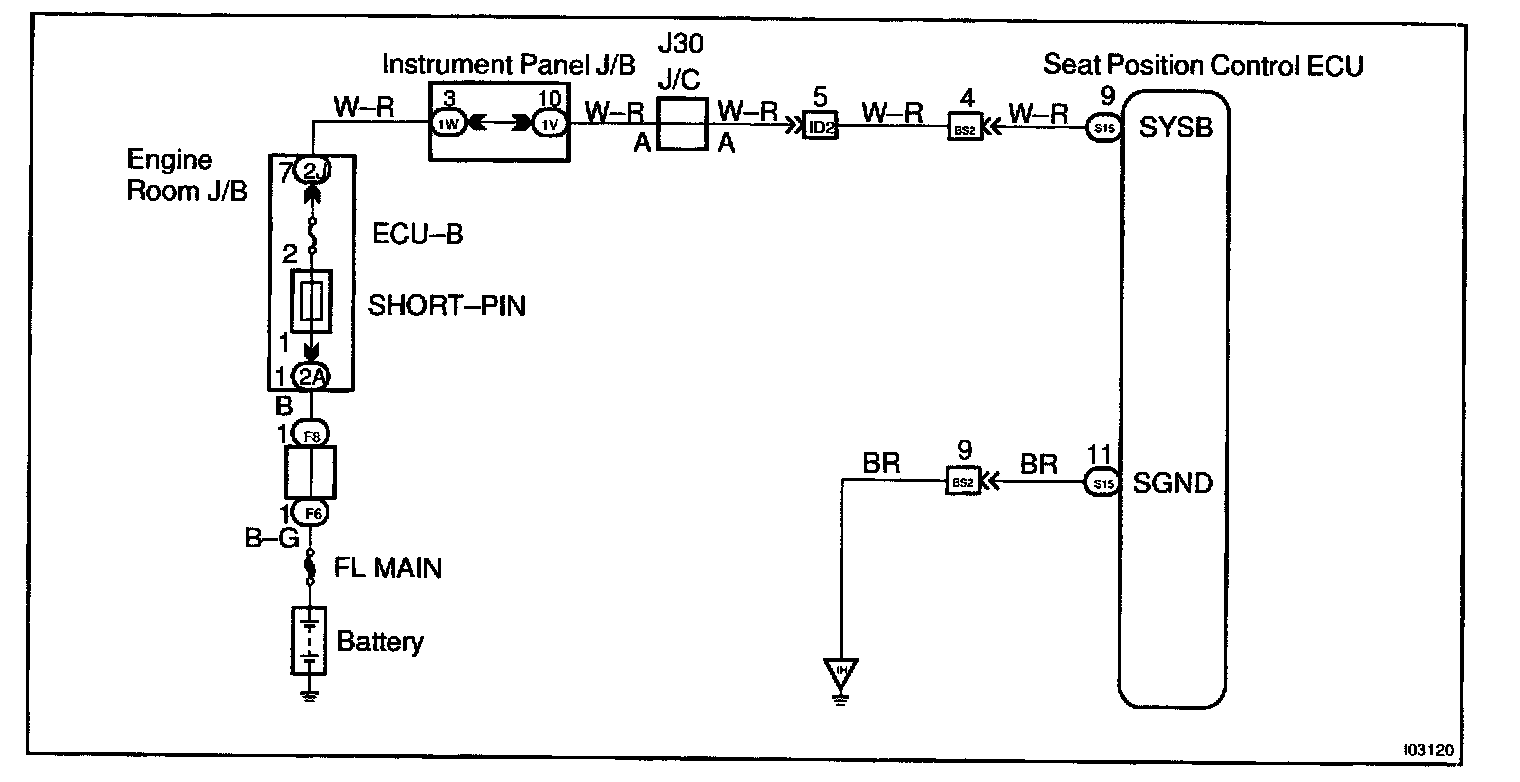

Wiring Diagram:

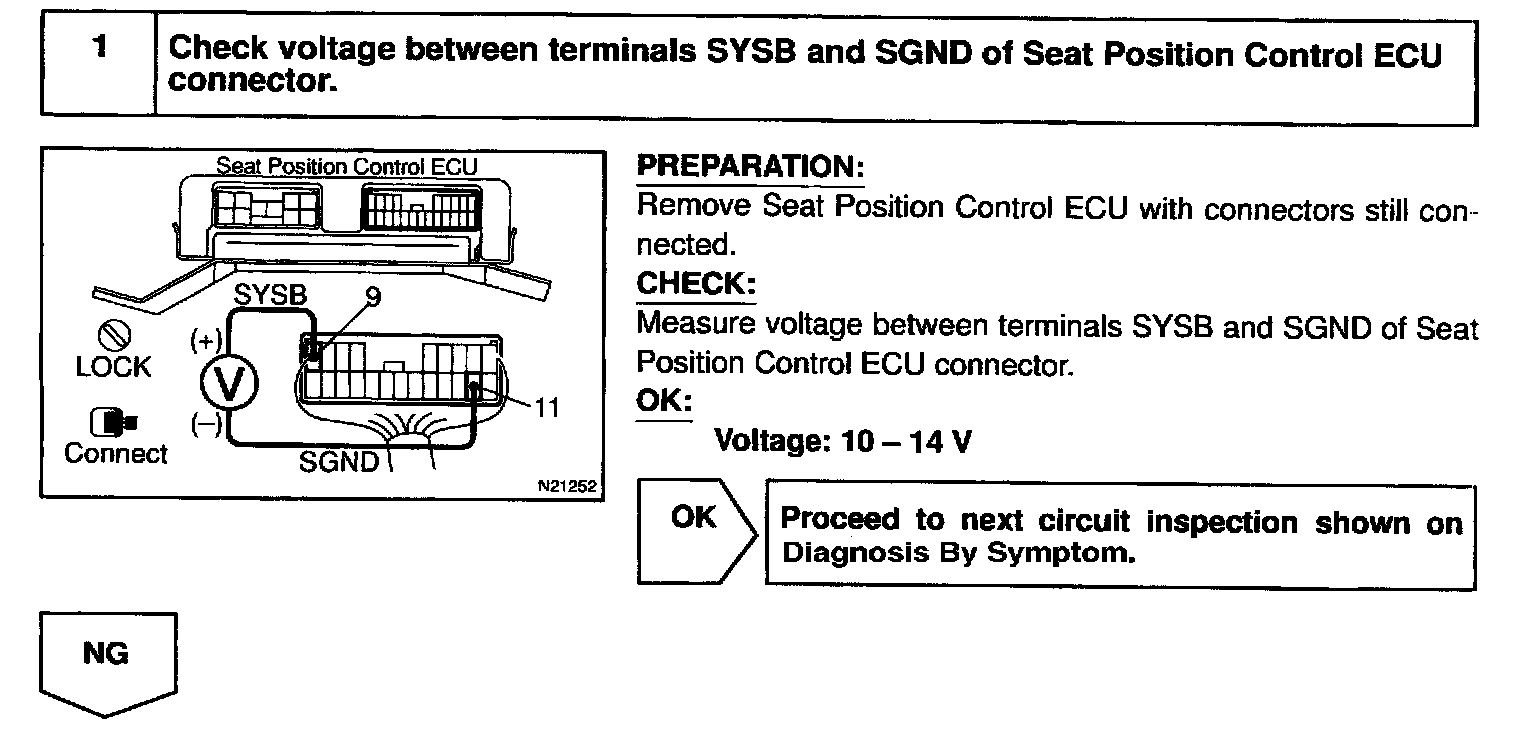

Step 1:

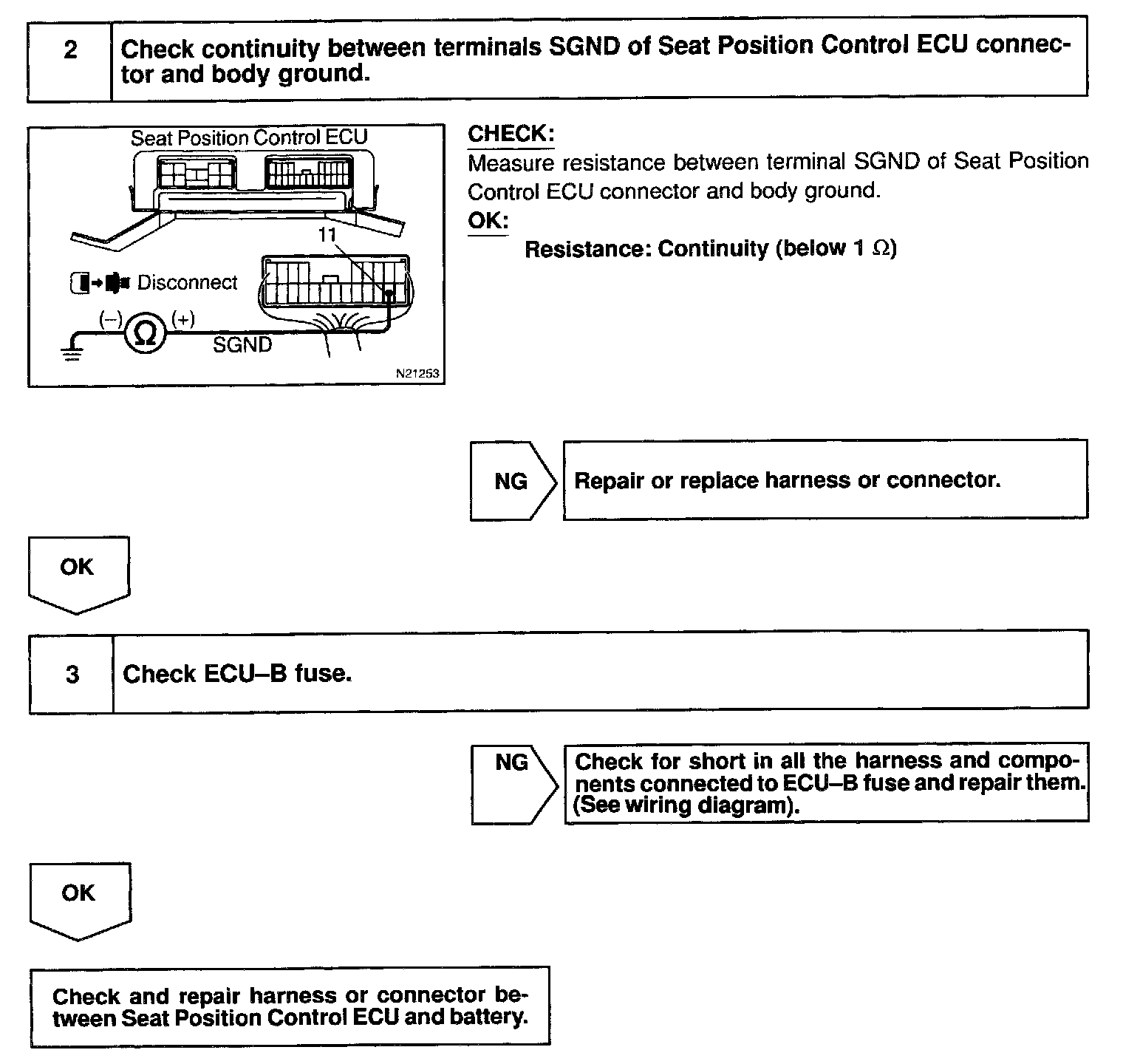

Steps 2 - 3:

INSPECTION PROCEDURE
