Control Module HVAC: Service and Repair

Blower Motor Linear Controller


1. REMOVE LOWER NO.1 PANEL

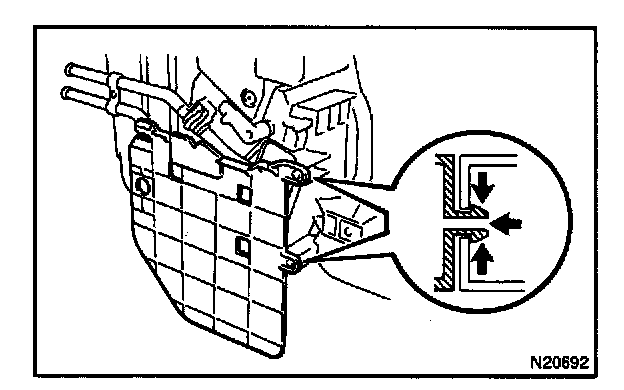

2. REMOVE HEATER PROTECTOR
Release the 3 claws and pull out the heater protector.

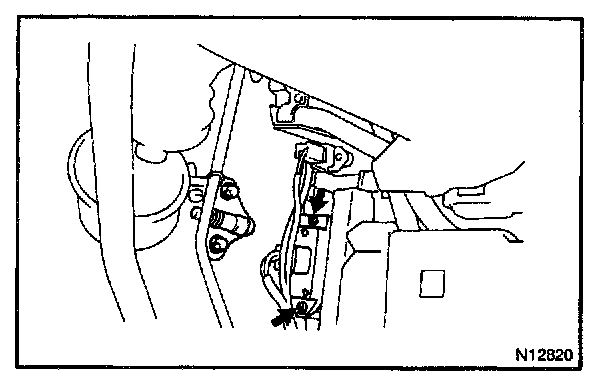

3. REMOVE BLOWER MOTOR LINEAR CONTROLLER
a. Disconnect the connector.
b. Remove the 2 screws and controller.

4. INSPECT BLOWER MOTOR LINEAR CONTROLLER

5. INSTALL BLOWER MOTOR LINEAR CONTROLLER
a. Install the controller with the 2 screws.
b. Connect the connector.

6. INSTALL HEATER PROTECTOR
7. INSTALL LOWER NO.2 PANEL
REMOVAL
1. REMOVE THESE PARTS:
a. No.1 instrument lower panel.
b. Instrument lower panel LH.

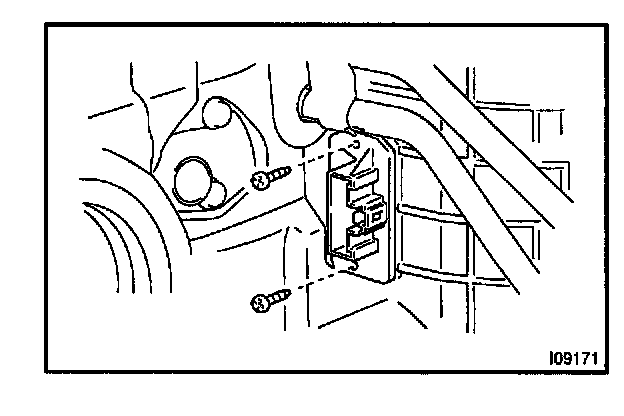

2. REMOVE BLOWER MOTOR LINEAR CONTROLLER
a. Disconnect the connector.
b. Remove the 2 screws and controller.

INSTALLATION
Installation is in the reverse order of removal.
