Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

1. DRAIN ENGINE COOLANT

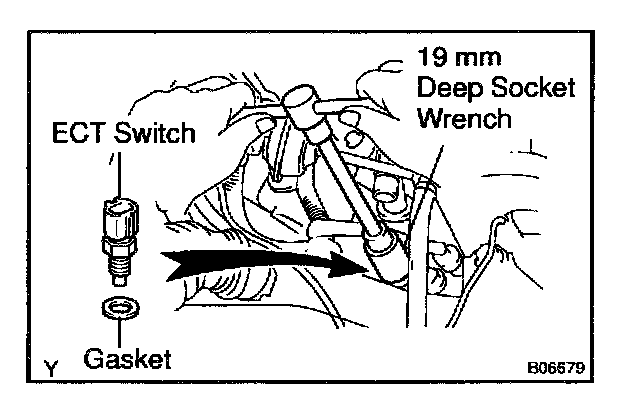

2. REMOVE ECT SENSOR
a. Disconnect the ECT sensor connector.
b. Using a 19 mm deep socket wrench, remove the ECT sensor and gasket.




3. INSPECT ECT SENSOR

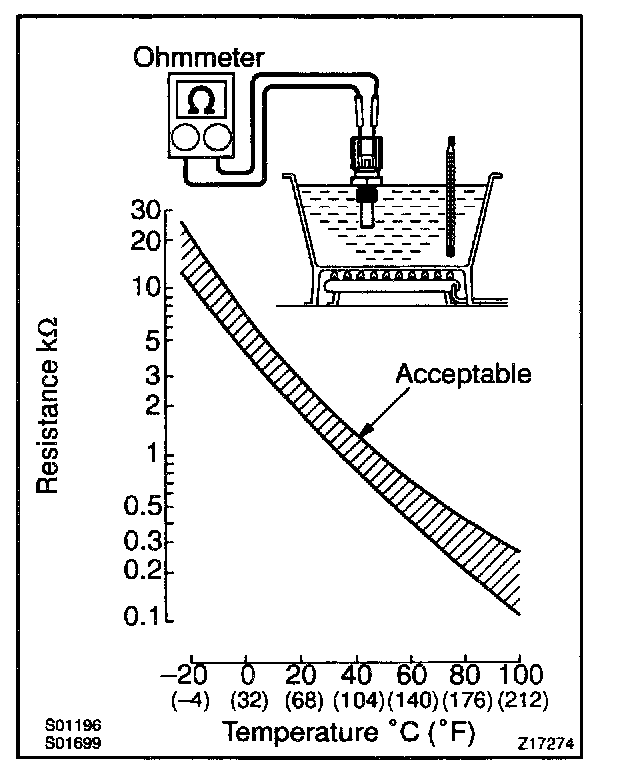

Using an ohmmeter, measure the resistance between the terminals.
Resistance: Refer to the graph
It the resistance is not as specified, replace the ECT sensor.

4. REINSTALL ECT SENSOR
a. Install a new gasket to the ECT sensor.
b. Using a 19 mm deep socket, install the ECT sensor.

Torque: 20 Nm (200 kg.cm, 14 ft.lb)

c. Connect the ECT sensor connector.

5. REFILL WITH ENGINE COOLANT
