Headlight Control Relay Circuit

NOTE: Verify normal headlight operation before performing this test.

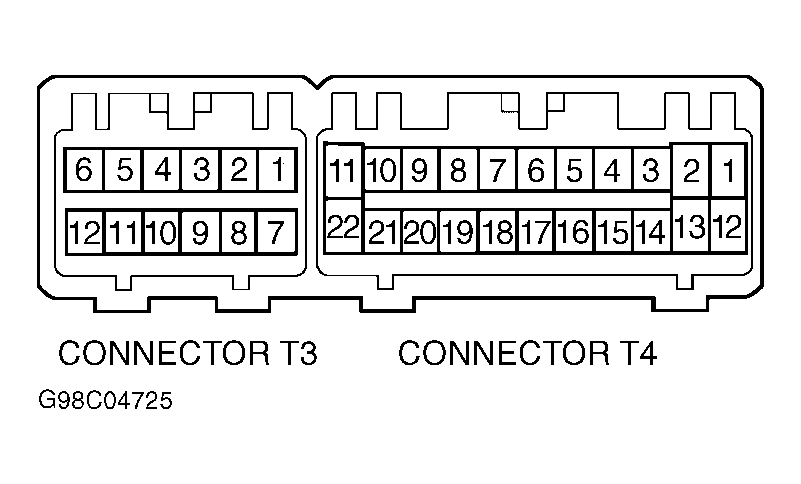

Turn ignition off. Disconnect anti-theft ECU connectors T3 and T4. Turn ignition on. Using a voltmeter, measure voltage between ECU 12-pin connector T3 terminal No. 10 (Red/Black wire) and body ground. See Figure. See WIRING DIAGRAMS . If voltage is 10-14 volts, go to next step. If voltage is not 10-14 volts, repair or replace wire harness and connectors between headlight control relay and anti-theft ECU.
Check anti-theft ECU pin voltages. See ANTI-THEFT ECU PIN VOLTAGE TESTS under COMPONENT TESTS. Replace components as necessary and retest system operation.
