Anti-Theft Systems: Description

WARNING: Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

When anti-theft system is set (armed), system will lock all doors, flash headlights and taillights, and sound alarm if one of the following conditions occur. See Fig 1 and Fig 2 .

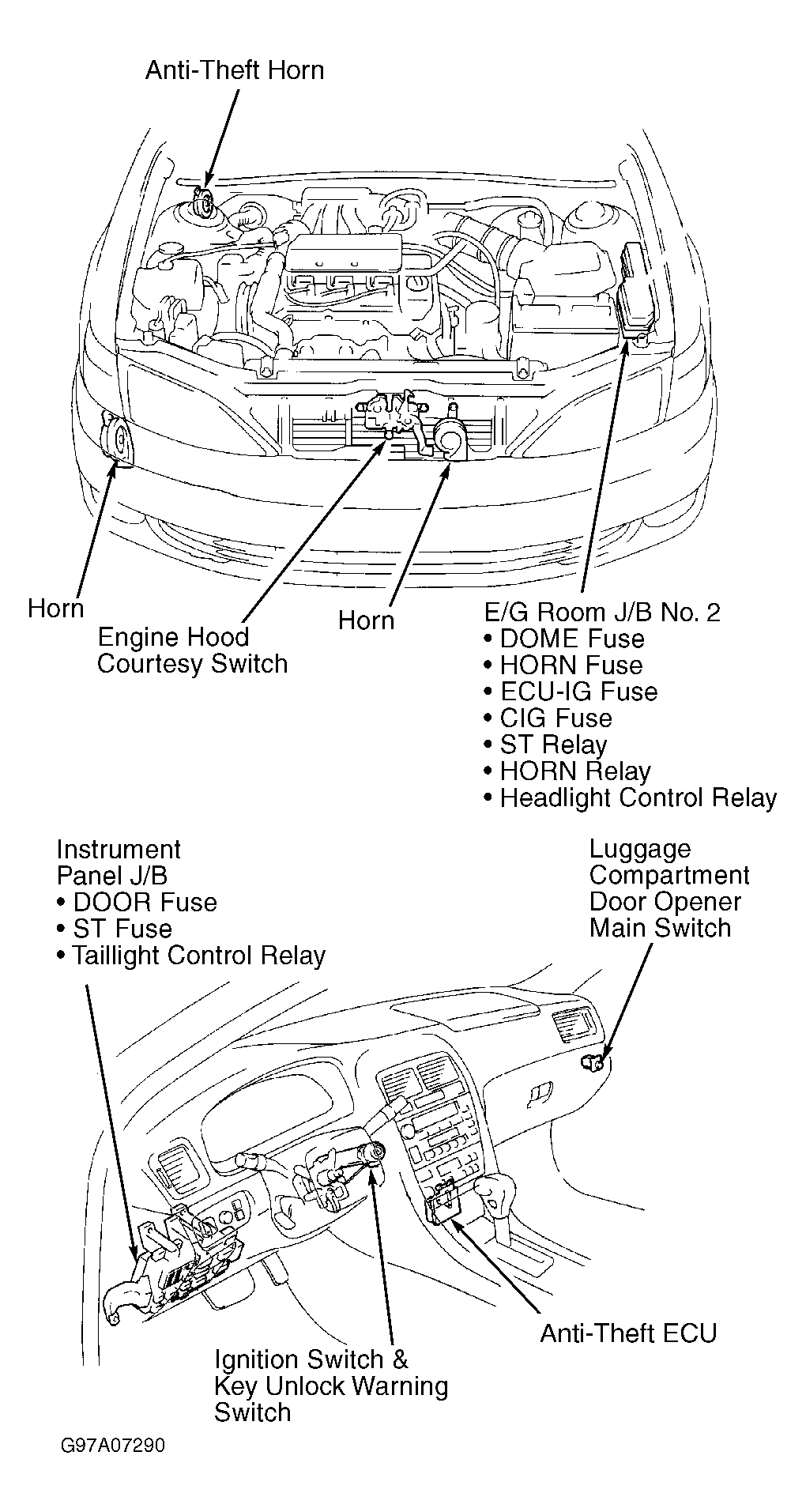

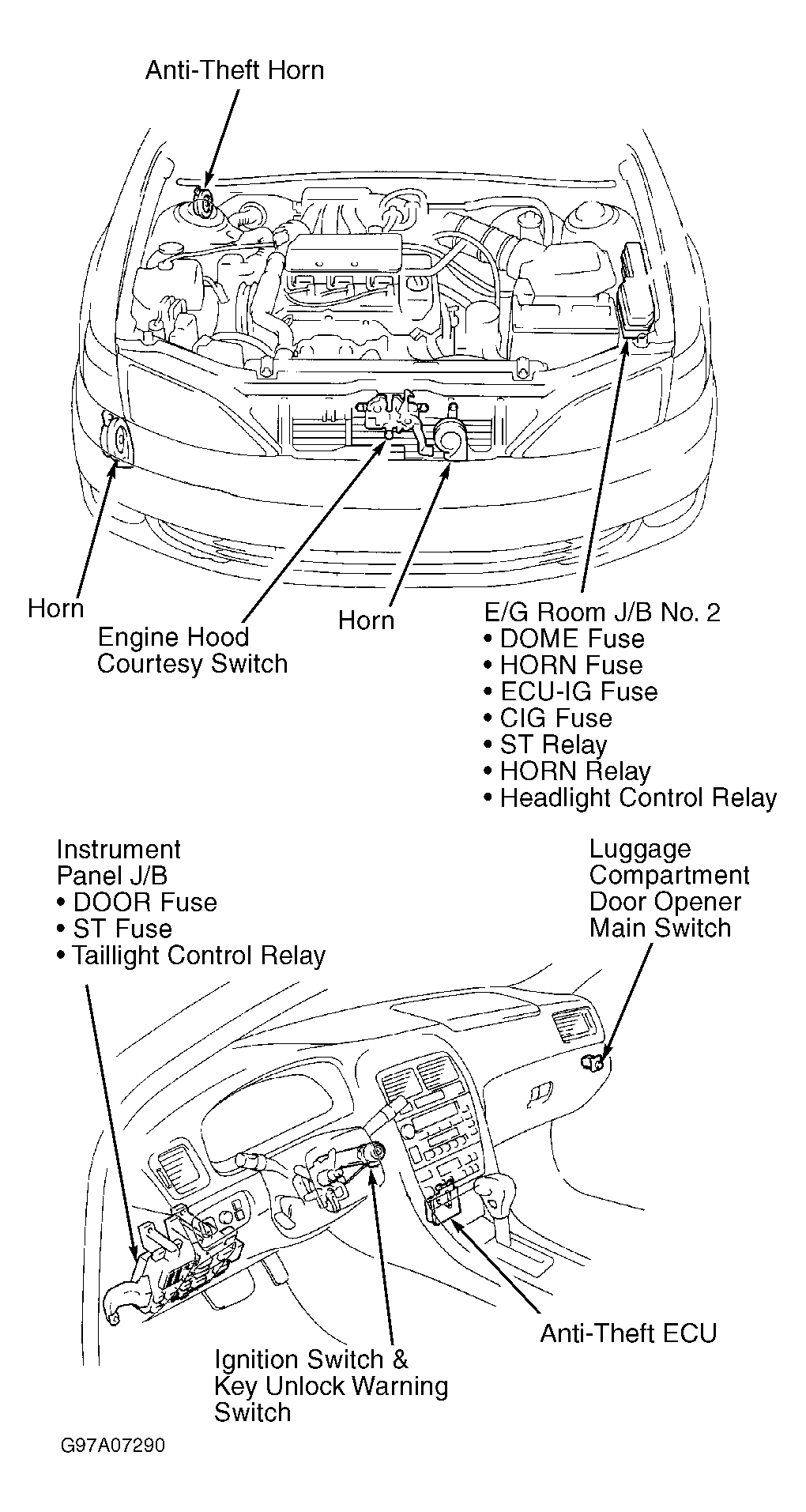

Fig 1: Anti-Theft System Component Locations (ES300 - 1 Of 2)
G97A07290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

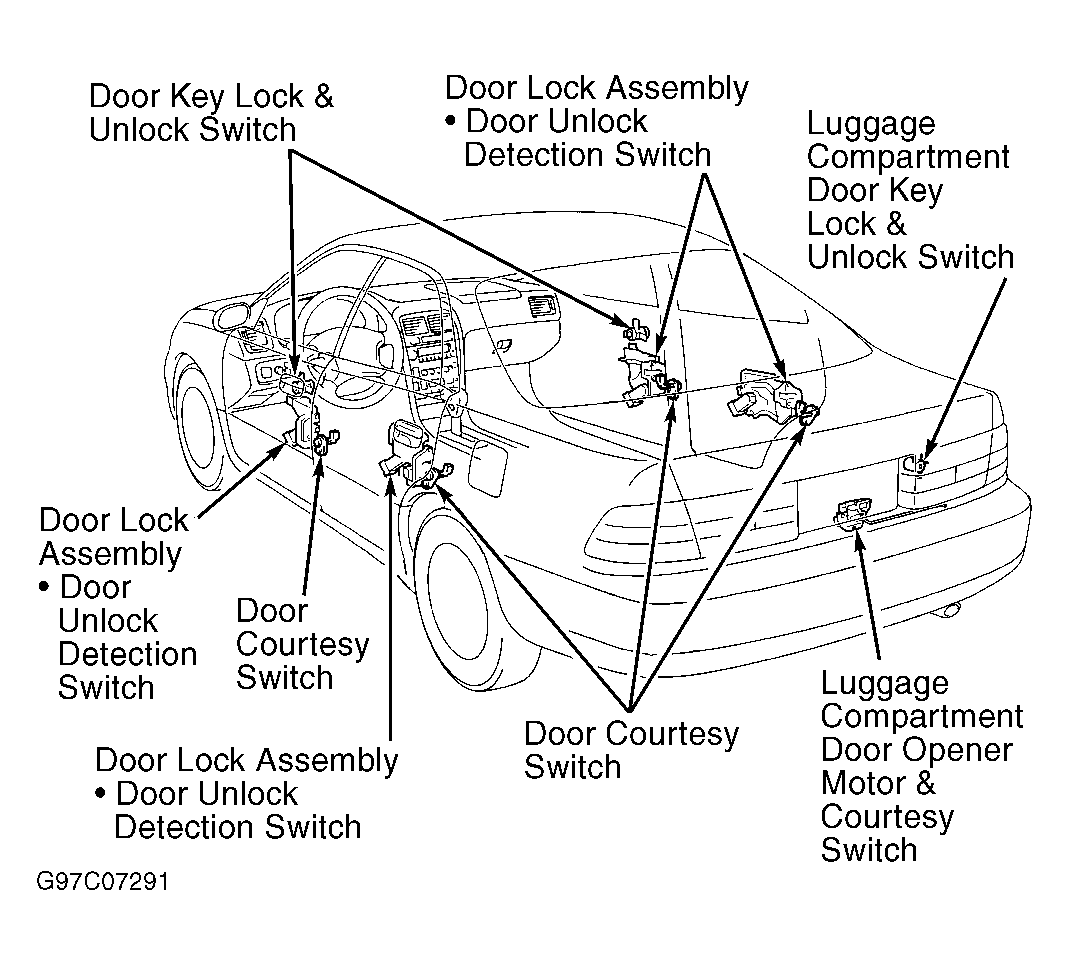

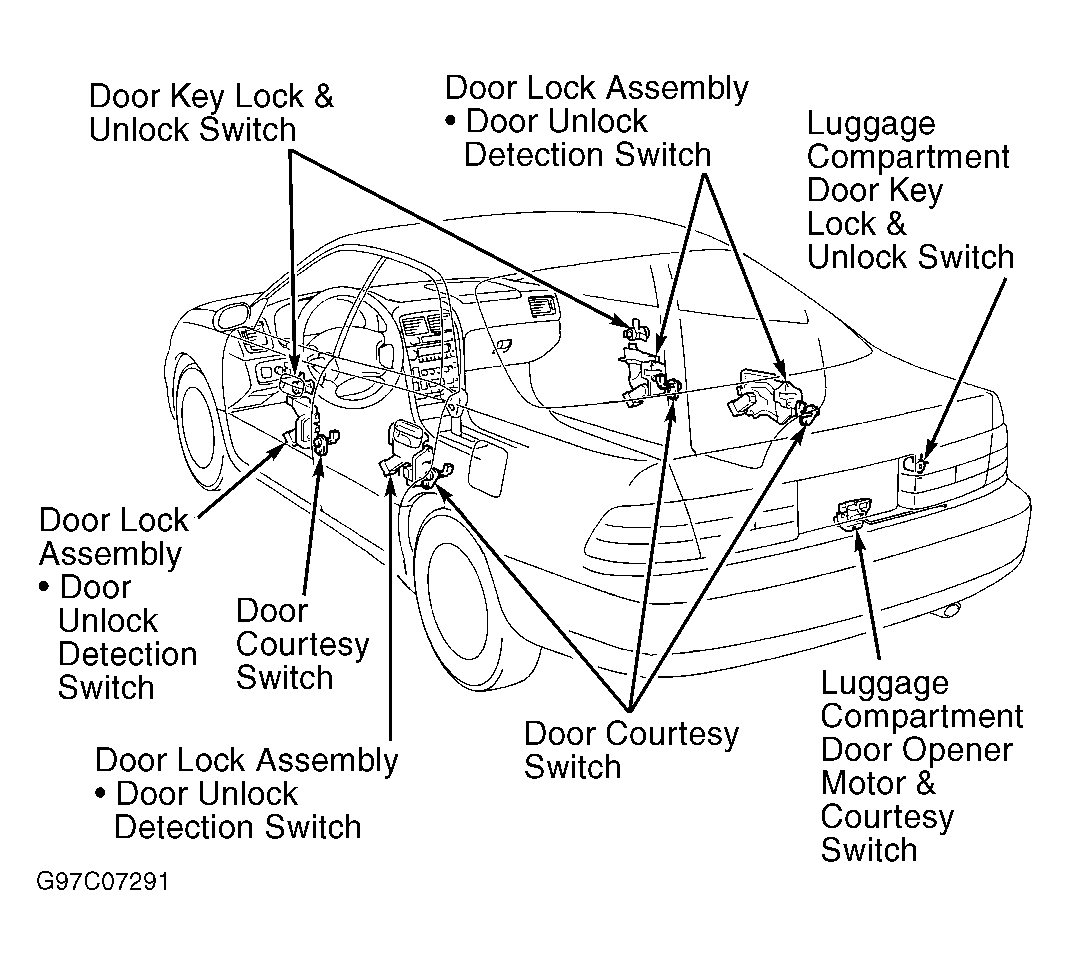

Fig 2: Anti-Theft System Component Locations (ES300 - 2 Of 2)
G97C07291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
