| A/C Compressor Bolts/Nuts |
| Bolt "A" |
18 (24) |
| Bolt "B" |
13 (18) |
| Bolt "C" |
18 (24) |
| Air Intake Chamber Bolt/Nut |
32 (43) |
| Air Intake Chamber Support Bolt |
14 (19) |
| Axle Shaft Bearing Retainer Bolt |
24 (33) |
| Axle Shaft Nut |
217 (294) |
| Ball Joint-To-Lower Control Arm Bolt/Nut |
94 (127) |
| Brake Booster Vacuum Hose |
32 (43) |

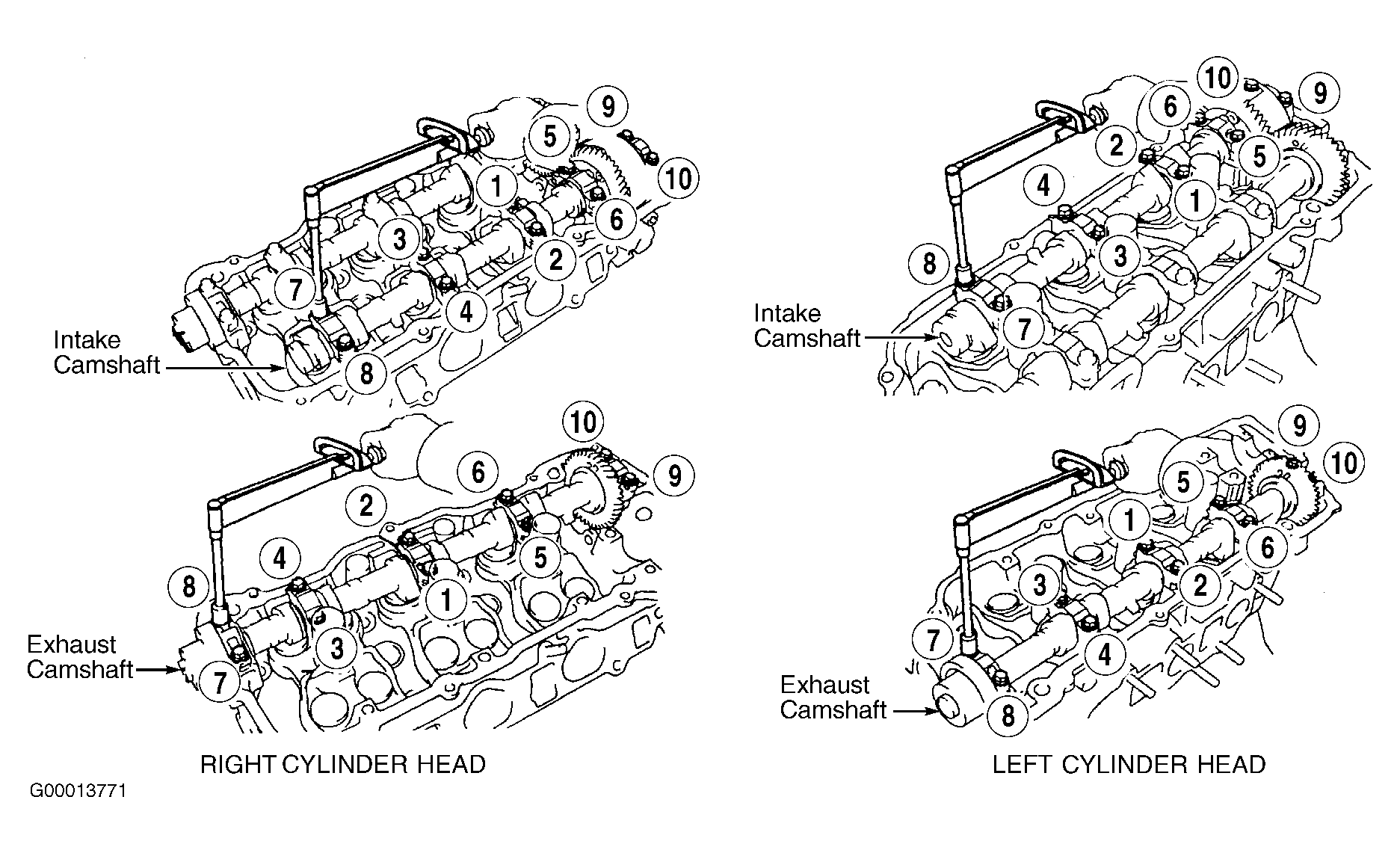

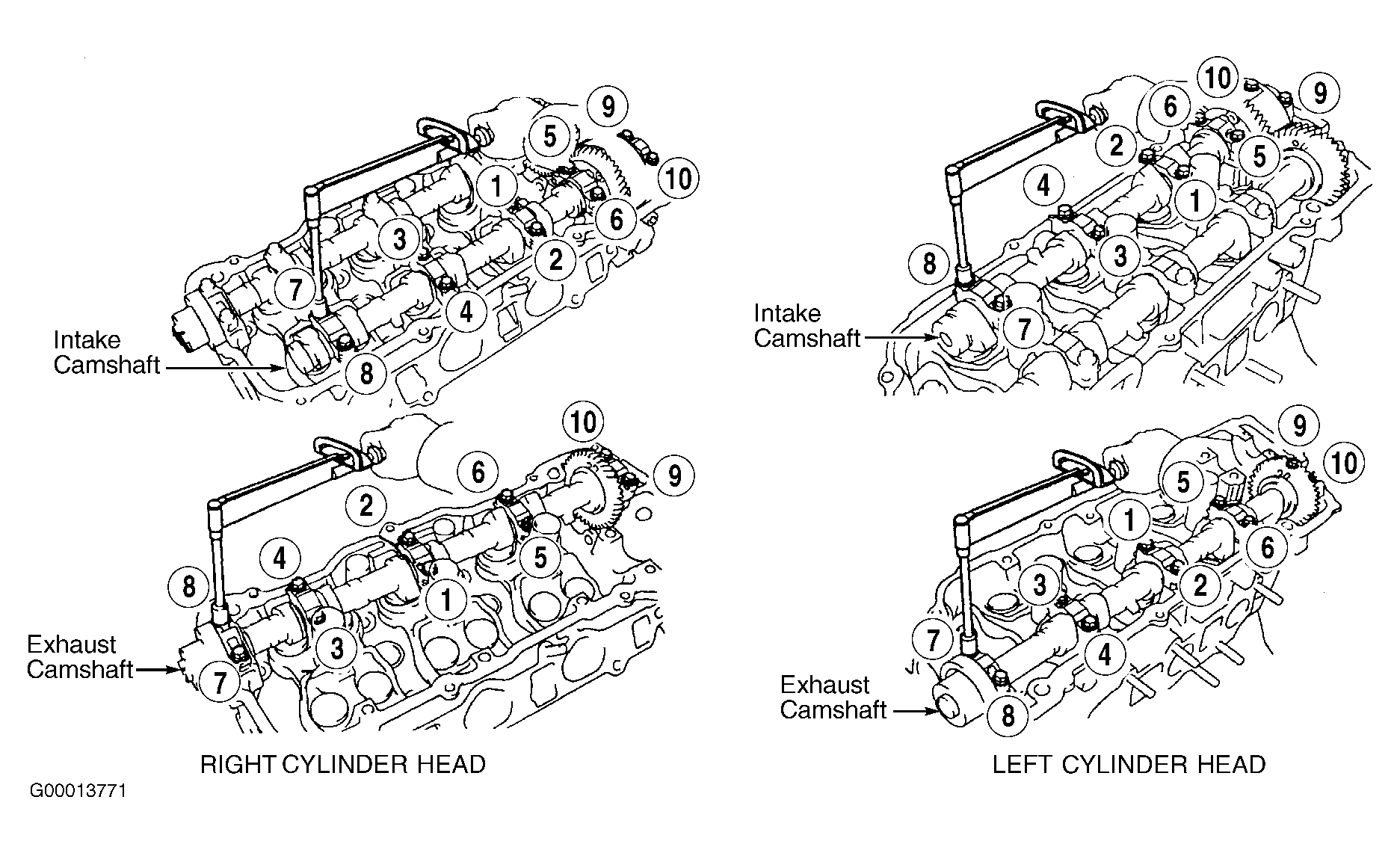

| Camshaft Bearing Cap Bolt |
12 (16) |
| Camshaft Sprocket Bolt |
94 (127) |
| Camshaft Timing Gear Nut |
110 (149) |
| Connecting Rod Bolt |
| Step 1 |
18 (24) |
| Step 2 |
Additional 90 Degrees |
| Coolant Inlet Pipe Bracket Bolt |
14 (19) |
| Coolant Outlet Housing Bolt/Nut |
11 (15) |
| Crankshaft Pulley Bolt |
159 (216) |

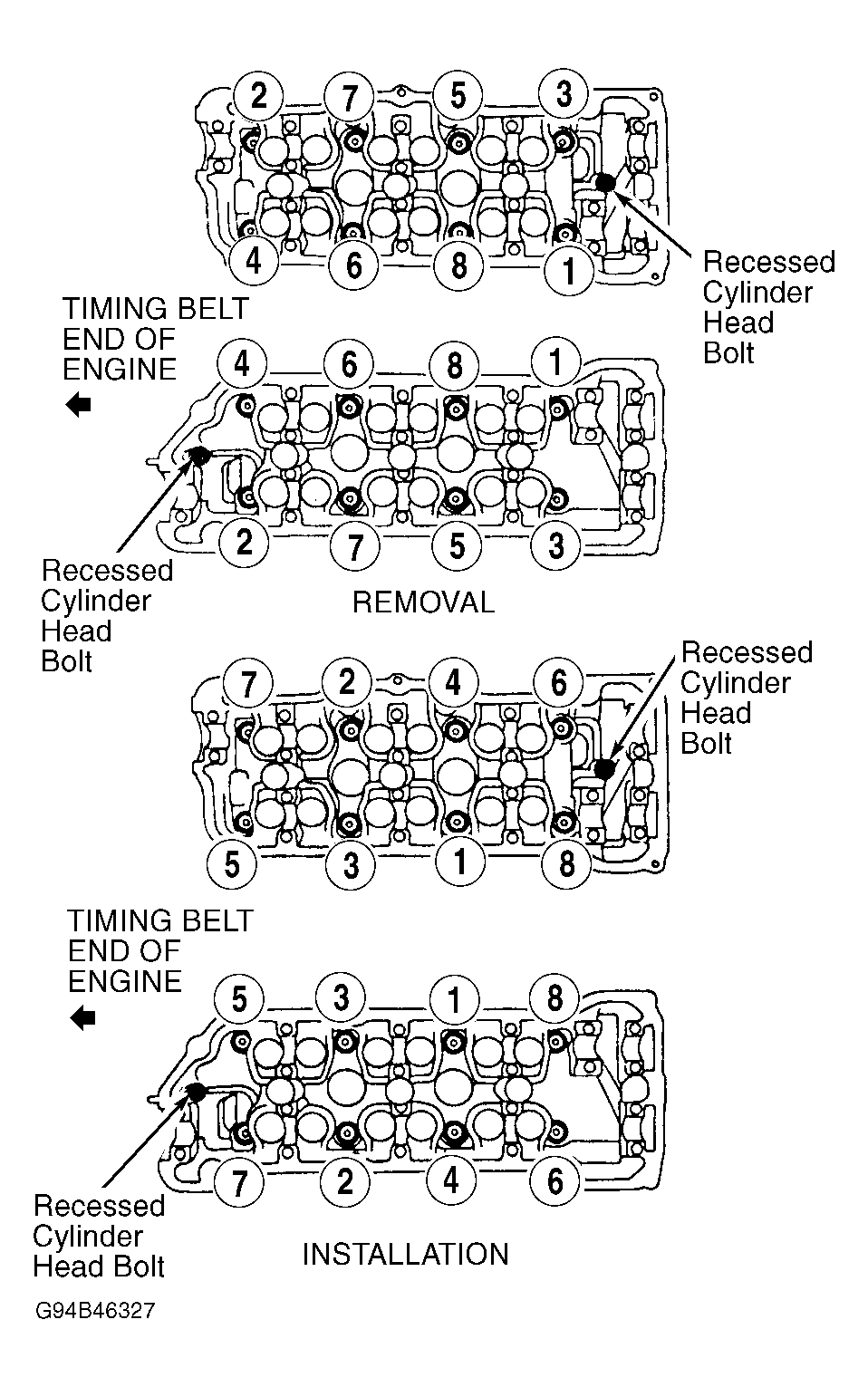

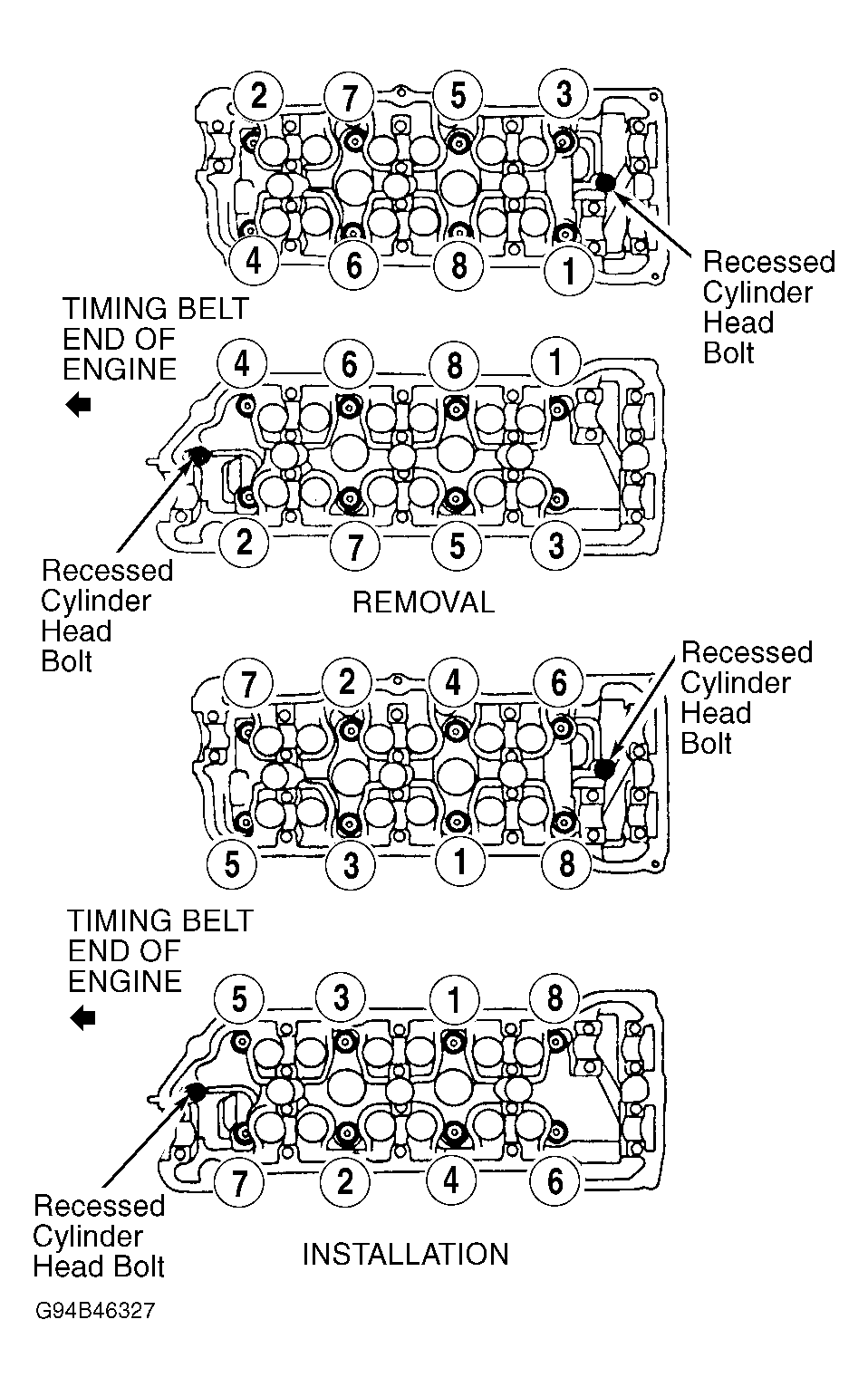

| Cylinder Head Bolt |
| 12-Point Bolt |
| Step 1 |
40 (54) |
| Step 2 |
Additional 90 Degrees |
| Recessed Bolts |
13 (18) |
| Drain Plug |
33 (45) |
| Drain Union |
29 (39) |
| Drive Plate Bolt |
61 (83) |
| Engine Mount-To-Transaxle Bolt |
47 (64) |
| Engine Mounting Bracket-To-Cylinder Block Bolt |
21 (28) |
| Engine Stabilizer Rod Bolt |
47 (64) |
| Exhaust Manifold Nut |
36 (49) |
| Exhaust Manifold Support Bracket Bolt |
25 (34) |
| Front Engine Mounting Insulator |
59 (80) |
| Front Engine Mounting Insulator |
47 (64) |
| Front Exhaust Pipe-To-Exhaust Manifold Nut |
46 (62) |
| Front Stabilizer Bolts (RX300) |
15 (19) |
| Fuel Inlet Line-To-Fuel Filter Banjo Bolt |
21 (28) |
| Ground Cable Strap Nut |
10 (14) |
| Intake Air Chamber Nuts |
32 (43) |
| Intake Air Control Valve-To-Air Intake Chamber Nut |
11 (15) |
| Intake Manifold Bolt/Nut |
11 (15) |
| Knock Sensor |
29 (39) |
| Left Engine Mounting Insulator Bolts (RX300) |
47 (64) |

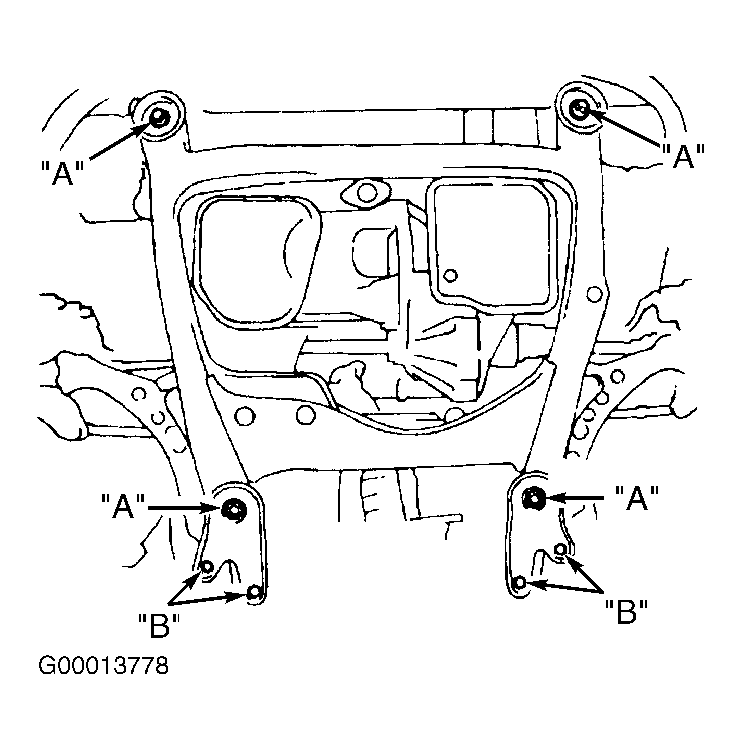

| Lower Frame Brace Bolts (RX300) |

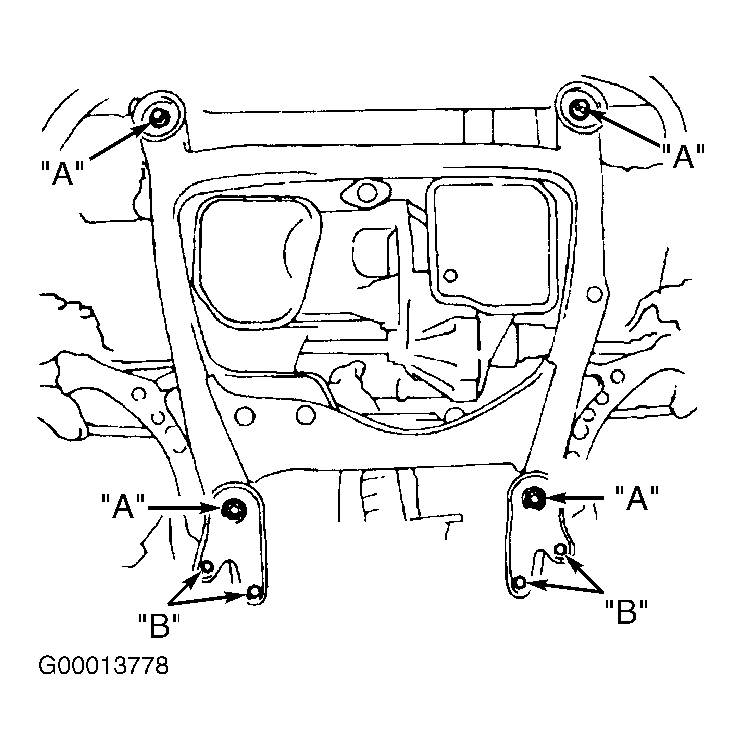

| Bolt "A" |
134 (181) |
| Bolt "B" |
24 (33) |

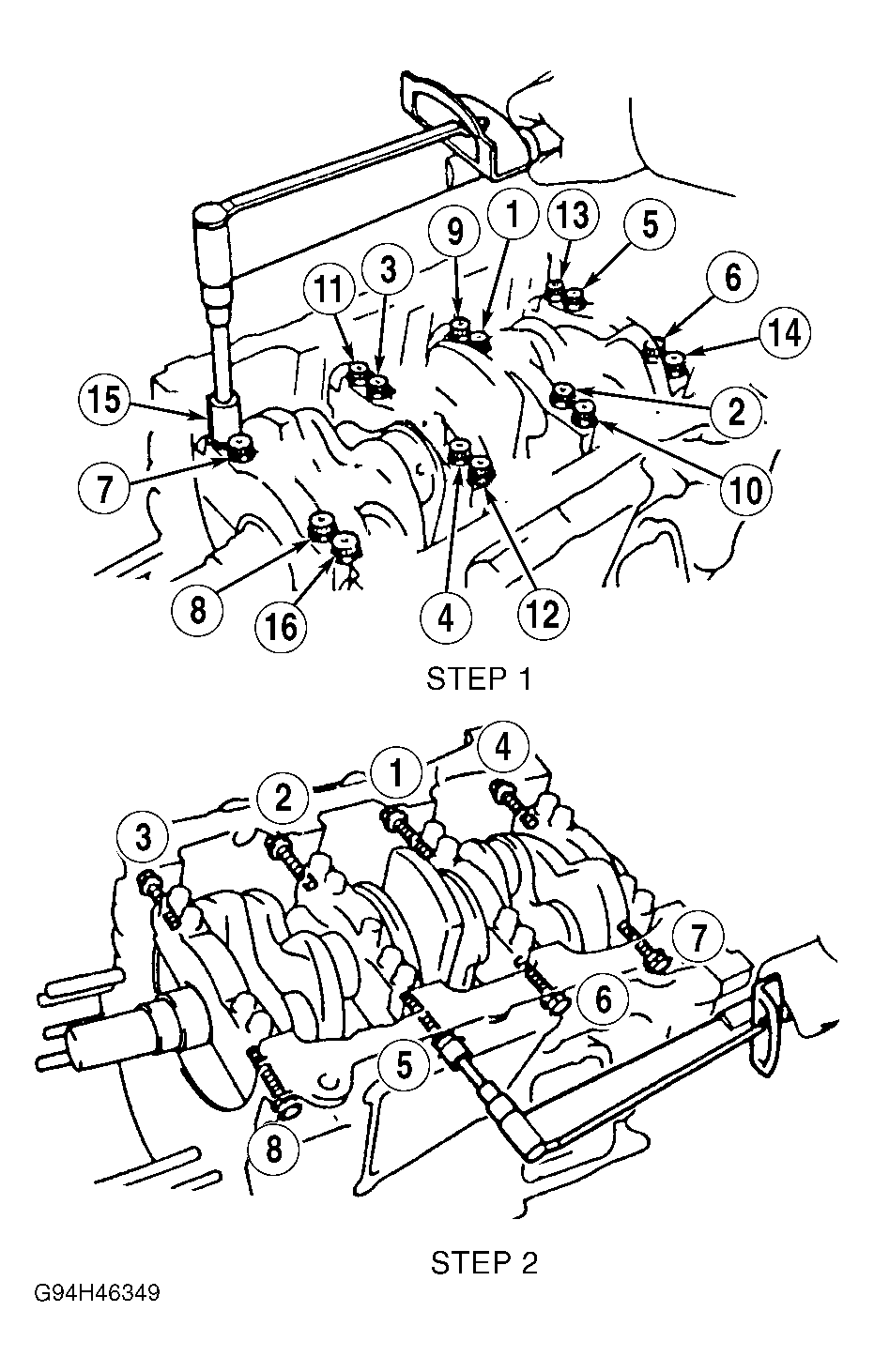

| Main Bearing Cap-To-Cylinder Block 12-Point Bolts |
| Step 1 |
16 (22) |
| Step 2 |
Additional 90 Degrees |
| Main Bearing Cap Side Bolts |
20 (27) |
| No. 1 Engine Hanger Bolt |
29 (39) |
| No. 1 Oil Pan-To-Cylinder Block Bolt |
| 10-mm Bolt |
|
| 12-mm Bolt |
14 (19) |
| No. 1 Oil Pan-To-Transaxle Bolt |
27 (37) |

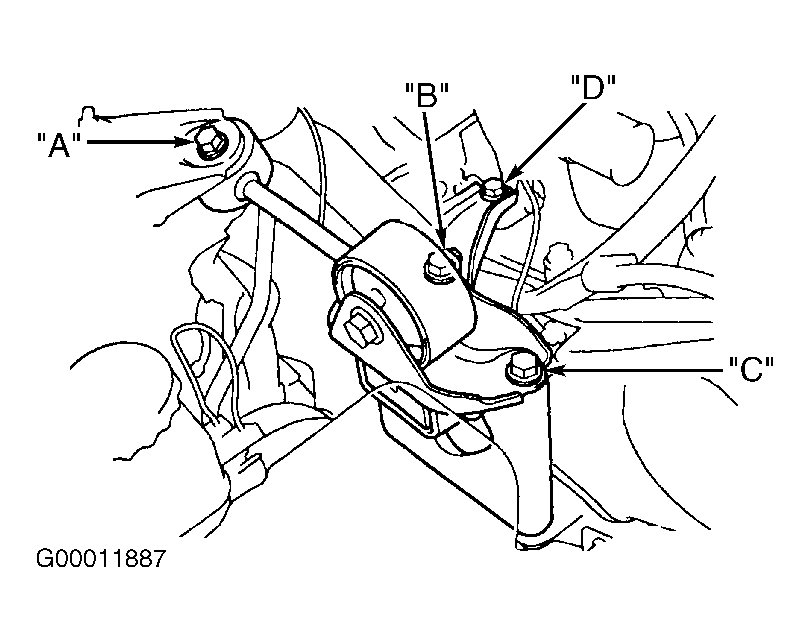

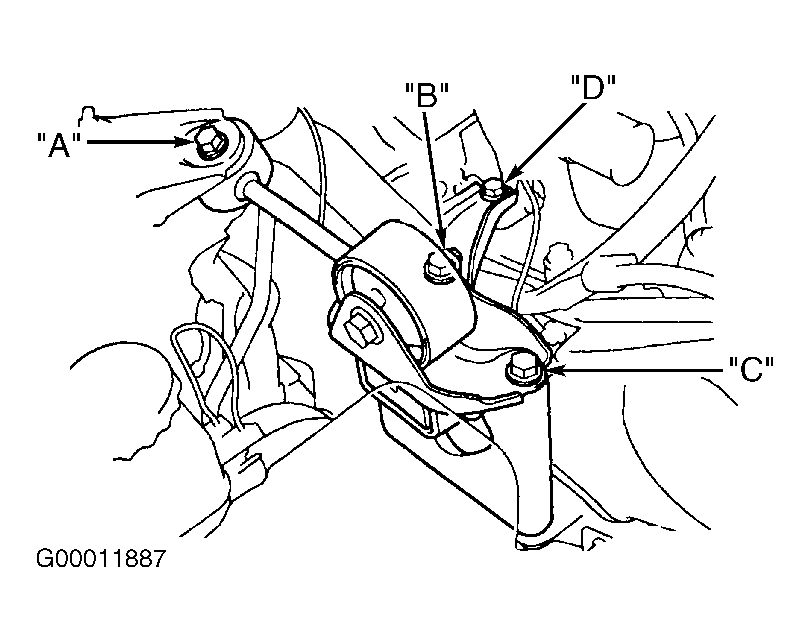

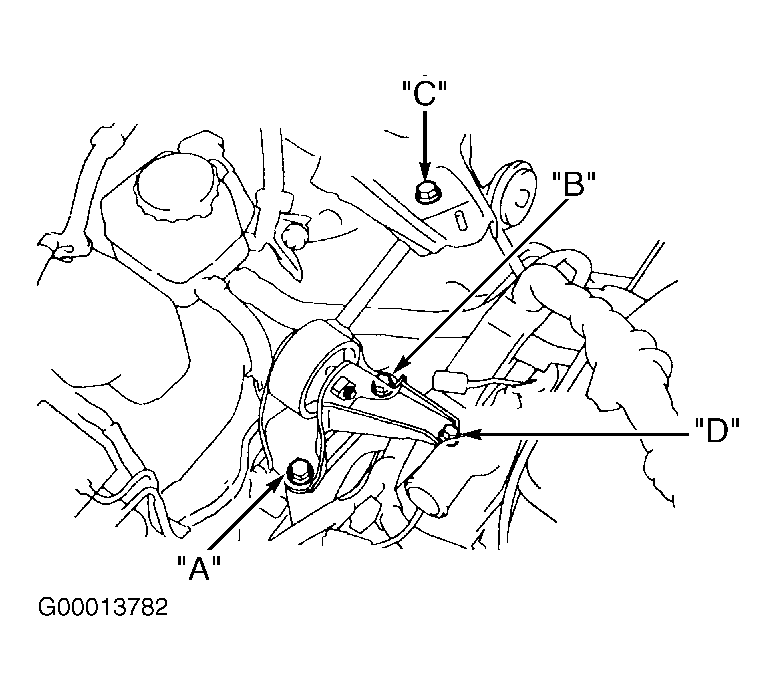

| No. 2 Right Side Engine Mounting Bracket |
| ES300 |
| Bolts "A", "B" & "C" |
47 (64) |
| Bolt "D" |
23 (32) |

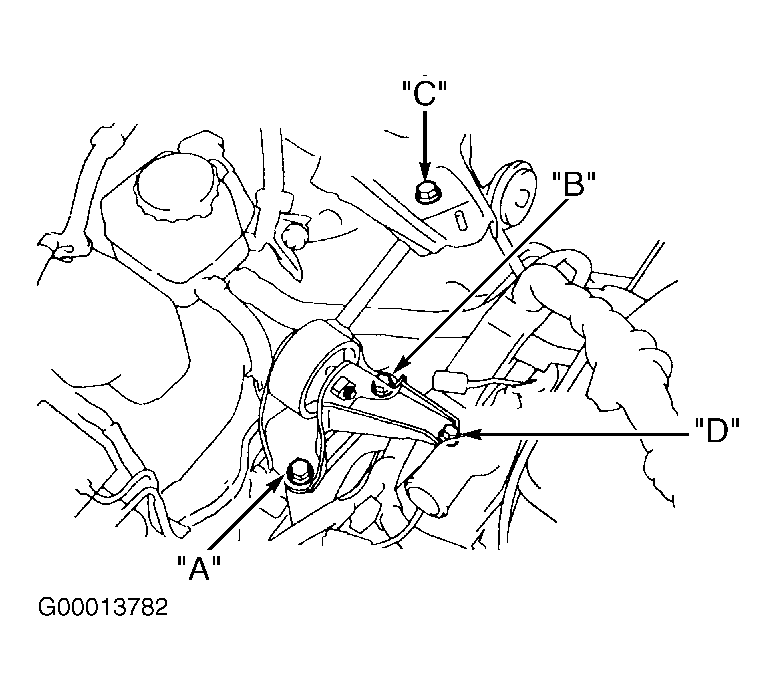

| RX300 |
| Bolts "A", "B" & "C" |
47 (64) |
| Bolt "D" |
23 (32) |
| No. 2 Fuel Pipe Union Bolt |
24 (33) |
| Oil Filter Union |
22 (30) |
| Oil Plug |
33 (45) |
| Oil Pump Bolt |
| 10-mm Bolt |
|
| 12-mm Bolt |
14 (19) |
| Oxygen Sensor |
33 (44) |
| Power Steering Gear Bolts/Nut (RX300) |
134 (182) |
| Power Steering Pressure Tube Bolt |
29 (39) |
| Power Steering Pump Bolt |
32 (43) |
| Power Steering Pump Bracket-To-Cylinder Head Bolt |
32 (43) |
| Rear Engine Mount-To-Crossmember Nut |
48 (65) |
| Rear Engine Mounting Bracket Nut (RX300) |
64 (87) |
| Rear Engine Mounting Insulator |
47 (64) |
| Right Engine Mount Brace Bolt |
23 (31) |
| Right Engine Mounting Bracket Bolts |
| Bolt "A" |
47 (64) |
| Bolt "B" |
47 (64) |
| Bolt "C" |
47 (64) |
| Bolt "D" |
23 (31) |
| Spark Plug |
13 (18) |
| Stabilizer Bar Link-To-Lower Control Arm Nut |
29 (39) |
| Throttle Body Bolt/Nut |
14 (19) |
| Tie Rod Nut |
36 (49) |
| Timing Belt Idler Pulleys |
| No. 1 Idler Pulley Bolt |
25 (34) |
| No. 2 Idler Pulley Bolt |
32 (43) |
| Timing Belt Tensioner Bolt |
20 (27) |
| Water Inlet Pipe Bolt |
14 (19) |
| Water Outlet Mounting Bolts/Nuts |
11 (15) |
| Water Seal Plate Bolt |
13 (18) |
| Wheel Lug Nut |
76 (103) |
| INCH Lbs. (N.m) |
| Baffle Plate Bolt |
69 (7.8) |
| Camshaft Position Sensor Bolt |
71 (8.0) |
| Crankshaft Rear Oil Seal Housing Bolt |
71 (8.0) |
| Cylinder Block Side Cover Bolts/Nuts |
78 (8.8) |
| Cylinder Head Cover Bolt |
69 (7.8) |
| Cylinder Head Rear Plate Bolt |
69 (7.8) |
| Delivery Pipe Bolt |
89 (10.0) |
| Drive Plate Cover Bolt |
69 (7.8) |
| No. 1 & 2 Timing Belt Cover Bolt |
74 (8.4) |
| No. 2 Oil Pan Bolt/Nut |
69 (7.8) |
| No. 3 Timing Belt Cover Bolt |
74 (8.4) |
| Oil Level Sensor Bolt |
69 (7.8) |
| Oil Pump Pick-Up Tube Bolt/Nut |
69 (7.8) |
| Oil Strainer Bolt |
69 (7.8) |
| Timing Belt Plate Bolt |
69 (7.8) |
| Water Pump Bolt/Nut |
69 (7.8) |
