ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS

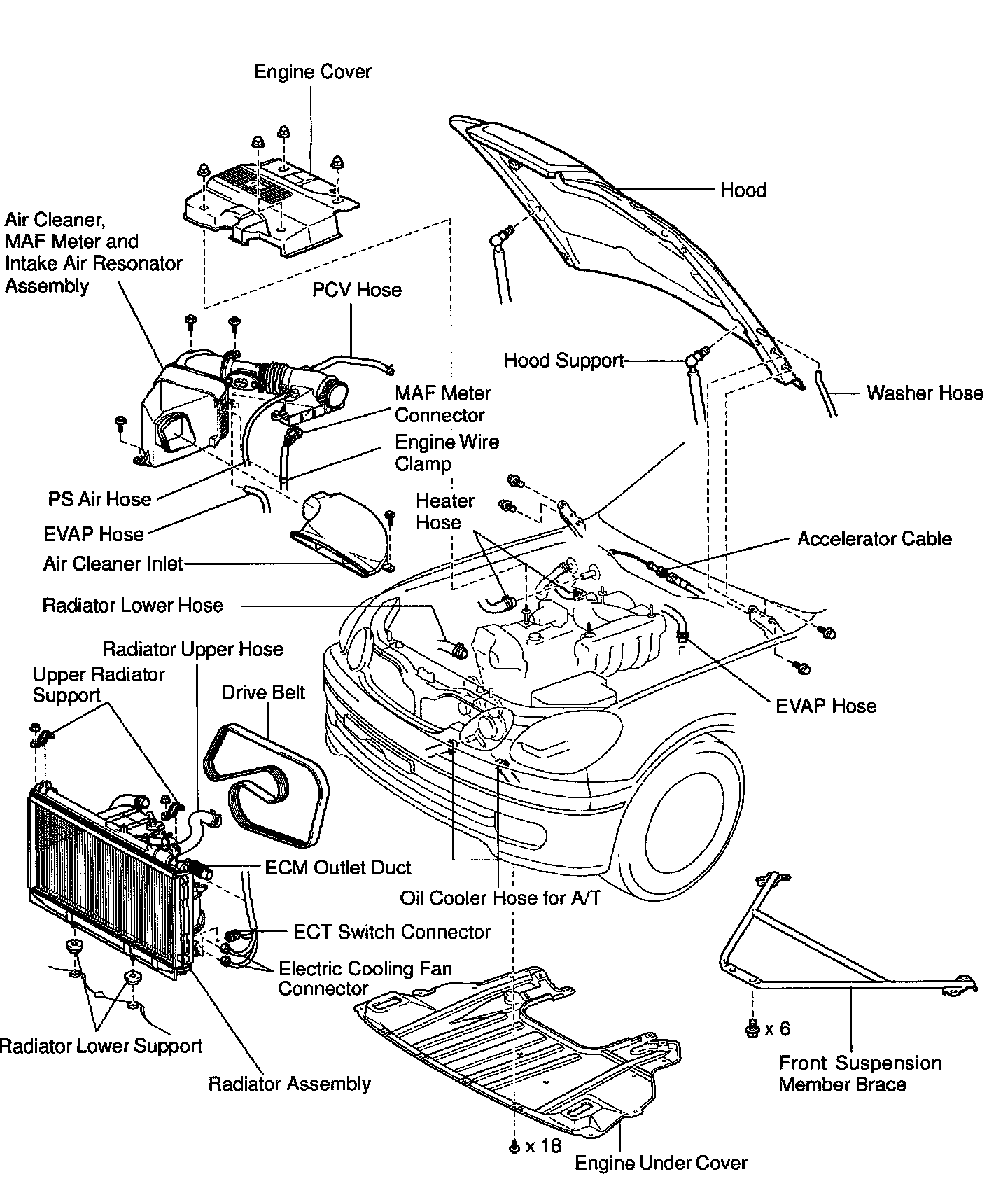

Various Engine Related Components:

Part 1 of 3

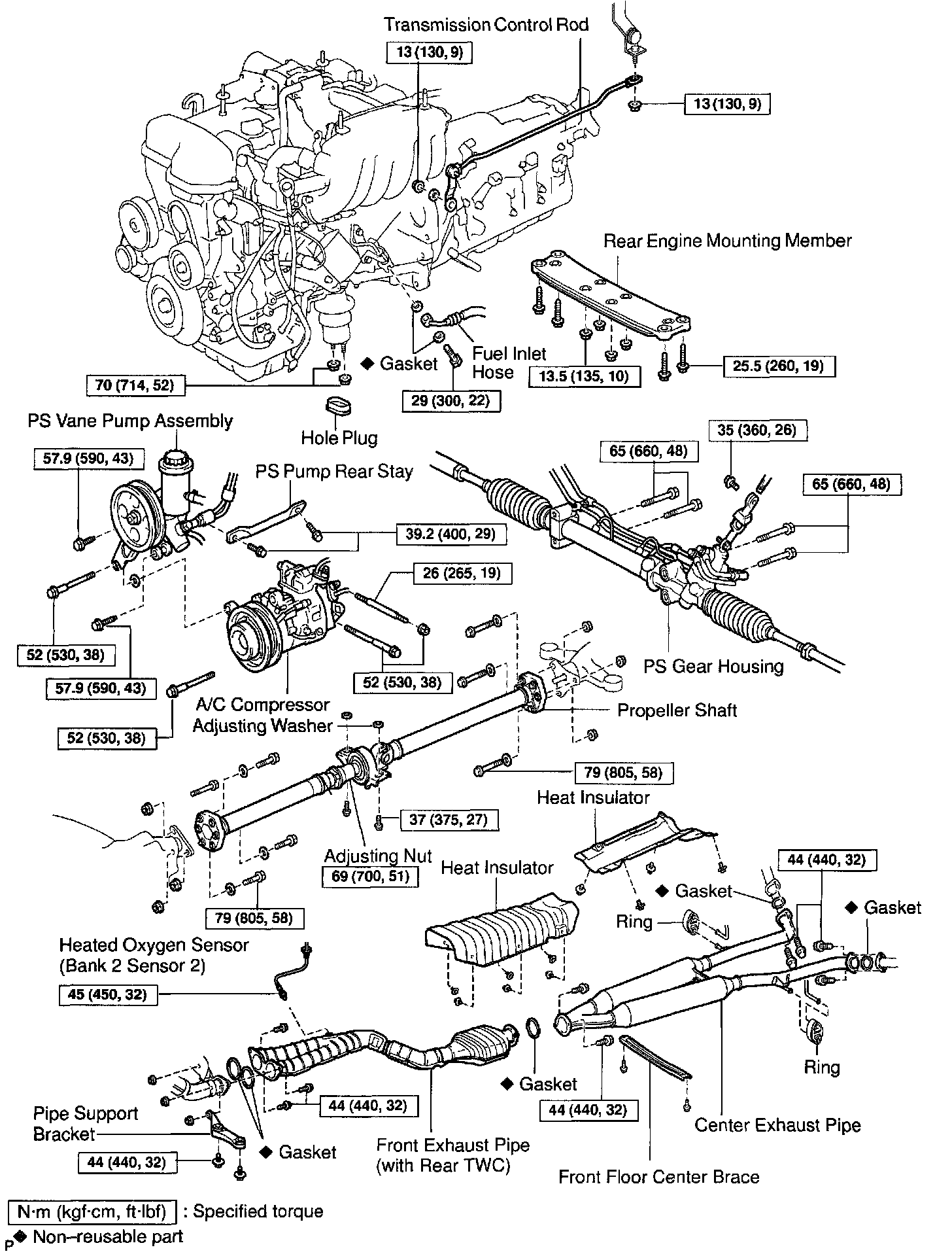

FRT And Center Exhaust Pipes, A/C Comp., P/S Pump, Steering Rack:

Part 2 of 3

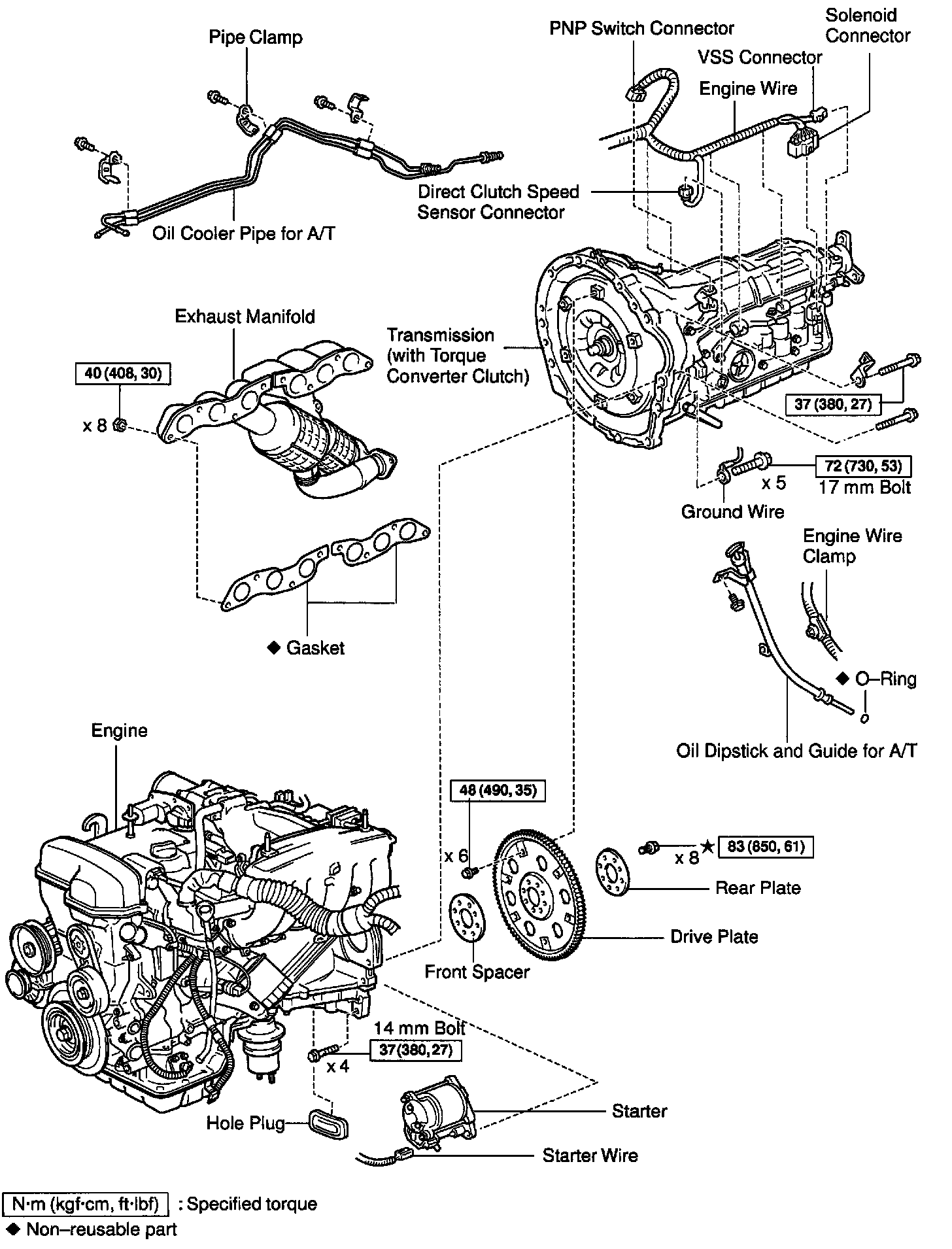

Engine, Transmission, Exh. Manifold, Flex Plate, Various Connectors:

Part 3 of 3
