PWS Circuit

PWS Circuit / Body No.1 ECU

CIRCUIT DESCRIPTION
This circuit is the power source of the master switch for the driver's door and the door lock switch for the passenger's doors.

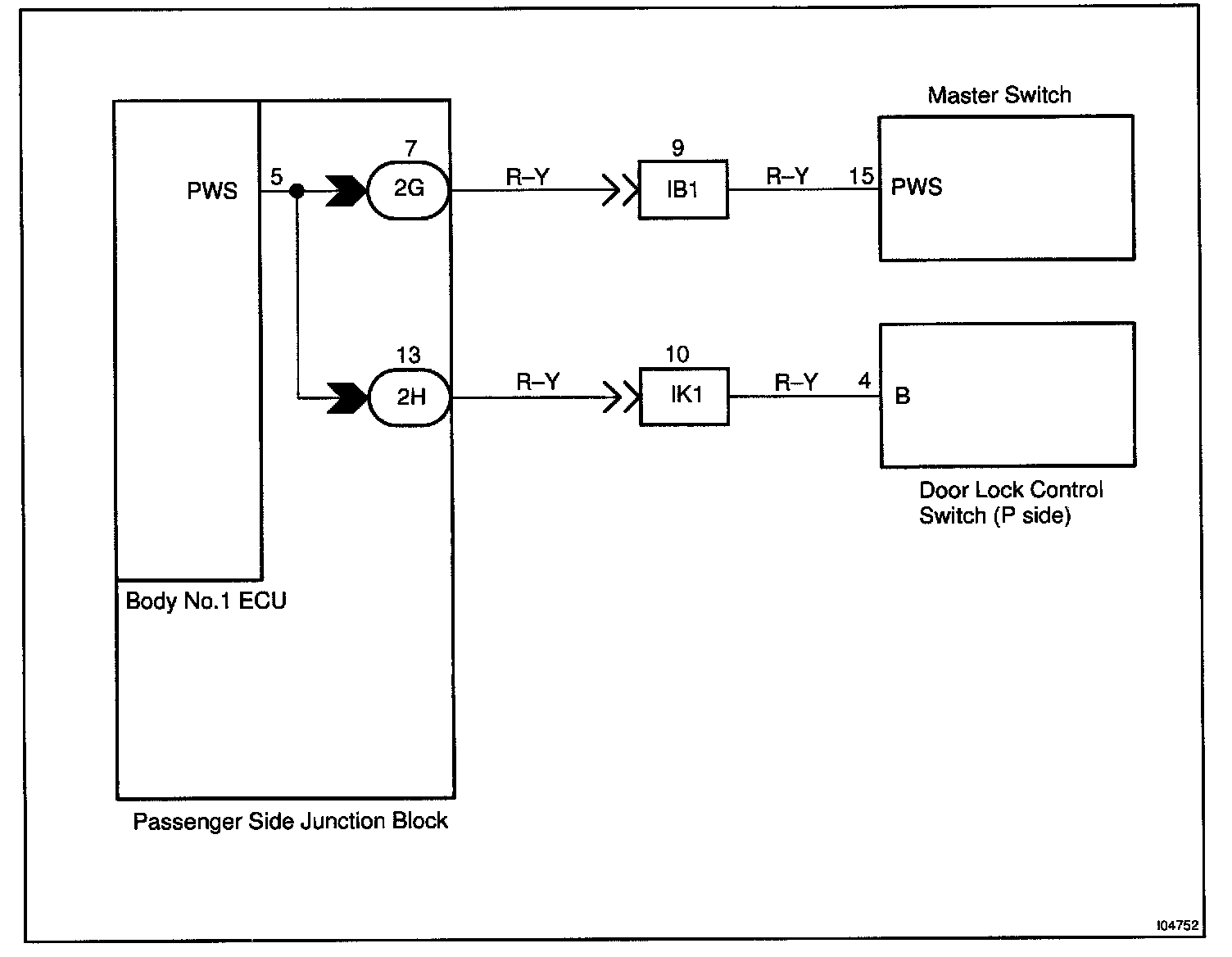

Wiring Diagram:

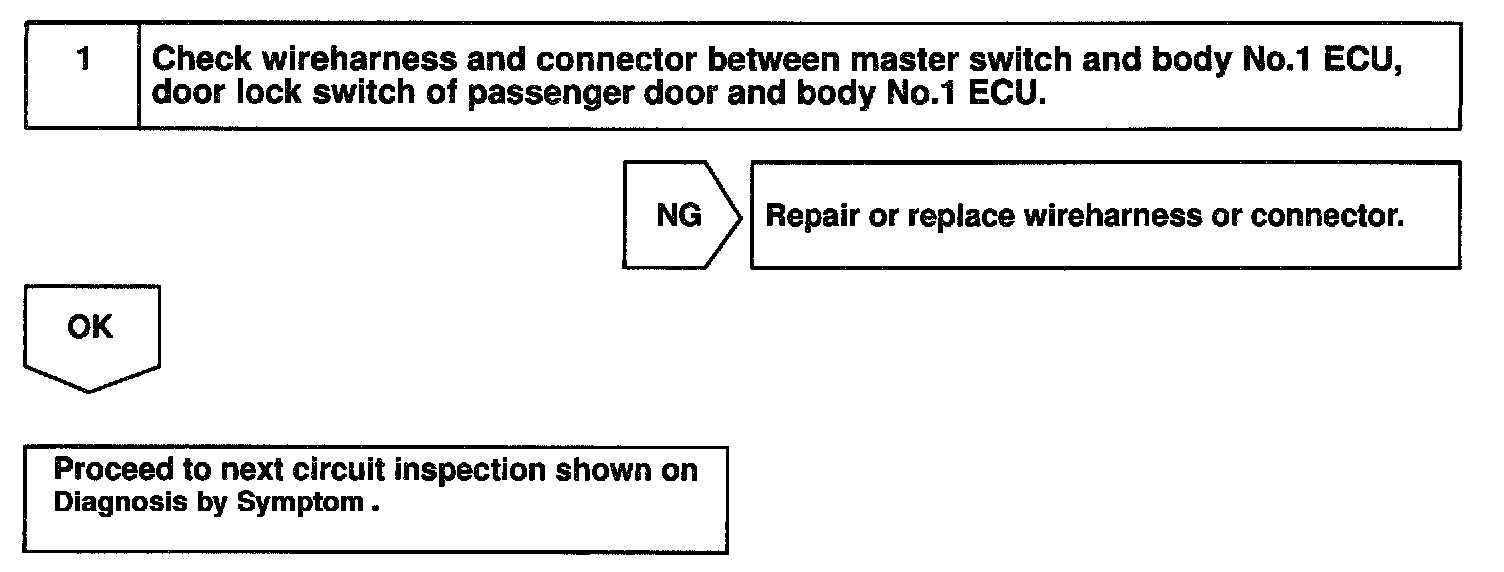

Step 1:

INSPECTION PROCEDURE
