Main Relay (Computer/Fuel System): Testing and Inspection

1. REMOVE RELAY BOX COVER

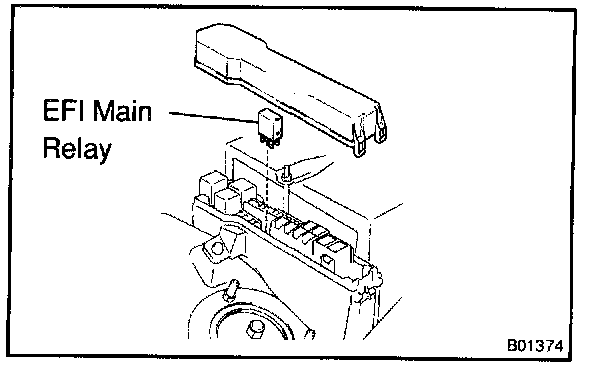

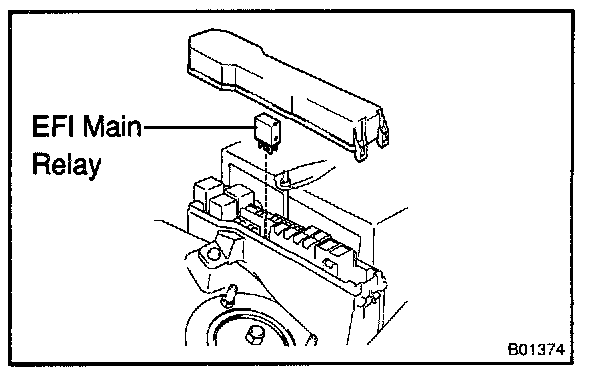

2. REMOVE EFI MAIN RELAY (Marking:EFI)
3. INSPECT EFI MAIN RELAY




a. Inspect the relay continuity.

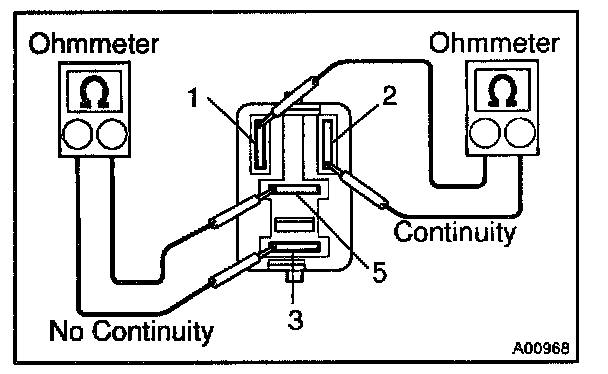

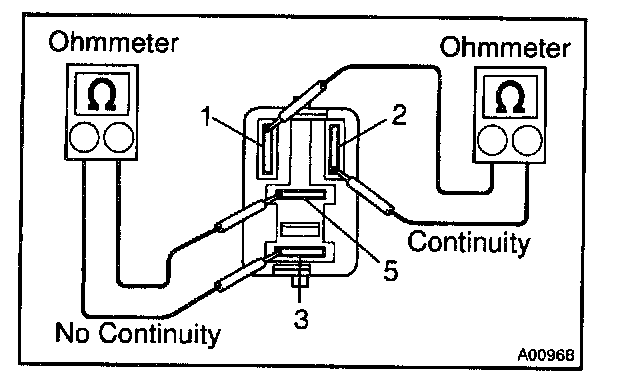

1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
2. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.




b. Inspect the relay operation.

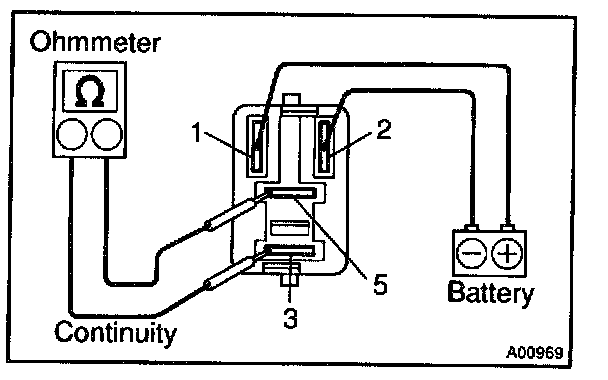

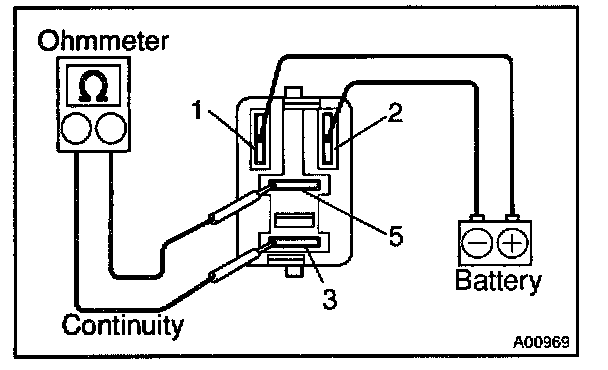

1. Apply battery positive voltage across terminals 1 and 2.
2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.

4. REINSTALL EFI MAIN RELAY
5. REINSTALL RELAY BOX COVER
