Power Seat Control Module: Testing and Inspection

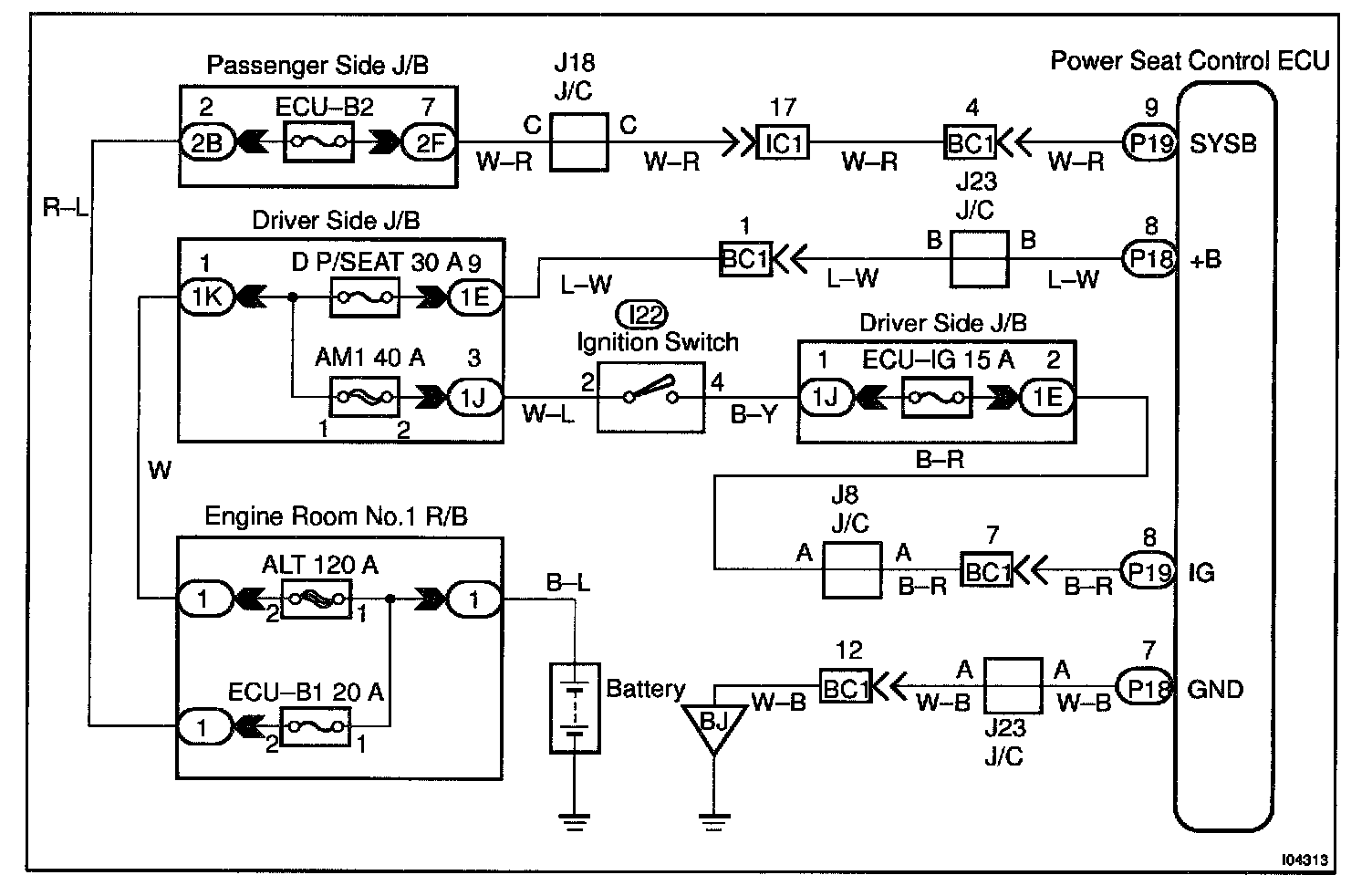

Wiring Diagram:

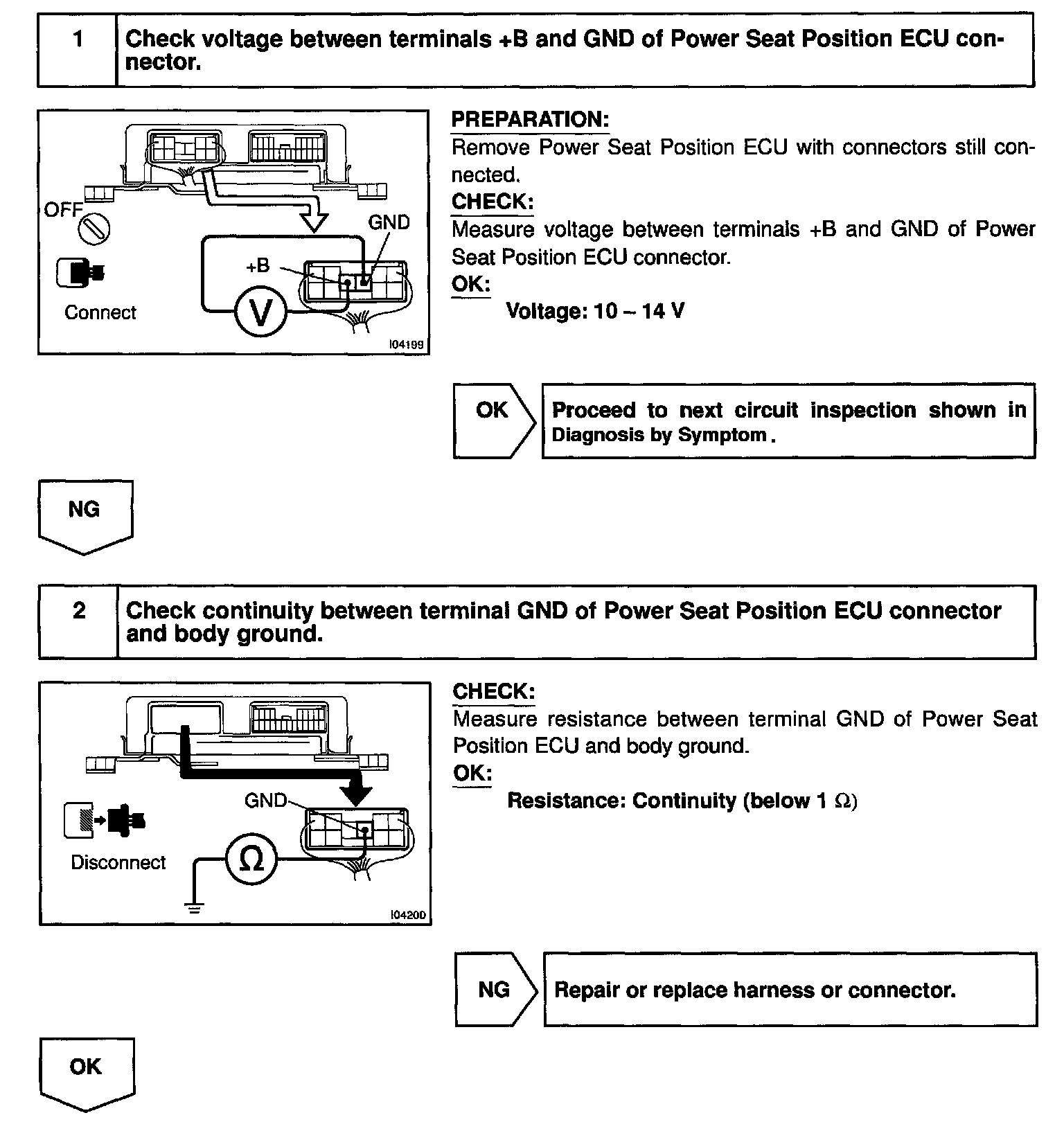

Steps 1 - 2:

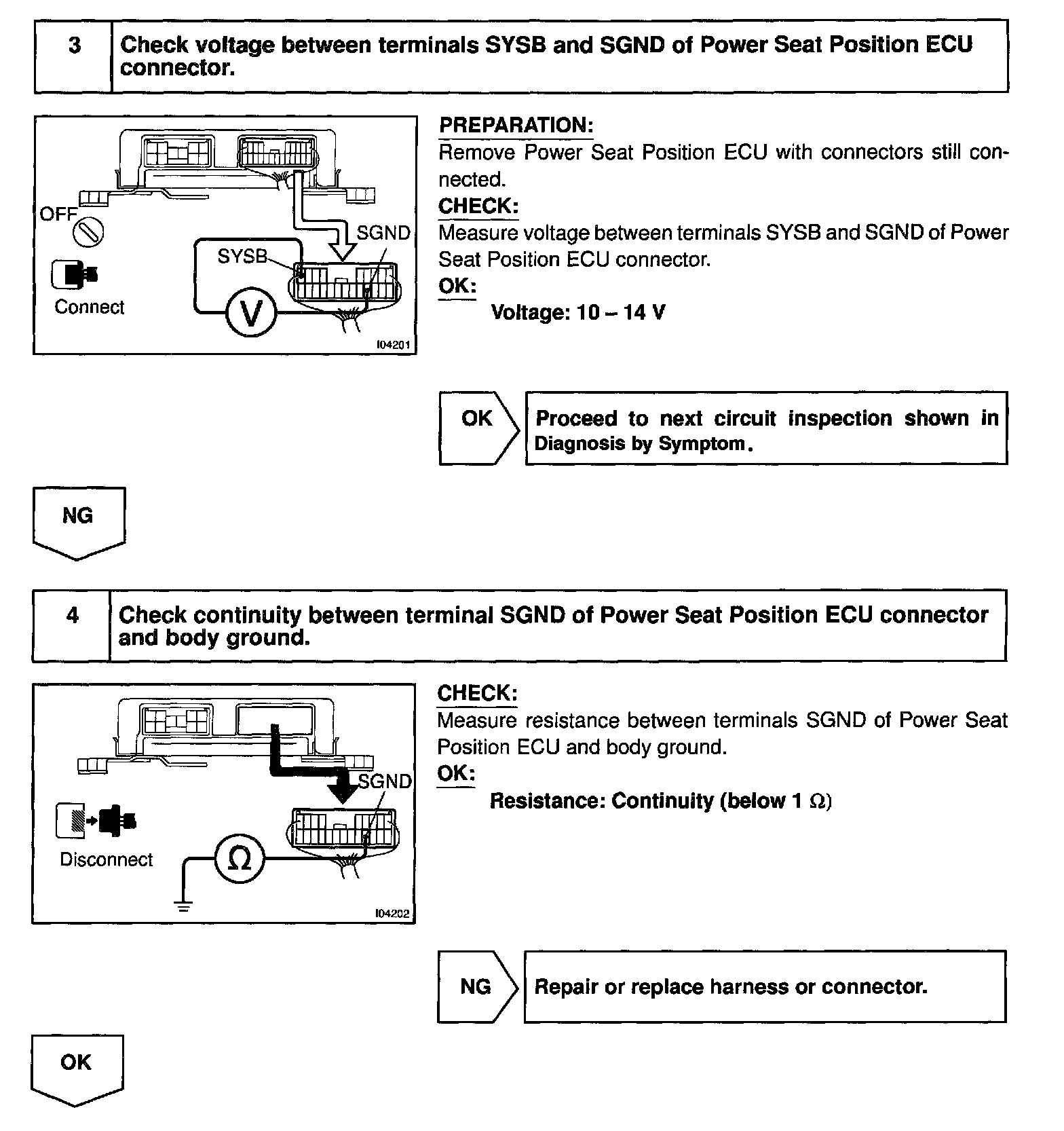

Steps 3 - 4:

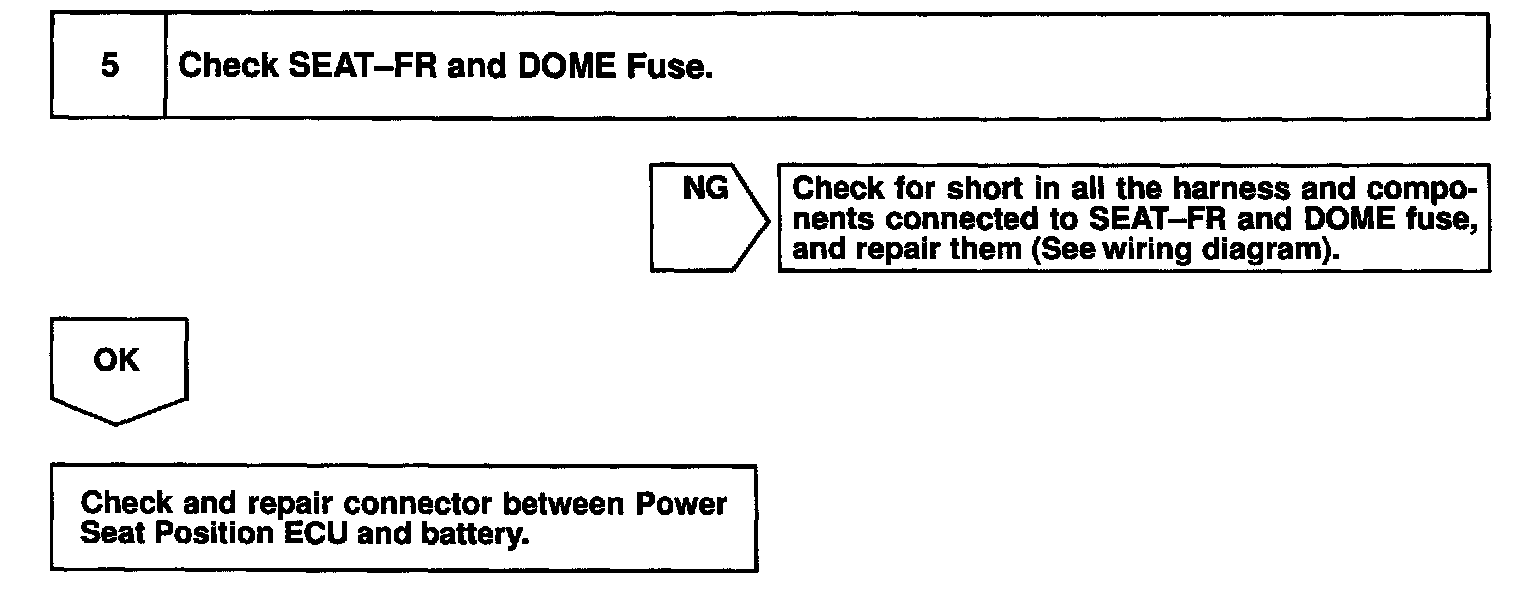

Step 5:




INSPECTION PROCEDURE
