Data Link Connector

Code: D1

Part name: Data Link Connector 1

Part number: 90980-11195

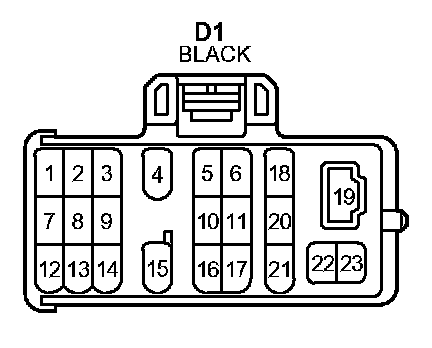

D1 (Data Link Connector 1):






Code: D4

Part name: Data Link Connector 3

Part number: 90980-11665

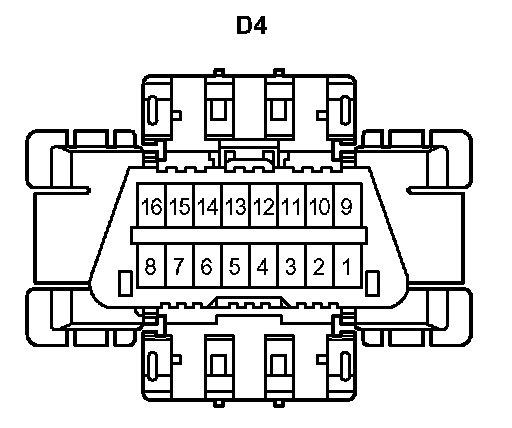

D4 (Data Link Connector 3):
