System Diagram

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS

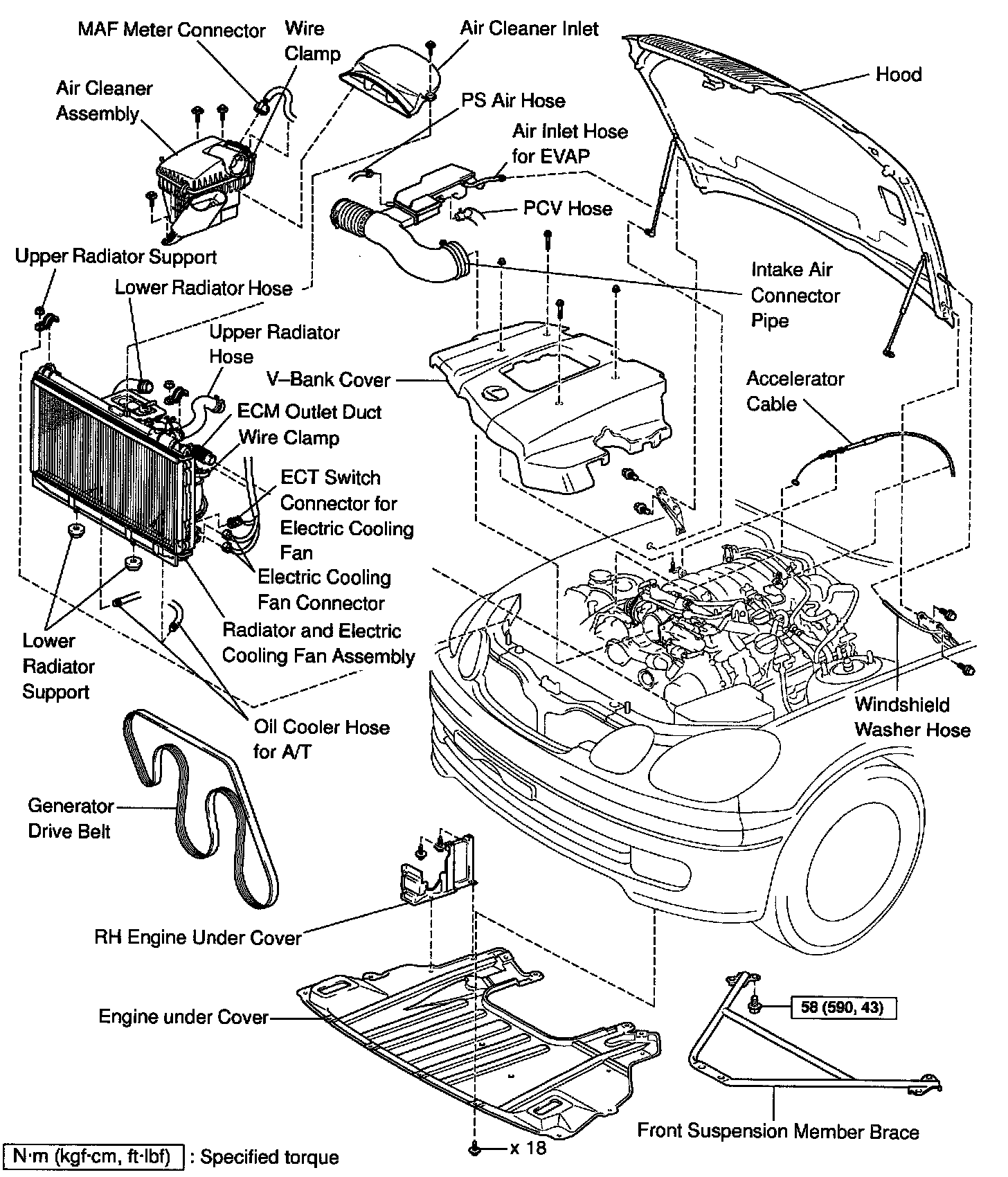

Various Engine Related Components:

Part 1 of 5

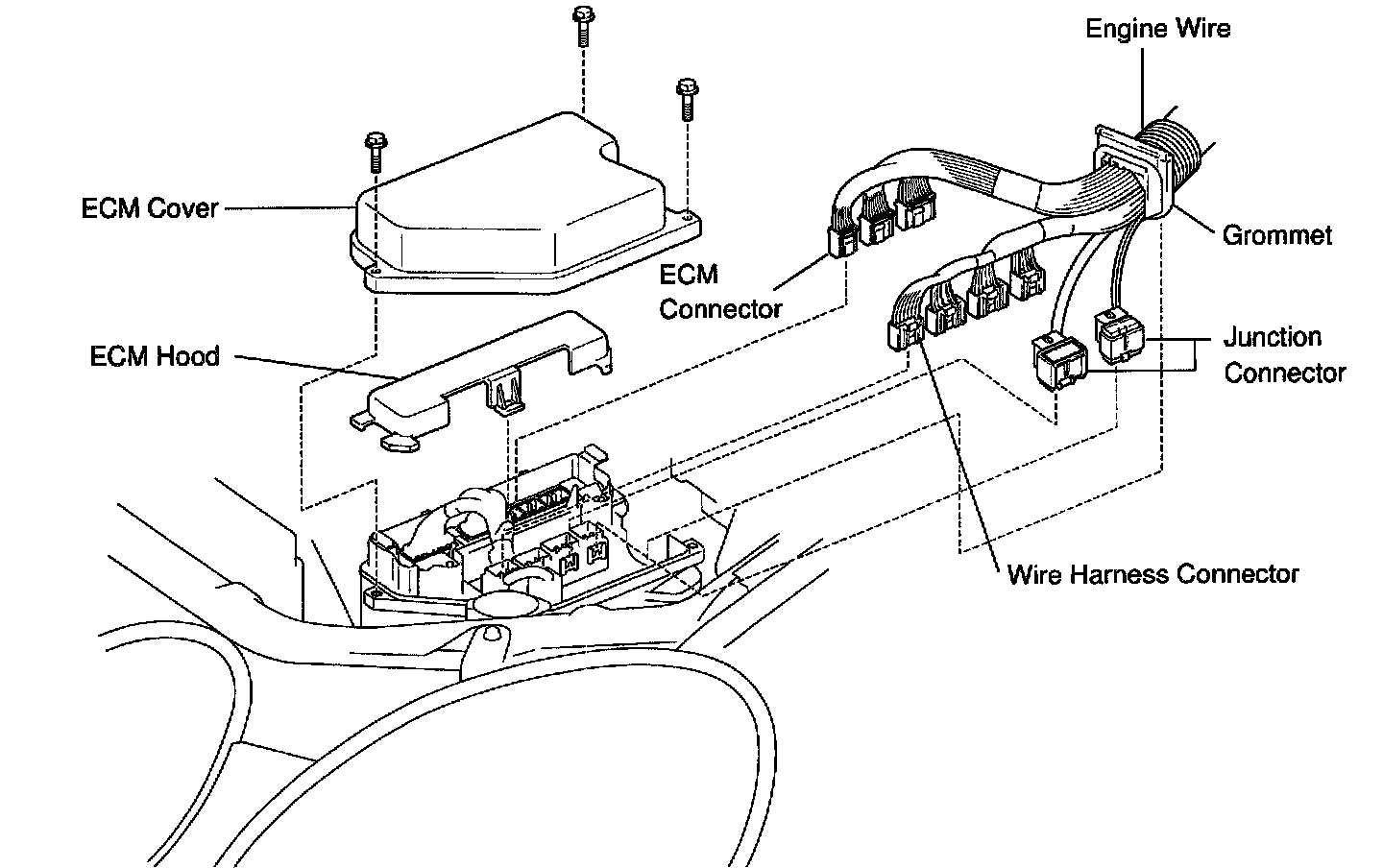

ECM Cover And Connectors:

Part 2 of 5

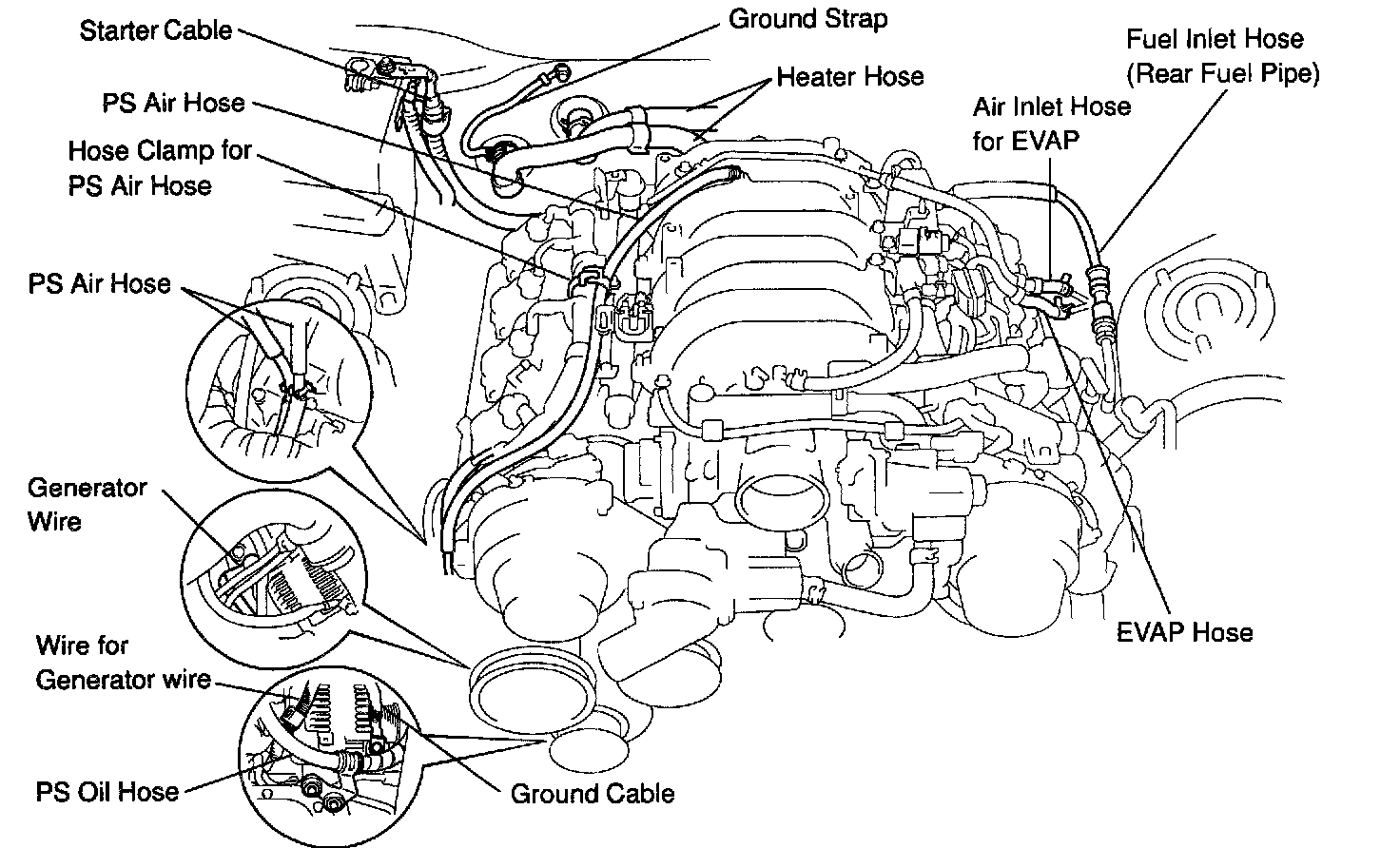

Various Hose, Cables, And Wires:

Part 3 of 5

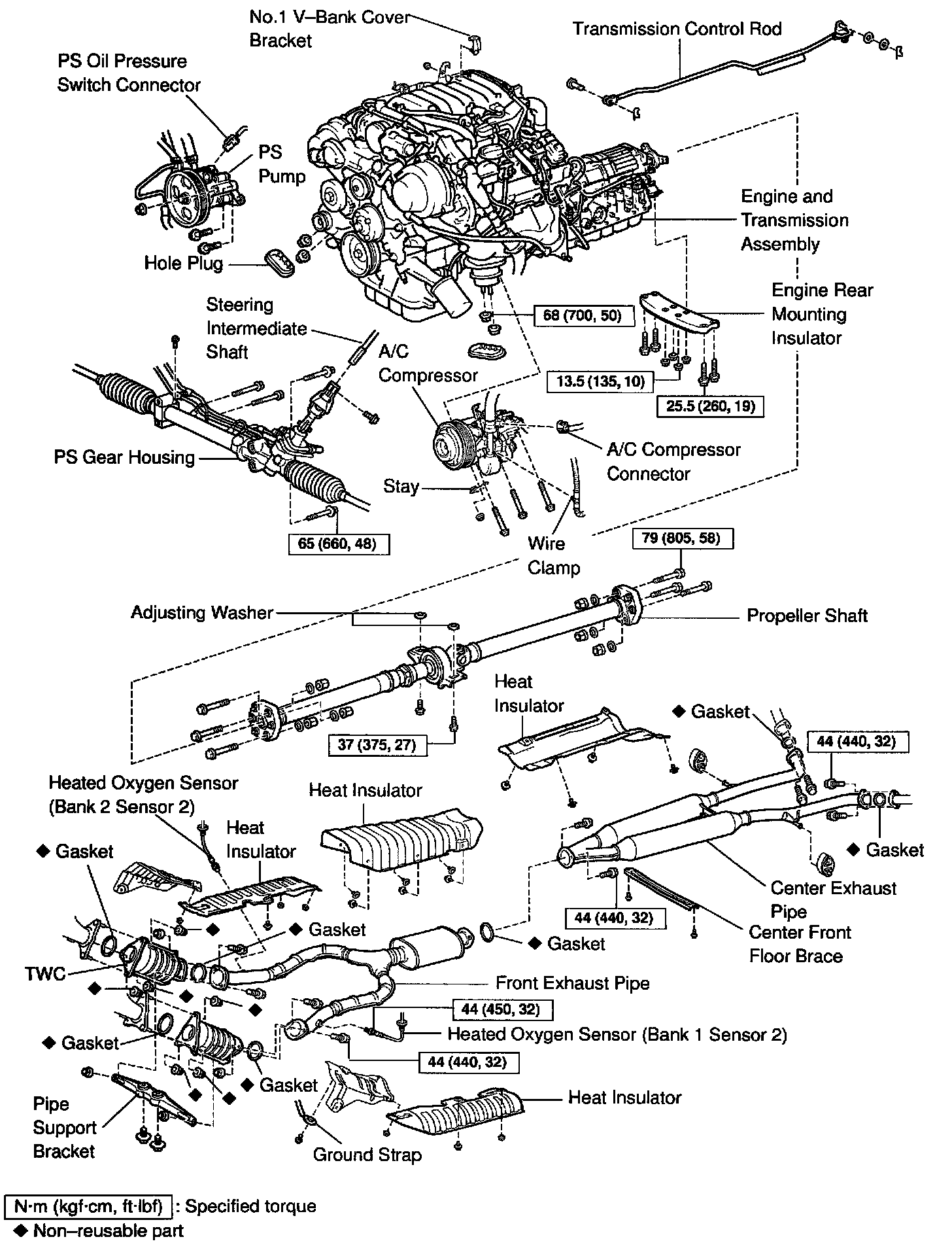

Exh. System, P/S Pump, A/C Comp., Steering Rack, Drive Shaft:

Part 4 of 5

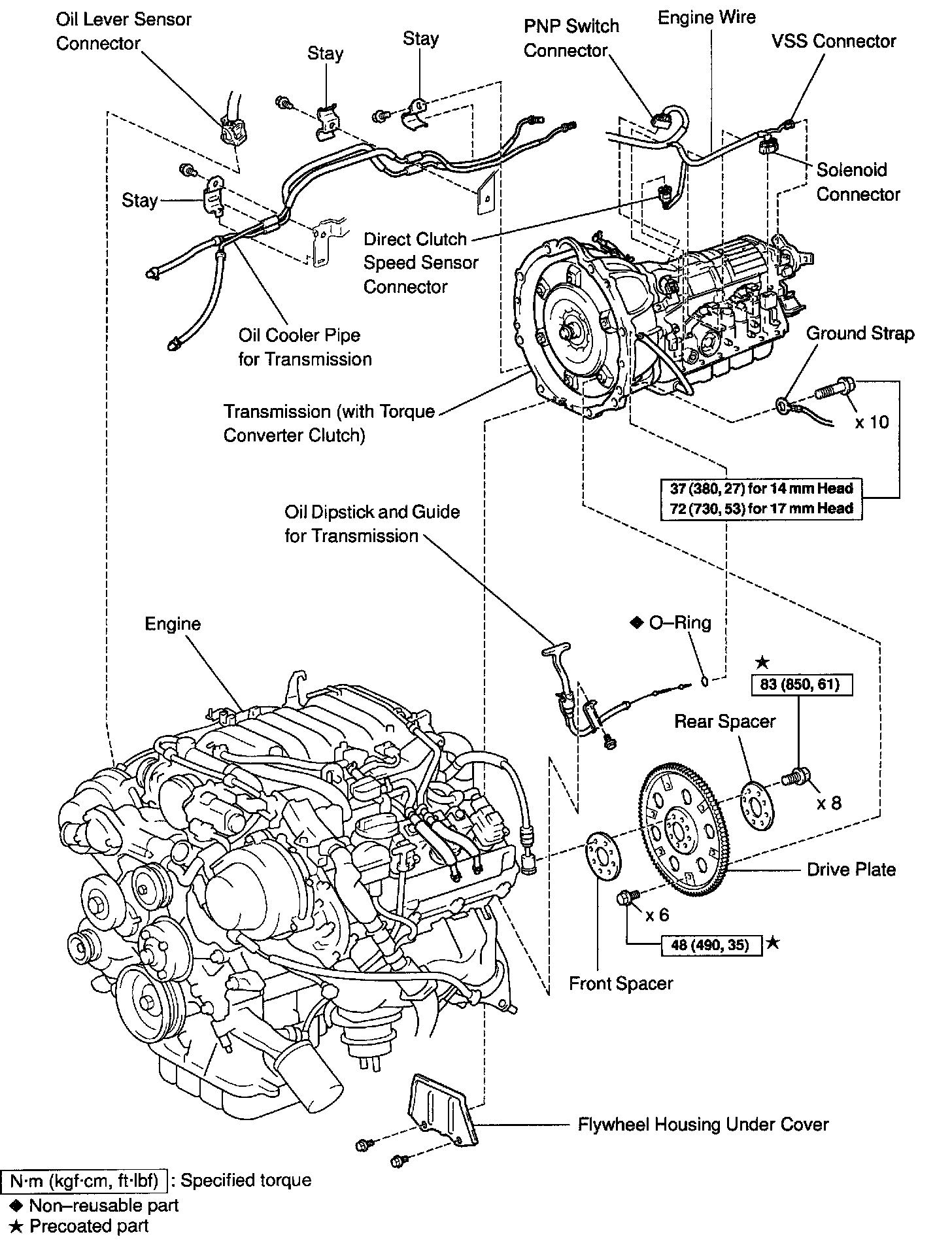

Engine, Transmission, Flex Plate, Oil Cooler Lines:

Part 5 of 5
