Accelerator Pedal Position Sensor: Testing and Inspection

INSPECT ACCELERATOR PEDAL POSITION SENSOR
a. Disconnect the pedal position sensor connector.

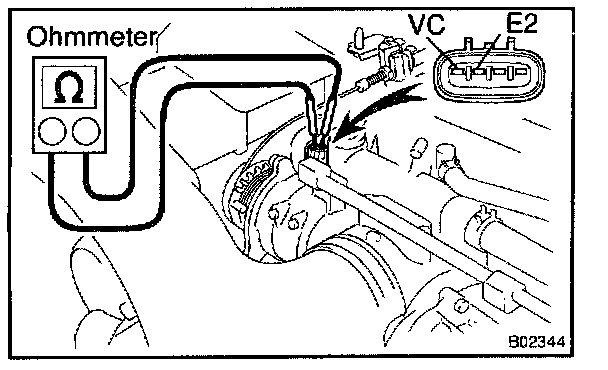

b. Using an ohmmeter, measure the resistance between terminals VC and E2.

Resistance: 1.64 - 3.28 KOhms at 20 °C (68 °F)

If the resistance is not as specified, replace the accelerator pedal position sensor.

c. Reconnect the pedal position sensor connector.
