Brake Fluid Level Warning Switch Circuit

Brake Fluid Level Warning Switch Circuit / Body No.2 ECU

CIRCUIT DESCRIPTION
To detect abnormality of the brake fluid level.

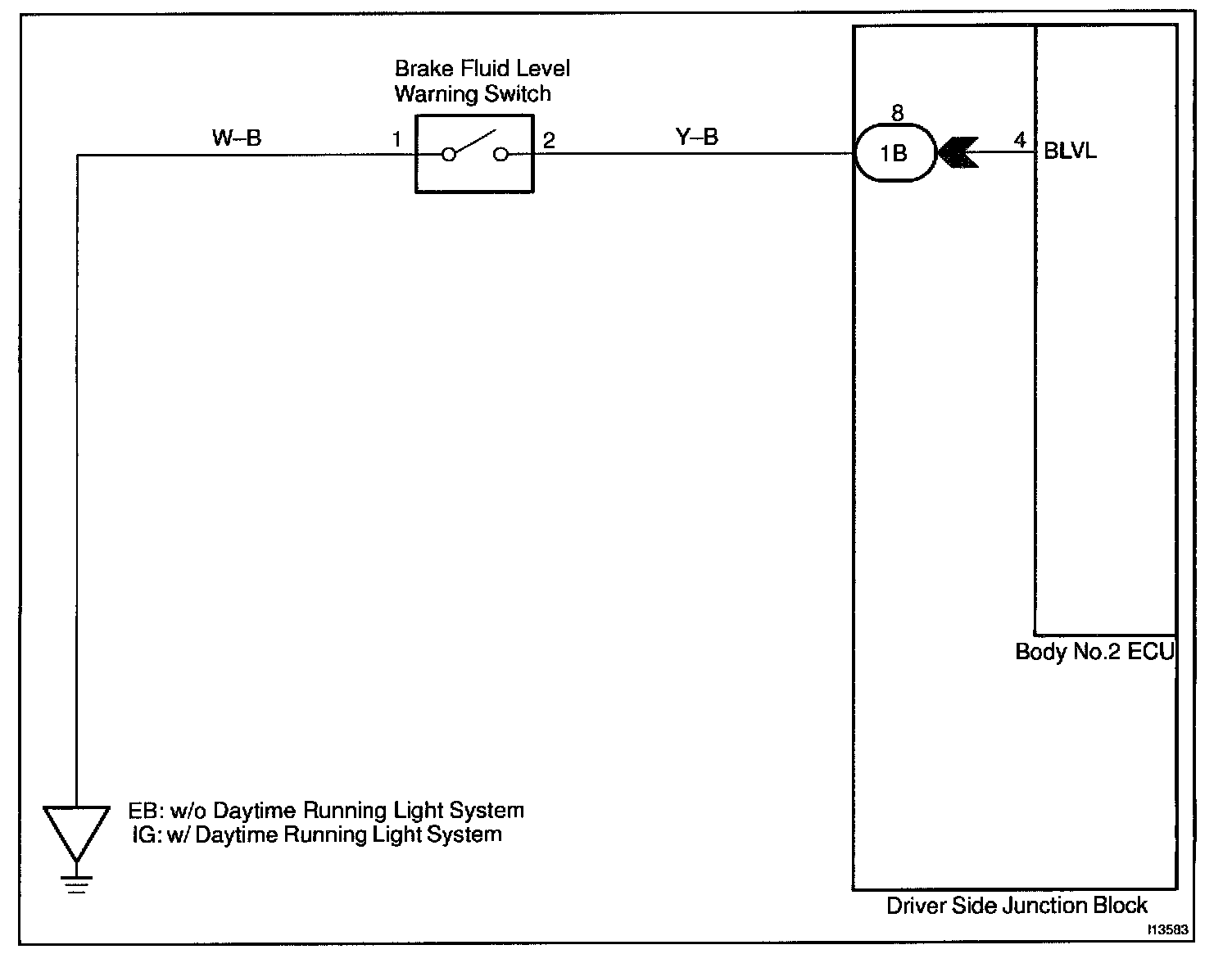

Wiring Diagram:

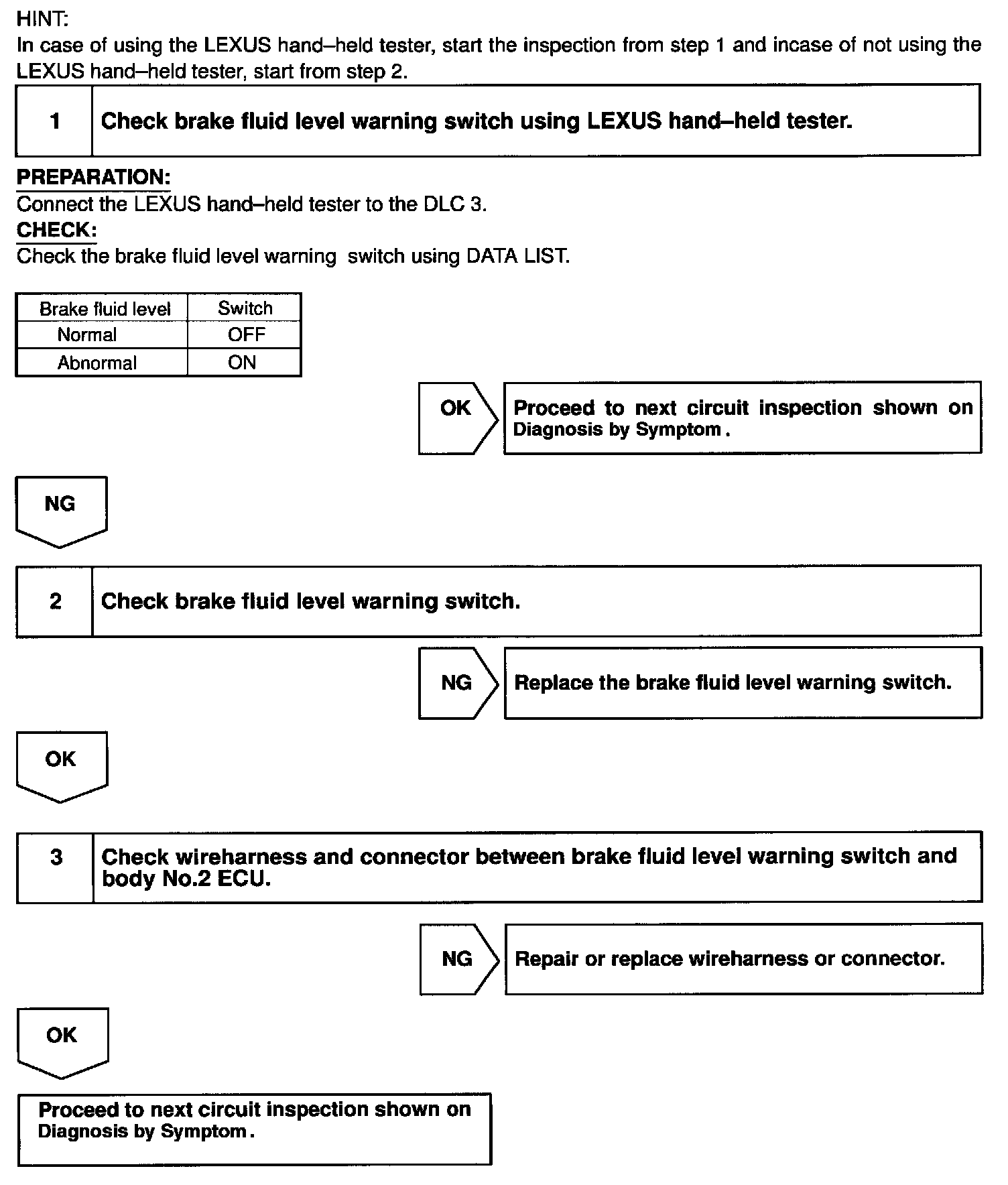

Steps 1 - 3:

INSPECTION PROCEDURE

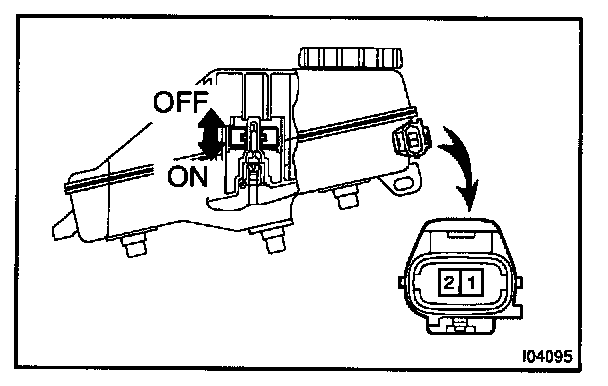

INSPECT BRAKE FLUID LEVEL WARNING SWITCH CONTINUITY
a. Remove the reservoir tank cap and strainer.
b. Disconnect the connector.
c. Check that no continuity exists between the terminals with the switch OFF (float up).
d. Use siphon, etc. to take fluid out of the reservoir tank.
e. Check that continuity exists between the terminals with the switch ON (float down)
f. Pour the fluid back in the reservoir tank.
If operation is not as specified, replace the switch.
