Hazard Switch Circuit

Hazard Switch Circuit / Body No.1 ECU

CIRCUIT DESCRIPTION
Body No.1 ECU activates the flasher relay during warning of the theft deterrent system and flashers the hazard.

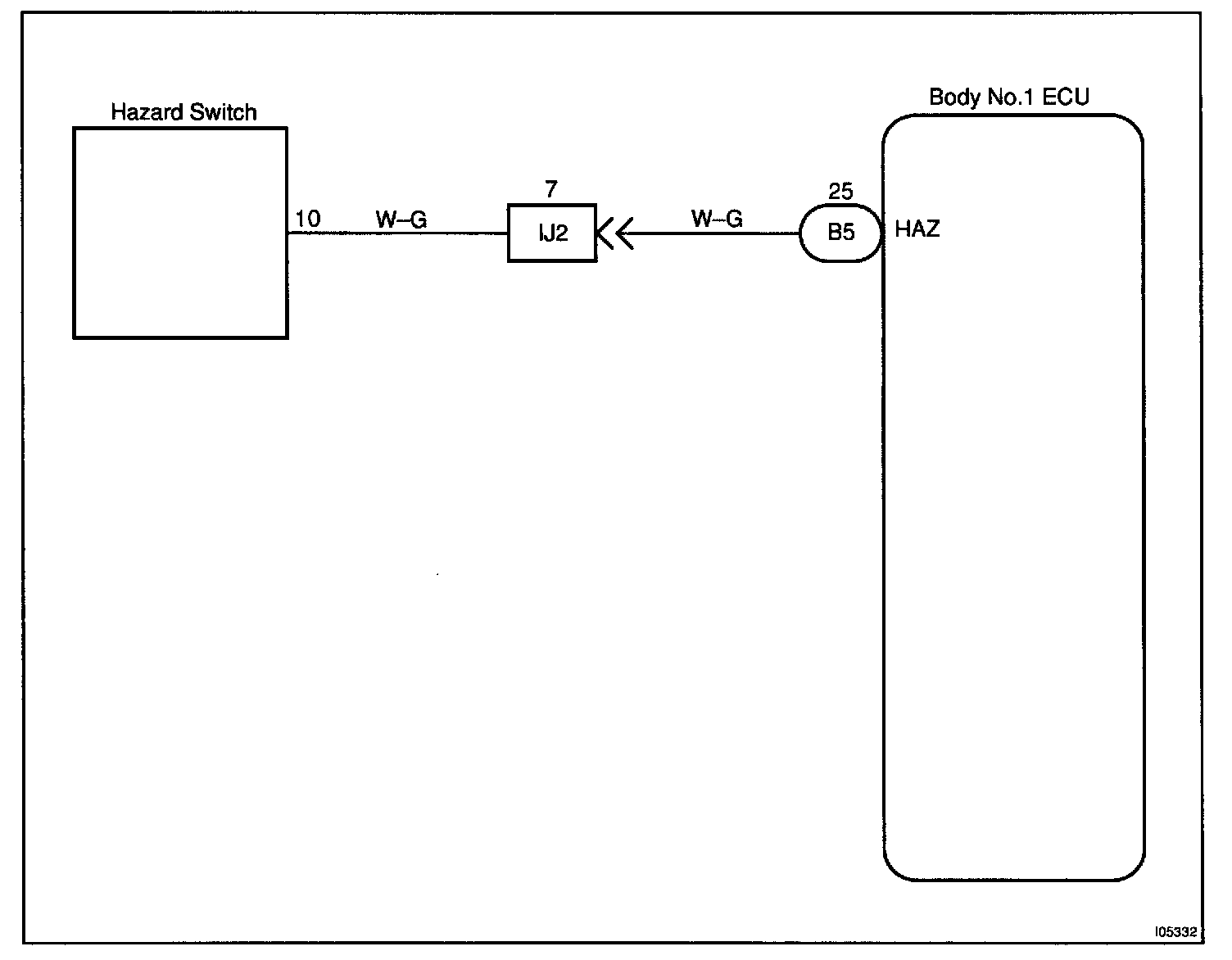

Wiring Diagram:

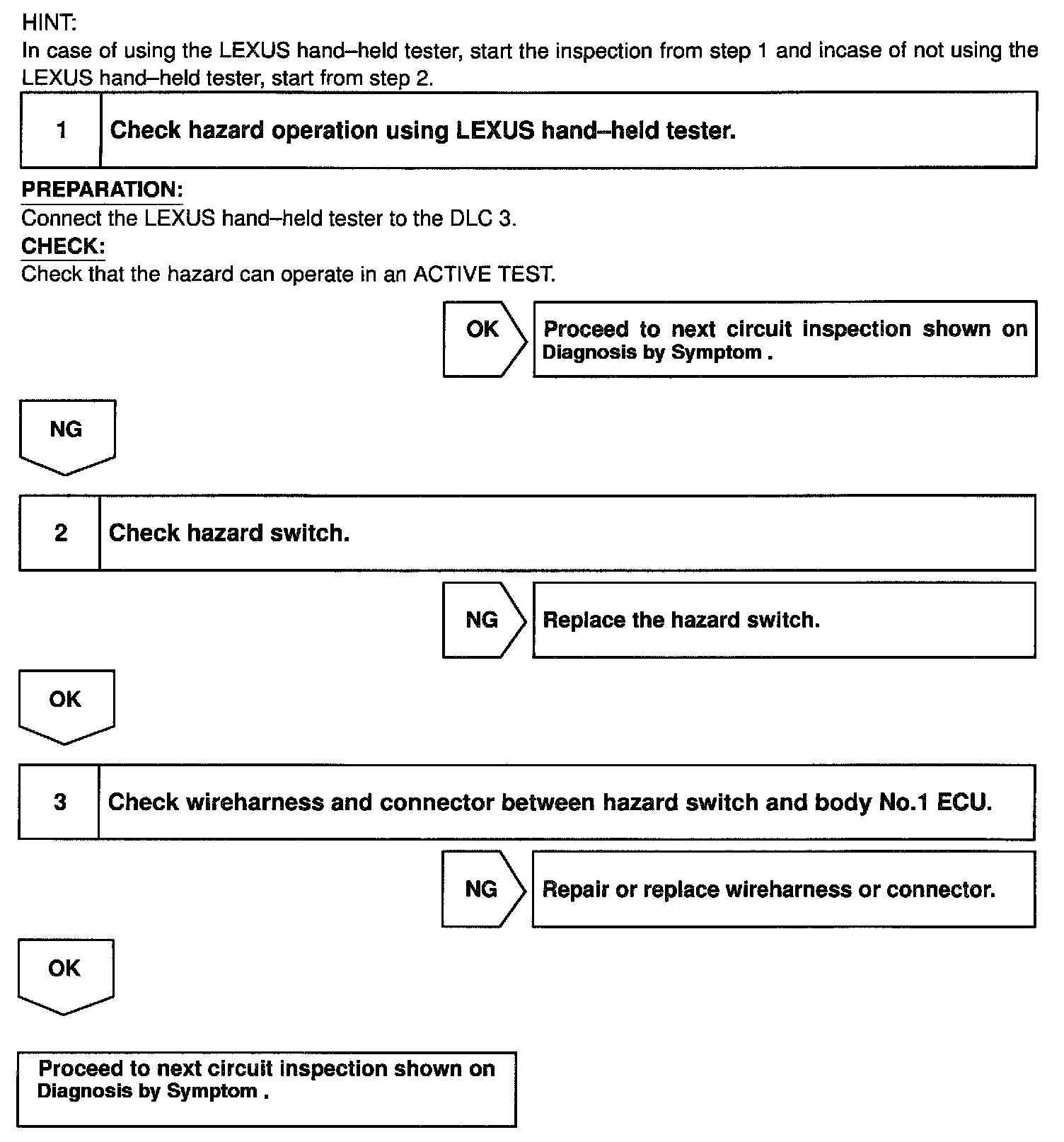

Steps 1 - 3:




INSPECTION PROCEDURE
