Heater Main Relay Circuit
Heater Main Relay Circuit / Body No.1 ECU

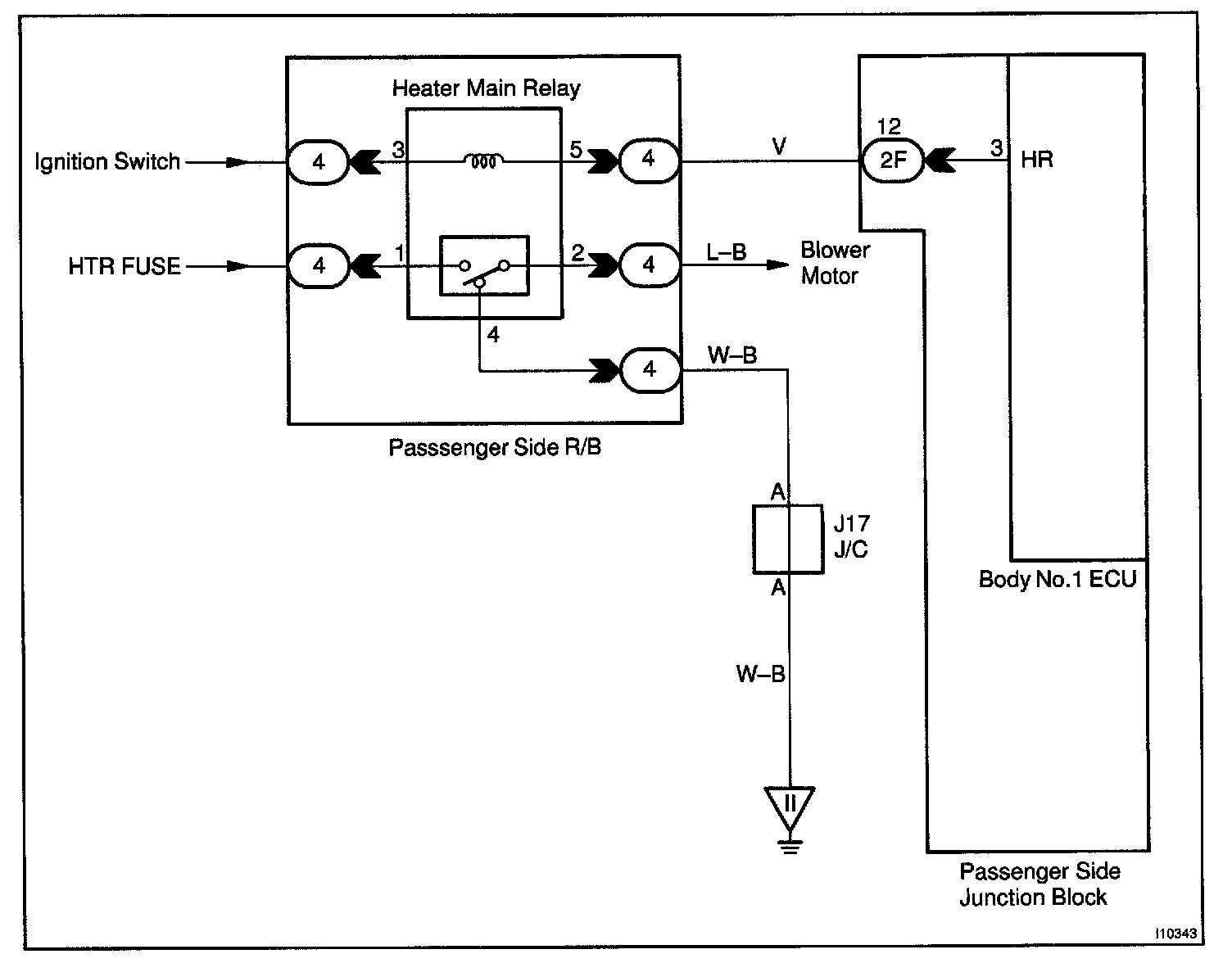

Wiring Diagram:

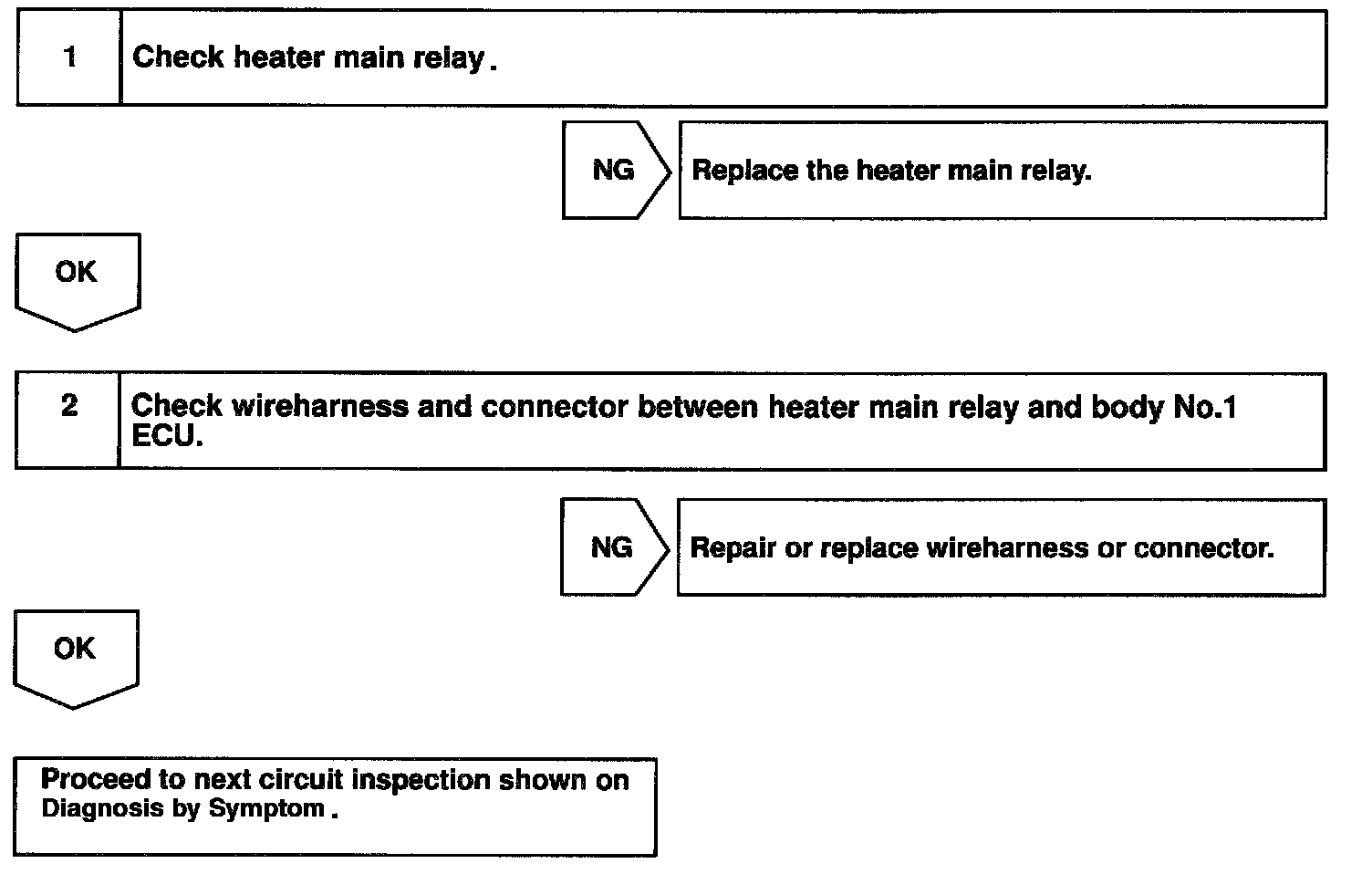

Steps 1 - 2:
INSPECTION PROCEDURE
