Lamp Failure Sensor Circuit

Lamp Failure Sensor Circuit / Body No.2 ECU

CIRCUIT DESCRIPTION
Lamp failure sensor detects a wire break of the stop light, high mount stop light and tail light and sends that signal to the Body No. 2 ECU.

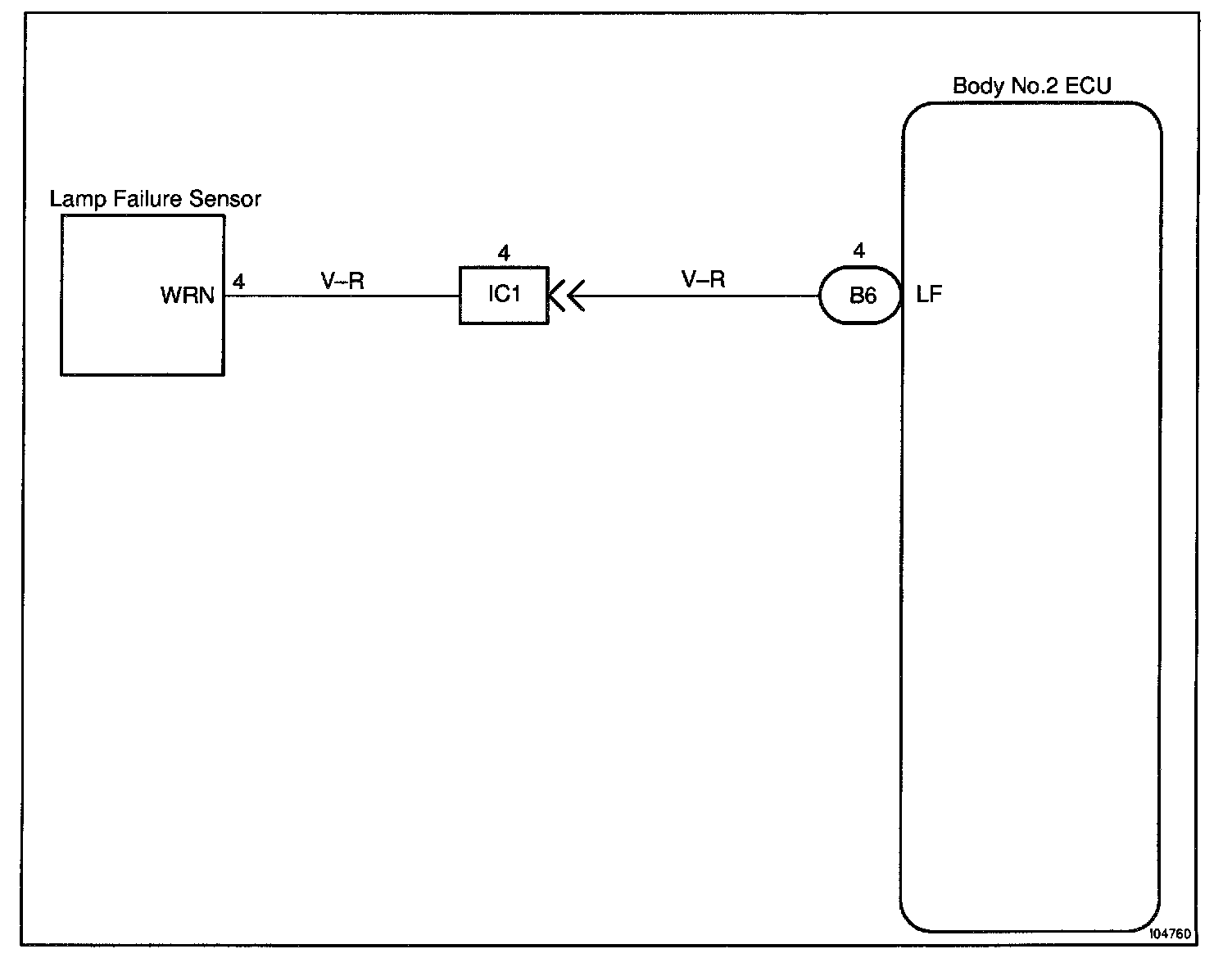

Wiring Diagram:

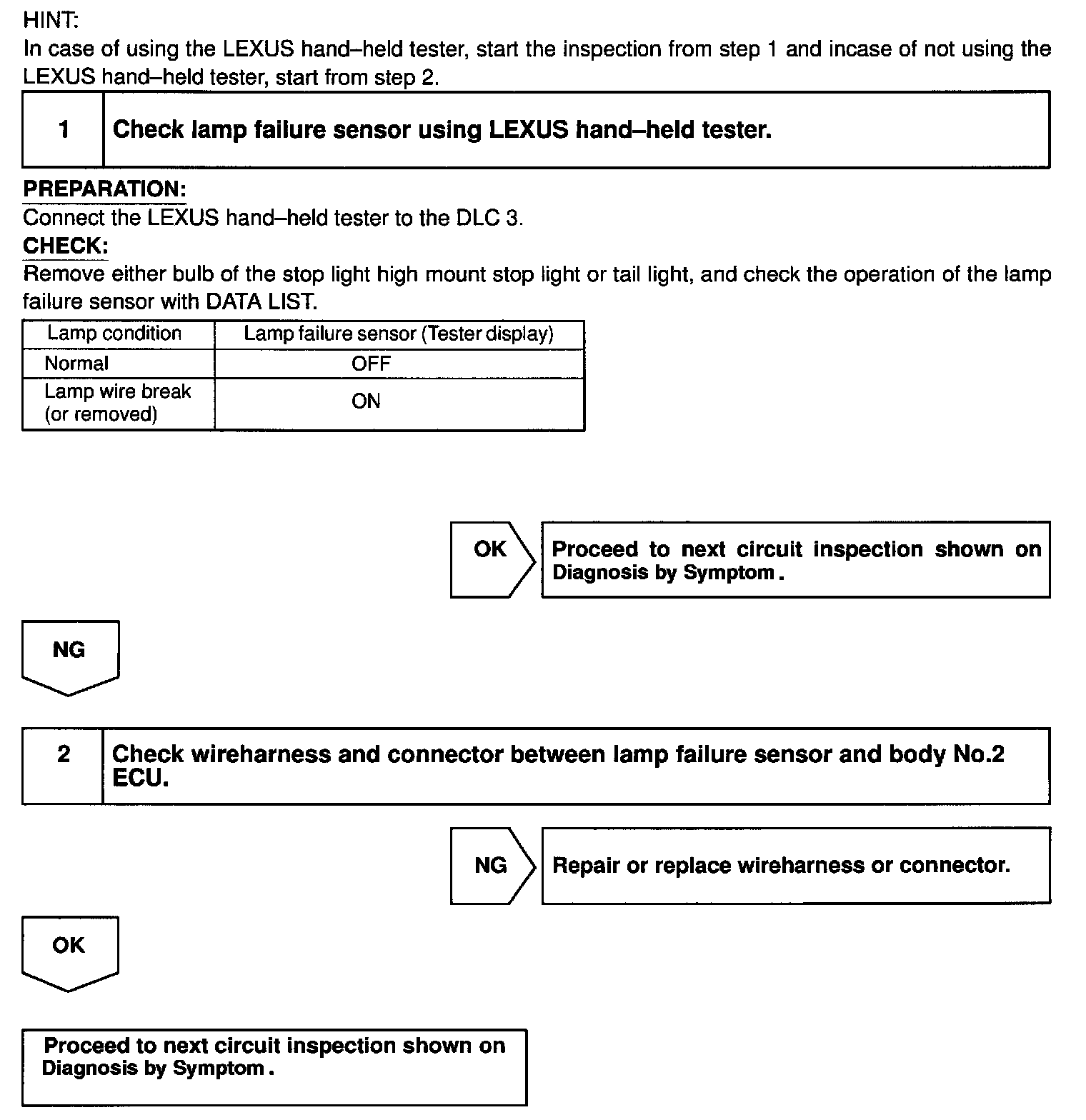

Steps 1 - 2:




INSPECTION PROCEDURE
