Horn Circuit

Horn Circuit / Body No.1 ECU

CIRCUIT DESCRIPTION
The horn is connected to the body No.1 ECU and activated by the body No.1 ECU during warning of the theft deterrent system.

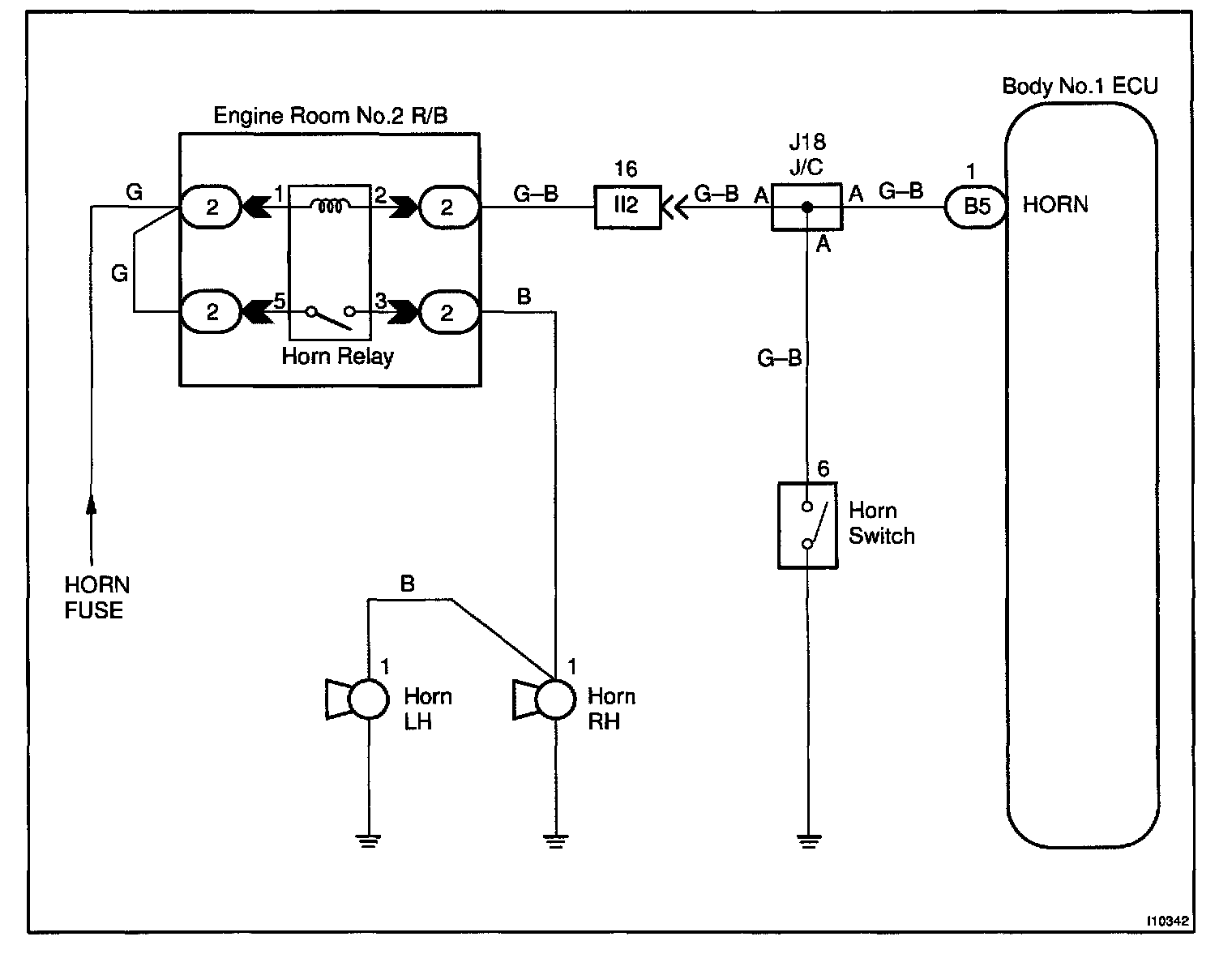

Wiring Diagram:

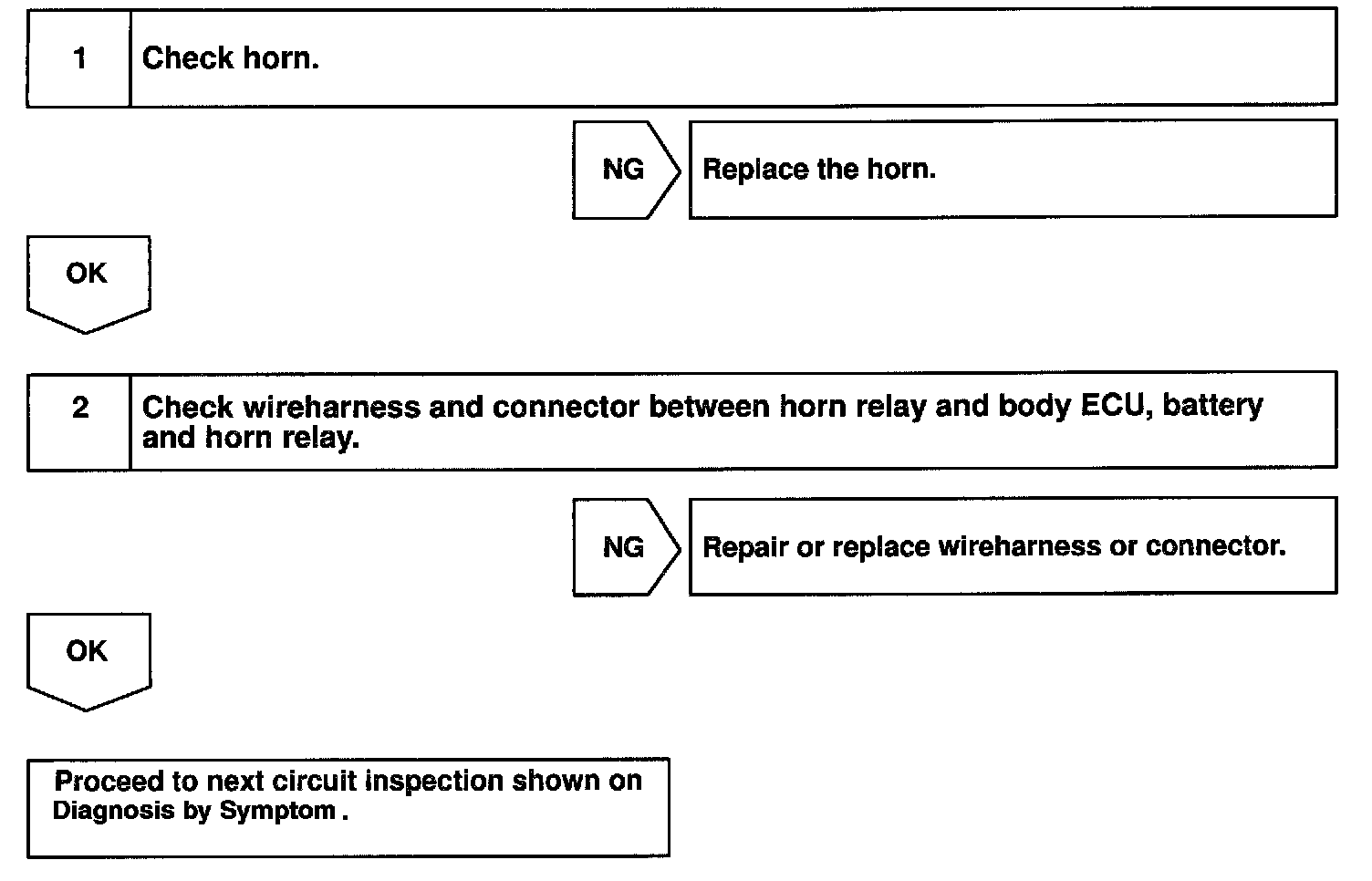

Steps 1 - 2:




INSPECTION PROCEDURE
