Electrical Component Locator: Switches
SWITCHES
| Component | Component Location |
|---|---|
| A/C Dual Pressure Switch | At upper left radiator support, integral to A/C triple-pressure switch. |
| A/C Single Pressure Switch | At upper left radiator support, integral to A/C triple-pressure switch. |

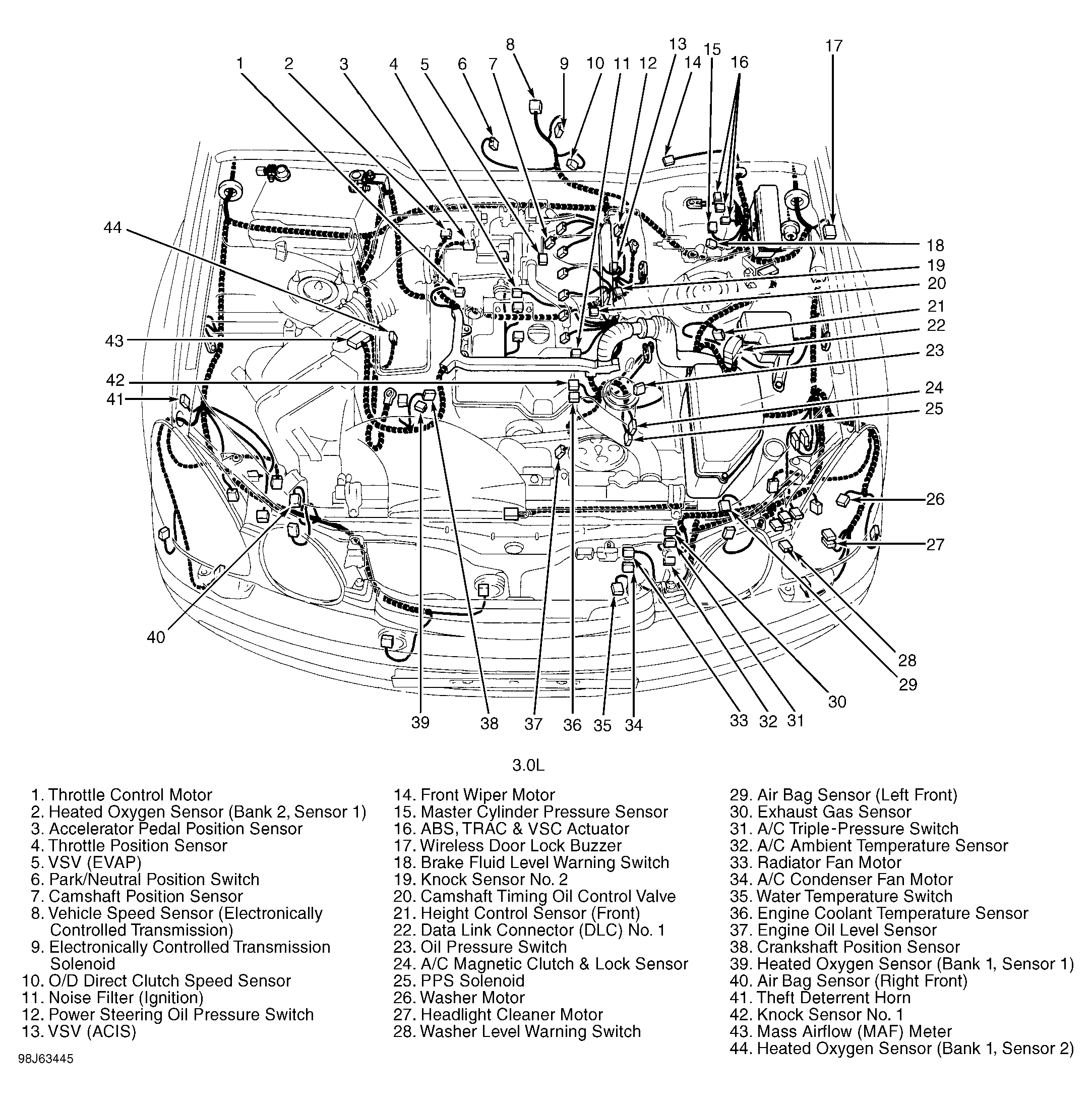

| A/C Triple-Pressure Switch (3.0L) | At upper left radiator support. See Figure. |

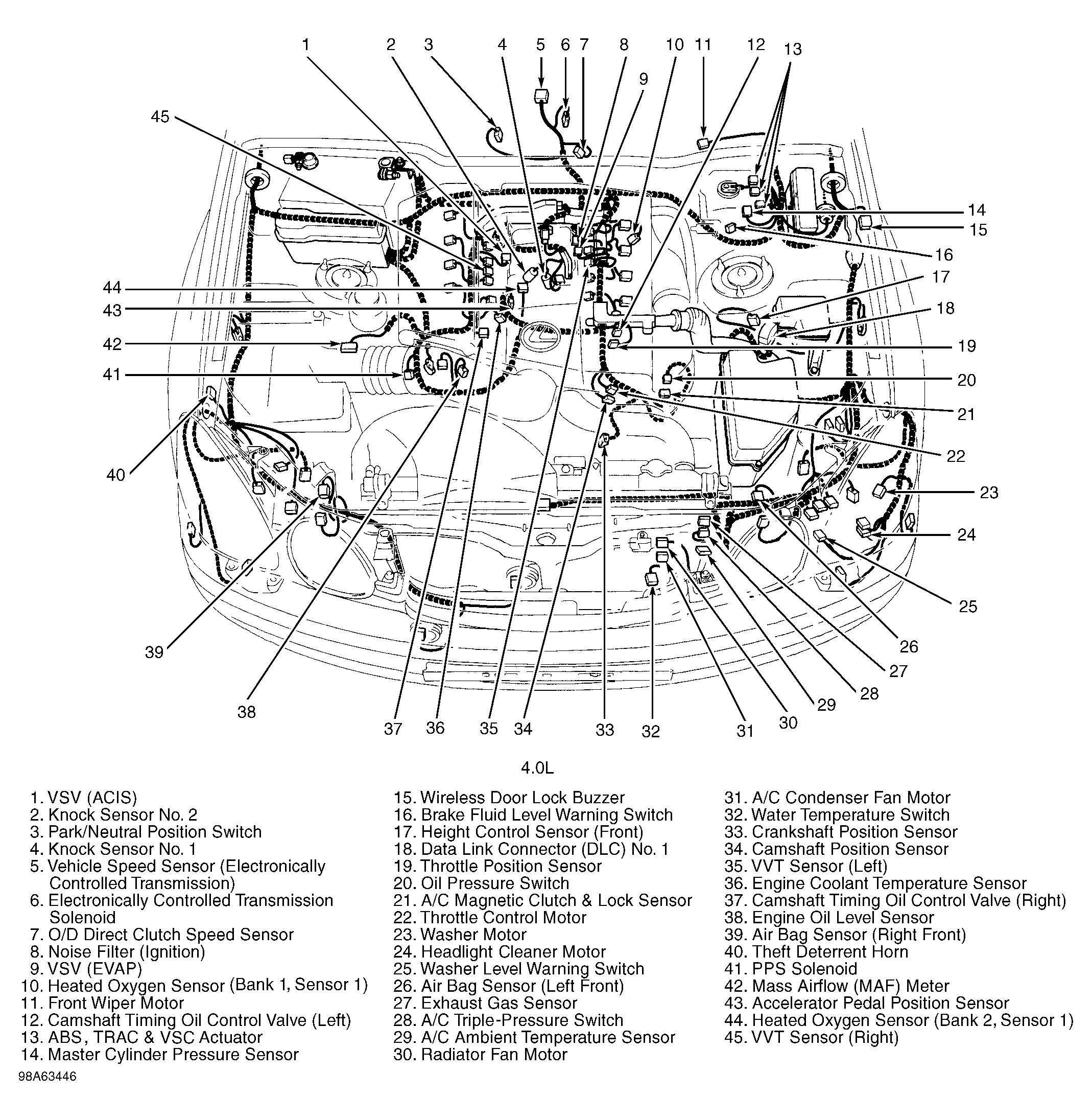

| A/C Triple-Pressure Switch (4.0L) | At upper left radiator support. See Figure. |
| Brake Fluid Level Warning Switch (3.0L) | In brake fluid reservoir. See Figure. |
| Brake Fluid Level Warning Switch (4.0L) | In brake fluid reservoir. See Figure. |
| Buckle Switch (Left/Right) | In respective front seat belt buckle. |
| Mirror Retractor Switch | Left side of dash. |
| Oil Pressure Switch (3.0L) | On left front side of engine. See Figure. |
| Oil Pressure Switch (4.0L) | On left front side of engine. See Figure. |
| Parking Brake Switch | Behind left side of dash. |
| Park/Neutral Position Switch (3.0L) | On transmission. See Figure. |
| Park/Neutral Position Switch (4.0L) | On transmission. See Figure. |
| Power Steering Oil Pressure Switch (3.0L) | At left rear of engine compartment. See Figure. |
| Unlock Warning Switch & Key Interlock Solenoid | Behind left side of dash. |
| Washer Level Warning Switch (3.0L) | At left front corner of engine compartment. See Figure. |
| Washer Level Warning Switch (4.0L) | At left front corner of engine compartment. See Figure. |
| Water Temperature Switch (3.0L) | At front of engine compartment, behind left side of grille. See Figure. |
| Water Temperature Switch (4.0L) | At front of engine compartment, behind left side of grille. See Figure. |
