Power Seat Control Module: Testing and Inspection

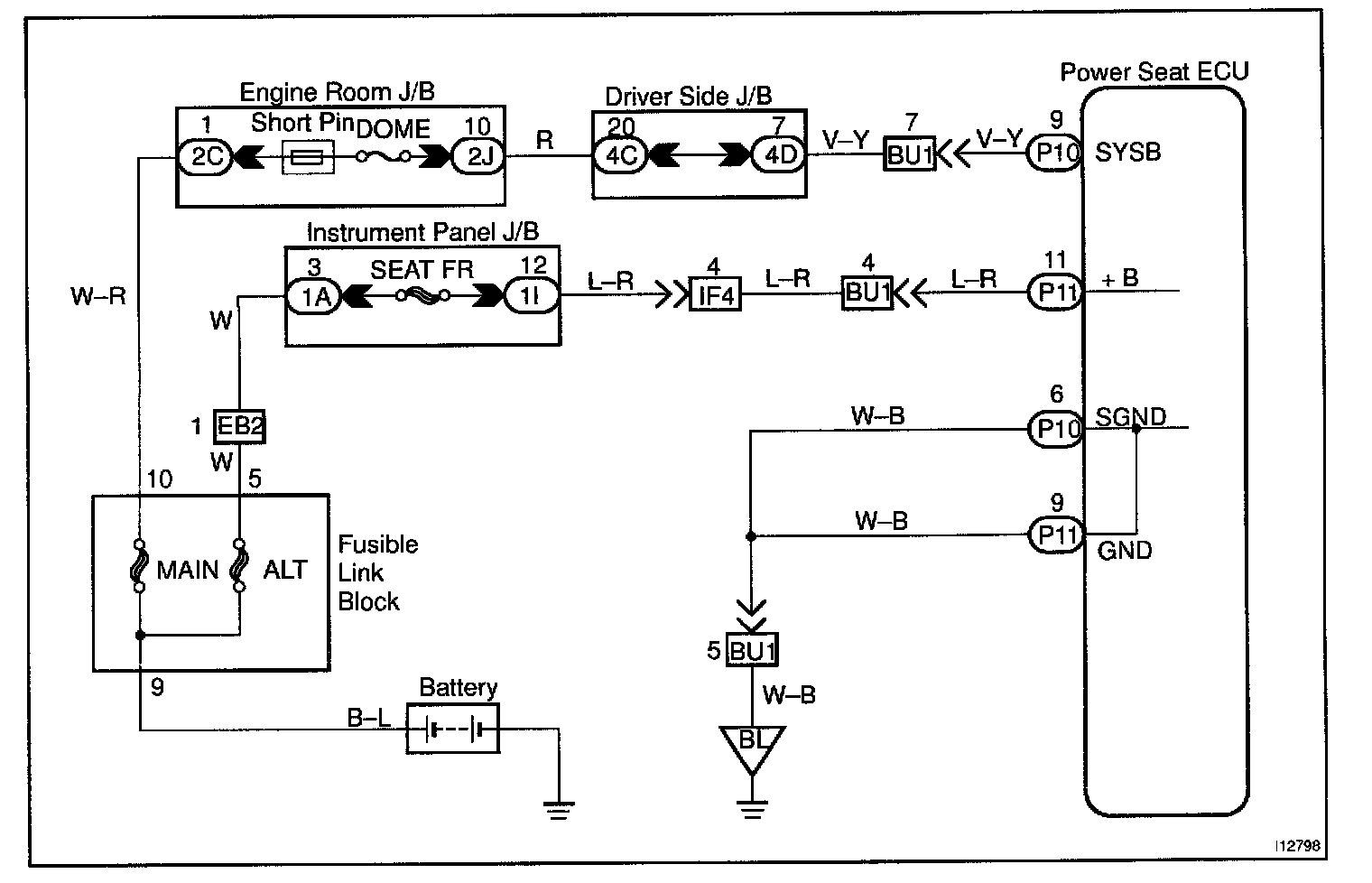

Wiring Diagram:

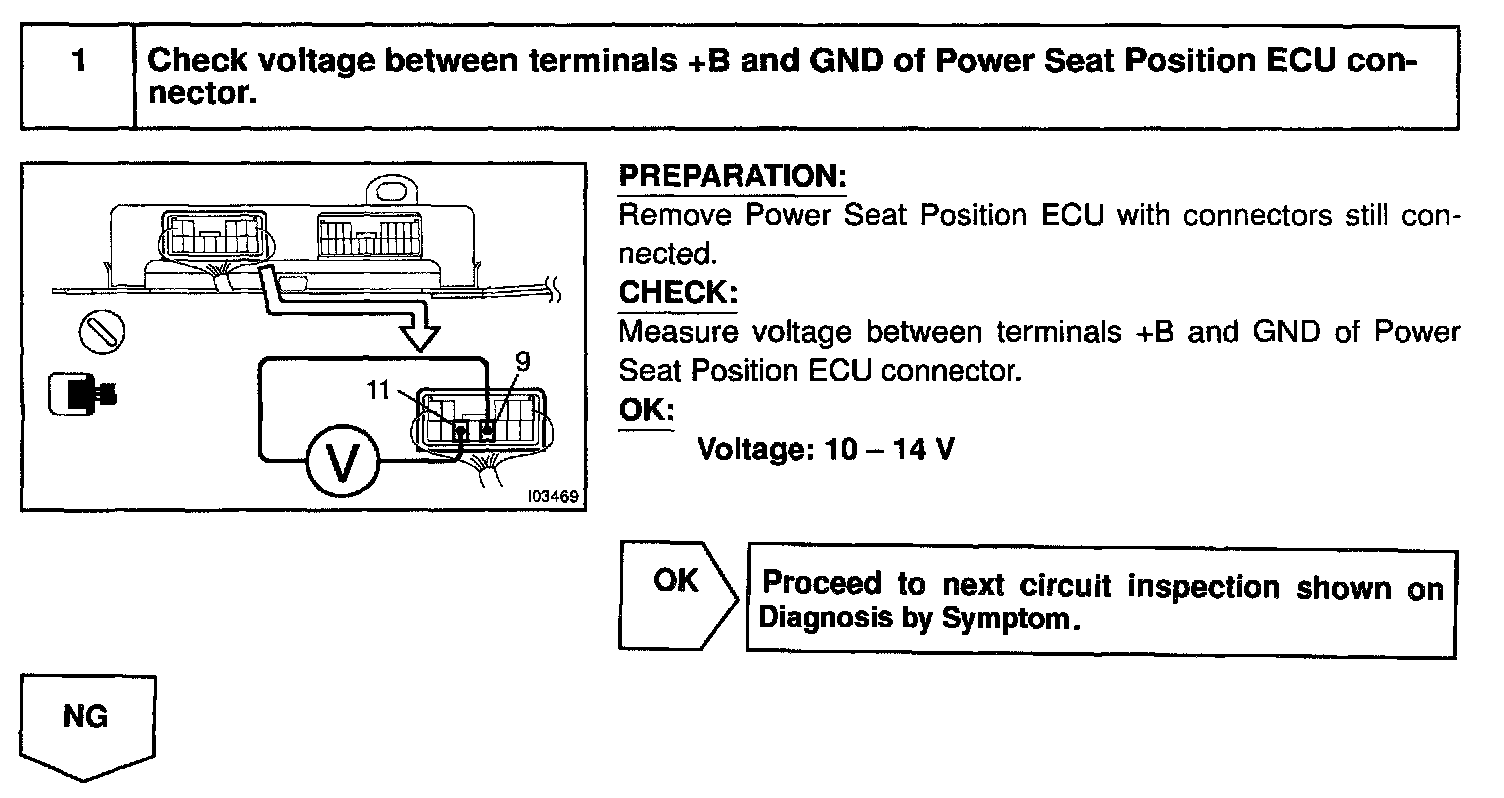

Step 1:

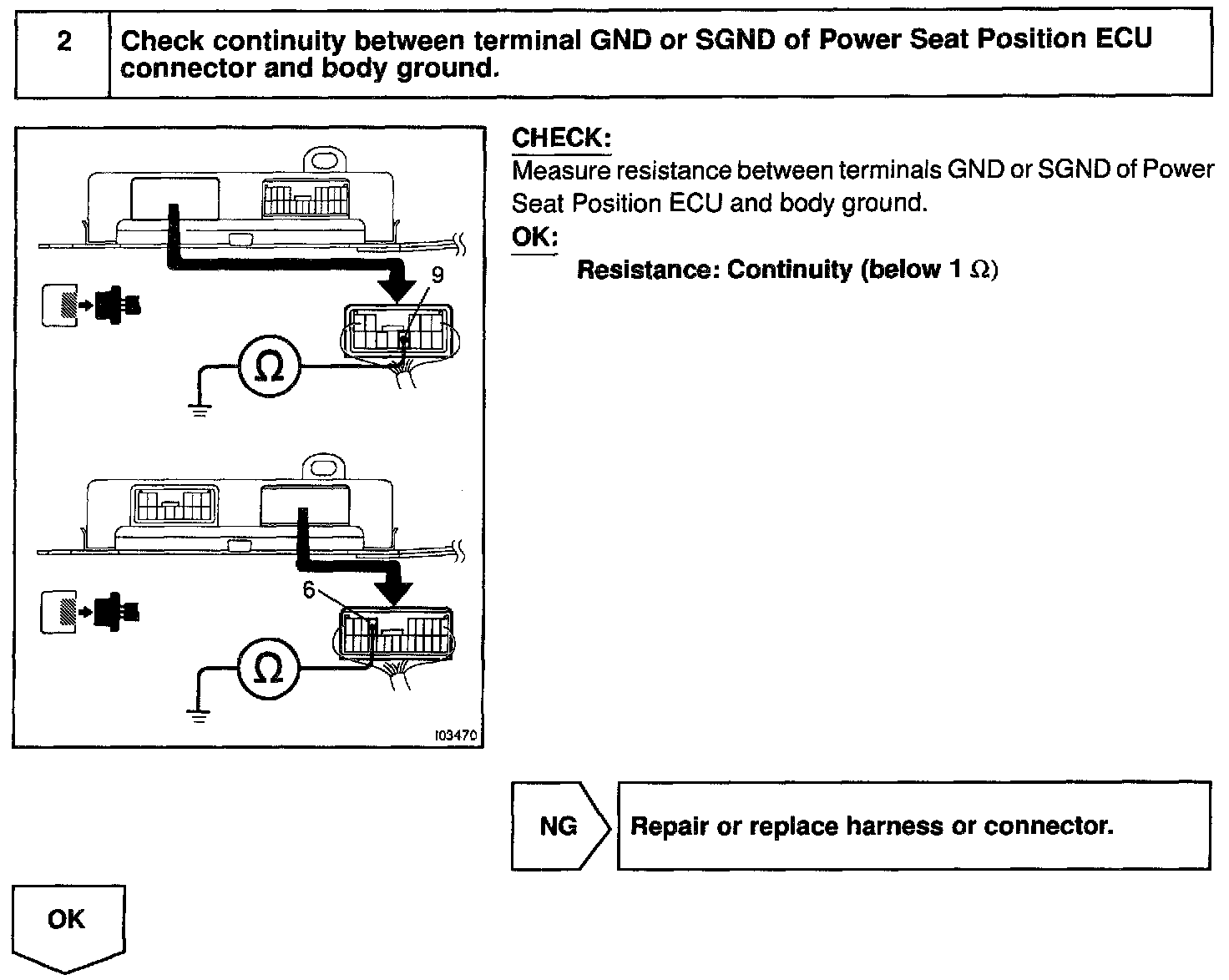

Step 2:

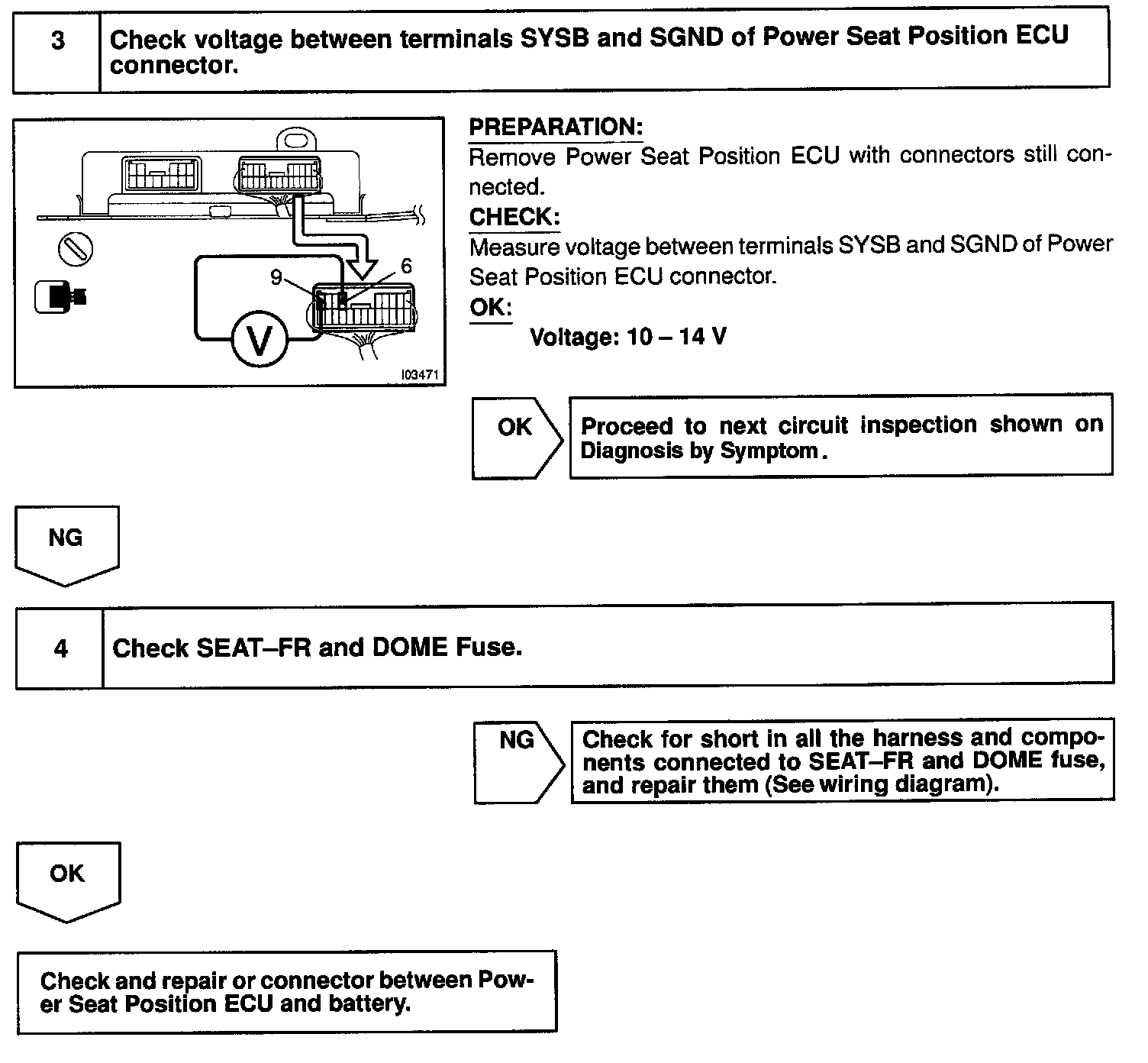

Steps 3 - 4:




INSPECTION PROCEDURE
