With Electrical Multi Vision

REMOVAL

1. REMOVE THESE PARTS:
a. Cluster finish panel
b. No.2 register

2. REMOVE A/C CONTROL ASSEMBLY

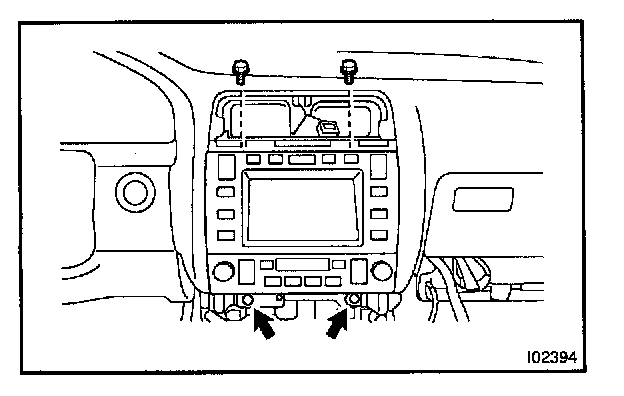

a. Remove the 4 bolts and pull out the A/C control assembly, then disconnect the connectors.

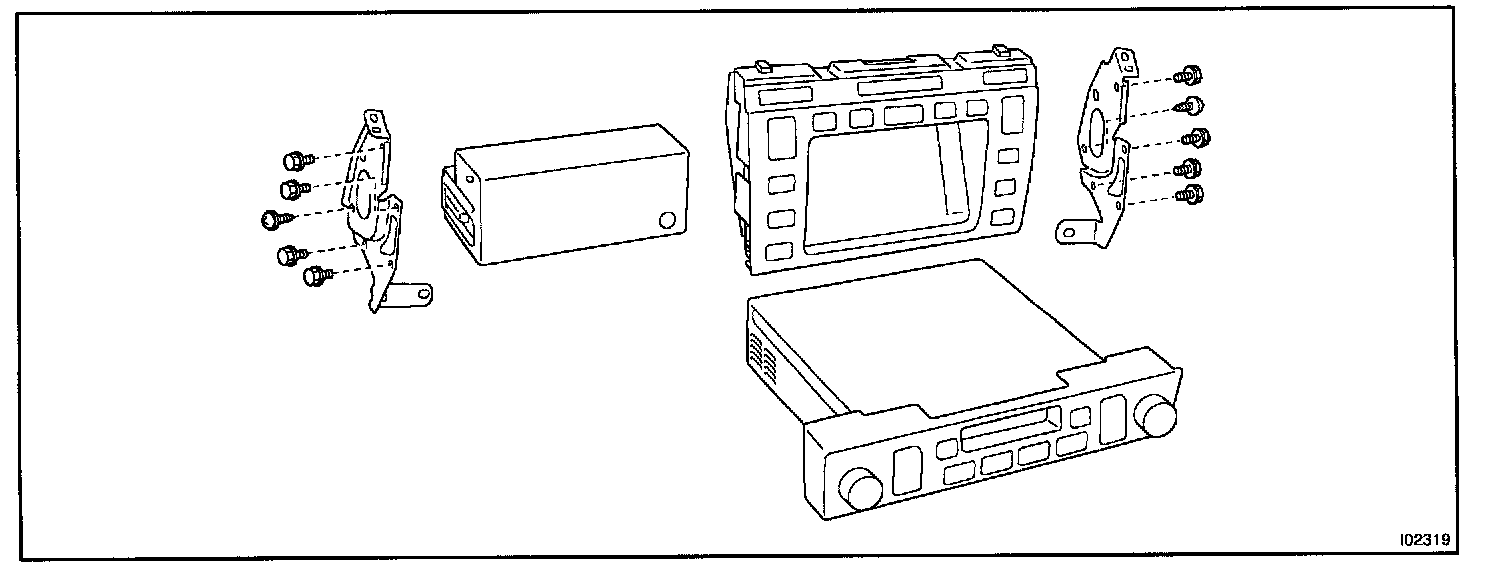

b. Remove the 8 bolts, 2 screws and 2 brackets.




c. Separate the A/C control assembly, radio and A/C amplifier.

INSTALLATION
Installation is in the reverse order of removal
