Horn Circuit

CIRCUIT DESCRIPTION
The horn is connected to the Body ECU and activated by the Body ECU during warning of the theft deterrent system.

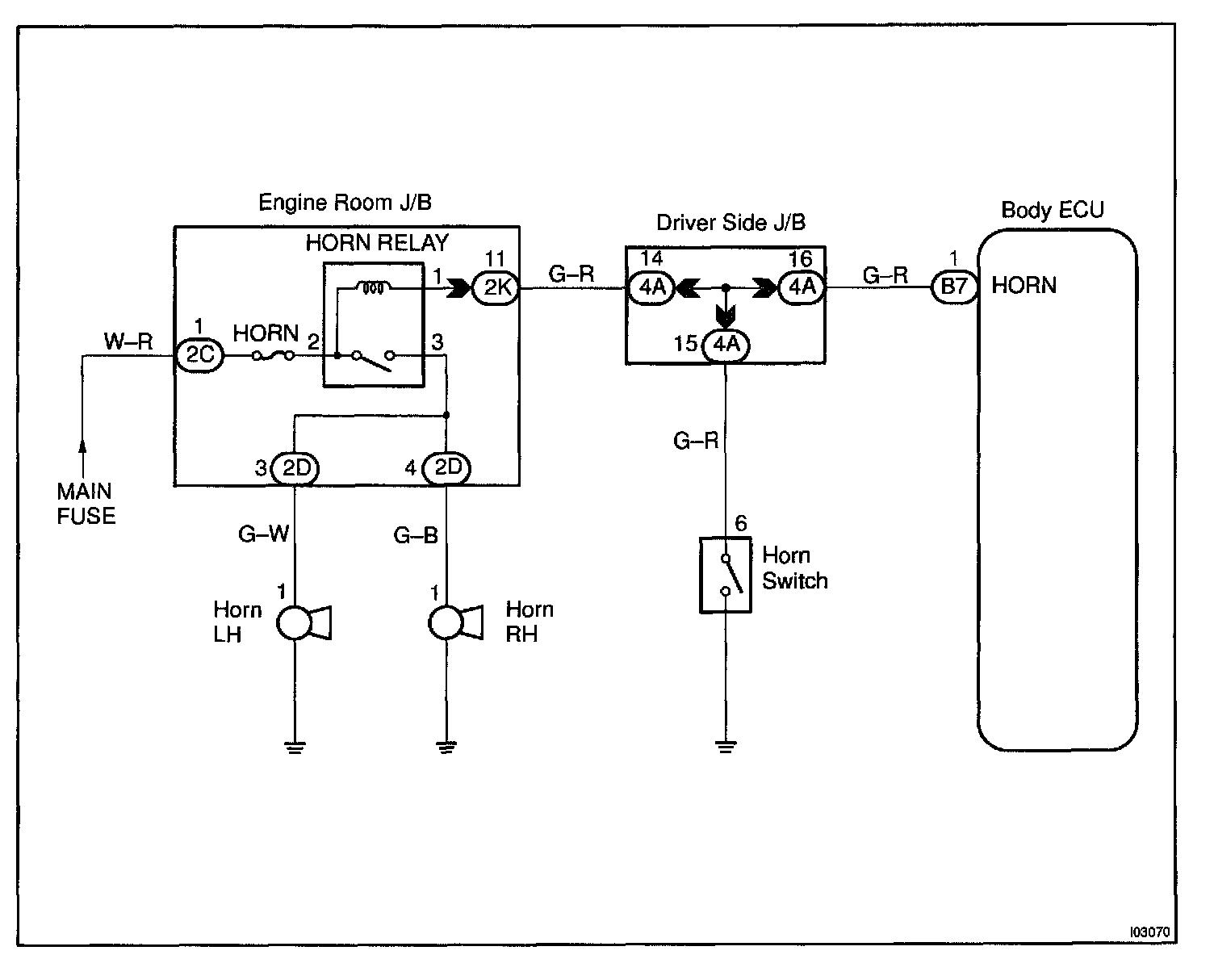

Wiring Diagram:

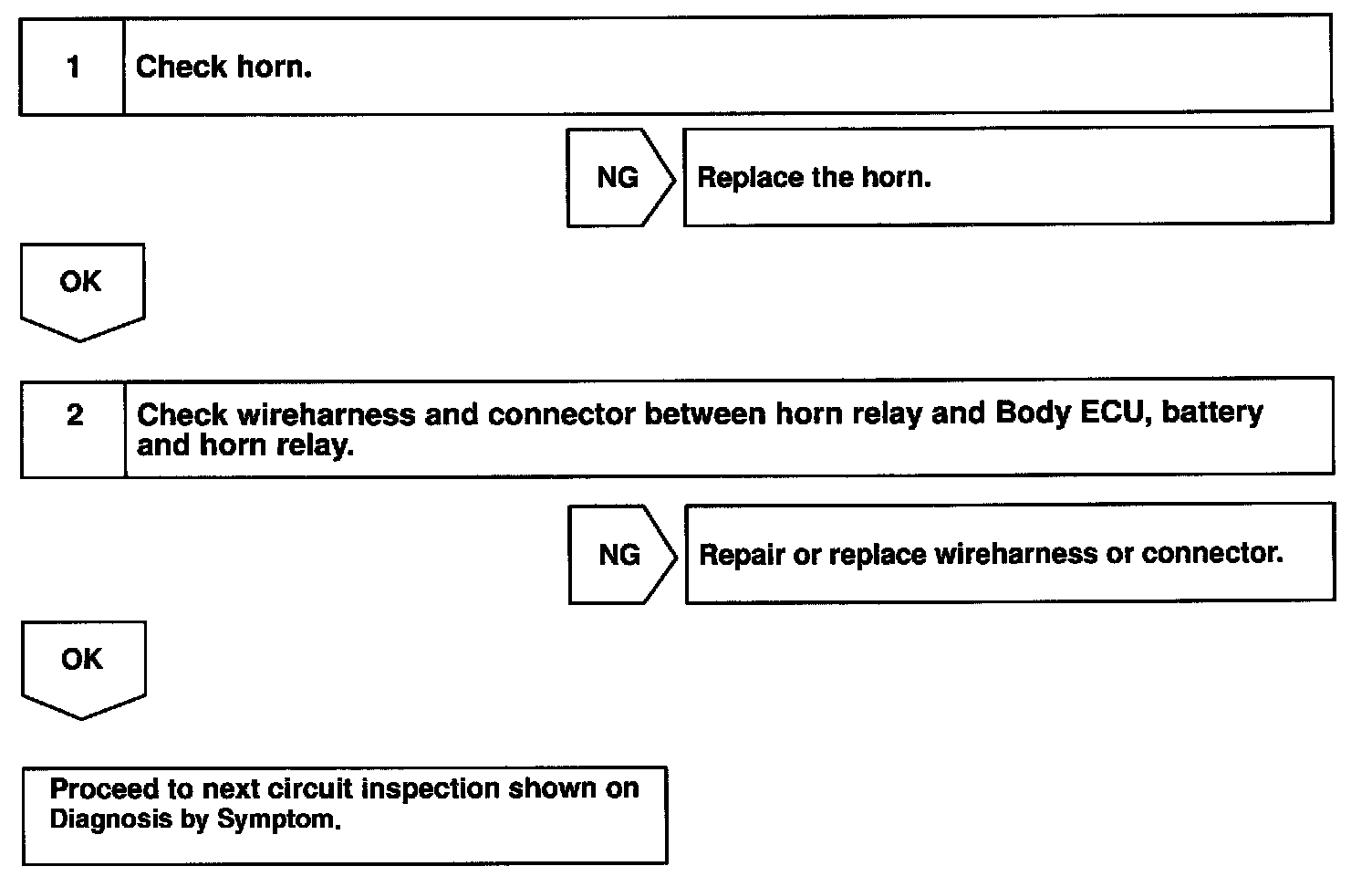

Steps 1 - 2:




INSPECTION PROCEDURE
