Illumination Circuit
CIRCUIT DESCRIPTIONReceiving the courtesy signal from either of the door ECU, the Body ECU will make the interior light, ignition light, and foot light come on.

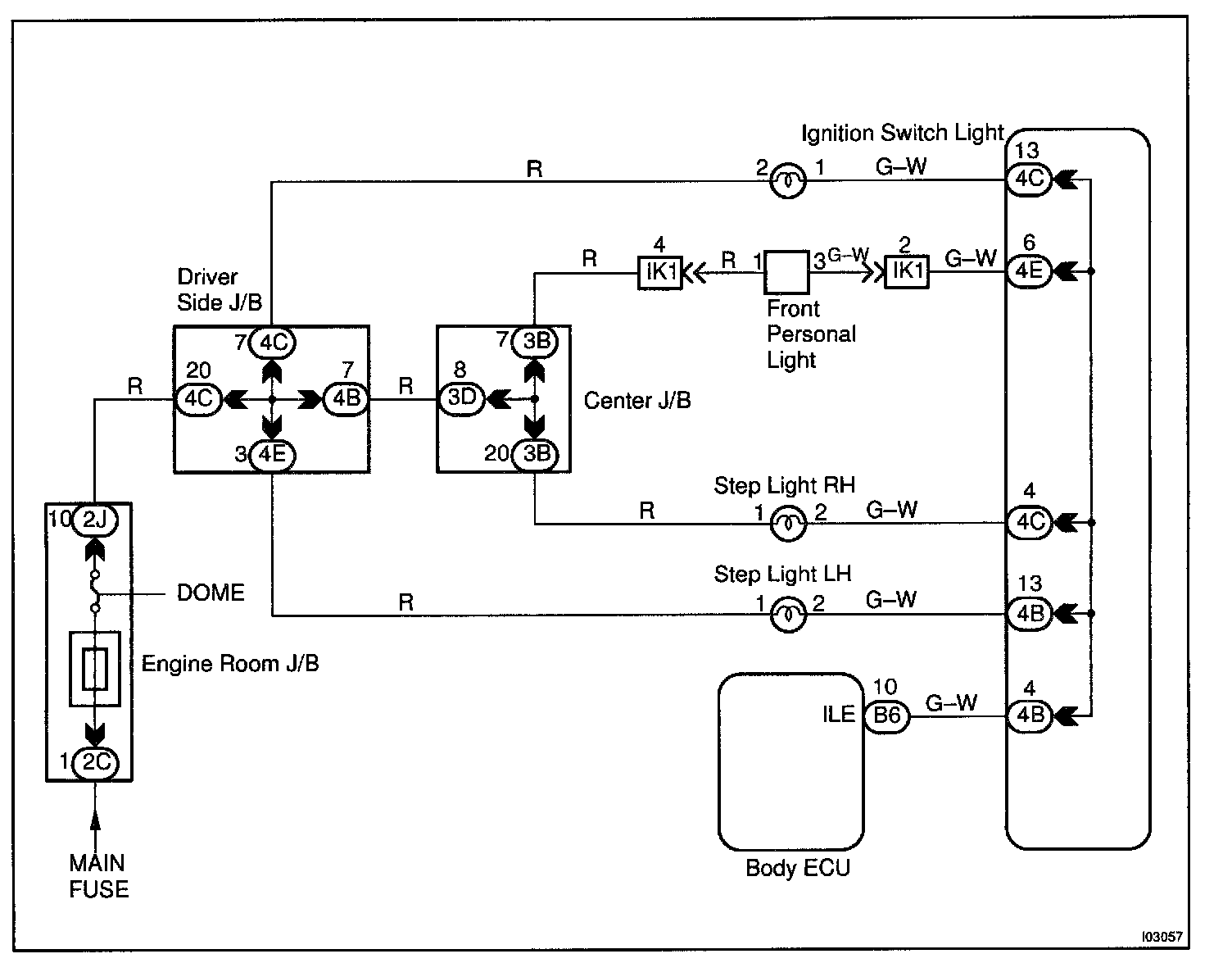

Wiring Diagram:

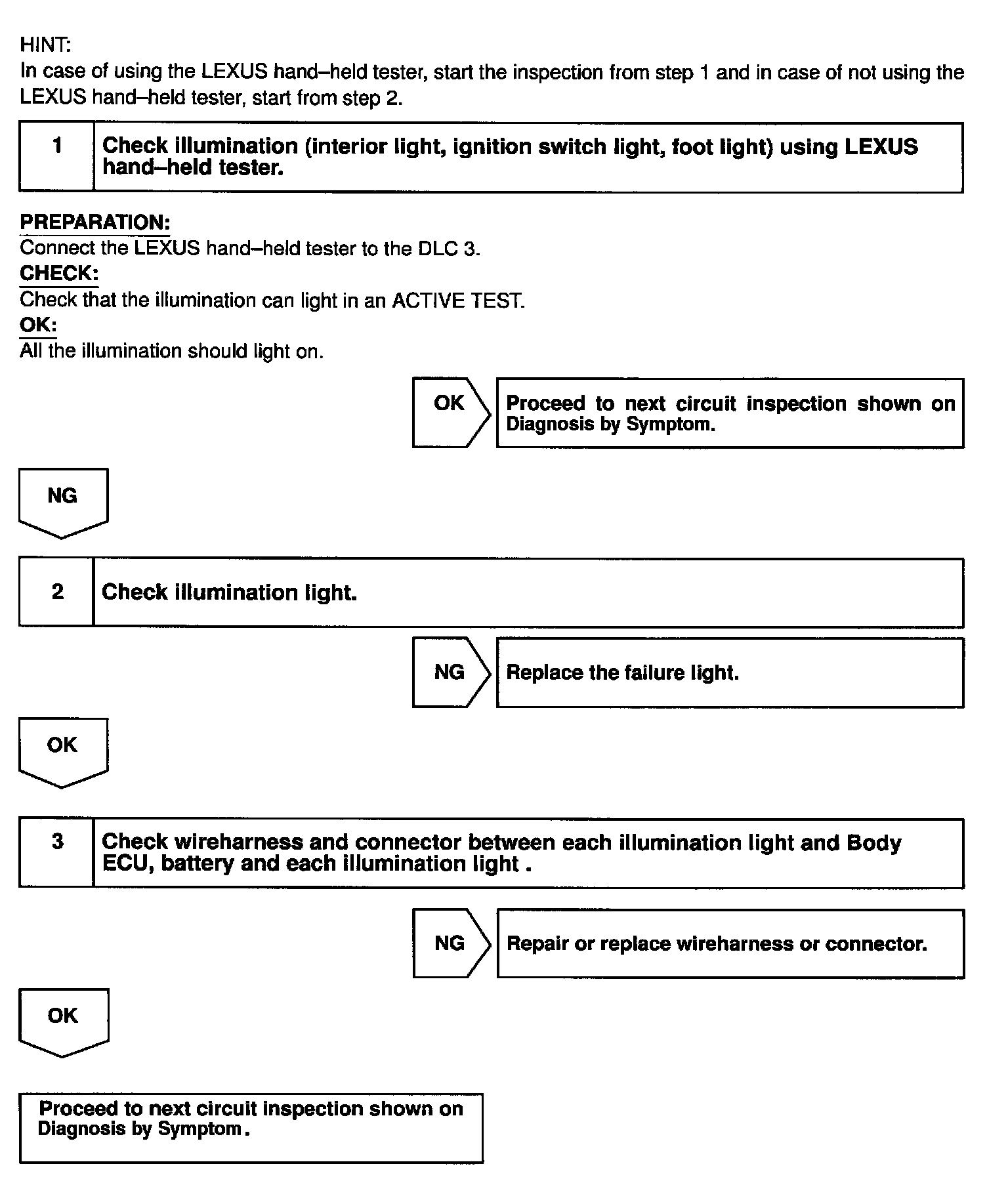

Steps 1 - 3:
INSPECTION PROCEDURE
Receiving the courtesy signal from either of the door ECU, the Body ECU will make the interior light, ignition light, and foot light come on.
INSPECTION PROCEDURE
