Data Link Connector: Locations

PARTS LOCATION

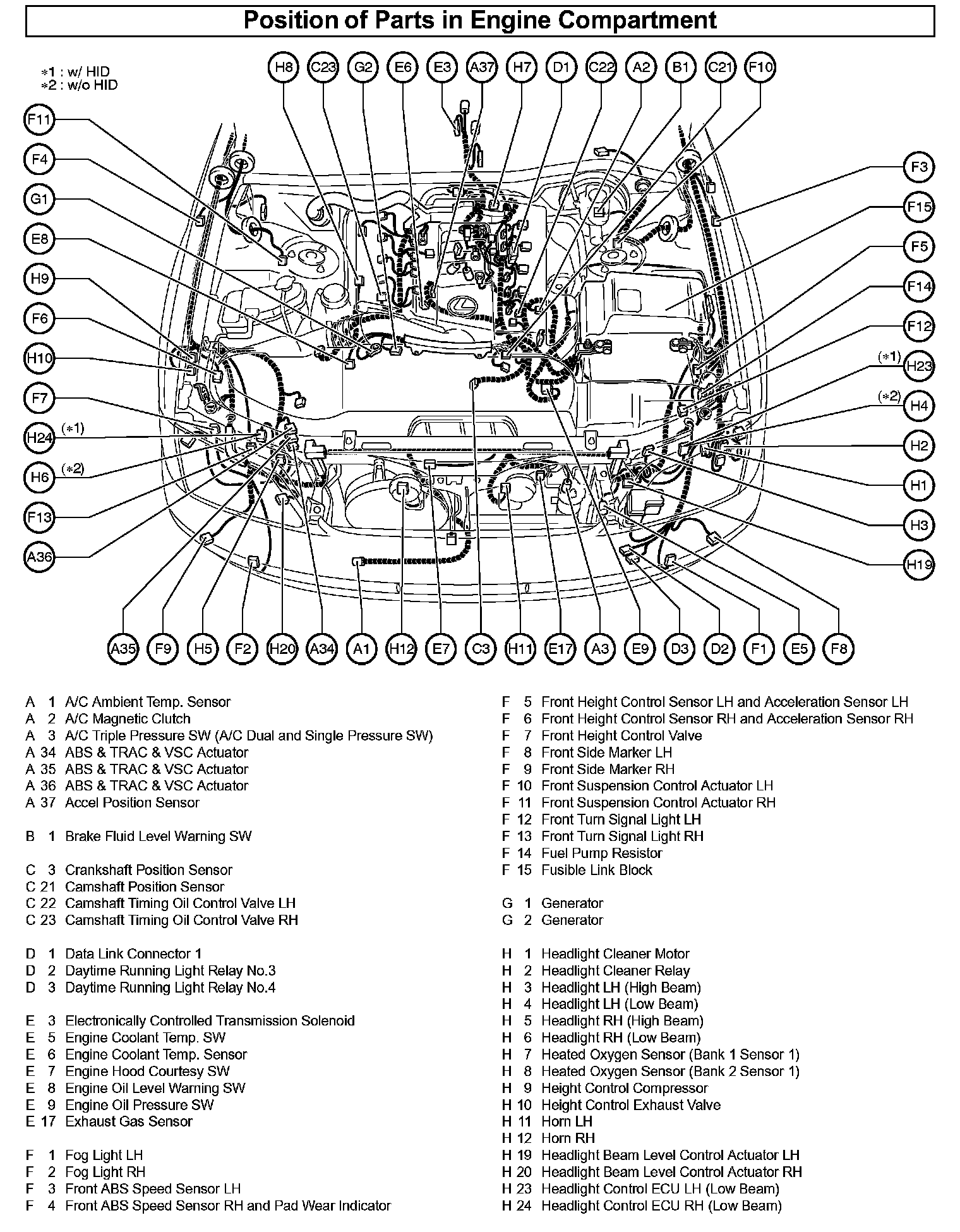

DLC - Position Of Parts In Engine Compartment:

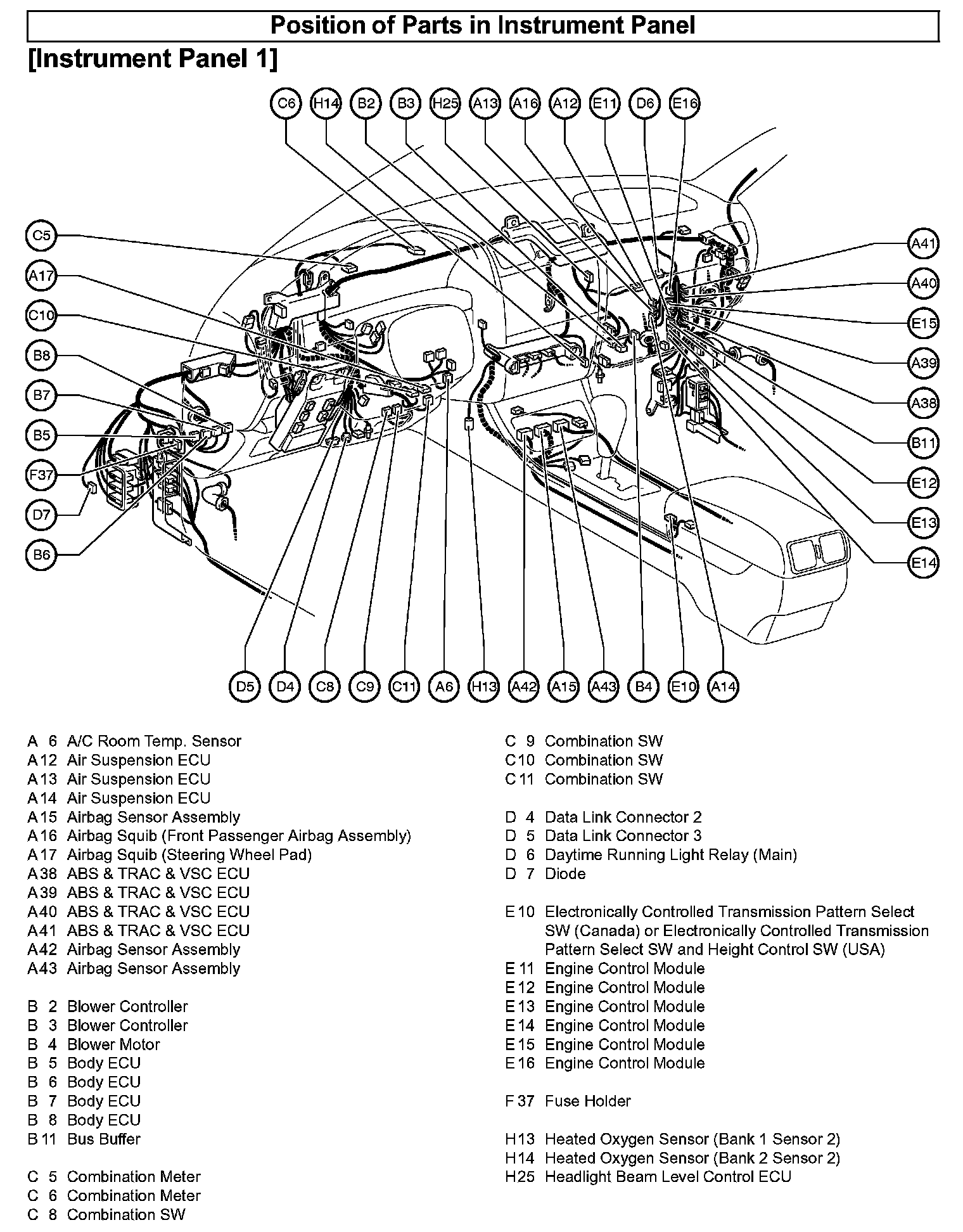

DLC - Position Of Parts In Instrument Panel:
