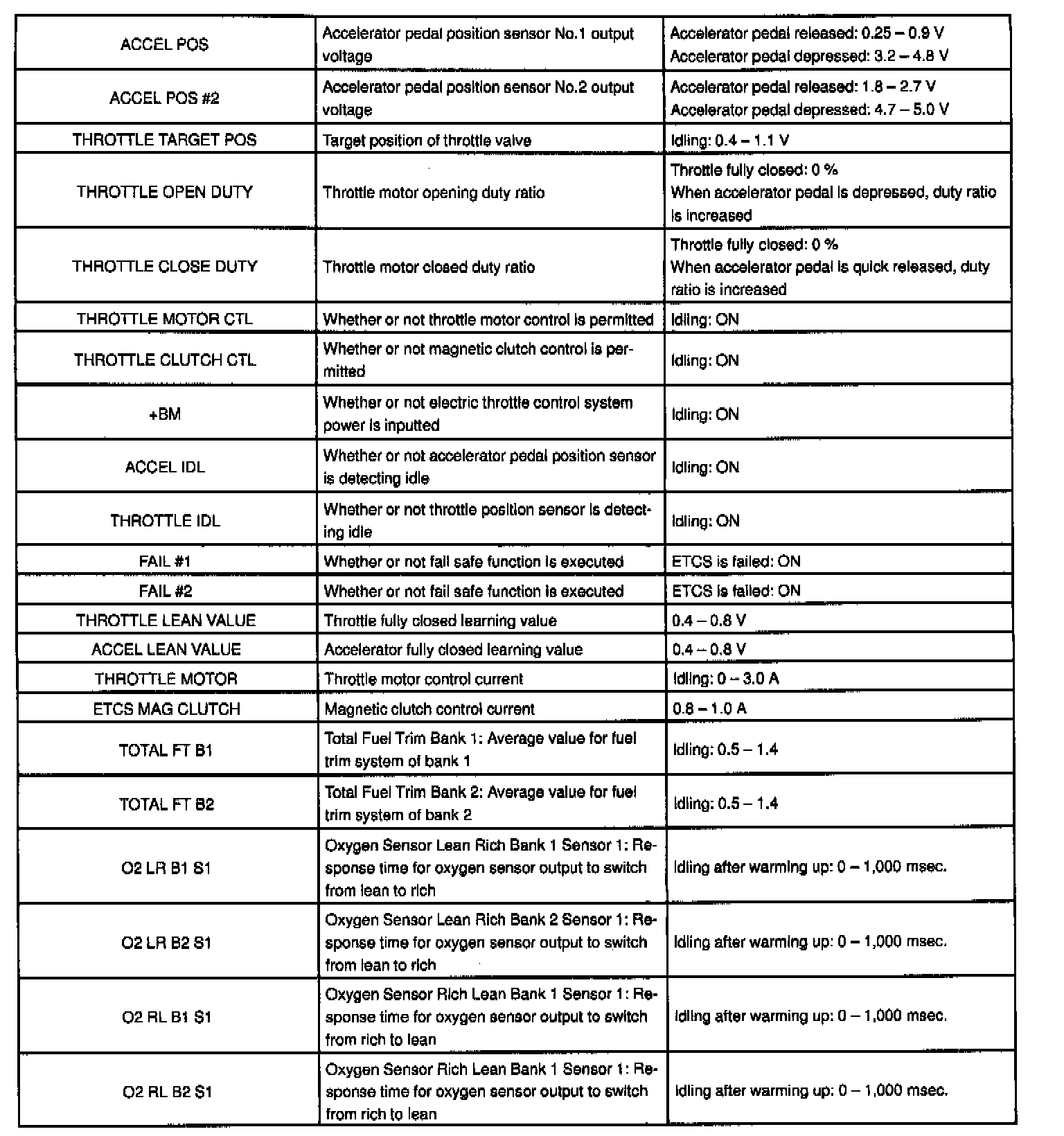

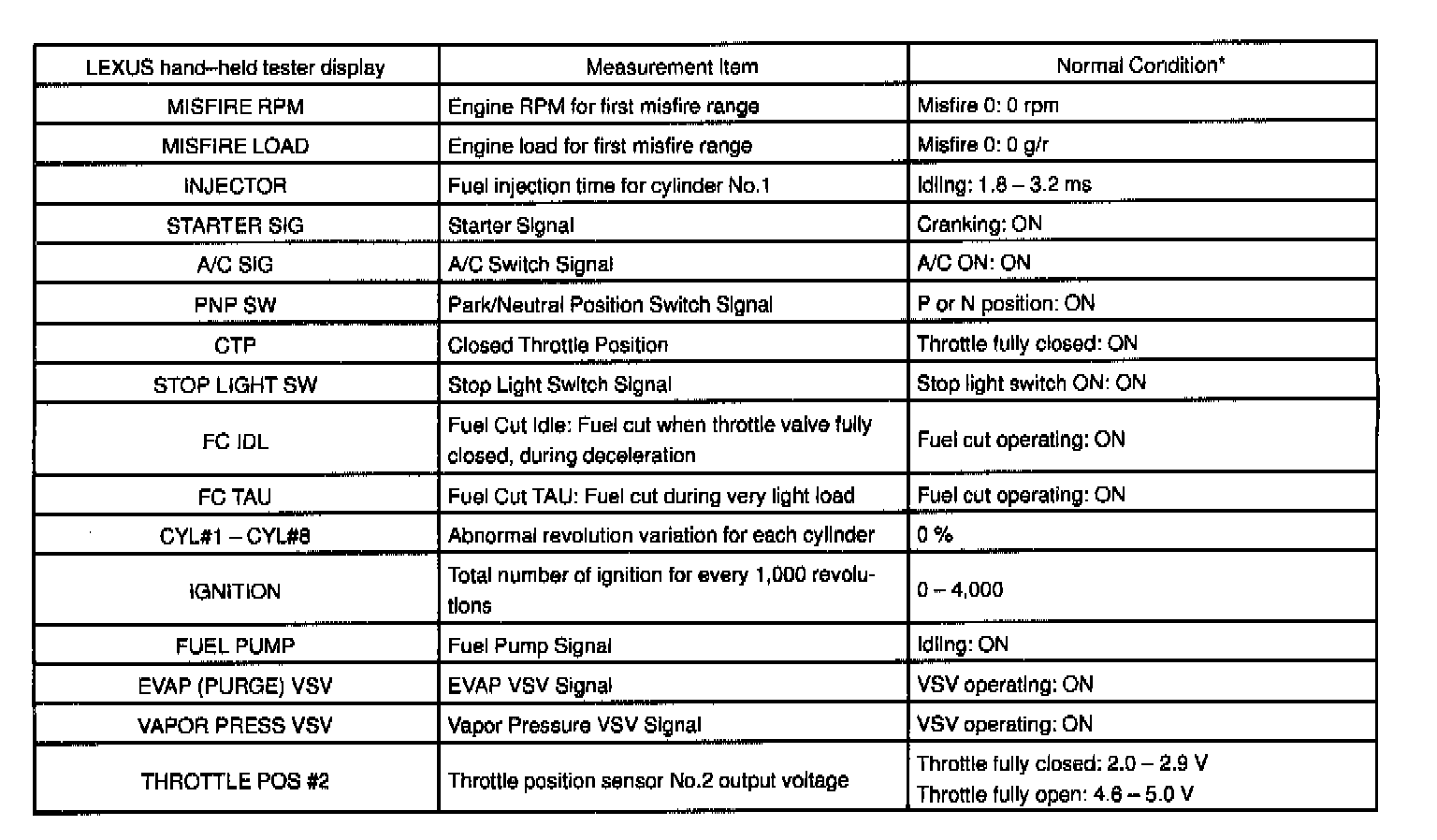

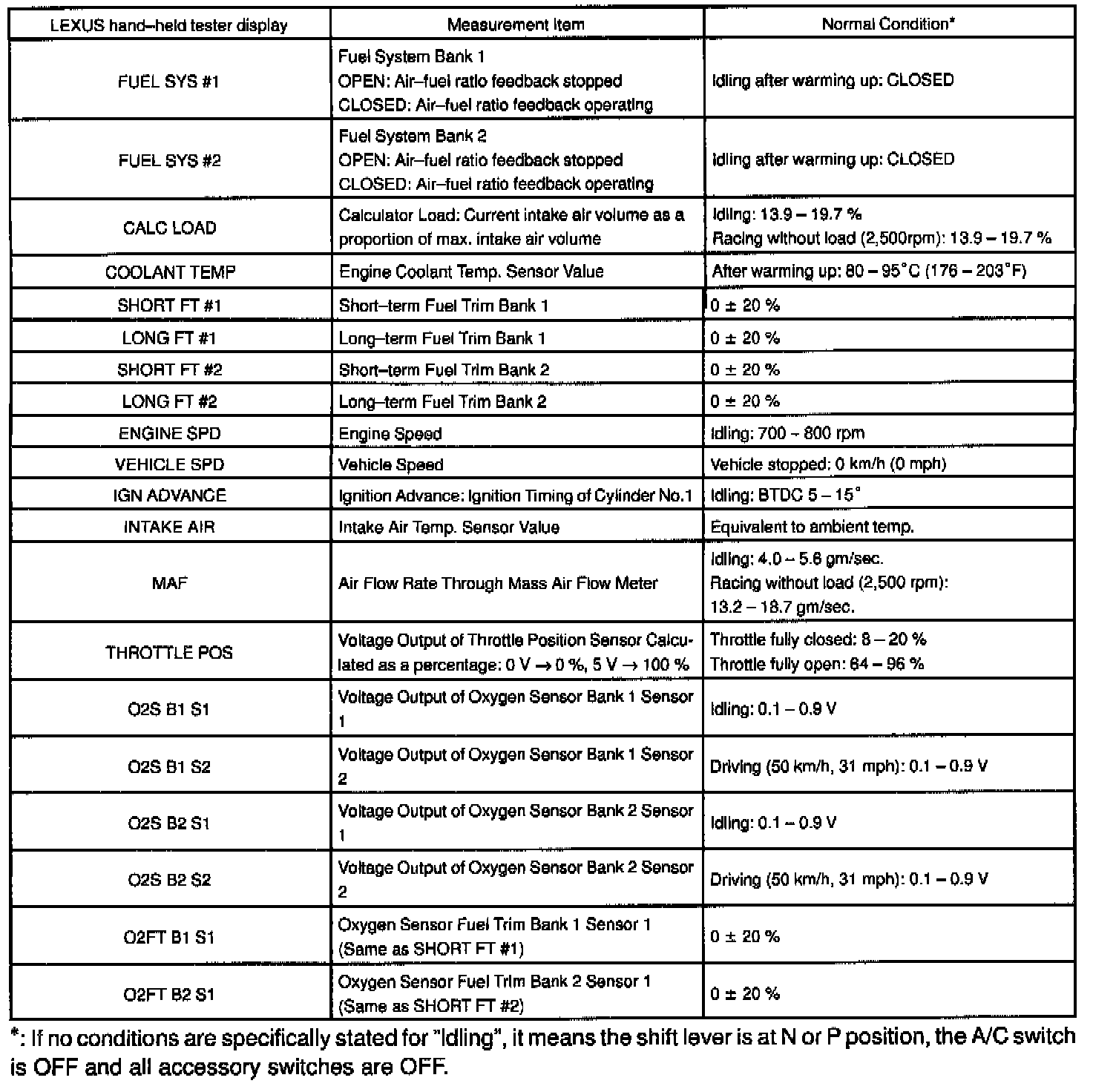

Data List / Active Test

NOTE: The values given for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.




a. CARB mandated signals.







b. LEXUS Enhanced Signals.
*: If no conditions are specifically stated for "idling", it means the shift lever is at N or P position, the A/C switch is OFF and all accessory switches are OFF.
