Engine Room Relay Block

Engine room relay block (R/B) is located on left inner panel, in engine compartment. See Figure.

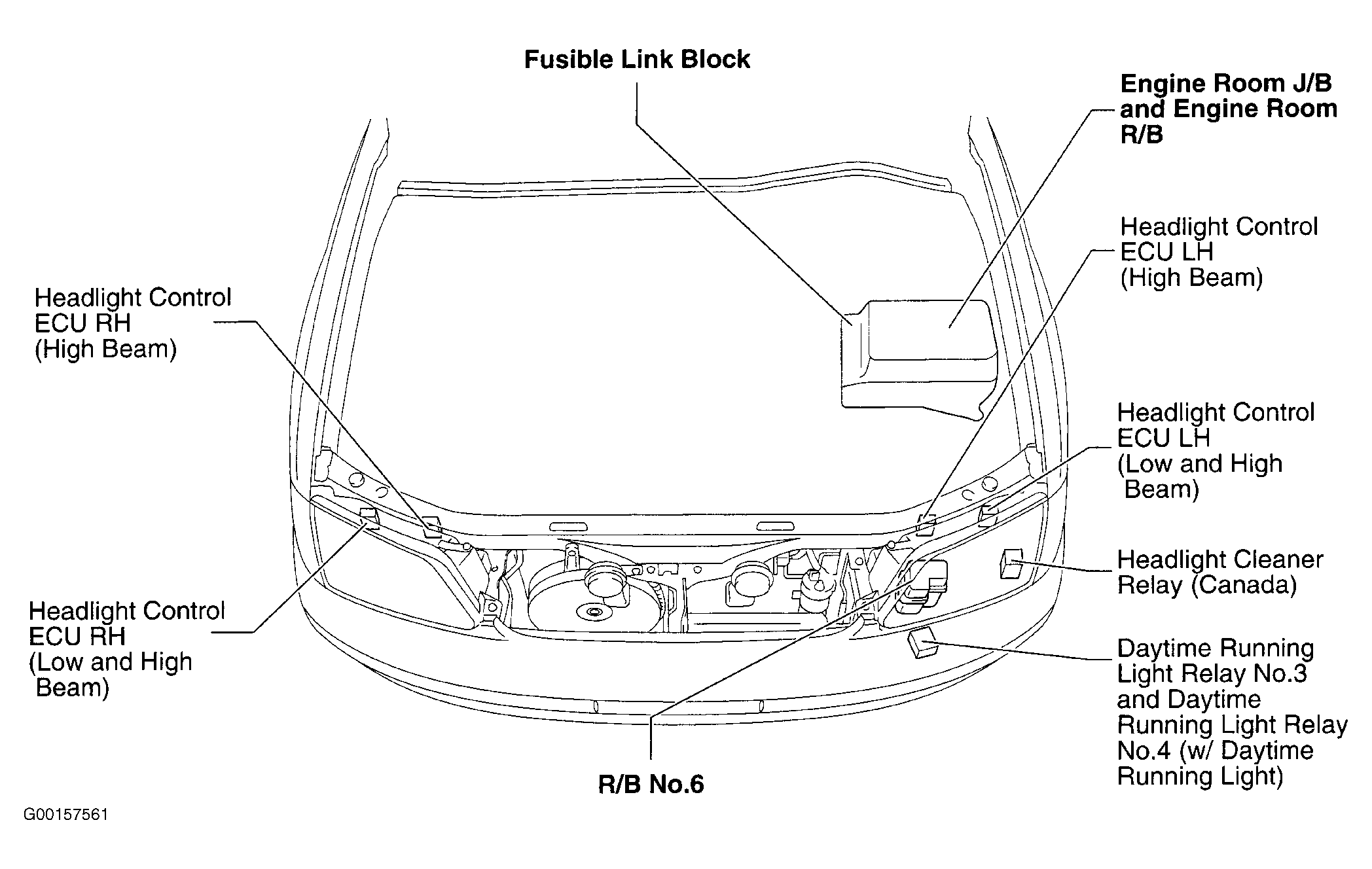

Fig 1: Identifying Engine Room Relay Block Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

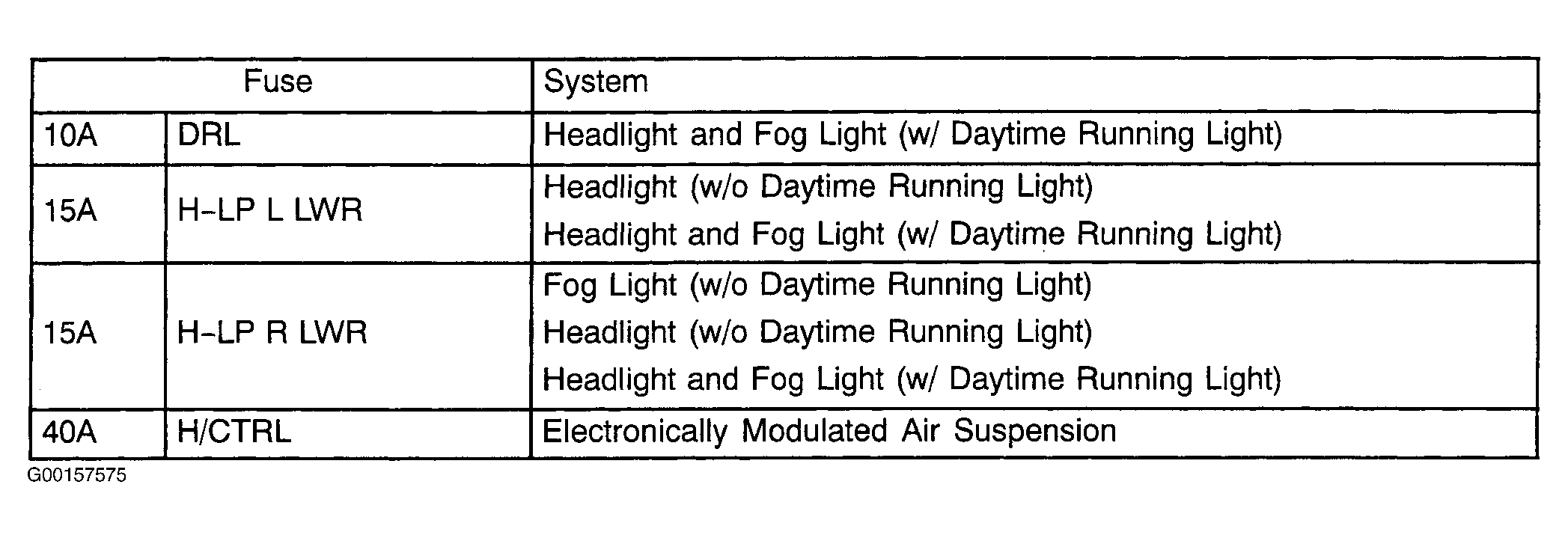

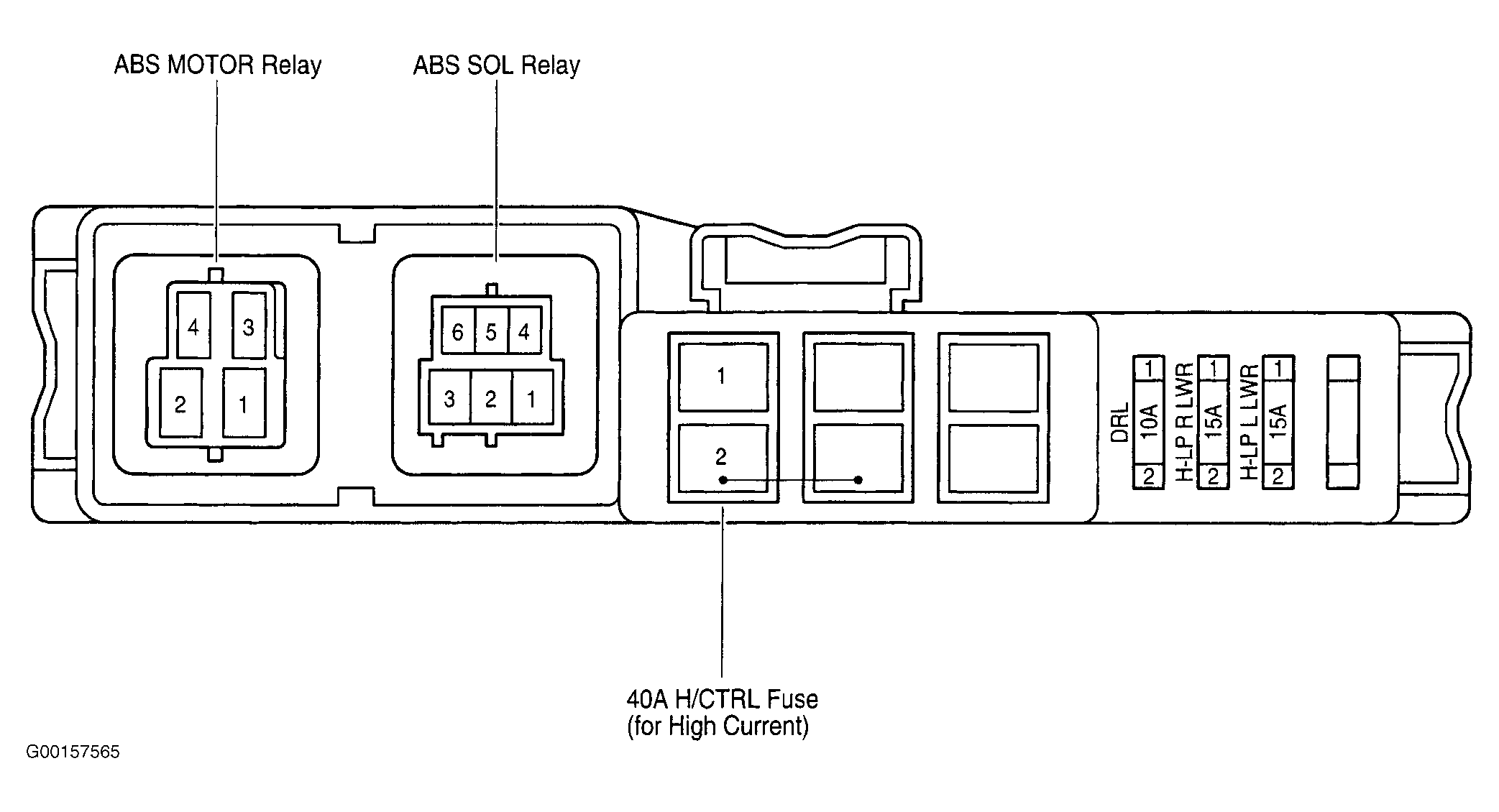

Fig 2: Engine Room Relay Block Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
