Component Tests: Notes

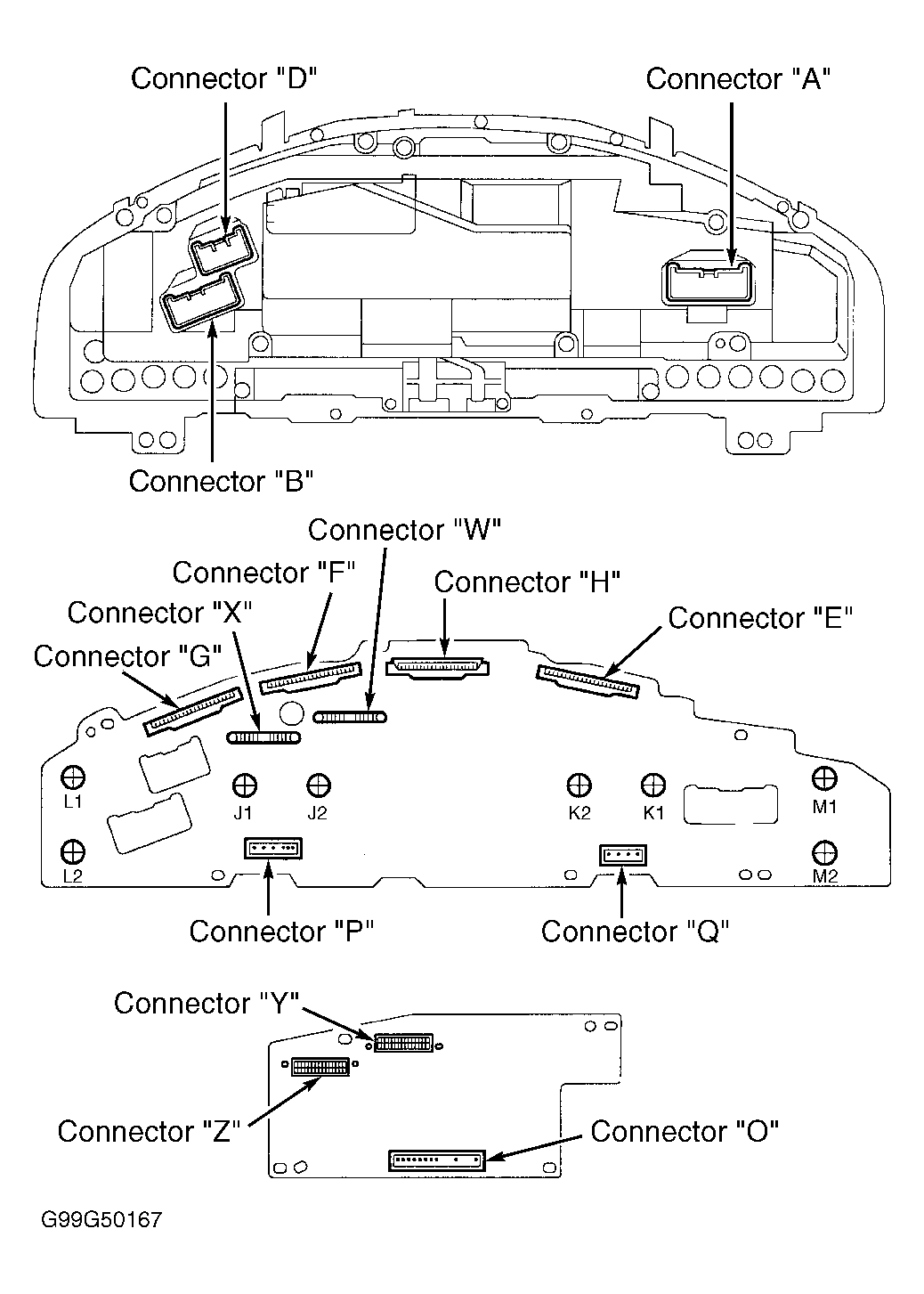

WARNING: If cover from rear of instrument cluster is removed, screw heads and connectors "P" and "Q" will be exposed. See Figure. These screw heads and connectors are part of cold cathode ray tubes in cluster. If power is supplied to cluster (ignition on and connectors attached), DO NOT touch these connectors and screw heads because they are electrically charged with high AC voltage.
