Power Seat Control Module: Testing and Inspection

CIRCUIT DESCRIPTION
This circuit provides power for ECU operation and is also the power source for the sensor

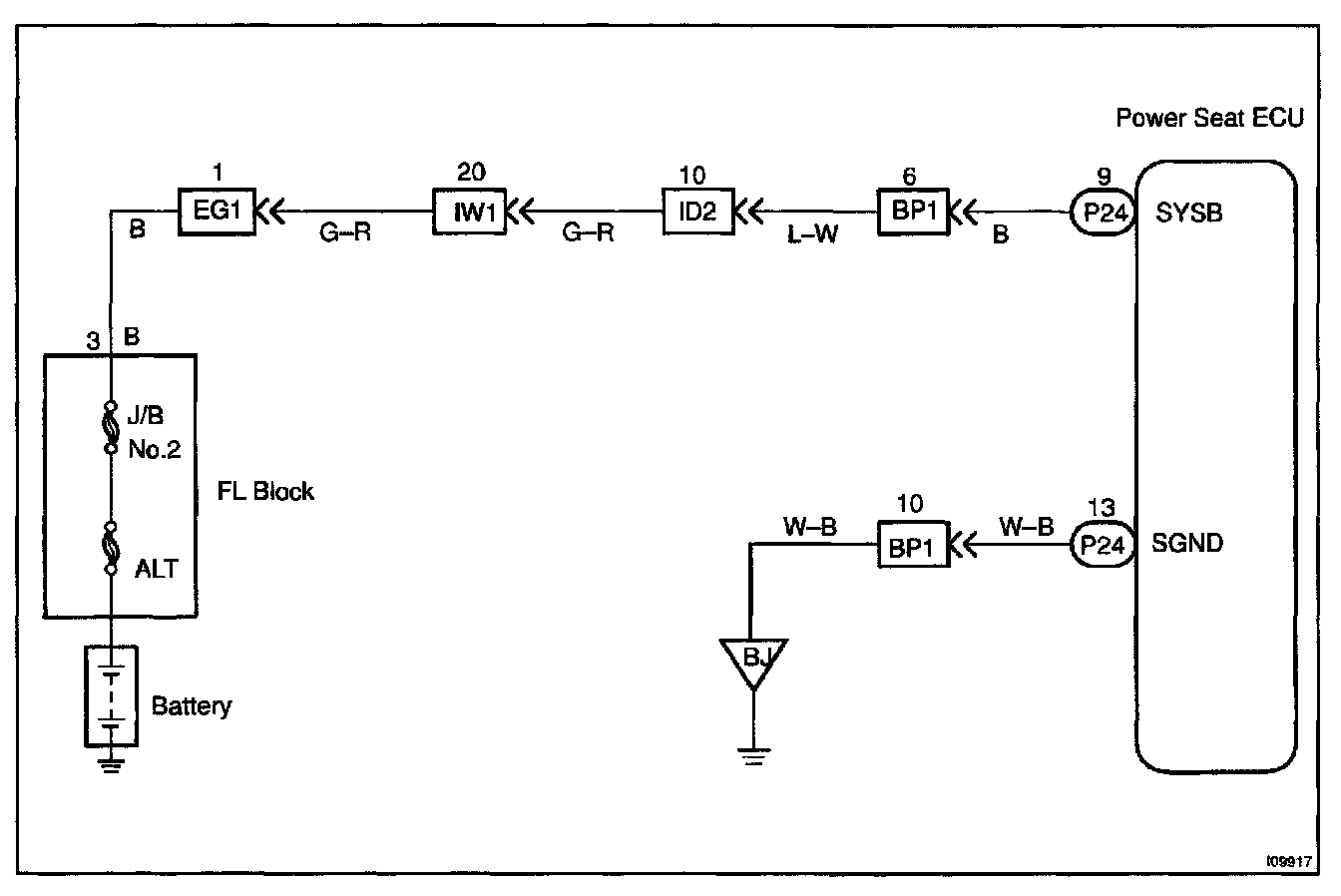

Wiring Diagram:

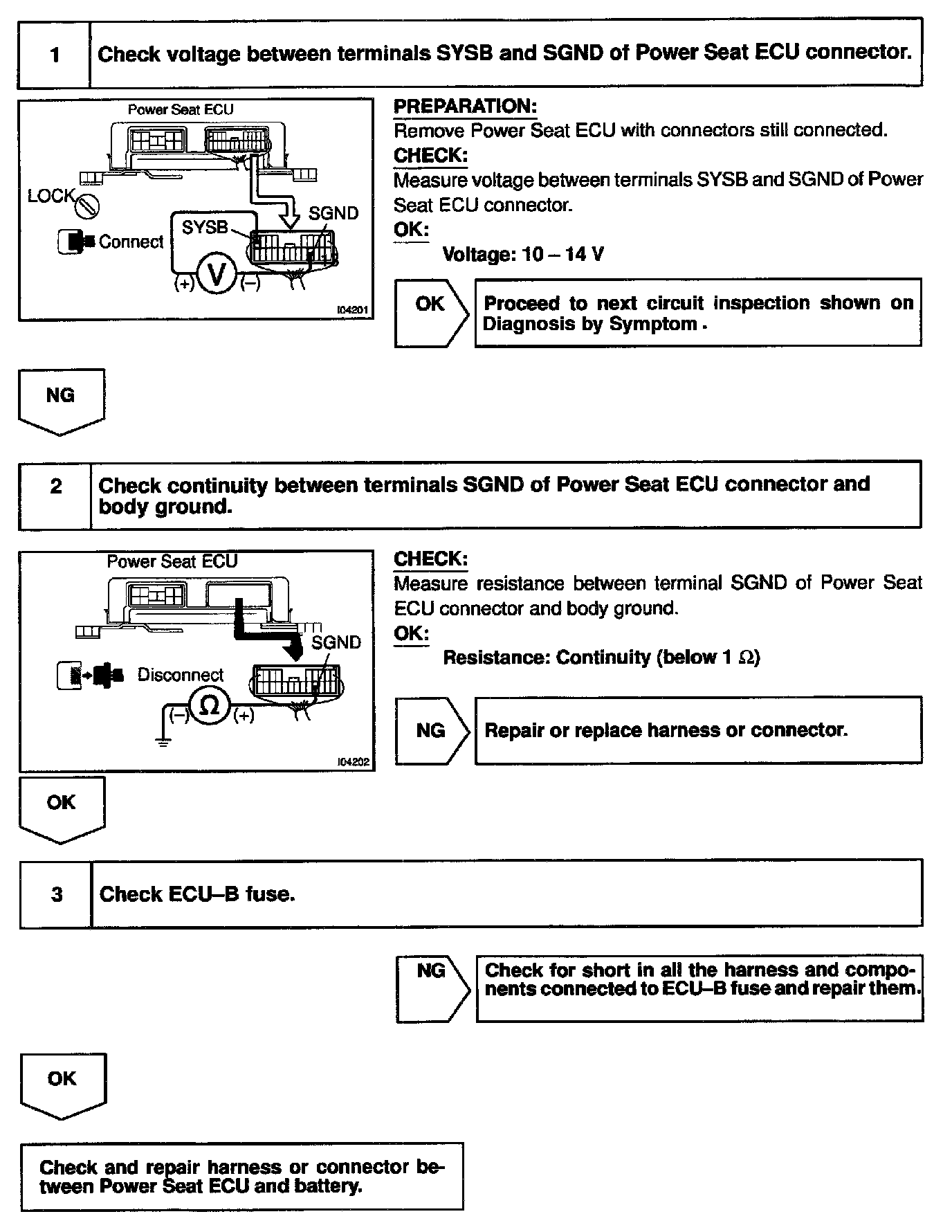

Steps 1 - 3:




INSPECTION PROCEDURE
