System Diagram

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS

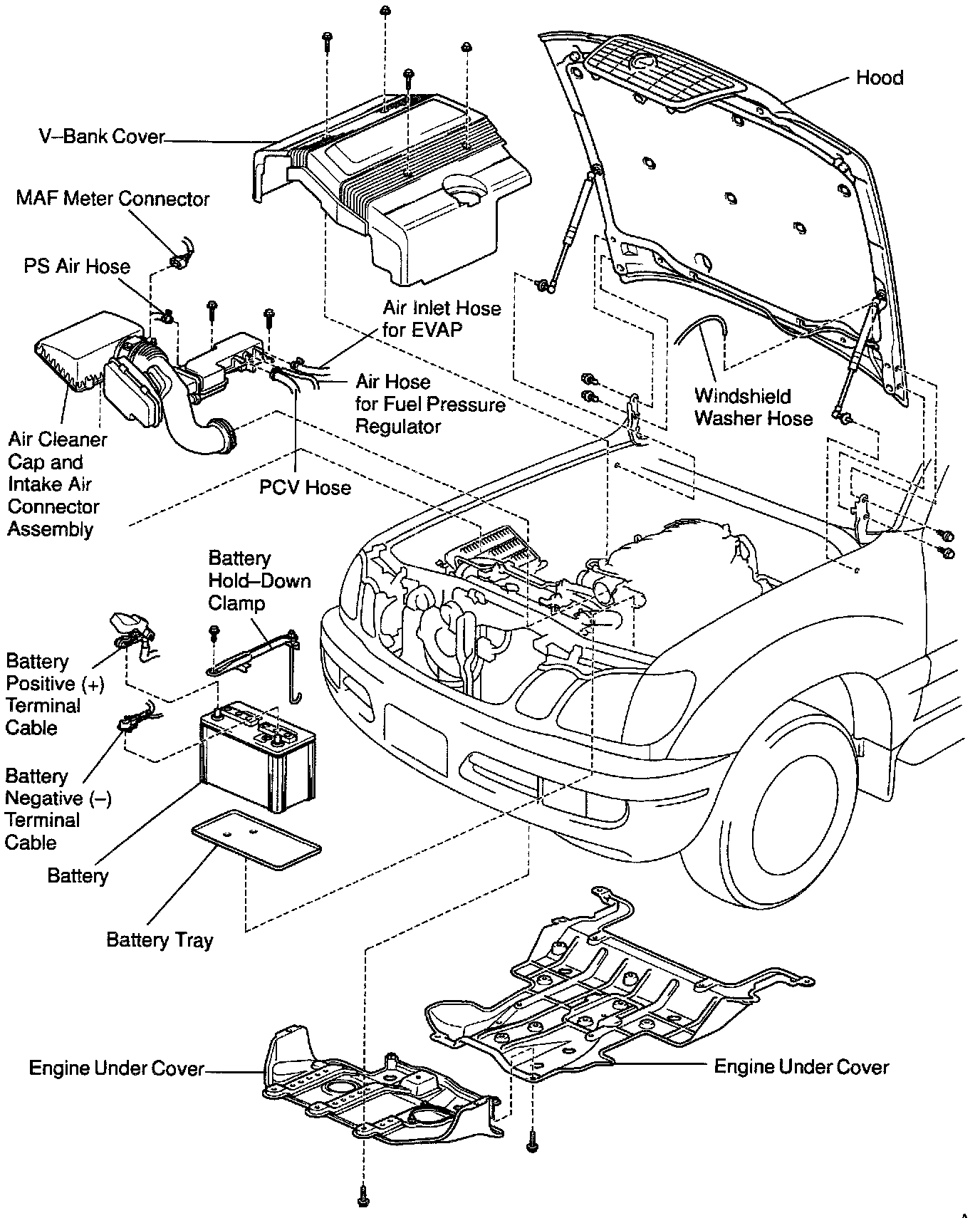

Part 1 Of 7:

Part 1 of 7

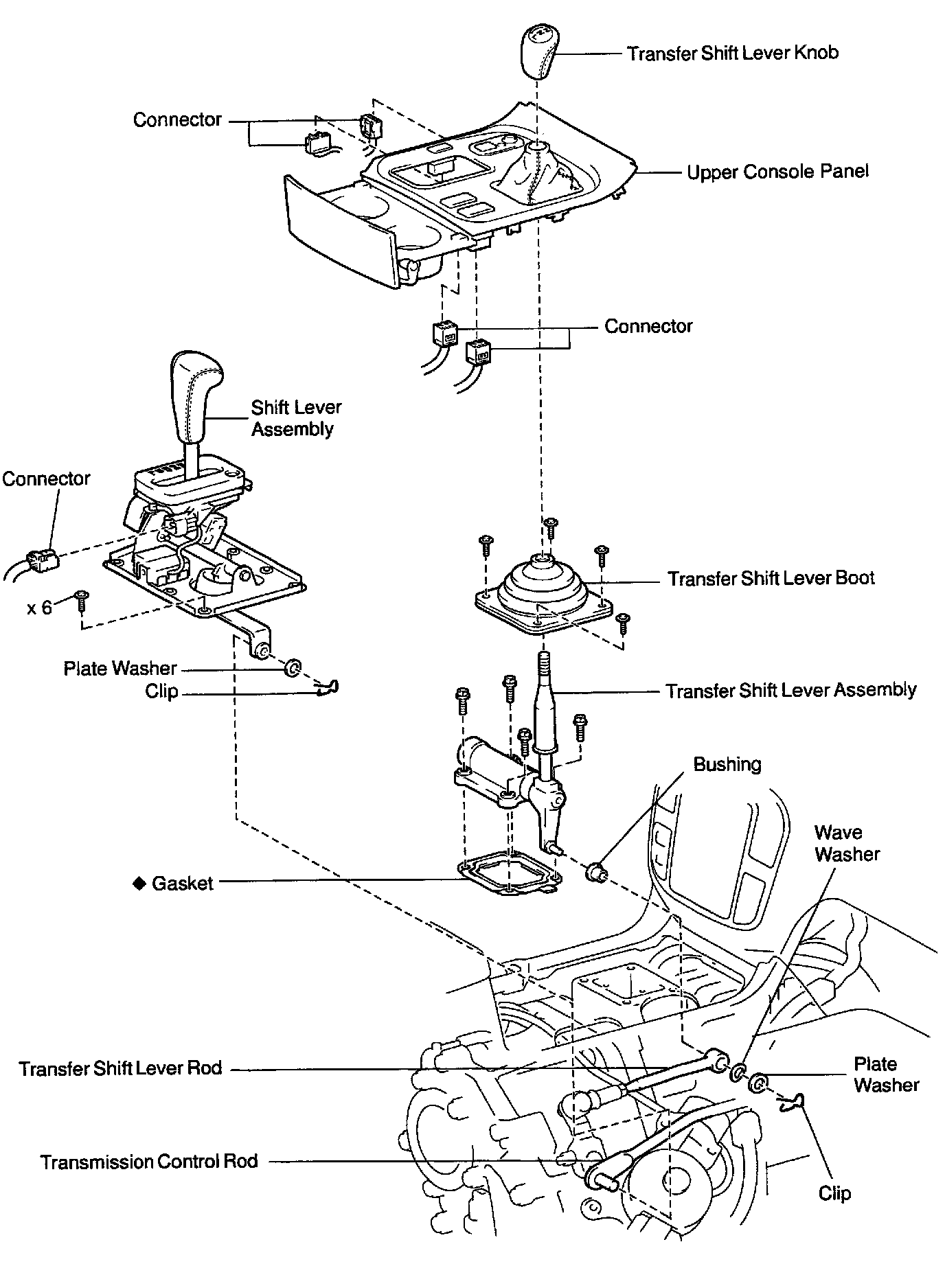

Part 2 Of 7:

Part 2 of 7

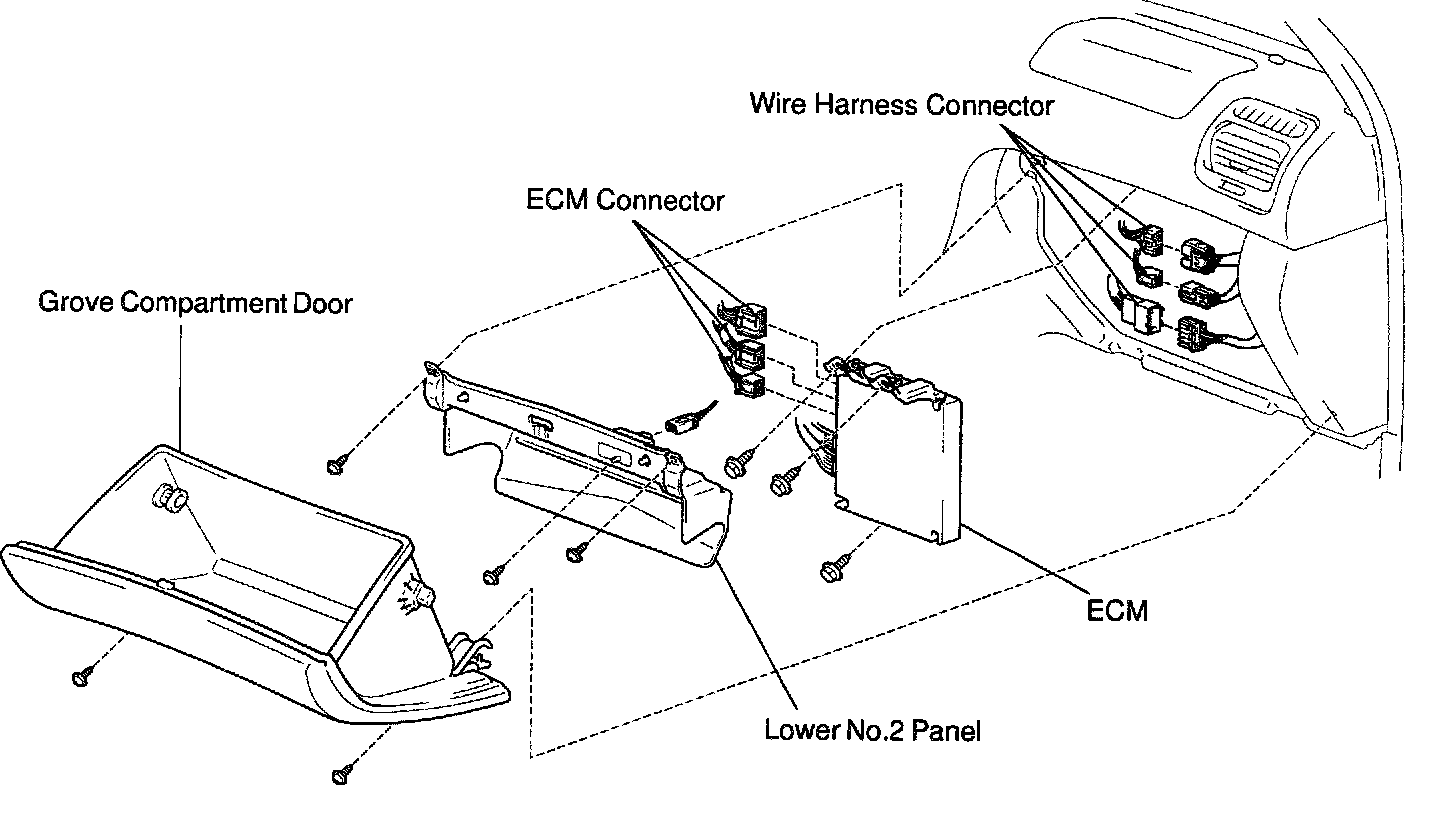

Part 3 of 7

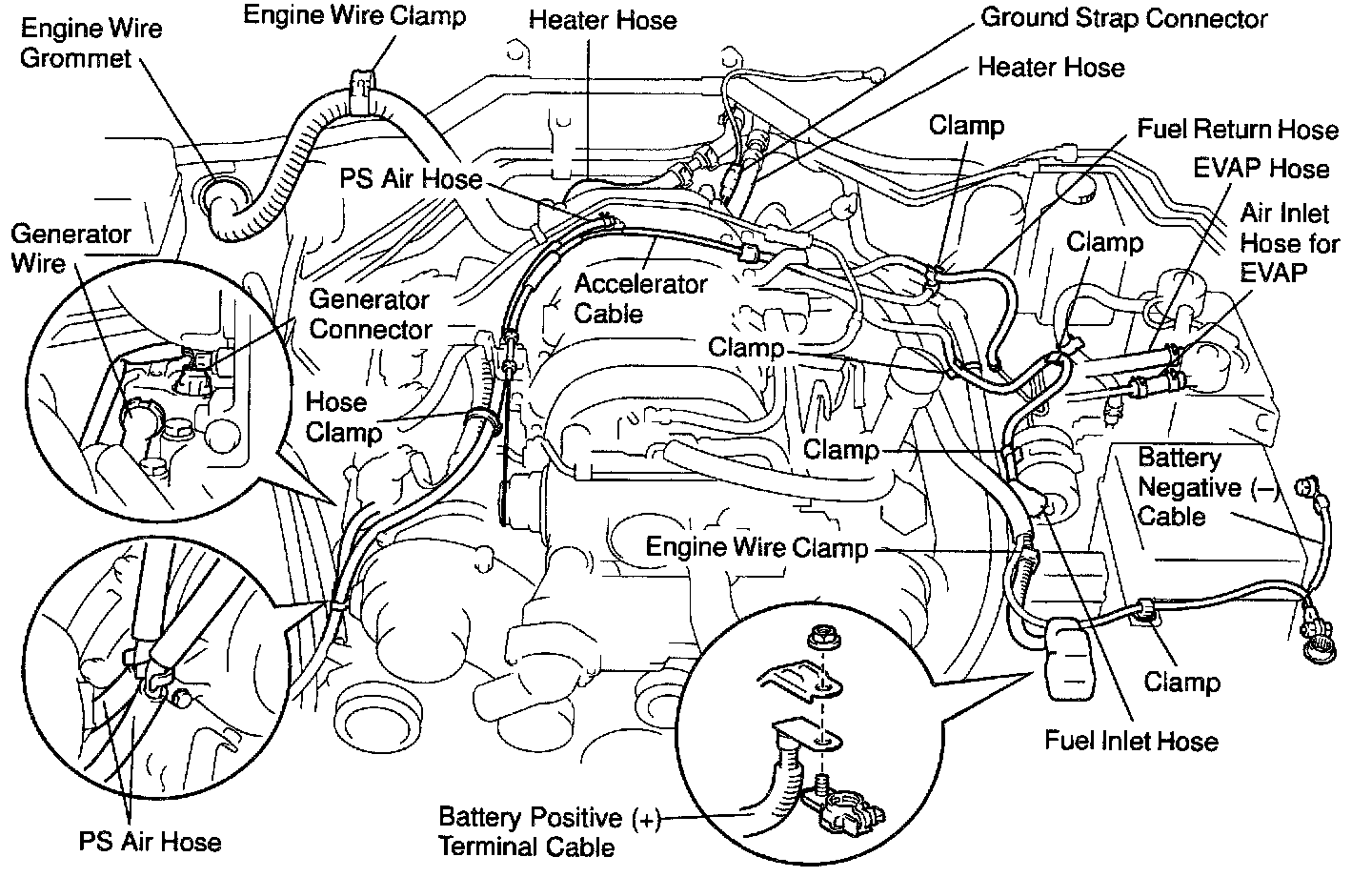

Part 4 Of 7:

Part 4 of 7

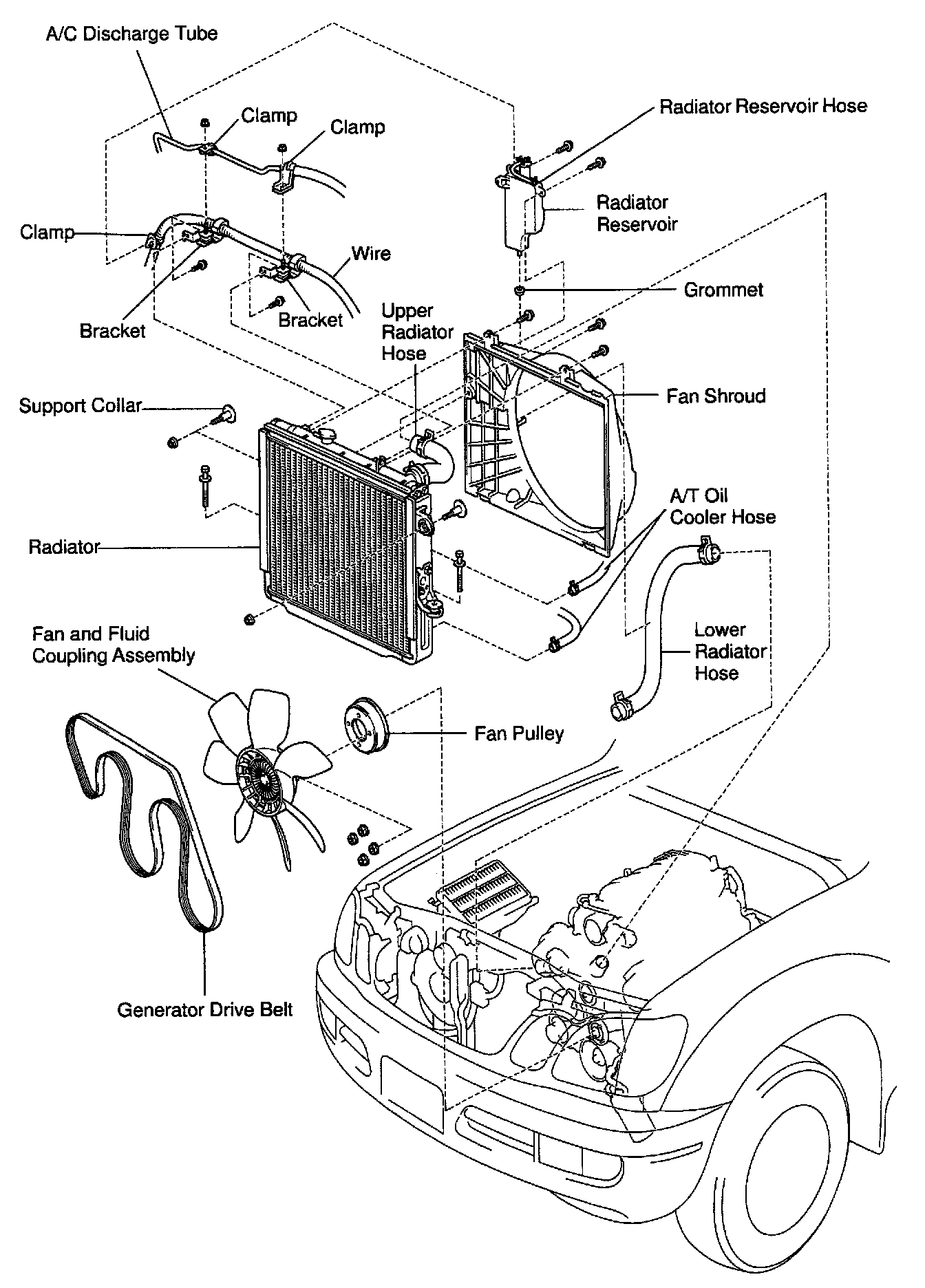

Part 5 Of 7:

Part 5 of 7

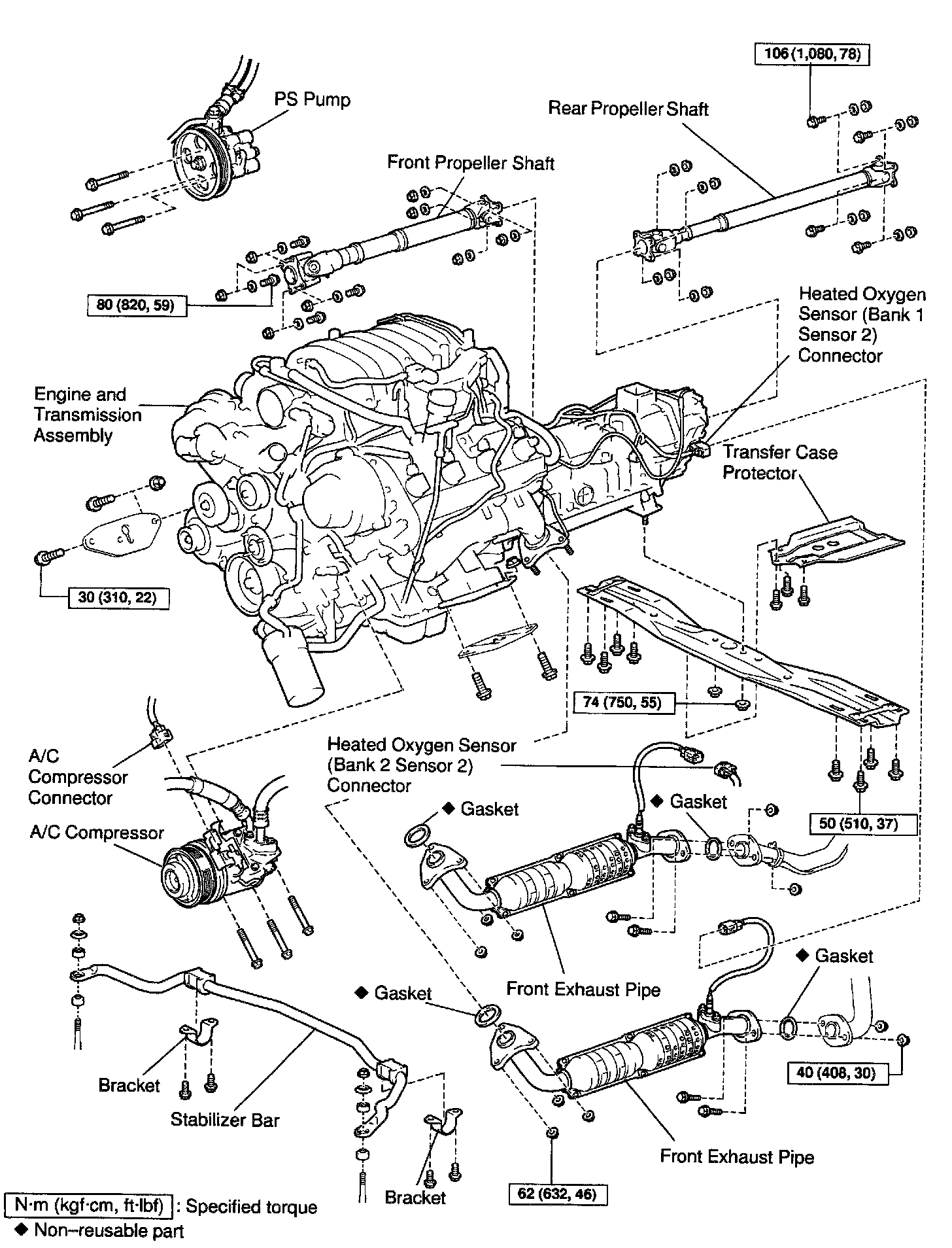

Part 6 Of 7:

Part 6 of 7

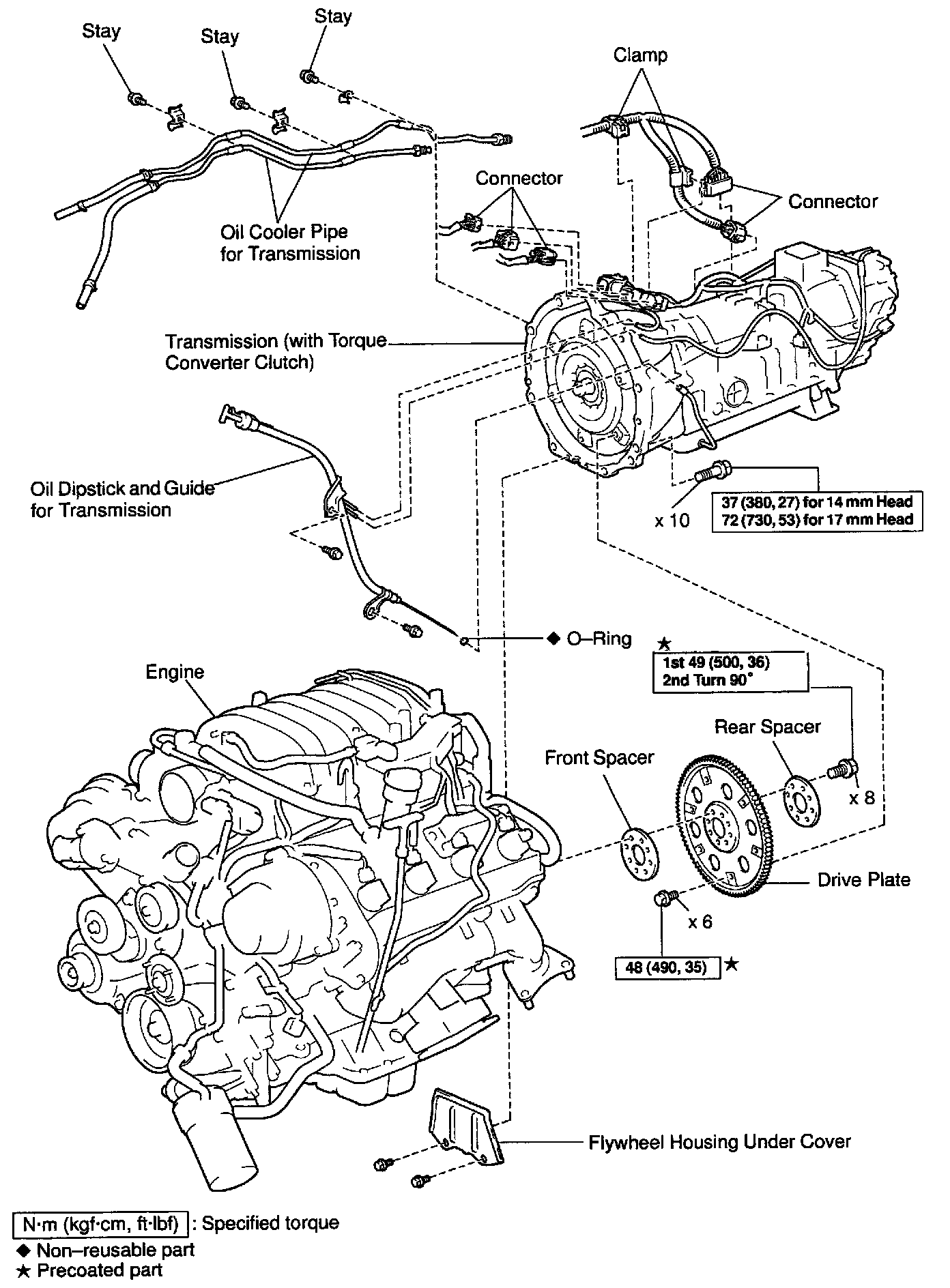

Part 7 Of 7:

Part 7 of 7
