Timing Belt

TIMING BELT REPLACEMENT W/ RELATED COMPONENTS

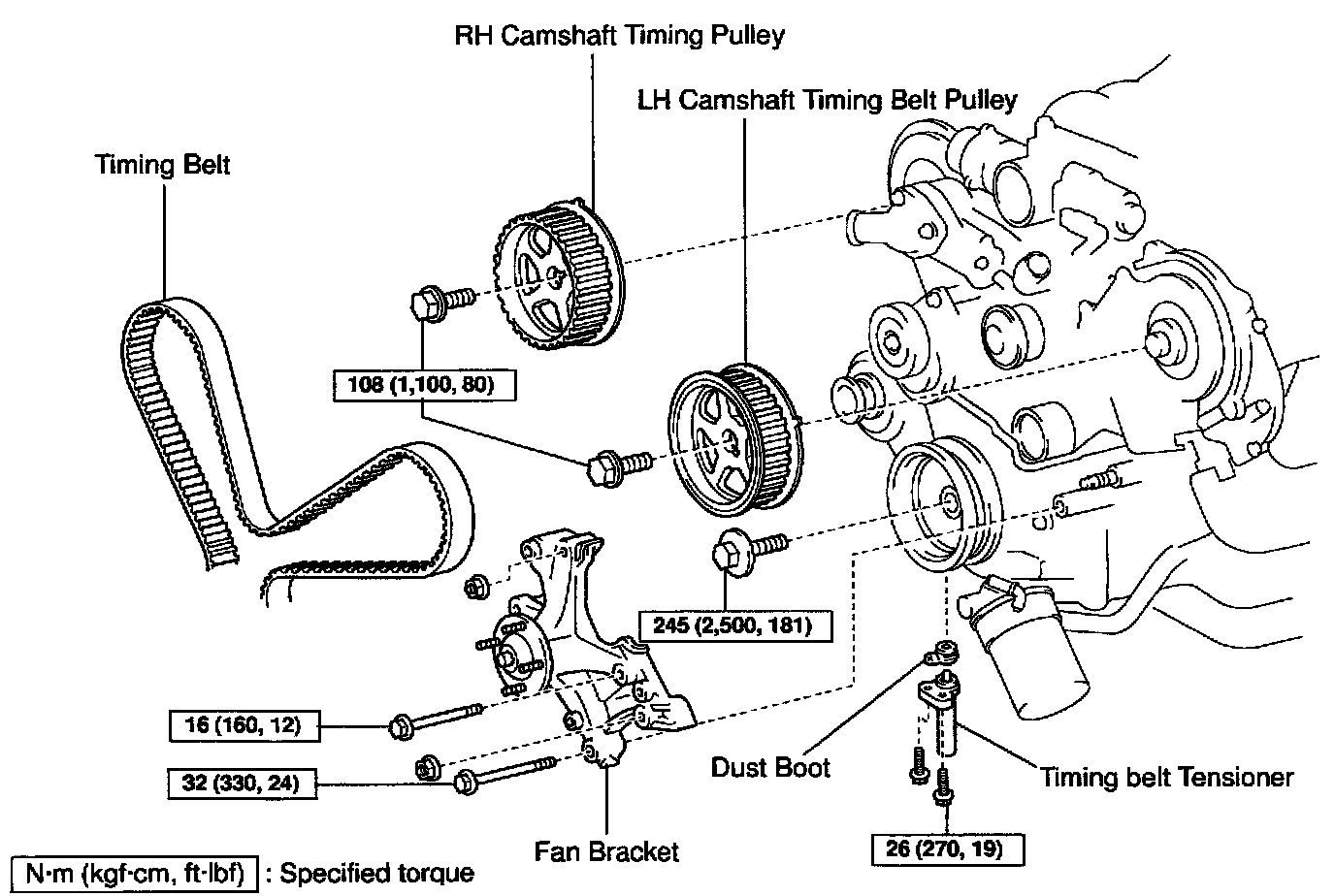

Part 1 0f 4:

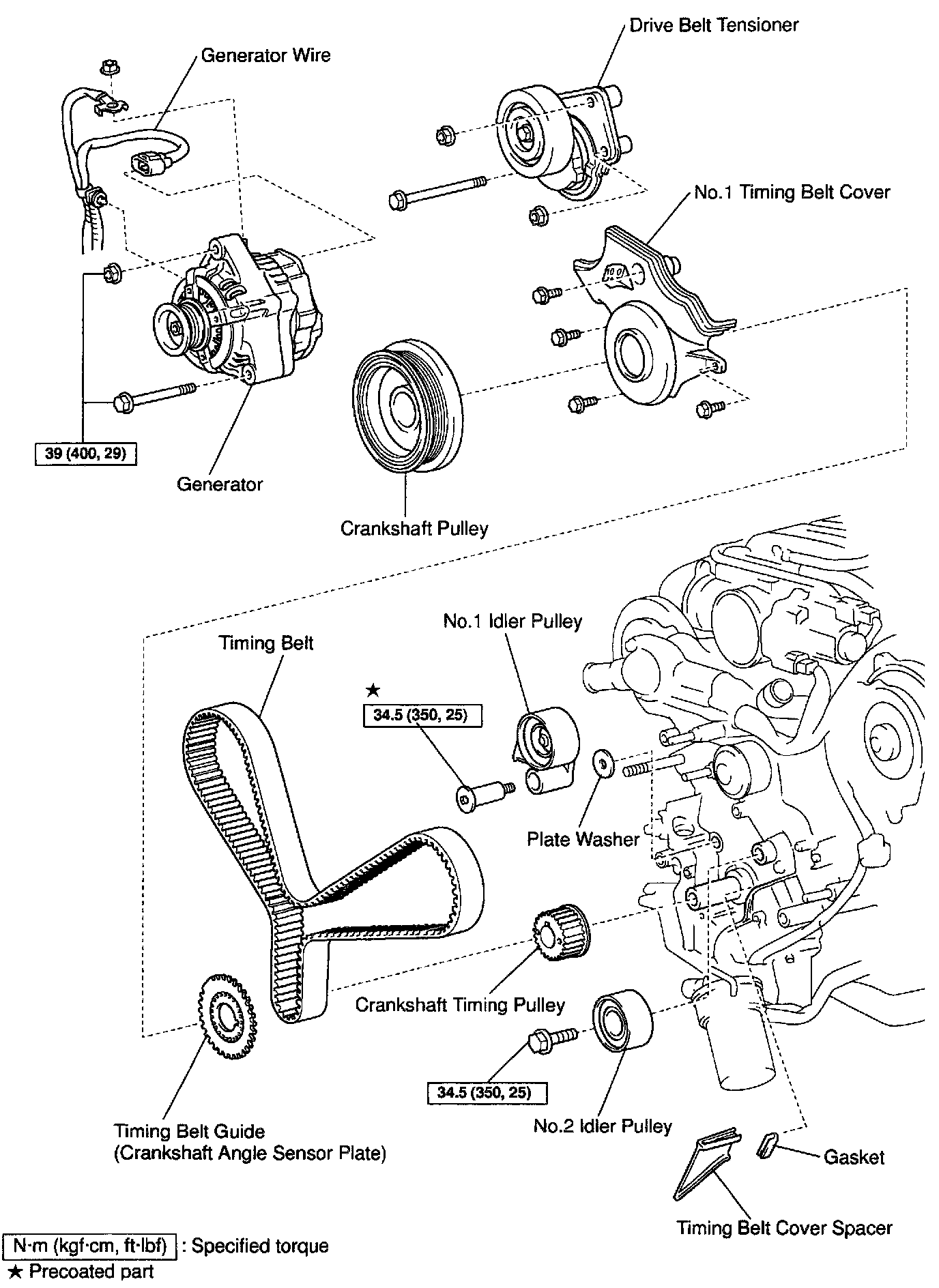

Part 2 Of 4:

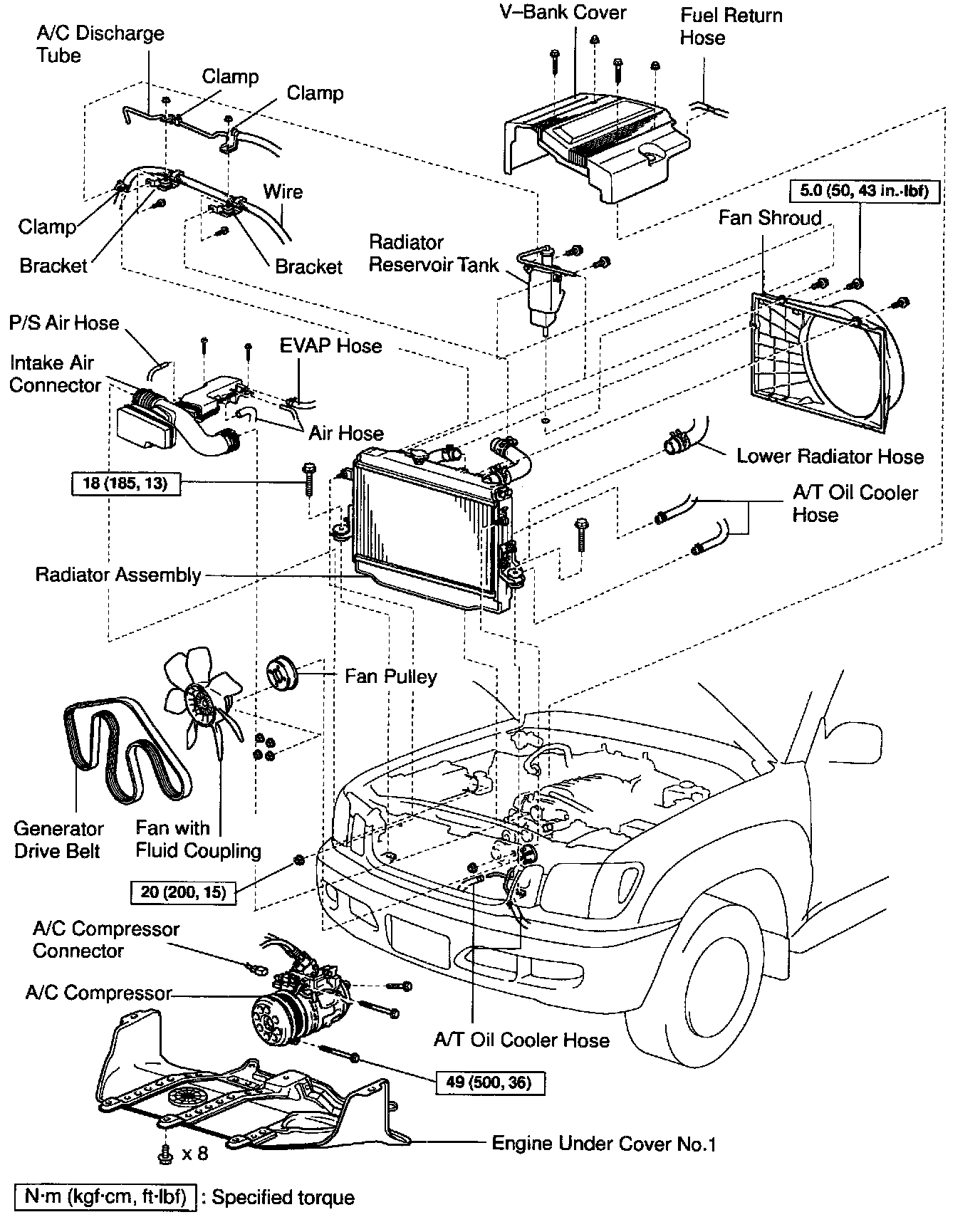

Part 3 Of 4:

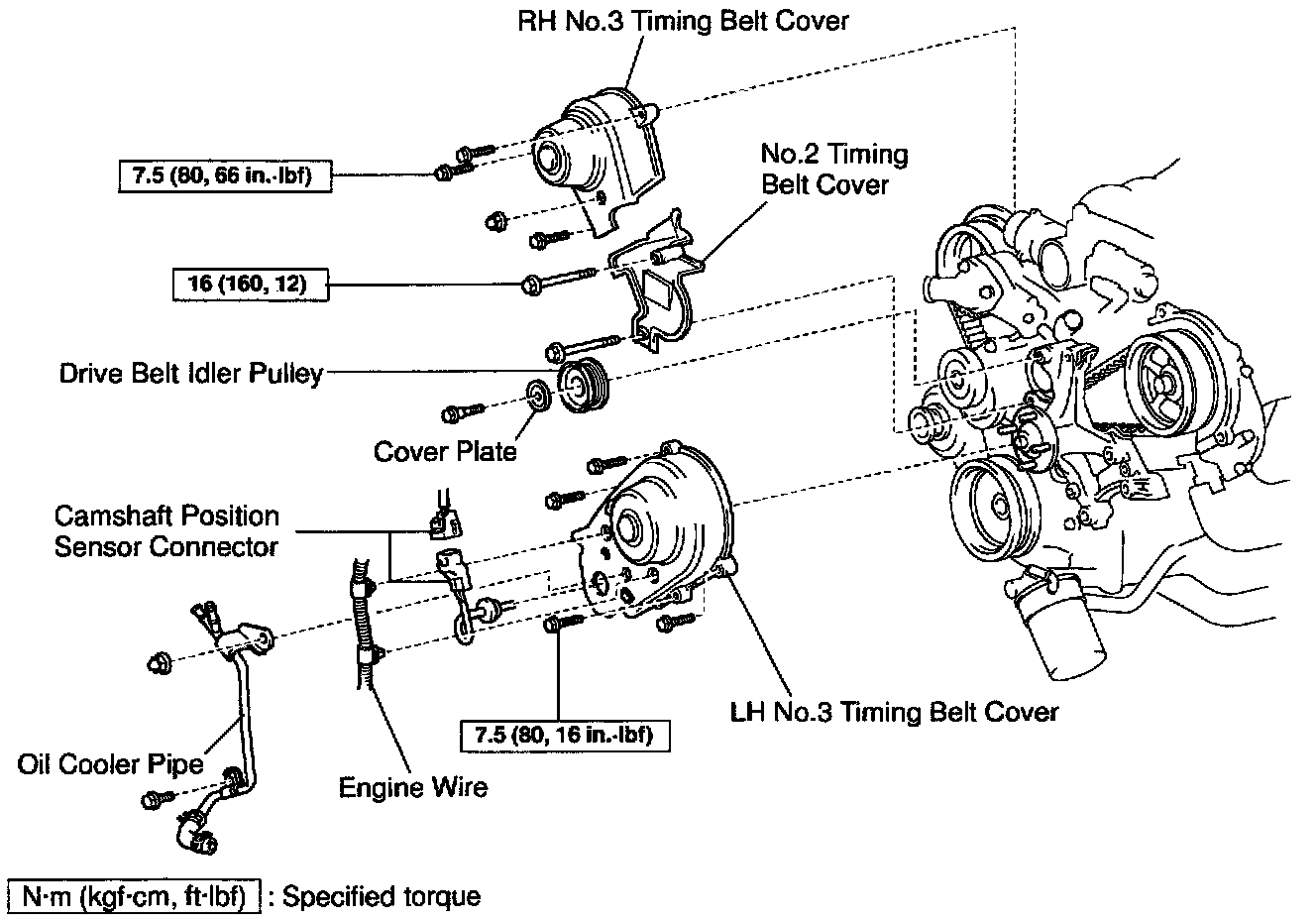

Part 4 Of 4:
