Door Courtesy Switch Circuit
CIRCUIT DESCRIPTIONThe door courtesy switch goes on when the door is opened and goes off when door is closed.

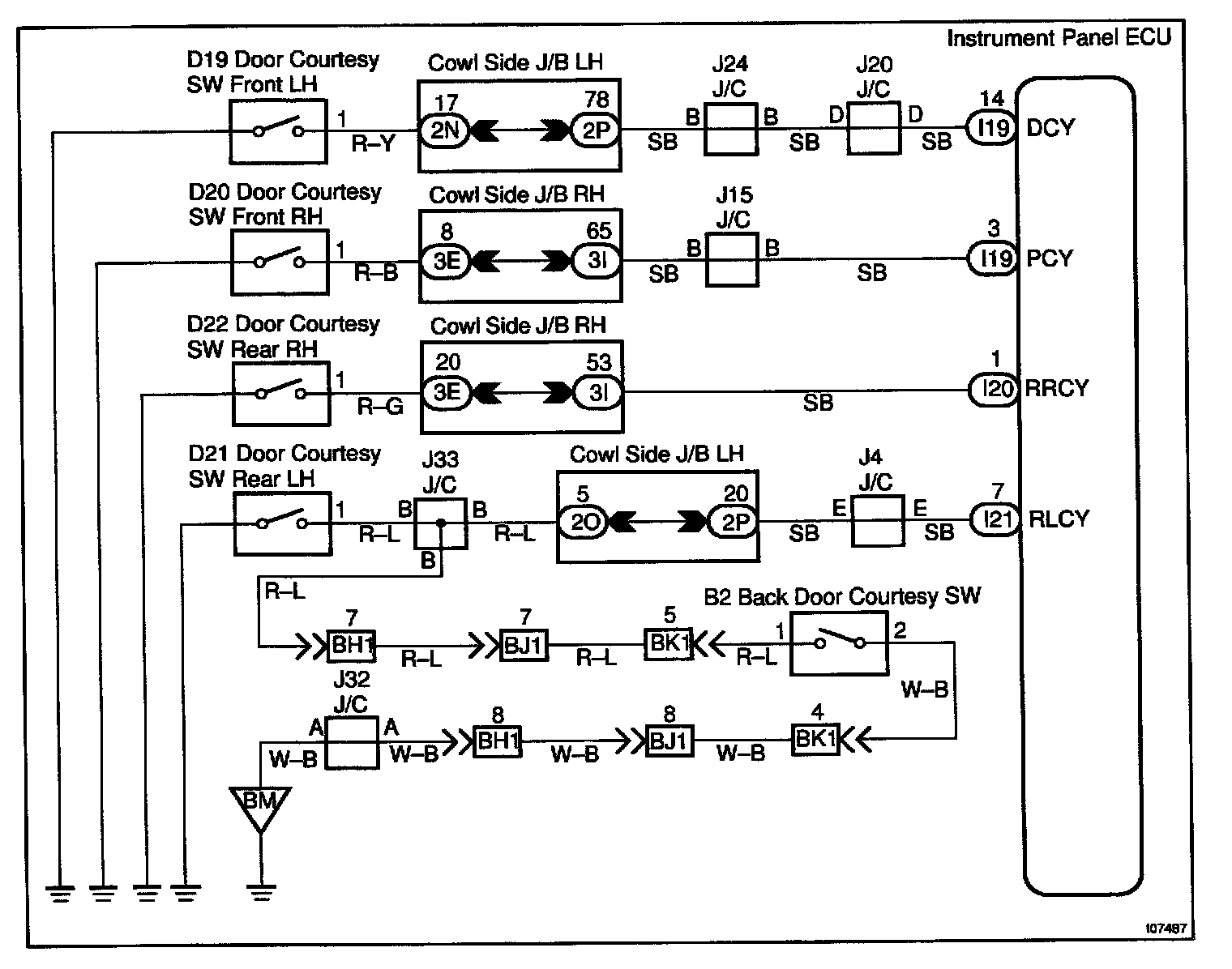

Wiring Diagram:

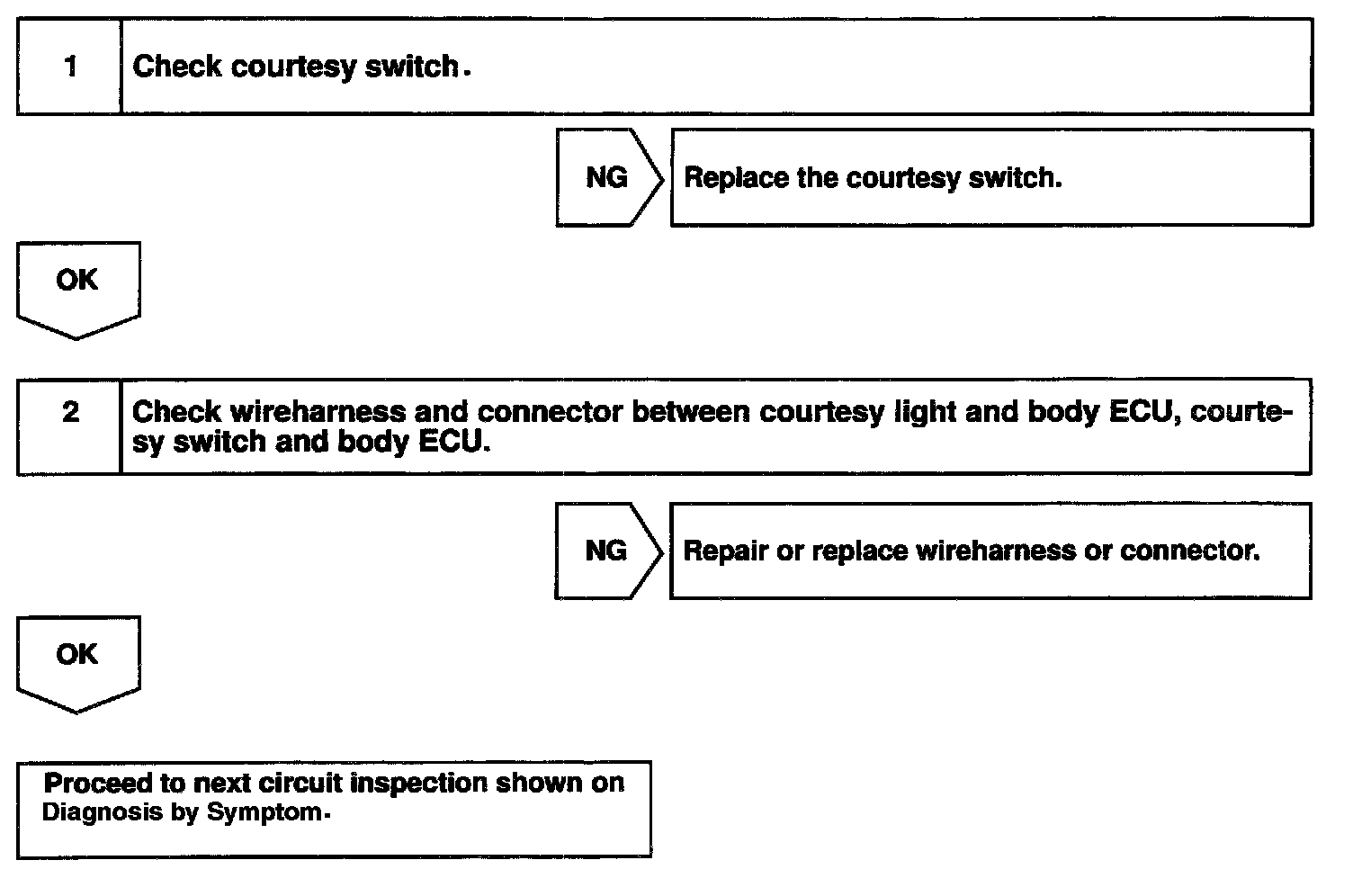

Steps 1 - 2:
INSPECTION PROCEDURE
The door courtesy switch goes on when the door is opened and goes off when door is closed.
INSPECTION PROCEDURE
