Rear Wiper and Washer Switch Circuit

CIRCUIT DESCRIPTION
Body ECU judges the switch position with the terminal voltage of the wiper and washer switch and runs the wiper motor.

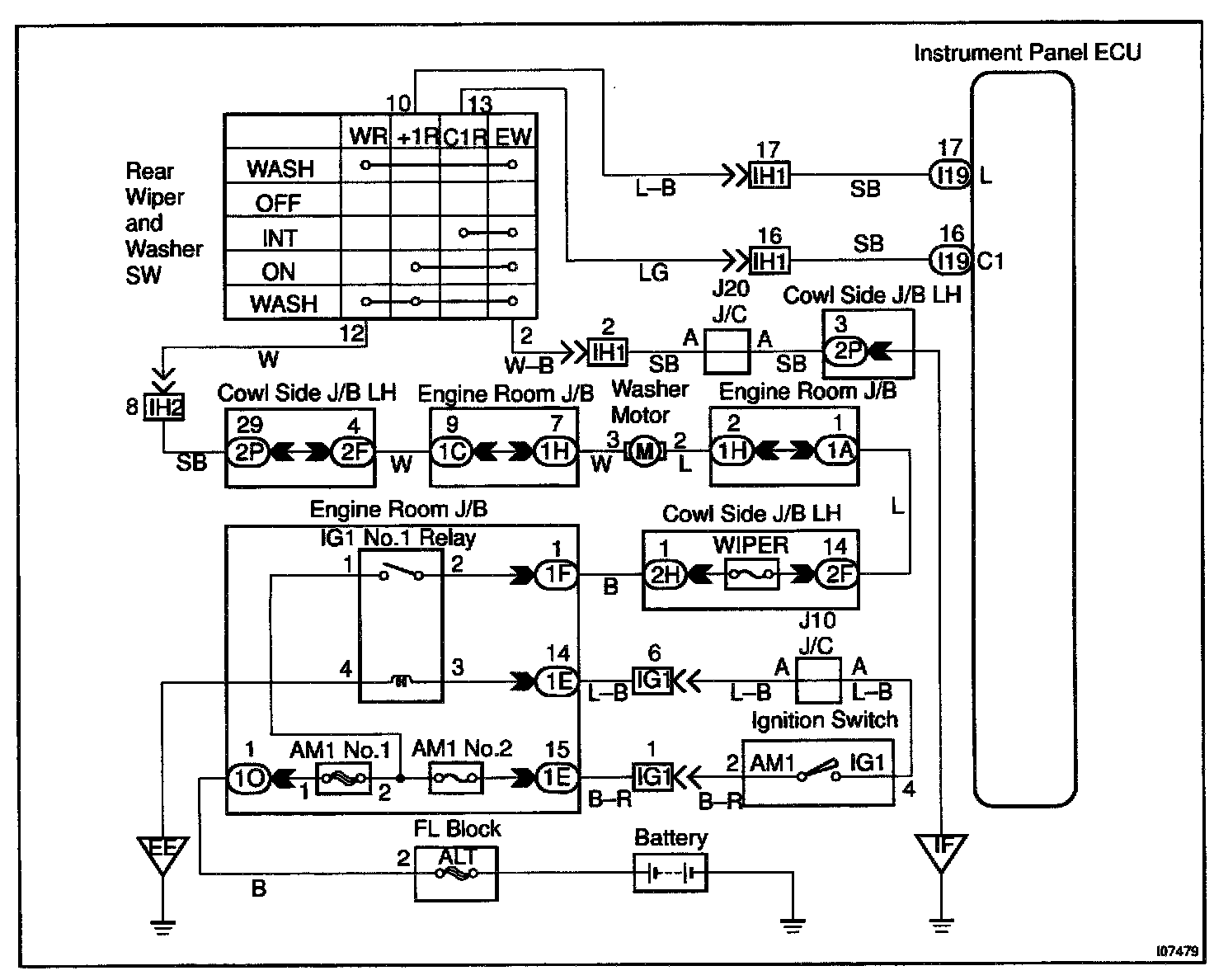

Wiring Diagram:

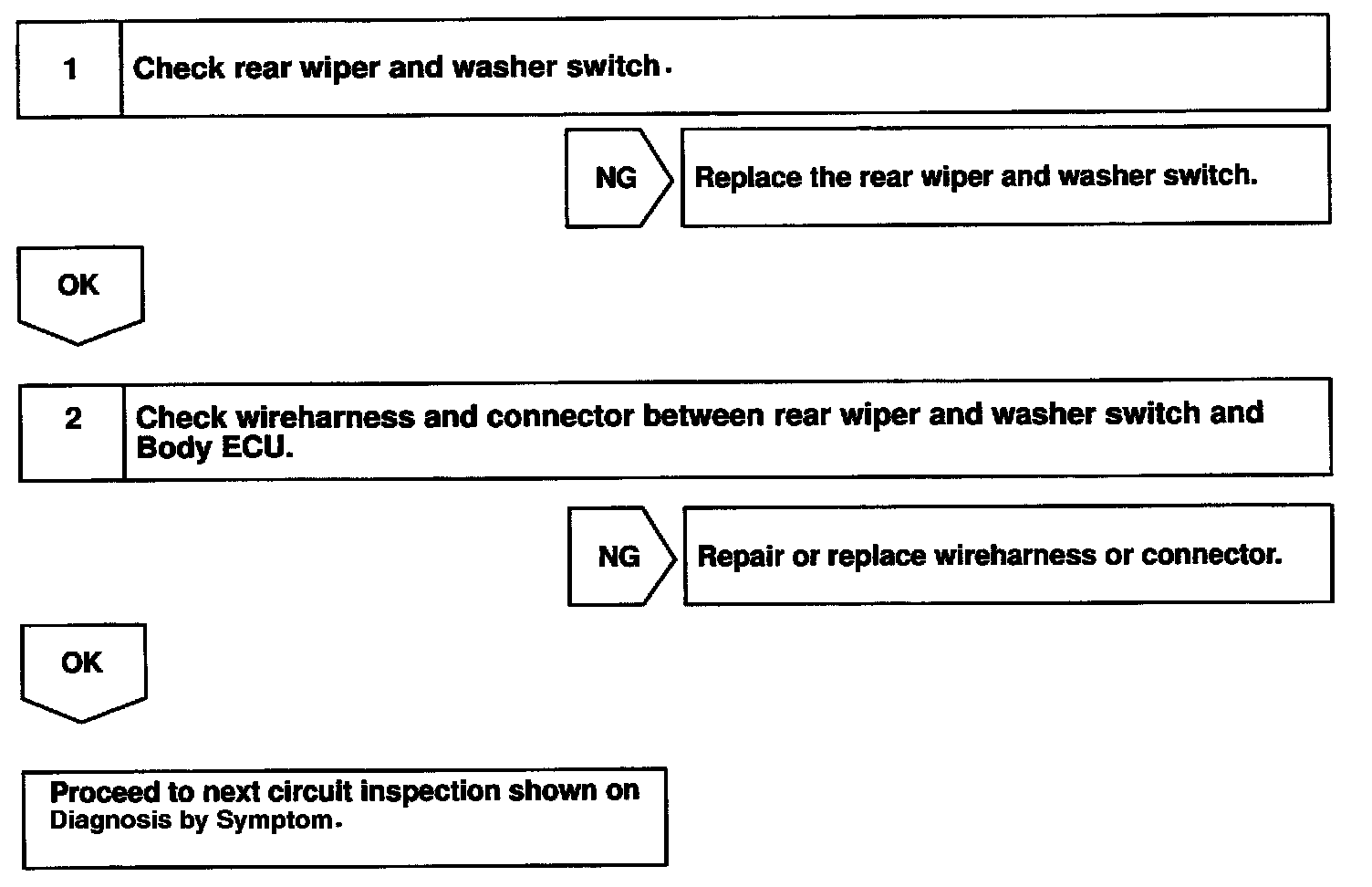

Steps 1 - 2:




INSPECTION PROCEDURE
