Transmission Position Sensor/Switch: Testing and Inspection

CIRCUIT DESCRIPTION
The park/neutral position switch detects the shift lever position P and sends signals to the Body ECU.

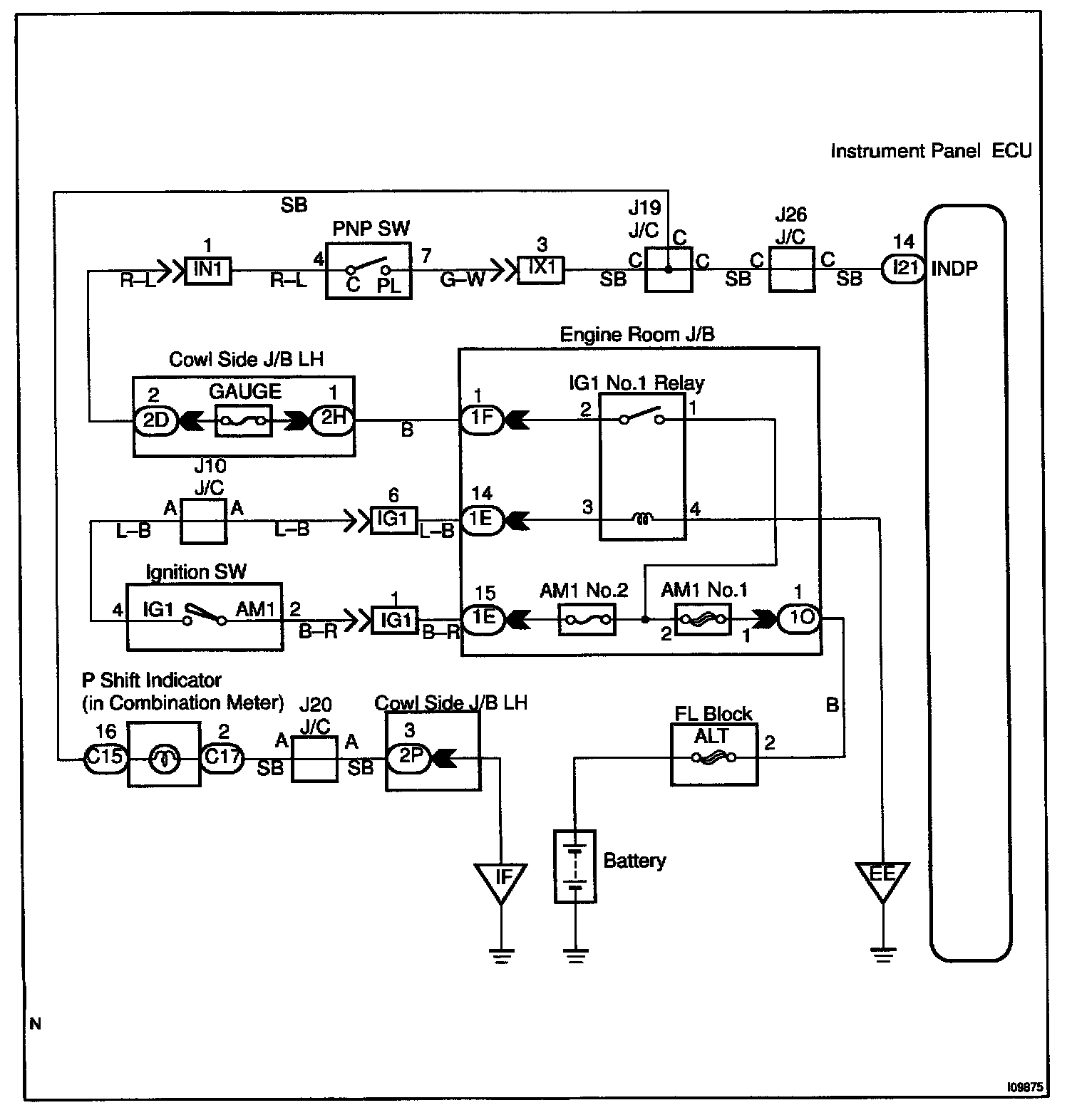

Wiring Diagram:

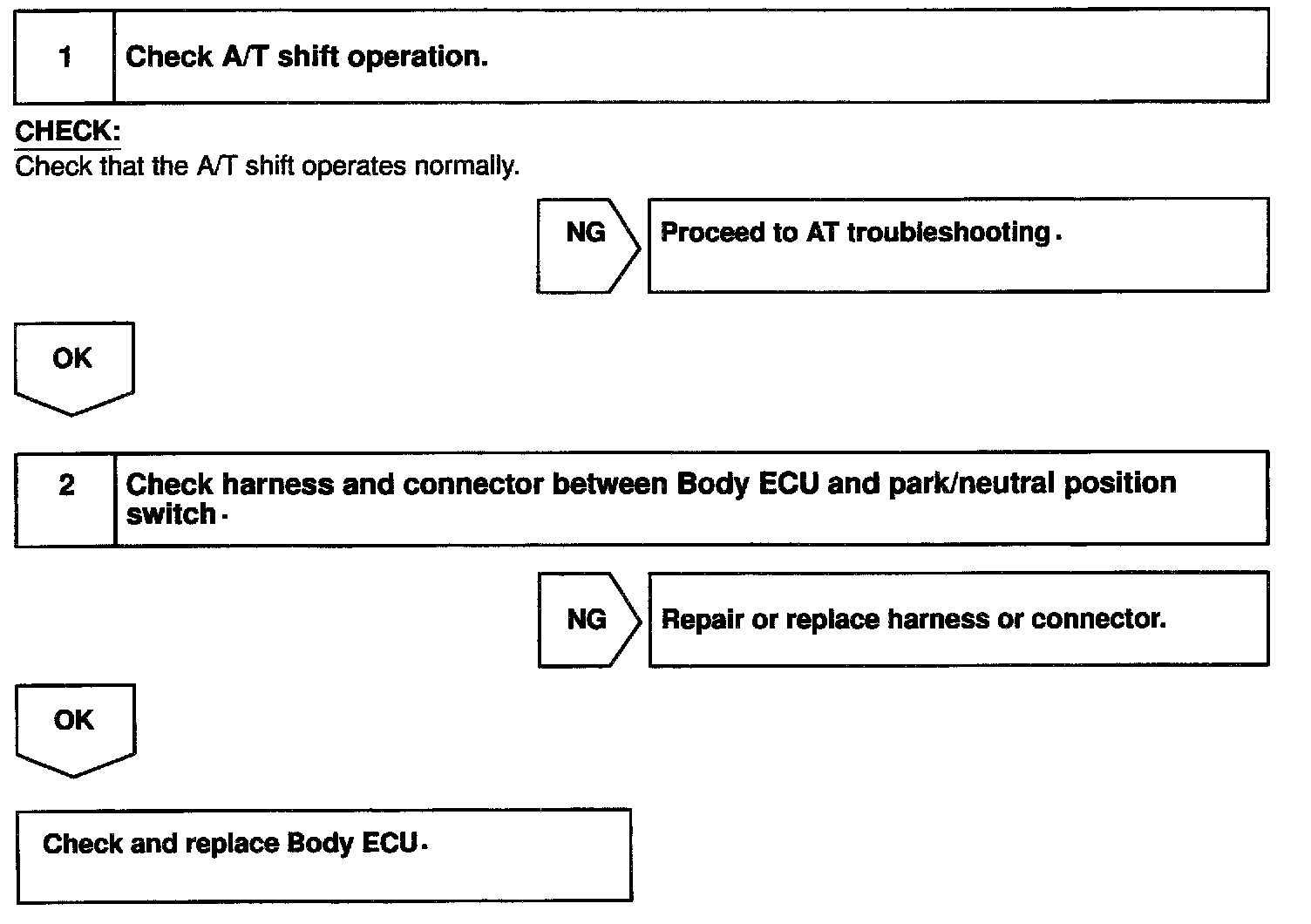

Steps 1 - 2:

INSPECTION PROCEDURE
