Connecting Rod Bearing

Connecting Rod Bearing Oil Clearance
Standard 0.027 - 0.053 mm (0.0011 - 0.0021 in)
Maximum 0.065 mm (0.0026 in)

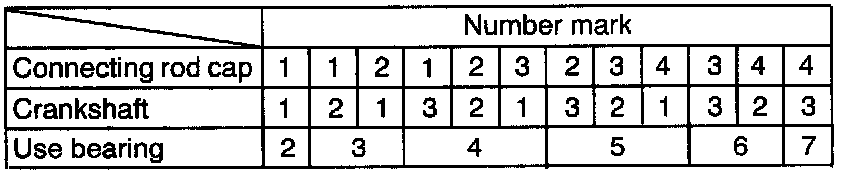

Bearing selection chart

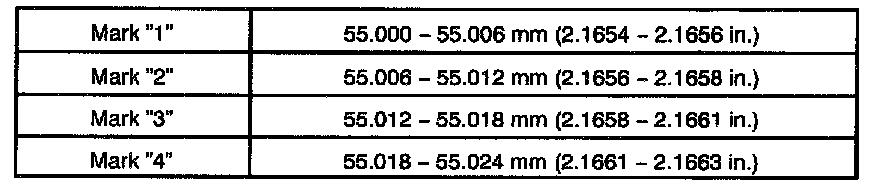

Connecting rod big end inside diameter

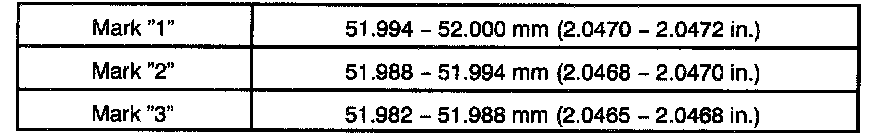

Crankshaft crank pin diameter

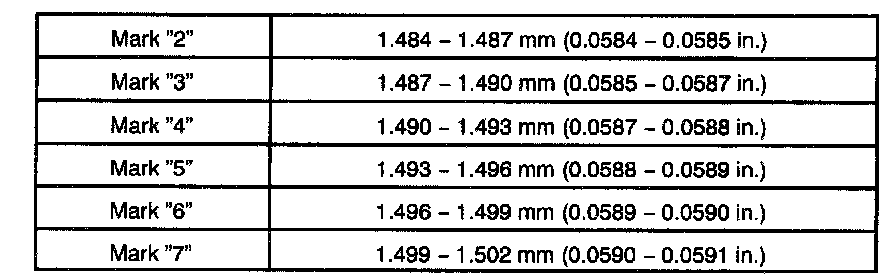

Standard sized bearing center wall thickness
