Circuit Description

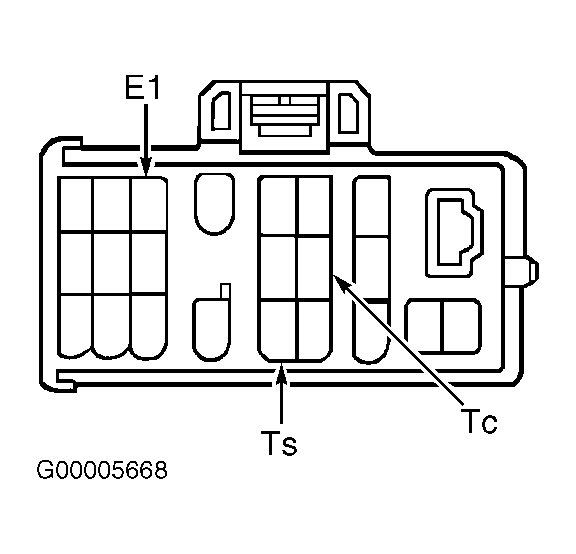

Sensor check circuit detects abnormalities in speed sensor signal which cannot be detected when checking for DTC. Connecting terminals Ts and E1 of DLC1 starts DTC check. See Figure.
Sensor check circuit detects abnormalities in speed sensor signal which cannot be detected when checking for DTC. Connecting terminals Ts and E1 of DLC1 starts DTC check. See Figure.
