Abs/BA/TRAC/VSC Ecu

The following pin voltage charts are supplied to determine whether ABS/BA/TRAC/VSC ECU is receiving and transmitting proper voltage signals. Charts may also help determine if ECU harness is shorted or open. See Fig 1, Fig 2 and Fig 3 . ABS/BA/TRAC/VSC ECU is located behind left side of dash, near junction block.

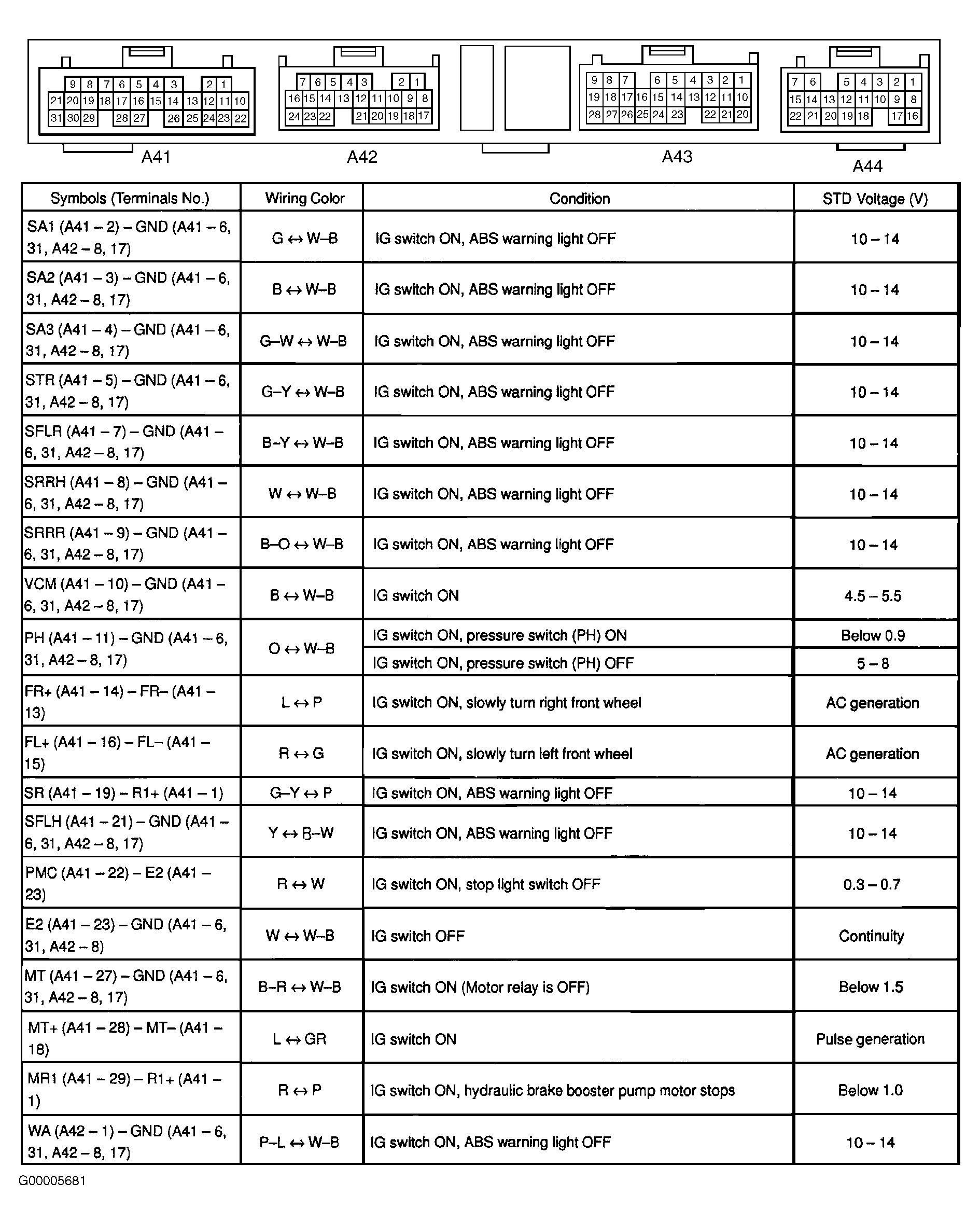

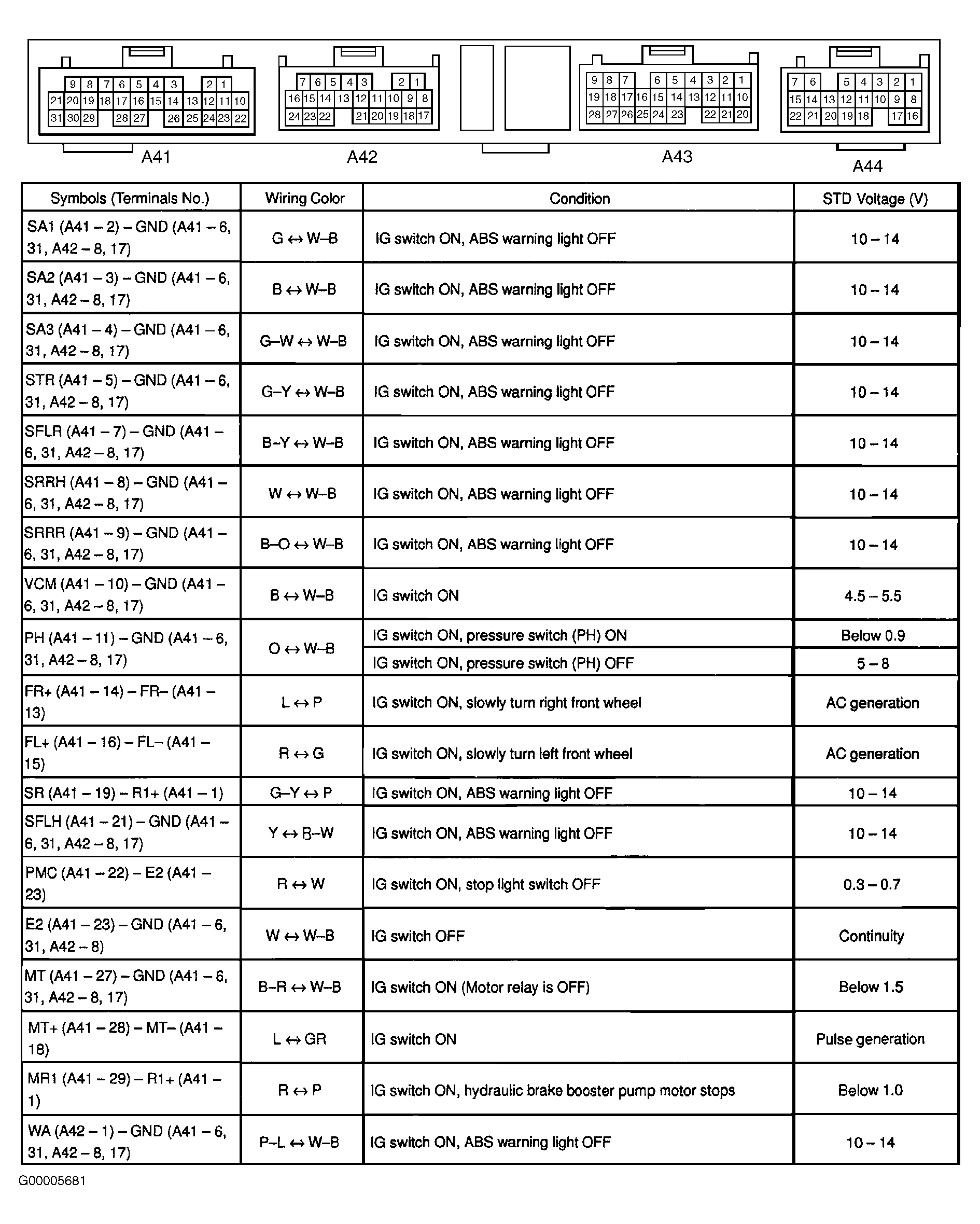

Fig 1: ABS/BA/TRAC/VSC ECU Pin Voltage Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

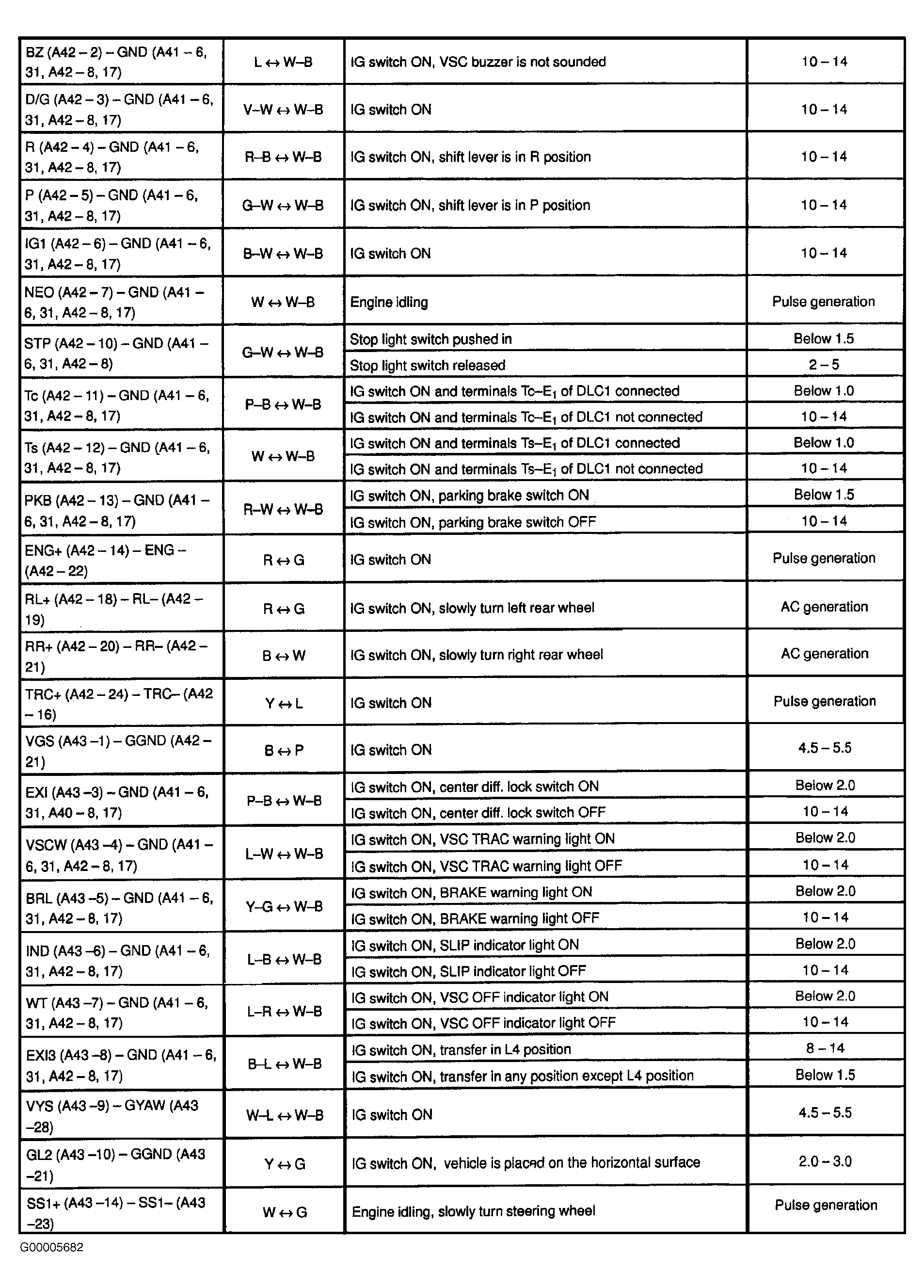

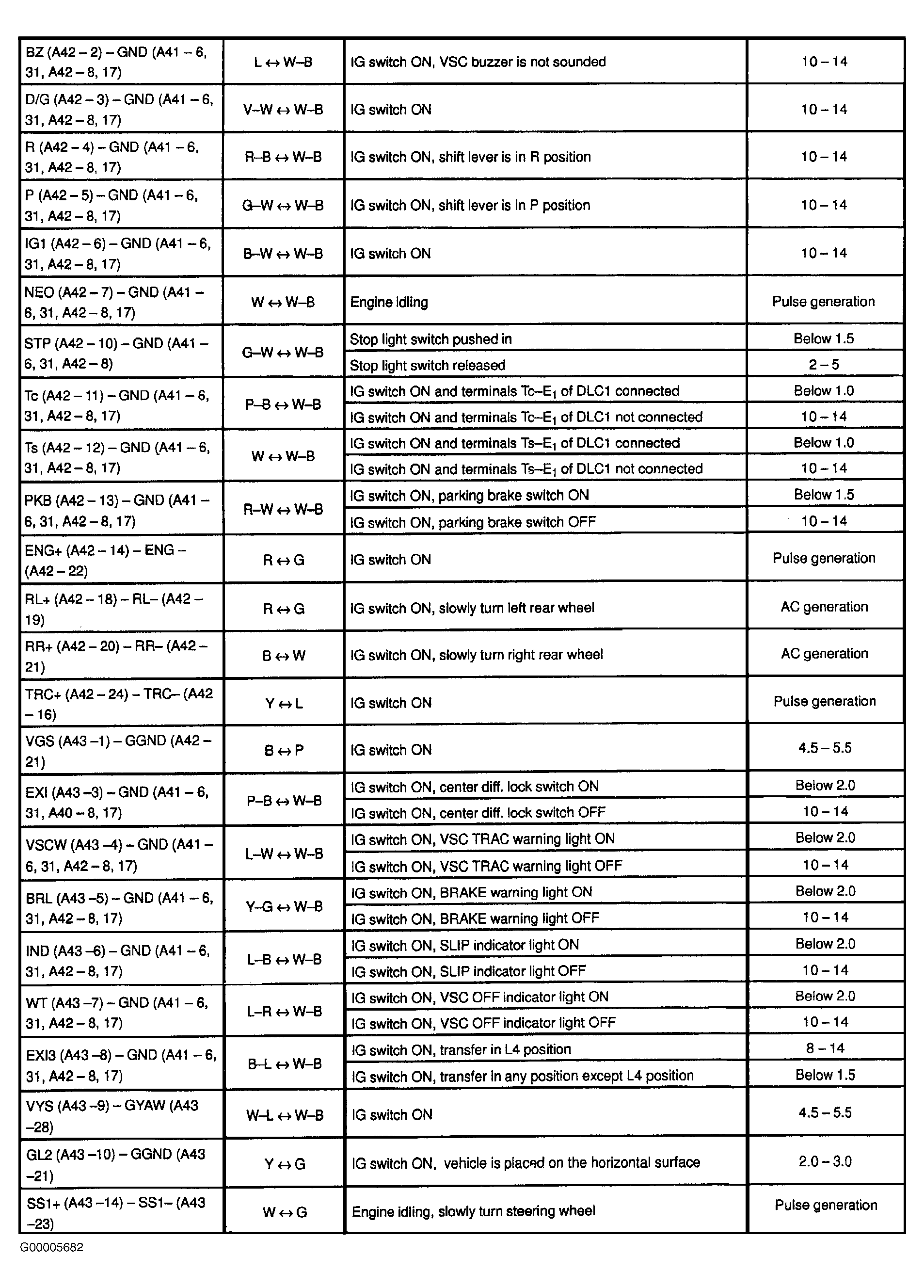

Fig 2: ABS/BA/TRAC/VSC ECU Pin Voltage Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

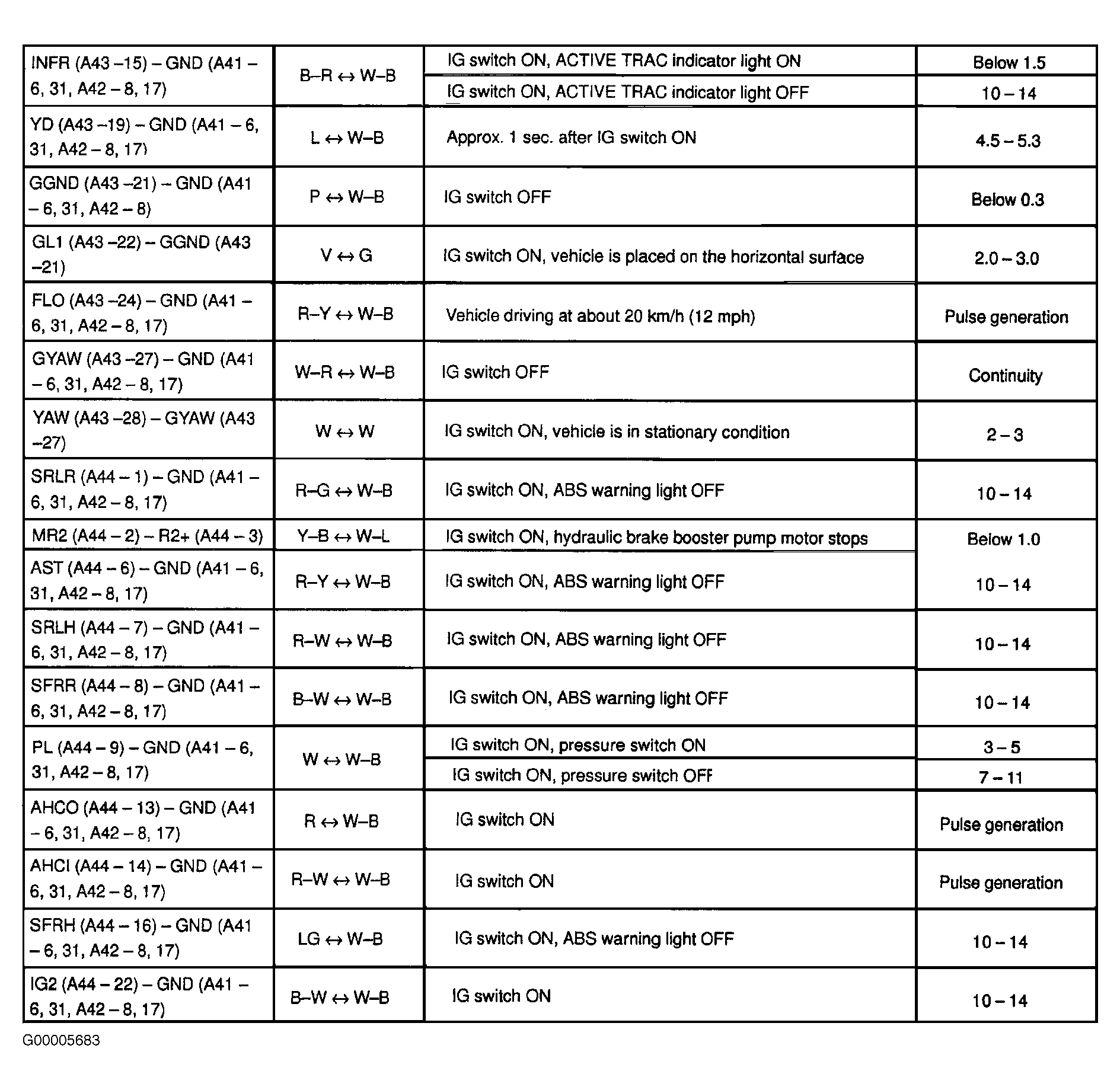

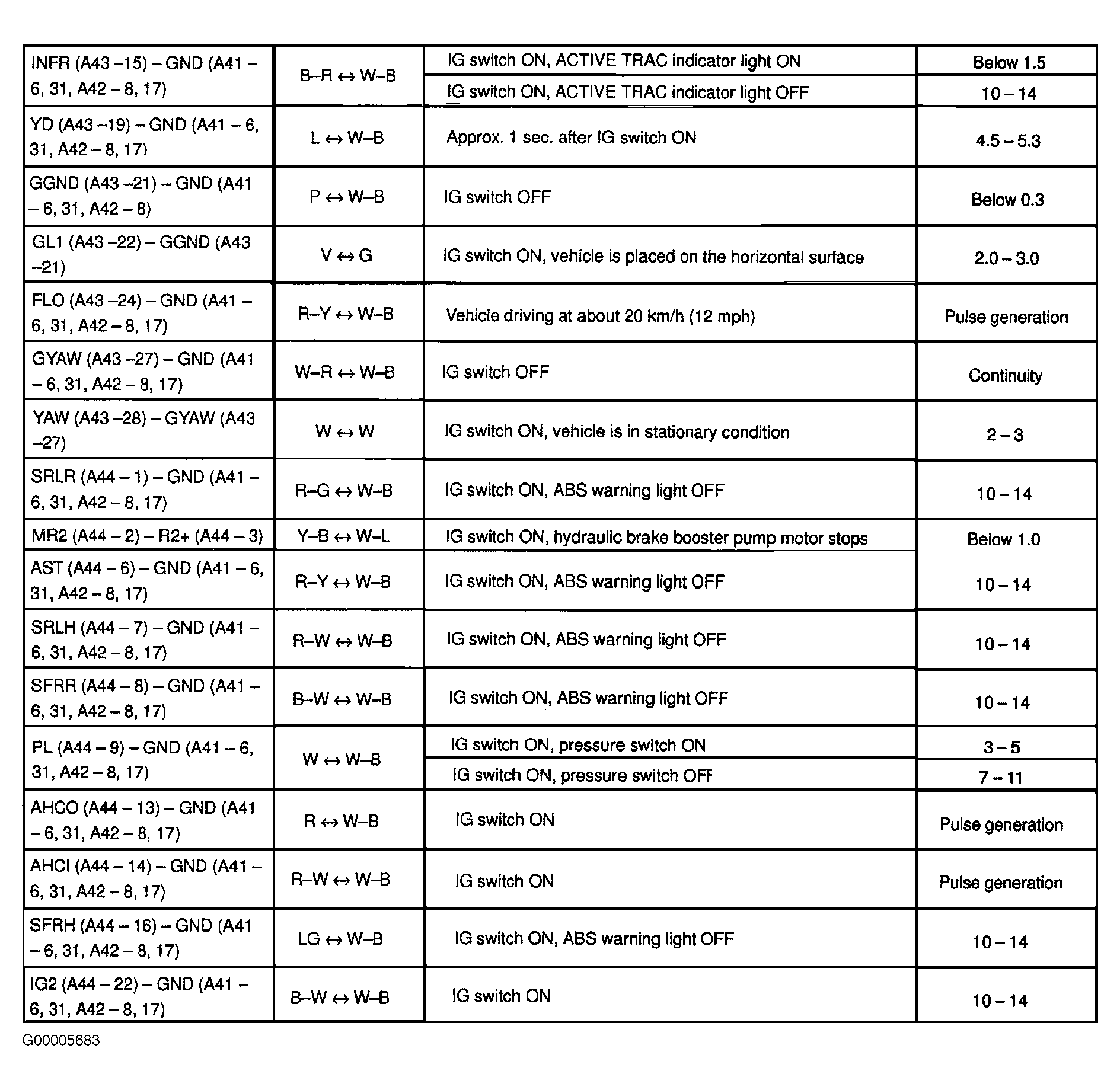

Fig 3: ABS/BA/TRAC/VSC ECU Pin Voltage Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
