Stoplight Switch

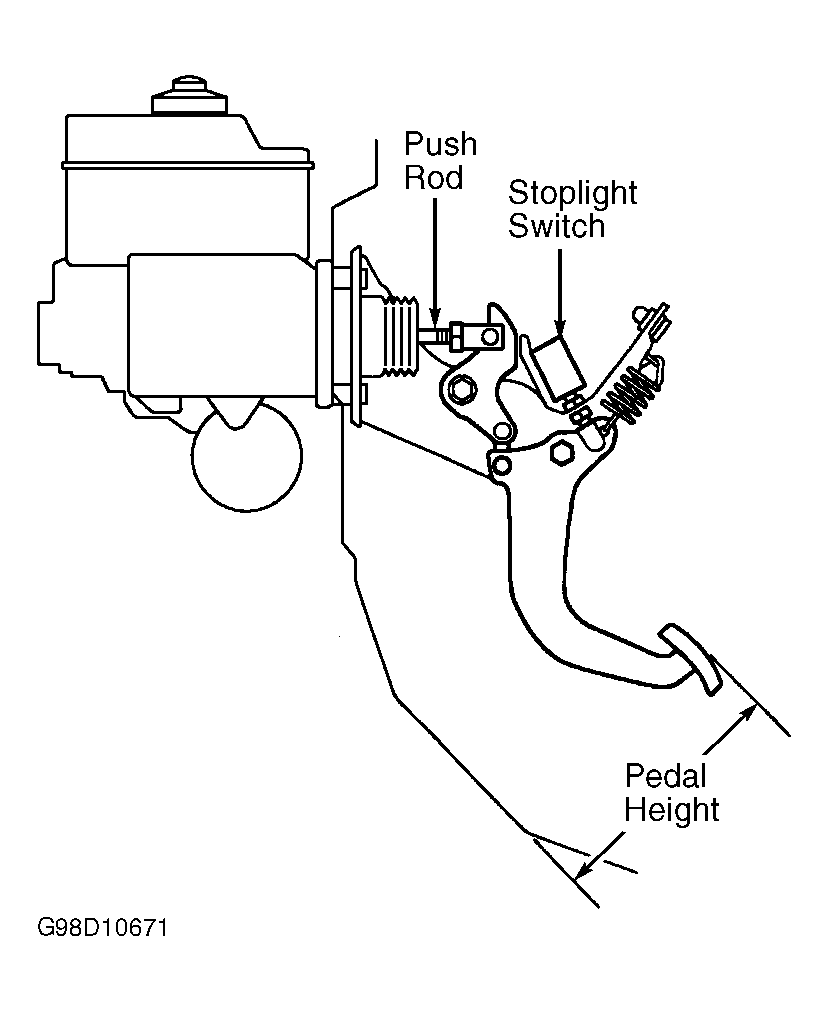

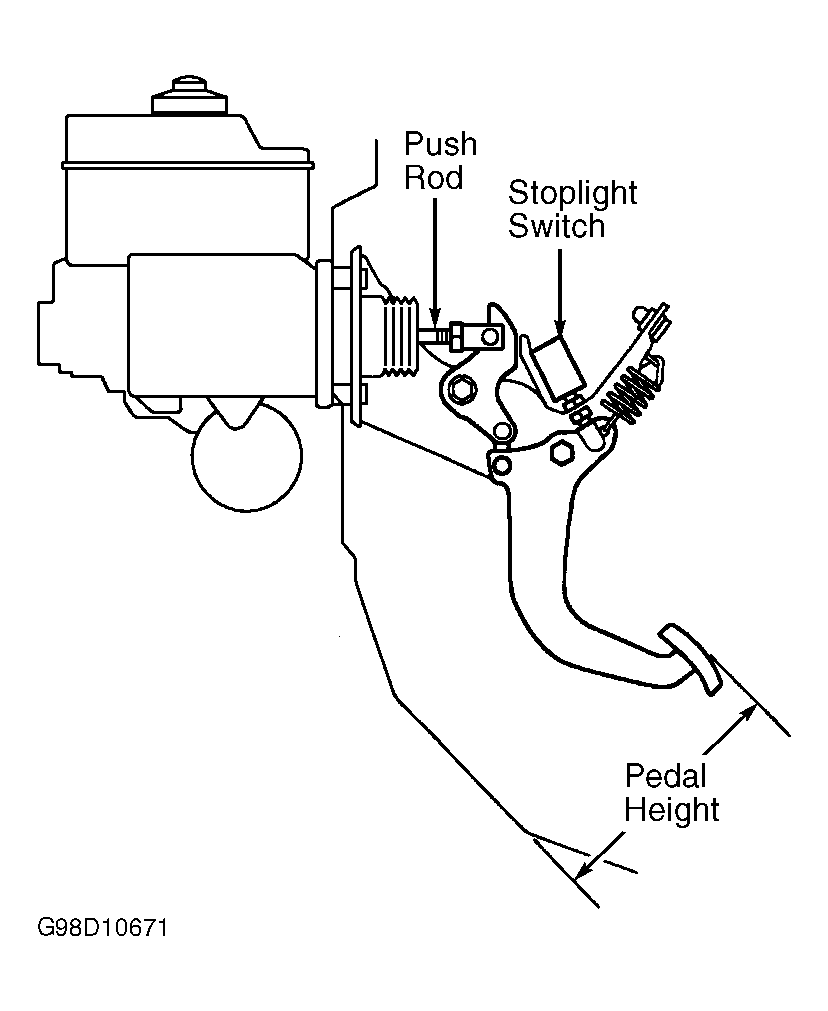

Remove lower instrument panel and air duct (if necessary). Loosen lock nut. Rotate switch until clearance between switch and pedal stop is .039" (1.0 mm). See Figure. Check brake pedal height. See BRAKE PEDAL HEIGHT  under ADJUSTMENTS. Check brakelight operation.
