All Others

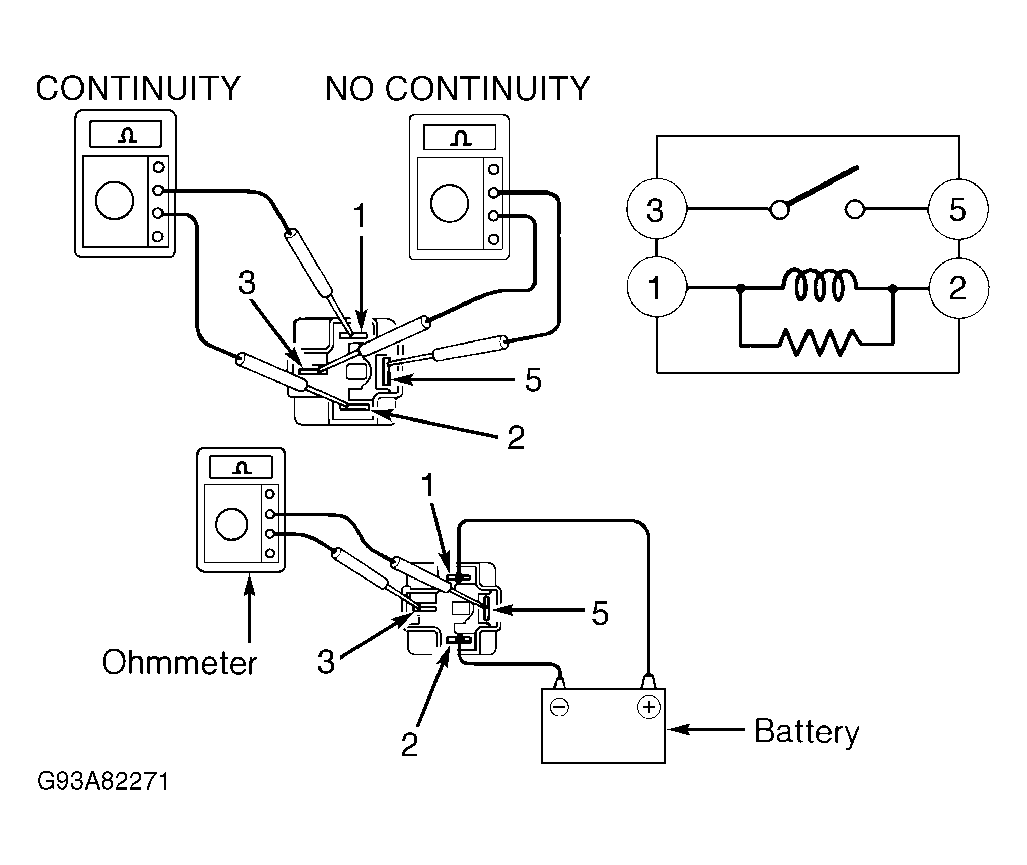

- Locate and remove starter relay. Starter relay is marked "ST". See STARTER RELAY LOCATION table. Using ohmmeter, verify continuity between relay terminals No. 1 and 2. See Fig 2. Continuity should not exist between terminals No. 3 and 5. If continuity is not as specified, replace relay.
- Check relay operation by applying battery voltage through terminals No. 1 and 2. See Fig 2. Continuity should now exist between terminals No. 3 and 5. If relay does not test as indicated, replace relay.
STARTER RELAY LOCATION
| Application | Location |
|---|---|
| Avalon & Corolla | In Engine Compartment Junction Block |
| Camry, Camry Solara & Sienna | In Engine Compartment Junction Block No. 2 |
| Celica | In Engine Compartment Junction/Relay Block No. 2 |
| Land Cruiser | In Engine Compartment Junction Block |
| RAV4, Tundra, 4Runner & ECHO | In Engine Compartment Relay Block |
| MR2 | In Engine Fuse Link Block |
| Tacoma | In Engine Compartment Relay Block No. 2 |
