Clutch Start Cancel Switch Test: Tundra

  1. Locate switch on left side of instrument panel. Remove left lower instrument panel. Disconnect wiring harness connector from switch pigtail connector. Remove switch base from instrument panel. Remove switch from base.
  2. Check for continuity between clutch start cancel switch connector terminals No. 1 and 3. See Fig 2. If continuity exists, replace clutch start cancel switch. If continuity does not exist, go to next step.
  3. Using jumper wires, connect positive battery terminal to clutch start cancel switch connector terminal No. 7 and ground terminal No. 5. No continuity should exist between terminals No. 1 and 3. Press switch and ensure switch light illuminates. With switch pressed, continuity should exist between terminals No. 1 and 3.
  4. Remove jumper wire from clutch start cancel switch connector terminal No. 5. Ensure continuity does not exist between clutch start cancel switch connector terminals No. 1 and 3. If continuity is not as specified, replace clutch start cancel switch.

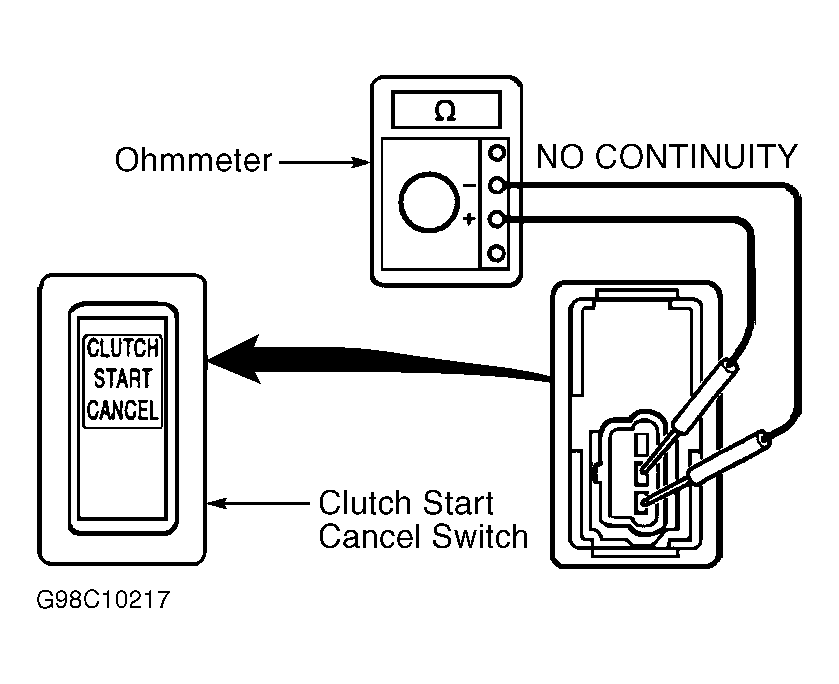

Fig 1: Clutch Start Cancel Switch Connector ID (Tacoma & 4Runner)
G98C10217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

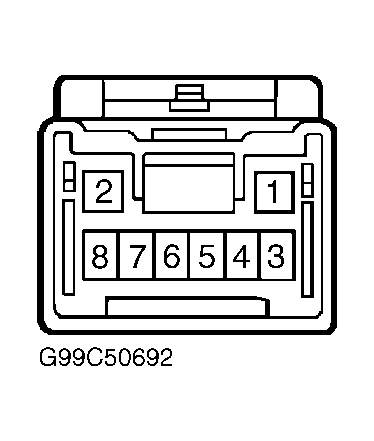

Fig 2: Clutch Start Cancel Switch Connector ID (Tundra)
G99C50692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
