Front Suspension System: Description

Front suspension uses torsion bars in place of coil springs. See Fig 1. Control arms use double wishbone configuration. See Fig 2 and Fig 3 . A stabilizer bar is connected to ends of lower control arms. See Fig 4.

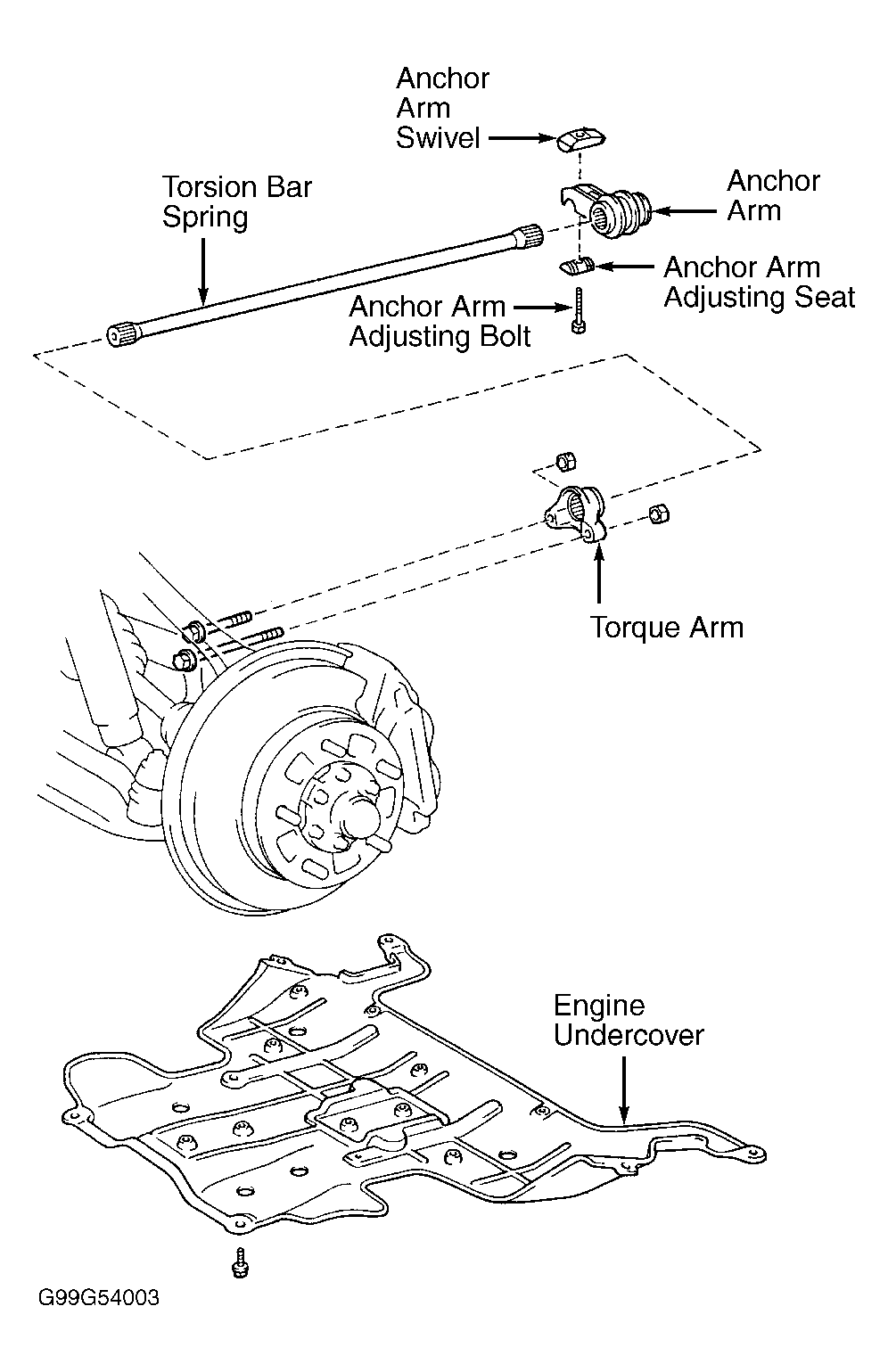

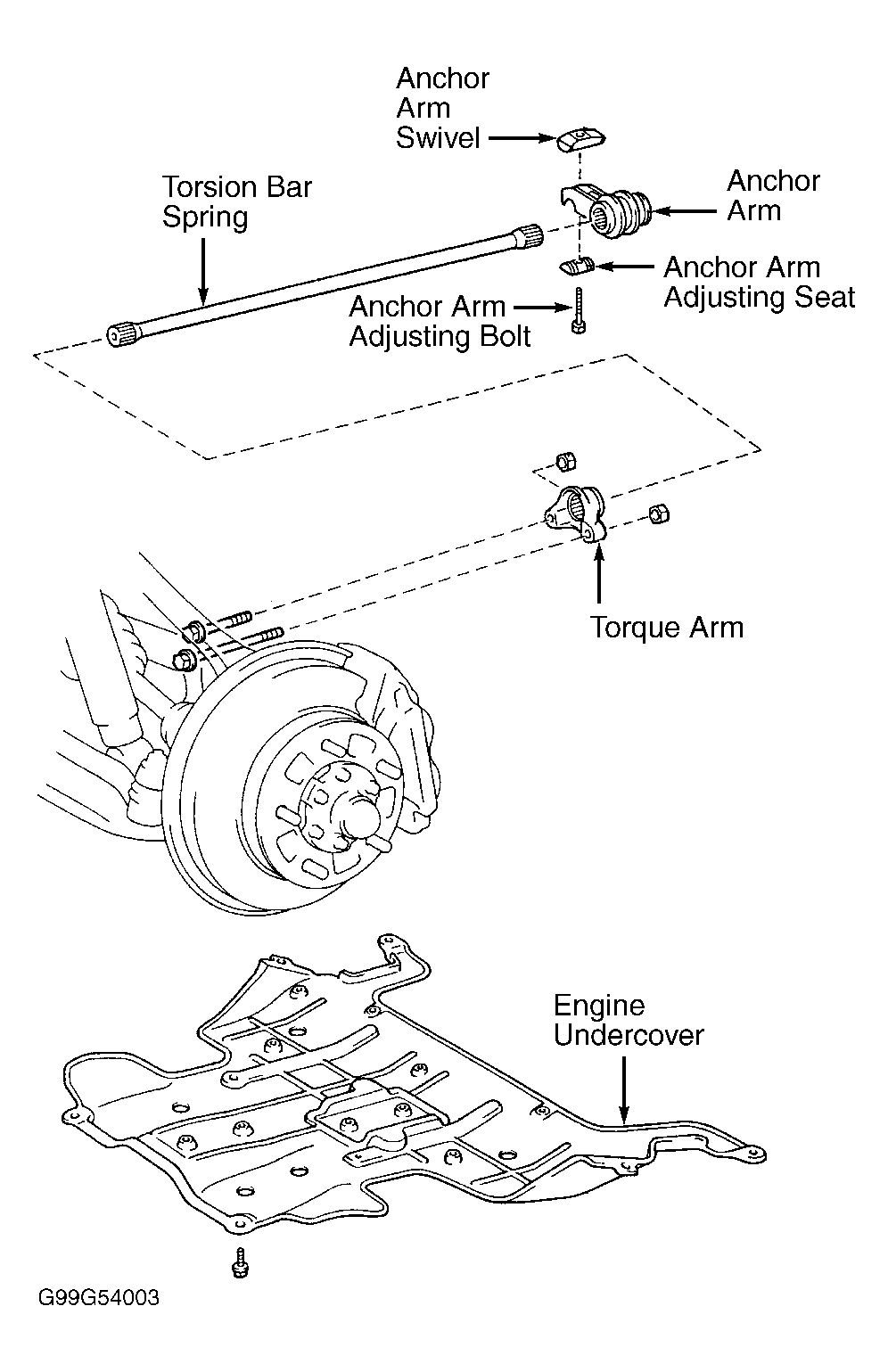

Fig 1: Exploded View Of Torsion Bar Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

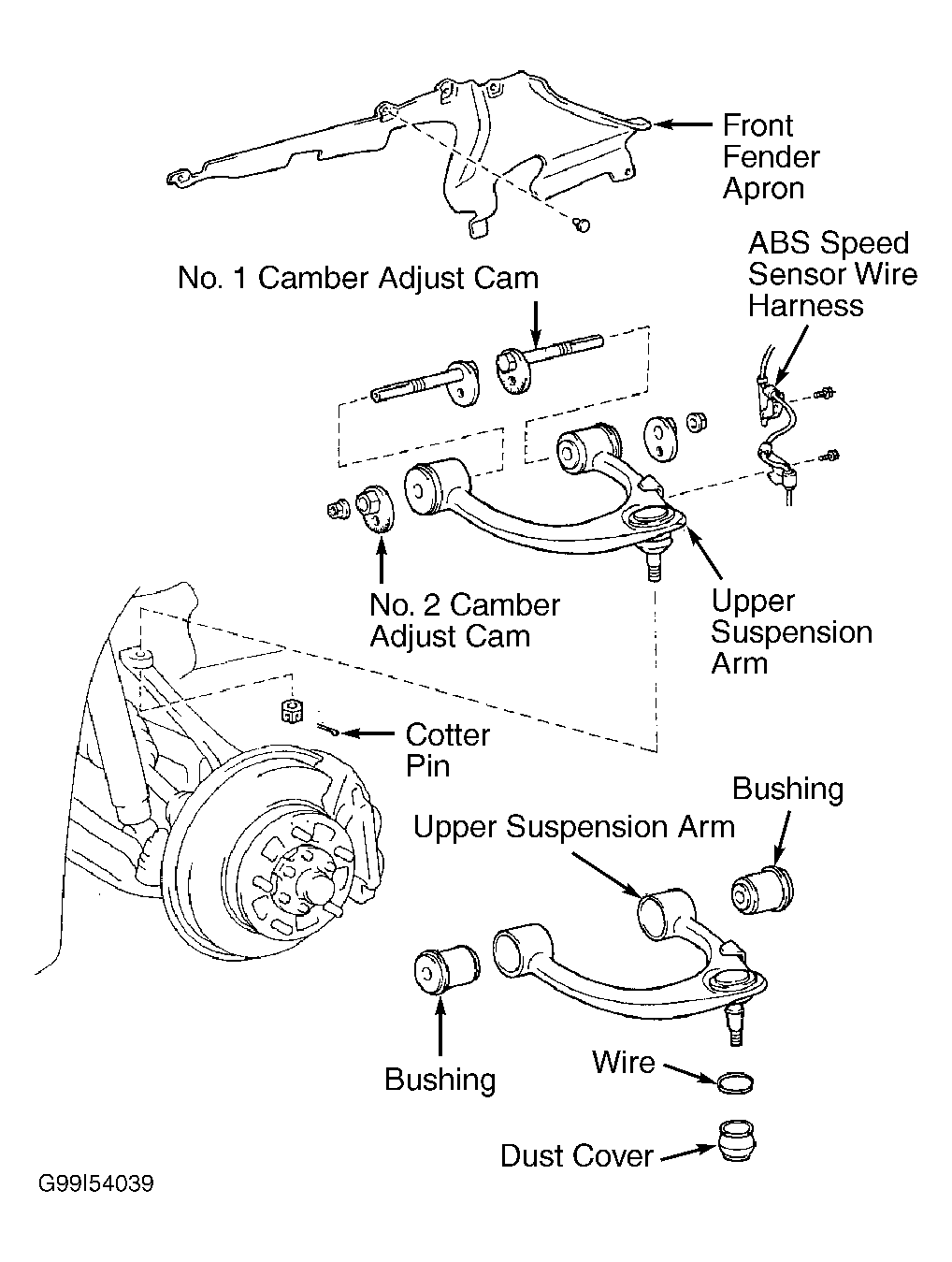

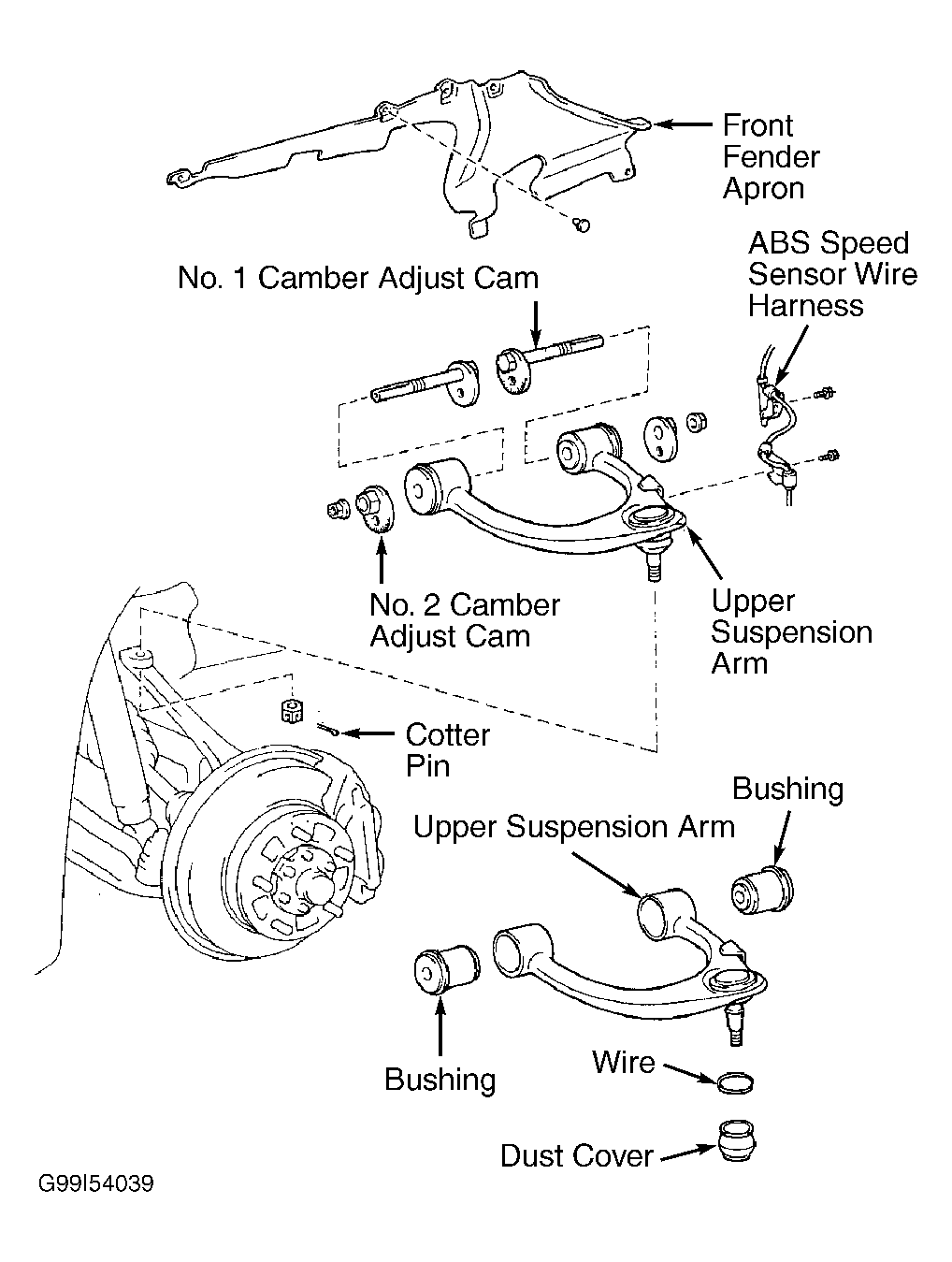

Fig 2: Exploded View Of Upper Control Arm Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

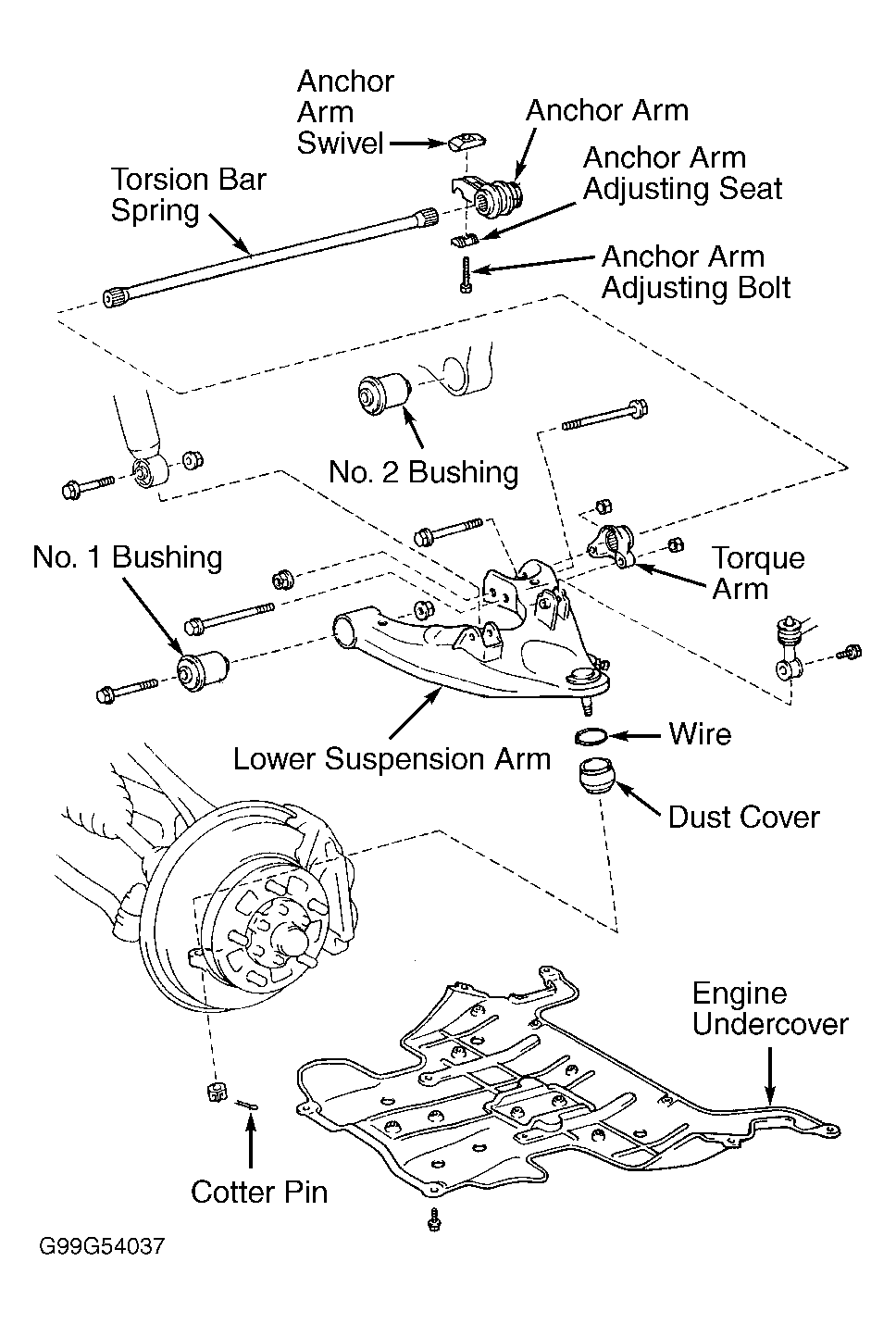

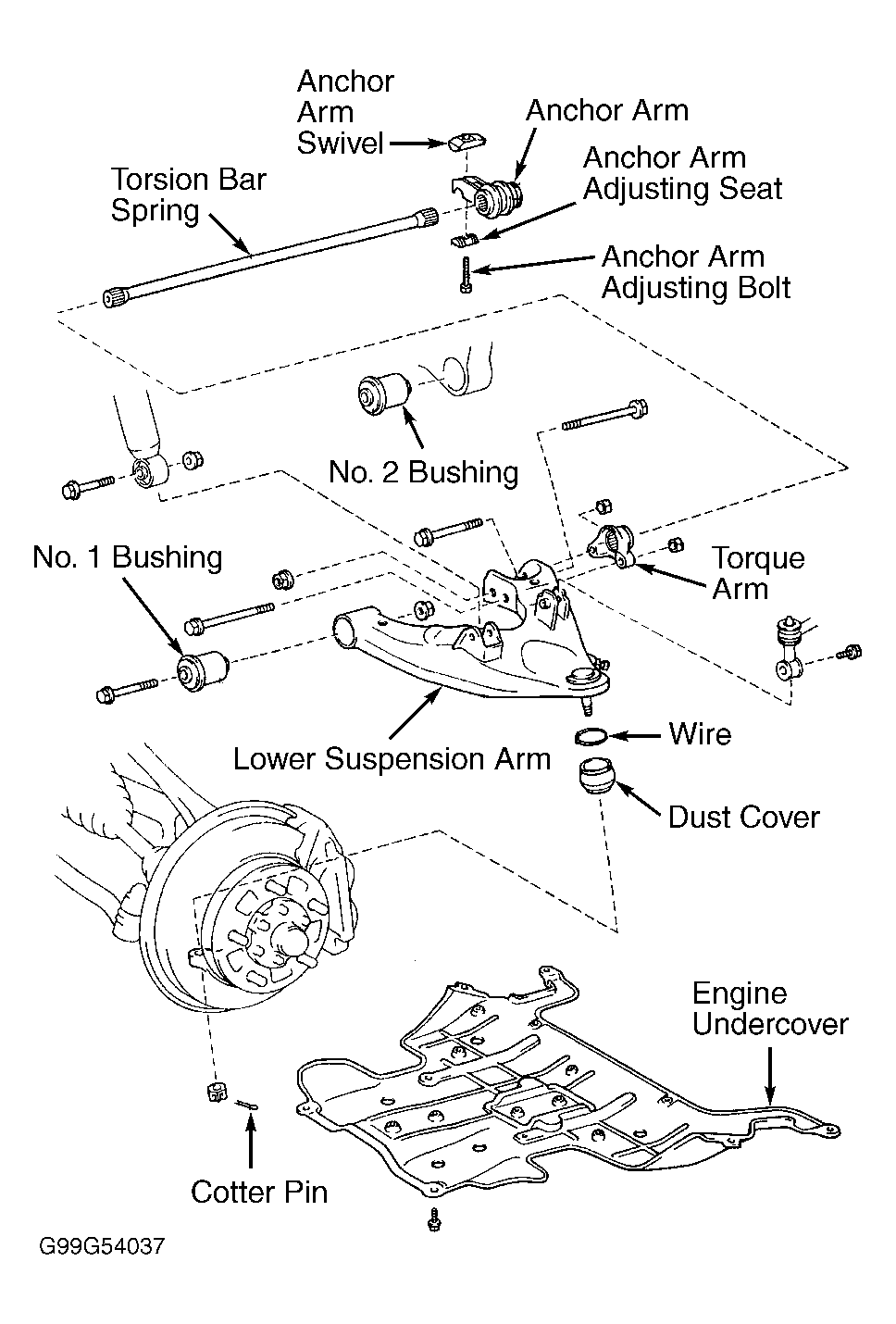

Fig 3: Exploded View Of Lower Control Arm Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

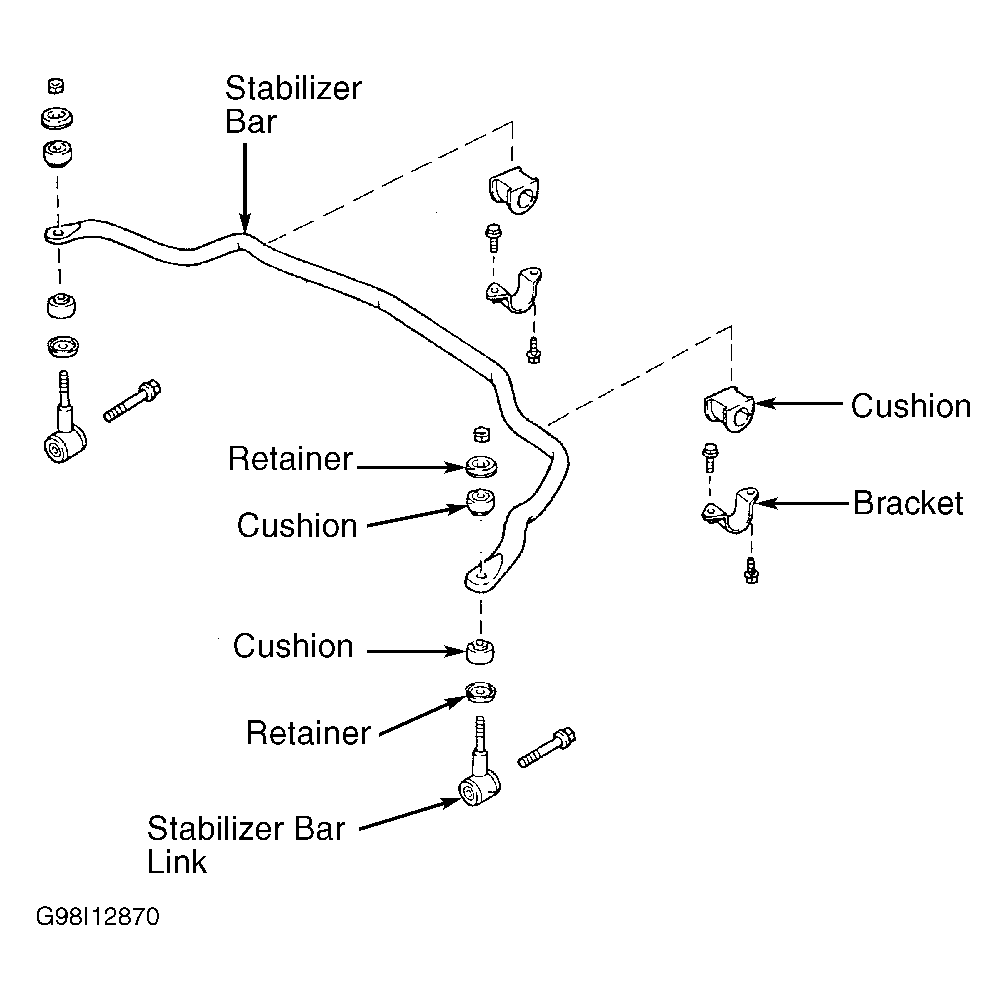

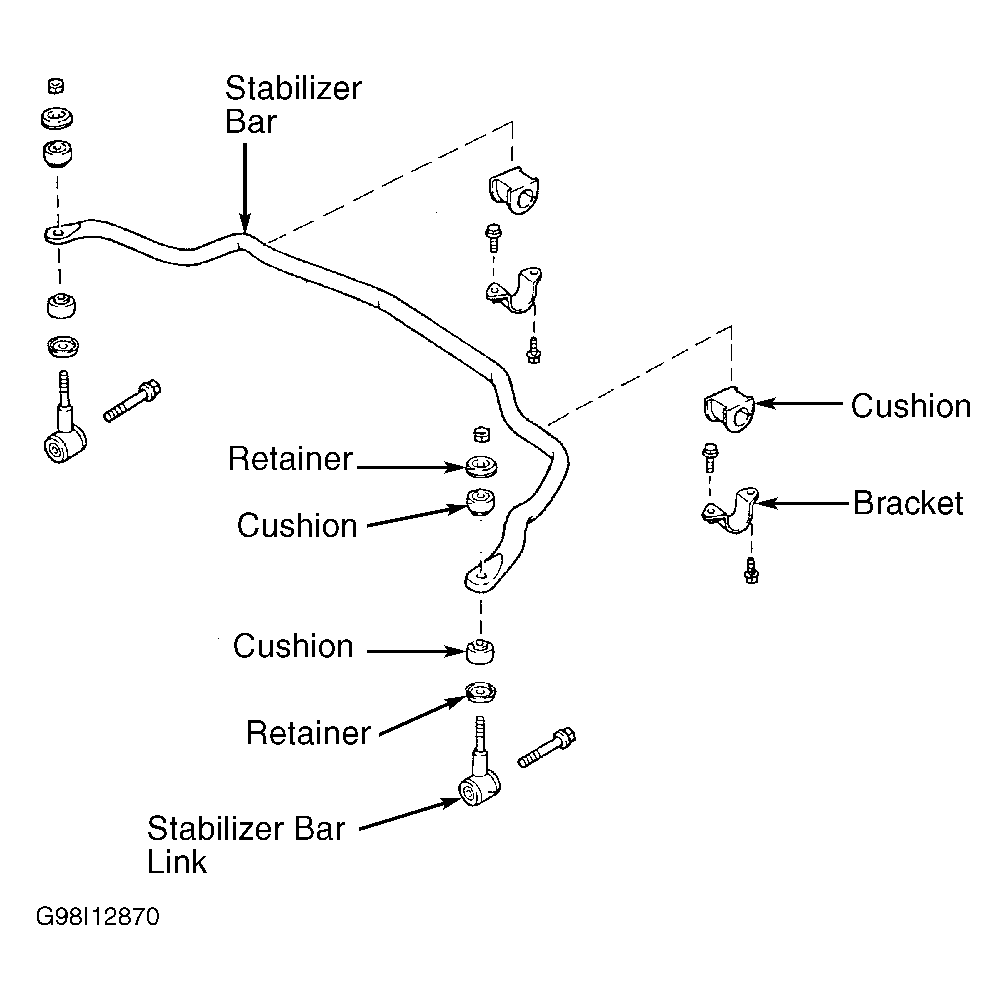

Fig 4: Exploded View Of Stabilizer Bar

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
